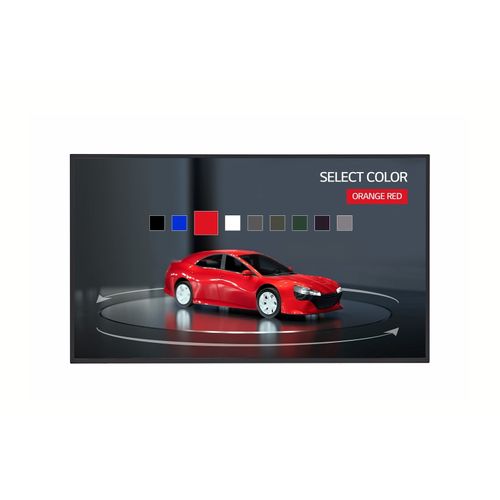

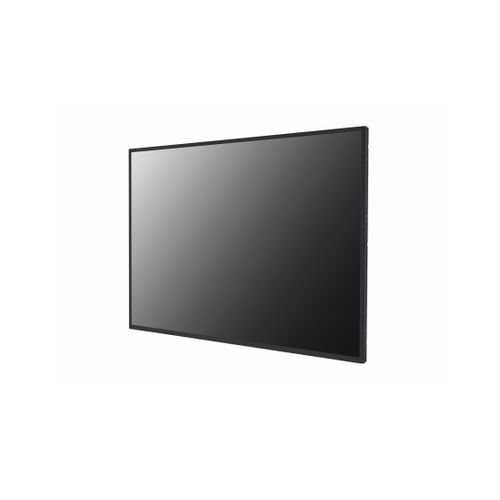

LG 55TNF5J Digital signage flat panel 139.7 cm (55") IPS 450 cd/m² UHD+ Black Touchscreen 24/7
LG 55TNF5J, Digital signage flat panel, 139.7 cm (55"), IPS, 3840 x 2160 pixels, 24/7
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | LG |
| Product code | 229290362 |
| EAN | 08806091435675 |
| Manufacturer part number | 55TNF5J-B.AEU |
| Category | Monitors |
| Display | |
|---|---|
| Display diagonal | 139.7 cm (55") |
| Display technology | IPS |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 450 cd/m² |
| HD type | UHD+ |
| Touchscreen | Y |
| Response time | 9 ms |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Colour saturation | 72% |
| Haze rate | 3% |
| On Screen Display (OSD) | Y |
| Ports & interfaces | |
|---|---|
| HDMI ports quantity | 2 |
| USB port | Y |
| HDMI version | 2.2 |
| HDMI input ports quantity | 2 |
| USB ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-232C | Y |
| Remote (IR) input | 1 |
| Network | |
|---|---|
| Ethernet LAN | Y |
| Features | |
|---|---|
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| Product design | Digital signage flat panel |
| Placement supported | Indoor |
| VESA mounting | Y |
| Panel mounting interface | 300 x 300 mm |
| HDCP | Y |
| HDCP version | 1.4 |
| Certification | EMCFCC Class "A"/ CE / KC, ErP |
| Outputs | |
|---|---|
| Audio (L/R) out | 1 |
| Design | |
|---|---|
| Product colour | Black |
| Orientation | Horizontal/Vertical |
| Ergonomics | |
|---|---|
| Number of OSD languages | 20 |
| On Screen Display (OSD) languages | Arabic, Simplified Chinese, Traditional Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Greek, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Swedish, Turkish |
| Performance | |
|---|---|
| Operating hours (hours/days) | 24/7 |
| Heat dissipation | 433 BTU/h |
| Power | |
|---|---|
| Power consumption (typical) | 127 W |
| Energy consumption (SDR) per 1000 hours | 122 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency scale | A to G |
| Memory | |
|---|---|
| Internal memory | 8 GB |
| Weight & dimensions | |
|---|---|
| Width | 1231.8 mm |
| Depth | 39.2 mm |
| Height | 709.6 mm |
| Weight | 16.8 kg |
| Other features | |
|---|---|
| Remote control included | Y |
| Packaging content | |
|---|---|
| Cables included | AC, USB Type-A to USB Type-B |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 80% |
Product Description
New In-Cell Touch Open Frame for Optimal Customization
Slim & Light
The In-Cell Touch Open Frame has a touch function built into the display, allowing for the implementation of a slim design and a narrow bezel compared to general touch products that require additional touch parts (Film).
Clear Picture Quality
Compared to general touch products, TNF5J implements clear picture quality without milk effects caused by additional touch sensor film parts.
Design Flexibility
By providing integrated parts such as touchscreen, display, and webOS, users can realize free design for their own needs.
24hrs / 7days
TNF5J’s excellent durability allows for use in kiosks that require a full day of operation.
Wide Viewing Angle
IPS panel technology provides better control of the liquid crystals, which in turn allows the screen to be viewed at virtually any angle.
45-degree Tilt
(Face up) Installation Possible
When a display is installed at low places, it is usually tilted for the user’s viewing comfort. Considering this, the installation with a max tilt of 45 degrees is supported.
10 Points of Multi-Touch
The TNF5J provides a more realistic touch sensation since it can recognize up to 10 points of multi-touch at once, and various touchbased user services can be provided through the screen.
High-Performance with webOS 6.0
webOS 6.0, upgraded in SoC and web engine, is available on TNF5J for a smooth execution of several tasks. LG webOS smart signage platform enhances user convenience with intuitive GUI and provides to SI or/and developers simple app development tools such as SDK (Software Development Kit), SCAP, sample applications.
Slim & Light
The In-Cell Touch Open Frame has a touch function built into the display, allowing for the implementation of a slim design and a narrow bezel compared to general touch products that require additional touch parts (Film).
Clear Picture Quality
Compared to general touch products, TNF5J implements clear picture quality without milk effects caused by additional touch sensor film parts.
Design Flexibility
By providing integrated parts such as touchscreen, display, and webOS, users can realize free design for their own needs.
24hrs / 7days
TNF5J’s excellent durability allows for use in kiosks that require a full day of operation.
Wide Viewing Angle
IPS panel technology provides better control of the liquid crystals, which in turn allows the screen to be viewed at virtually any angle.
45-degree Tilt
(Face up) Installation Possible
When a display is installed at low places, it is usually tilted for the user’s viewing comfort. Considering this, the installation with a max tilt of 45 degrees is supported.
10 Points of Multi-Touch
The TNF5J provides a more realistic touch sensation since it can recognize up to 10 points of multi-touch at once, and various touchbased user services can be provided through the screen.
High-Performance with webOS 6.0
webOS 6.0, upgraded in SoC and web engine, is available on TNF5J for a smooth execution of several tasks. LG webOS smart signage platform enhances user convenience with intuitive GUI and provides to SI or/and developers simple app development tools such as SDK (Software Development Kit), SCAP, sample applications.
