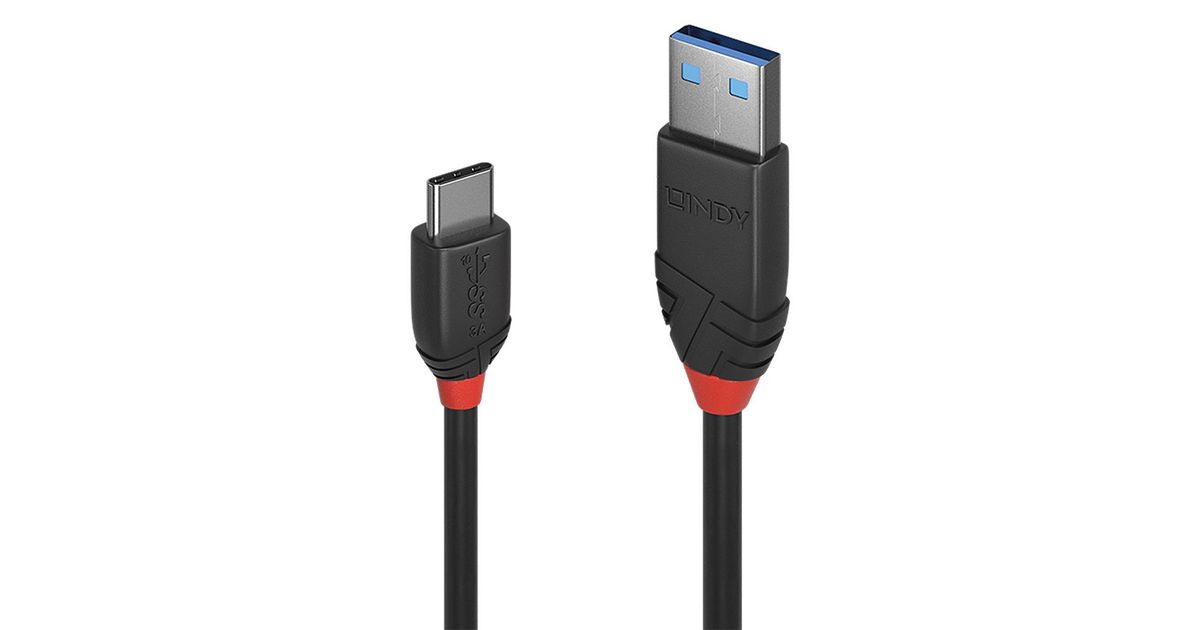

Lindy 0.5m USB 3.2 Type A to C Cable 3A, Black Line
Lindy 0.5m USB 3.2 Type A to C Cable 3A, Black Line, 0.5 m, USB A, USB C, USB 3.2 Gen 1 (3.1 Gen 1), 10000 Mbit/s, Black
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Lindy |
| Product code | 129061131 |
| EAN | 04002888369152 |
| Manufacturer part number | 36915 |
| Category | USB Cables |
| Features | |
|---|---|
| Cable length | 0.5 m |
| USB version | USB 3.2 Gen 1 (3.1 Gen 1) |
| Connector 1 | USB A |
| Connector 2 | USB C |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| AWG wire size | 26/30/30 |
| Connector material | Nickel |
| Contact material | Phosphor bronze |
| Connector contacts plating | Gold |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Conductor material | Tinned copper |
| Connector shielding | Y |
| Connector shield material | Aluminium |
| Connector housing material | Polyvinyl chloride (PVC) |
| Maximum data transfer rate | 10000 Mbit/s |
| Plug and Play | Y |
| Cable type | Round cable |
| Nominal attenuation | 0.5Mhz €“ 15Ghz 40db |
| Certification | RoHS, REACH, UL |
| Harmonized System (HS) code | 84733080 |
| Design | |
|---|---|
| Product colour | Black |
| Weight & dimensions | |
|---|---|
| Cable diameter | 4.5 mm |
| Bend radius (min) | 4.5 cm |
| Connector 1 dimensions (WxDxH) | 15.5 x 35.1 x 7.8 mm |
| Connector 2 dimensions (WxDxH) | 11 x 25.5 x 7.3 mm |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package type | Polybag |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -20 - 80 °C |
| Storage temperature (T-T) | -25 - 85 °C |
Product Description
Entry level USB 3.2 Gen 2 Type A to C cable for home and small office applications
SuperSpeed USB 10Gbps - supports data transfer speeds up to 10Gbps (USB 3.1, USB 3.1 Gen 2)
Robust PVC housing, nickel connectors, gold plated contacts
Triple shielded cable, corrosion resistant tinned copper conductors
10 year warranty
The Black Line USB 3.2 Type A to C cables from Lindy's Cable Lines concept are fully featured, entry level high resolution connection solutions, perfect for home and small office use.
Black Line USB 3.2 Type A to C cables feature triple shielded construction with tinned copper conductors for premium performance and corrosion resistance. Nickel connectors and gold plated contacts maintain signal integrity and reliability.
USB bandwidths up to 10Gbps are supported for rapid transfer of large data volumes.
USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.
Black Line USB 3.2 Type A to C cables are available in the following lengths: 0.15m, 0.5m, 1m and 1.5m.
We have adapted the naming of our USB 3 cables to follow the updated USB specification.
USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5Gbps
USB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 Gbps
USB 3.2 Gen 2x2 is a new standard, supporting data transfer rates up to 20 Gbps
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
SuperSpeed USB 10Gbps - supports data transfer speeds up to 10Gbps (USB 3.1, USB 3.1 Gen 2)
Robust PVC housing, nickel connectors, gold plated contacts
Triple shielded cable, corrosion resistant tinned copper conductors
10 year warranty
The Black Line USB 3.2 Type A to C cables from Lindy's Cable Lines concept are fully featured, entry level high resolution connection solutions, perfect for home and small office use.
Black Line USB 3.2 Type A to C cables feature triple shielded construction with tinned copper conductors for premium performance and corrosion resistance. Nickel connectors and gold plated contacts maintain signal integrity and reliability.
USB bandwidths up to 10Gbps are supported for rapid transfer of large data volumes.
USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.
Black Line USB 3.2 Type A to C cables are available in the following lengths: 0.15m, 0.5m, 1m and 1.5m.
We have adapted the naming of our USB 3 cables to follow the updated USB specification.
USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5Gbps
USB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 Gbps
USB 3.2 Gen 2x2 is a new standard, supporting data transfer rates up to 20 Gbps
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
