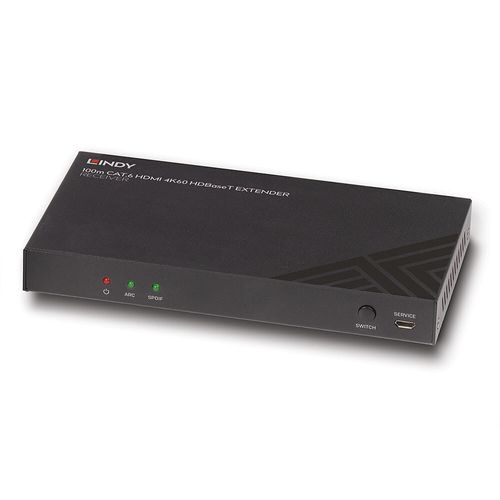

Lindy 100m Cat.6 HDMI 4K60 HDBaseT Receiver
Lindy 100m Cat.6 HDMI 4K60 HDBaseT Receiver, 3840 x 2160 pixels, AV receiver, 100 m, Wired, Black, HDCP
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Lindy |
| Product code | 166324127 |
| EAN | 04002888383424 |
| Manufacturer part number | 38342 |
| Category | Other AV & electronics |
| Features | |
|---|---|
| Type | AV receiver |
| EDID management | Y |
| CEC pass-through | Y |
| HDCP | Y |
| HDCP version | 2.2 |
| HDBaseT certified | Y |
| Certification | CE, UKCA, FCC, RoHS, REACH & California Proposition 65 |
| Graphics | |
|---|---|
| Maximum resolution | 3840 x 2160 pixels |
| Network | |
|---|---|
| Cable types supported | Cat6 |
| Performance | |
|---|---|
| Maximum transfer distance | 100 m |
| Chipset | VS2310TX-A1 |
| Infrared (IR) frequency range | 20 - 60 kHz |
| Design | |
|---|---|
| Product colour | Black |
| Keyboard | |
|---|---|
| Connectivity technology | Wired |
| Ports & interfaces | |
|---|---|
| RJ-45 input ports | 1 |
| Number of HDMI outputs | 1 |
| 3.5 mm (1/8-inch) in | Y |
| 3.5 mm (1/8-inch) out | Y |
| Optical fiber | |
|---|---|
| Fiber optic connector | TOSLINK |
| Power | |
|---|---|
| Operating voltage | 24 V |
| Output current | 1 A |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 163 mm |
| Depth | 90 mm |
| Height | 16 mm |
| Weight | 380 g |
| Package weight | 800 g |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 220 mm |
| Package depth | 70 mm |
| Package height | 130 mm |
| Mounting brackets included | Y |
| Packaging content | |
|---|---|
| AC adapter included | Y |
| Cables included | AC, IR |
| Manual | Y |
Product Description
Distributes HDMI resolutions up to 100m over Cat.6 network cable via HDBaseT technology_x000D_
Supports HDMI 18G resolutions up to 4K@60Hz 4:4:4, with additional support for HDR_x000D_
ARC Support as well as RS-232, CEC & Ethernet pass-through & bi-directional IR for simple control_x000D_
Supports PoC (Power over cable), requiring a power supply connection from only one side of the installation_x000D_
2 year warranty_x000D_
_x000D_
The Lindy 100m Cat.6 HDMI 4K60, Audio, IR & RS-232 HDBaseT Receiver is one part of a high performance, reliable solution for extending HDMI signals over long distances via Cat.6 network cable. By combining this receiver unit with a compatible Lindy HDBaseT transmitter (i.e 38341), this solution ensures reliable transmission up to 100m._x000D_
_x000D_
The following distance and resolution combinations are possible when using high quality Cat.6 U/UTP or F/UTP cable:_x000D_
_x000D_
100m: 1920x1080@60Hz 4:4:4 8bit_x000D_
_x000D_
70m: 3840x2160@60Hz 4:4:4 8bit / 4:2:2 12bit_x000D_
_x000D_
Supporting resolutions up to 4K Ultra HD, video can be viewed in stunning clarity, while additional support for HDR (High Dynamic Range) allows content to be displayed with enhanced brightness, greater contrasts of blacks and whites and a much wider colour gamut. This provides a reliable solution for creating eye-catching digital signage in retail, immersive displays at events or engaging setups in larger conference rooms or lectures halls._x000D_
_x000D_
ARC support over HDMI allows for audio content to be returned from the display to a connected amplifier or soundbar, while local audio extraction allows for the connection of audio outputs for immersive multi-channel audio. Digital audio embedding at the receiver side can also be used for source audio, which can easily be switching via the push button on the main unit._x000D_
_x000D_
PoC (Power over Cable) functionality provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point-to-point connection between the transmitter and receiver, meaning only a single power supply is required at the transmitter unit. Ideal when power outlets are limited at the receiver end of the installation._x000D_
_x000D_
Featuring bi-directional IR ports at both sides of the setup, the source equipment can be easily controlled from the display side, and the display can also be controlled from the HDMI source side. Combined with CEC control, which allows commands from one main remote, this extension system allows for complete and simple control for the user. Bi-directional RS-232 and Ethernet ports also allow for integration into larger control systems, or connection to network switches and hubs with LAN access._x000D_
_x000D_
In addition, the power supply is connected via a screw type DC jack, providing a more secure and reliable connection, perfect for professional installations where accidental disconnections could create a major issue._x000D_
_x000D_
HDBaseT is a globally recognised standard for high quality distribution of AV content and other technologies, including power and control, over longer distances via low cost Cat.6 or above cable._x000D_
_x000D_
HDBaseT™ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.able. Using a different cable type, introducing wall plates, couplers or patch panels will result in a reduction of possible distances._x000D_
_x000D_
Please Note: This product uses the DSC method of compression to achieve 18G resolutions. If using another 18G HDBaseT product combined with this, please ensure both products support the same compression type._x000D_
Supports HDMI 18G resolutions up to 4K@60Hz 4:4:4, with additional support for HDR_x000D_
ARC Support as well as RS-232, CEC & Ethernet pass-through & bi-directional IR for simple control_x000D_
Supports PoC (Power over cable), requiring a power supply connection from only one side of the installation_x000D_
2 year warranty_x000D_
_x000D_
The Lindy 100m Cat.6 HDMI 4K60, Audio, IR & RS-232 HDBaseT Receiver is one part of a high performance, reliable solution for extending HDMI signals over long distances via Cat.6 network cable. By combining this receiver unit with a compatible Lindy HDBaseT transmitter (i.e 38341), this solution ensures reliable transmission up to 100m._x000D_
_x000D_
The following distance and resolution combinations are possible when using high quality Cat.6 U/UTP or F/UTP cable:_x000D_
_x000D_
100m: 1920x1080@60Hz 4:4:4 8bit_x000D_
_x000D_
70m: 3840x2160@60Hz 4:4:4 8bit / 4:2:2 12bit_x000D_
_x000D_
Supporting resolutions up to 4K Ultra HD, video can be viewed in stunning clarity, while additional support for HDR (High Dynamic Range) allows content to be displayed with enhanced brightness, greater contrasts of blacks and whites and a much wider colour gamut. This provides a reliable solution for creating eye-catching digital signage in retail, immersive displays at events or engaging setups in larger conference rooms or lectures halls._x000D_
_x000D_
ARC support over HDMI allows for audio content to be returned from the display to a connected amplifier or soundbar, while local audio extraction allows for the connection of audio outputs for immersive multi-channel audio. Digital audio embedding at the receiver side can also be used for source audio, which can easily be switching via the push button on the main unit._x000D_
_x000D_
PoC (Power over Cable) functionality provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point-to-point connection between the transmitter and receiver, meaning only a single power supply is required at the transmitter unit. Ideal when power outlets are limited at the receiver end of the installation._x000D_
_x000D_
Featuring bi-directional IR ports at both sides of the setup, the source equipment can be easily controlled from the display side, and the display can also be controlled from the HDMI source side. Combined with CEC control, which allows commands from one main remote, this extension system allows for complete and simple control for the user. Bi-directional RS-232 and Ethernet ports also allow for integration into larger control systems, or connection to network switches and hubs with LAN access._x000D_
_x000D_
In addition, the power supply is connected via a screw type DC jack, providing a more secure and reliable connection, perfect for professional installations where accidental disconnections could create a major issue._x000D_
_x000D_
HDBaseT is a globally recognised standard for high quality distribution of AV content and other technologies, including power and control, over longer distances via low cost Cat.6 or above cable._x000D_
_x000D_
HDBaseT™ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.able. Using a different cable type, introducing wall plates, couplers or patch panels will result in a reduction of possible distances._x000D_
_x000D_
Please Note: This product uses the DSC method of compression to achieve 18G resolutions. If using another 18G HDBaseT product combined with this, please ensure both products support the same compression type._x000D_
