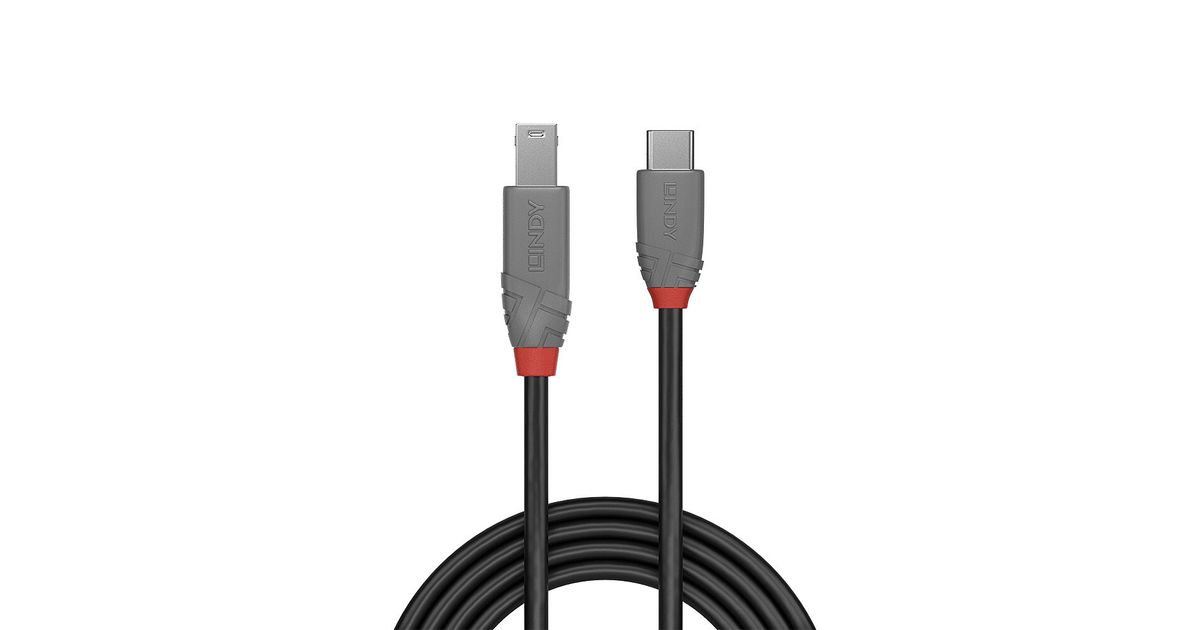

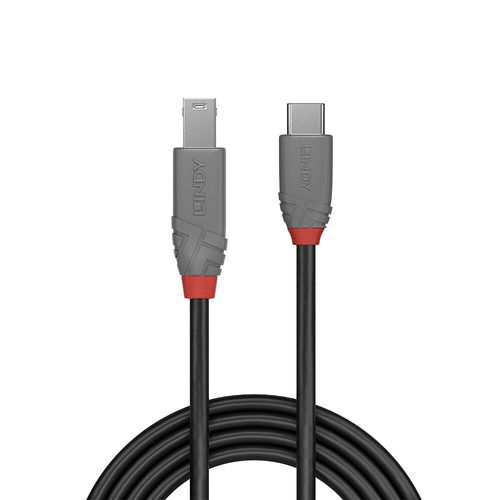

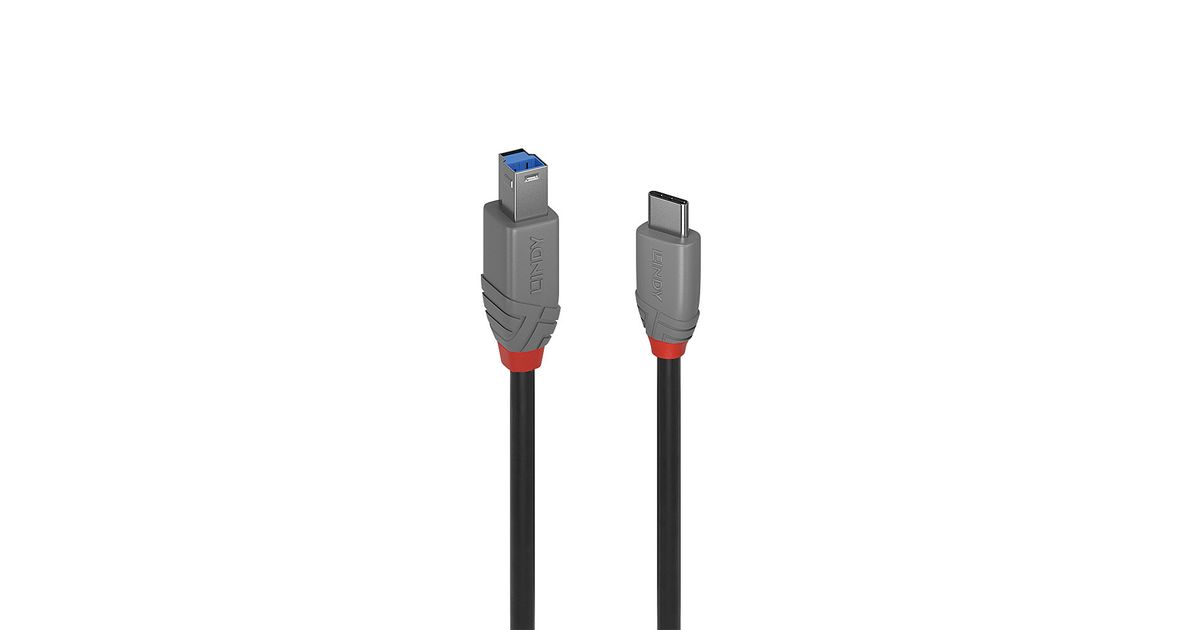

Lindy 1m USB 3.2 Type C to B Cable, Anthra Line
Lindy 1m USB 3.2 Type C to B Cable, Anthra Line, 1 m, USB C, USB B, USB 3.2 Gen 1 (3.1 Gen 1), 500 Mbit/s, Black
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Lindy |
| Product code | 166981135 |
| EAN | 04002888366663 |
| Manufacturer part number | 36666 |
| Category | USB cables and adapters |
| Features | |
|---|---|
| Cable length | 1 m |
| USB version | USB 3.2 Gen 1 (3.1 Gen 1) |
| Connector 1 | USB C |
| Connector 2 | USB B |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| AWG wire size | 22/30 |
| Connector contacts plating | Nickel |
| Cable jacket material | Nylon/Polyvinyl Chloride (PVC) |
| Conductor material | Tinned copper |
| Connector shielding | Y |
| Connector shield material | Copper |
| Maximum data transfer rate | 500 Mbit/s |
| Cable type | Round cable |
| Certification | RoHS, REACH, California Proposition 65, UL |
| Design | |
|---|---|
| Product colour | Black |
| Weight & dimensions | |
|---|---|
| Cable diameter | 4.3 mm |
| Bend radius (min) | 2.5 cm |
| Connector 1 dimensions (WxDxH) | 10.8 x 32 x 7.8 mm |
| Connector 2 dimensions (WxDxH) | 12.2 x 46 x 10 mm |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package type | Polybag |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | 0 - 70 °C |
Product Description
The Anthra Line USB 3.2 Type C to B cables from Lindy's Cable Lines concept are the professional choice for high performance connections in commercial AV and IT installations.
They are premium connections that feature triple shielded construction with tinned copper conductors for performance and corrosion resistance. High quality gold plated contacts and nickel plated connectors maintain optimal signal integrity and maximum reliability.
USB bandwidths up to 5Gbps are supported for rapid transfer of large data volumes.
USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.
Anthra Line USB 3.2 Type C to B cables are available in the following lengths: 0.5m, 1m, 2m and 3m.
Information about USB generations
We have adapted the naming of our USB 3 cables to follow the updated USB specification.
USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5Gbps
USB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 Gbps
USB 3.2 Gen 2x2 is a new standard, supporting data transfer rates up to 20 Gbps
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
They are premium connections that feature triple shielded construction with tinned copper conductors for performance and corrosion resistance. High quality gold plated contacts and nickel plated connectors maintain optimal signal integrity and maximum reliability.
USB bandwidths up to 5Gbps are supported for rapid transfer of large data volumes.
USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.
Anthra Line USB 3.2 Type C to B cables are available in the following lengths: 0.5m, 1m, 2m and 3m.
