Lindy 35404 video splitter VGA
Lindy 35404, VGA, VGA, Cat5e,Cat6, 1920 x 1080 pixels, Black, Full HD
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Lindy |
| Product code | 214500128 |
| EAN | 04002888354042 |
| Manufacturer part number | 35404 |
| Category | VM switches and accessories |
| Ports & interfaces | |
|---|---|
| Video ports quantity | 1 |
| Video port type | VGA |
| Video out | VGA |
| Ethernet LAN (RJ-45) ports | 4 |
| Audio ports quantity | 1 |
| DC-in jack | Y |
| Network | |
|---|---|
| Cable types supported | Cat5e,Cat6 |
| Maximum operating distance | 300 m |
| Graphics | |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Design | |
|---|---|
| Product colour | Black |
| LED indicators | Y |
| Display | |
|---|---|
| HD type | Full HD |
| Power | |
|---|---|
| AC input voltage | 12 V |
| Input current | 1.2 A |
| Weight & dimensions | |
|---|---|
| Width | 135.4 mm |
| Depth | 73 mm |
| Height | 31 mm |
| Weight | 484 g |
| Package weight | 547 g |
| Packaging data | |
|---|---|
| Package width | 177 mm |
| Package depth | 110 mm |
| Package height | 75 mm |
| Packaging content | |
|---|---|
| Manual | Y |
| AC adapter included | Y |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Sustainability | |
|---|---|
| Sustainability certificates | REACH, RoHS |
Product Description

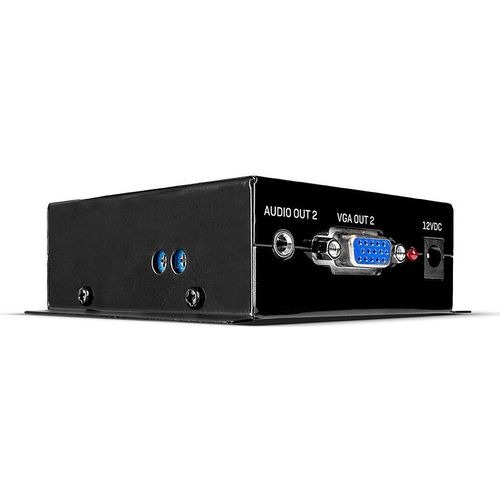

300m Cat.6 4 Port VGA Splitter Extender Transmitter
VGA splitter extenders distribute analogue video content across longer distances into multiple locations, using standard network cabling. The Lindy 300m Cat.6 4 Port VGA Splitter is a high-quality solution for extending 4 separate analogue VGA signals over long distances using standard network cables when combined with the compatible receiver unit (35404). Supporting resolutions up to 1920x1080, this extender splitter provides high quality video for up to 4 separate distribution zones, such as classrooms or in security facilities. A 3.5mm female port ensures source devices or embedded audio can be added within the connection. The VGA loop-out allows for the connection of a local display, great for monitoring and control of the setup. Dual mono audio extraction also provides the possibility of connecting speakers to the local setup. The transmitter has a robust metal housing with mounting brackets, providing additional protection against accidental damage, ideal for use in industrial installations.
