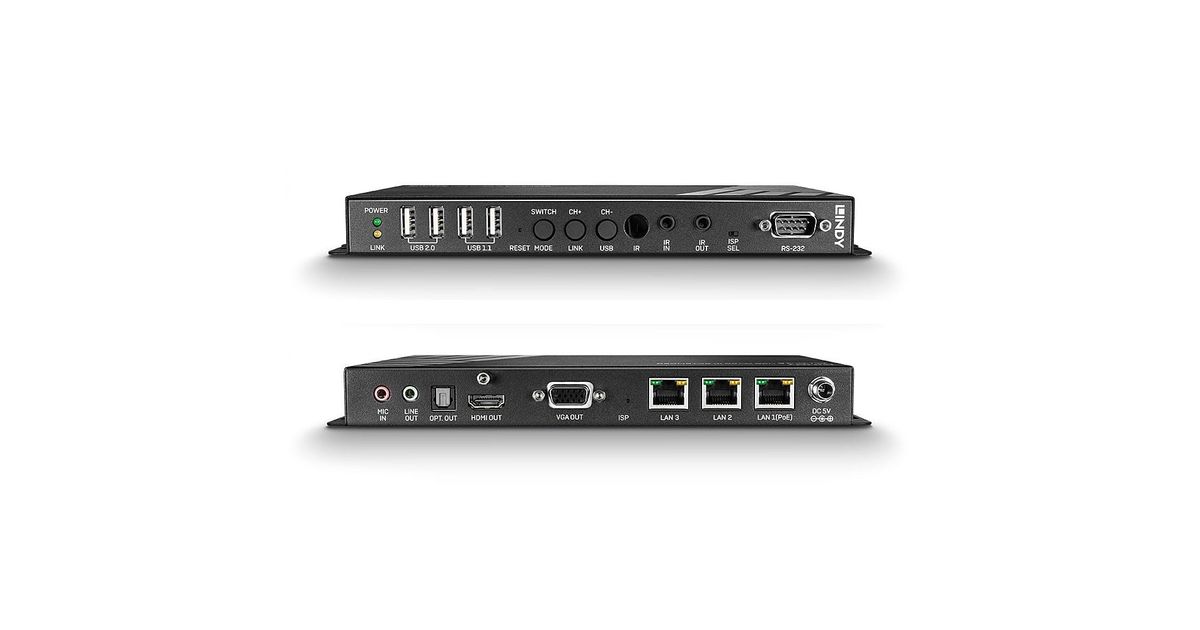

Lindy 38267 AV extender AV receiver Black
Lindy 38267, 3840 x 2160 pixels, AV receiver, 100 m, Wired, Black, HDCP
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Lindy |
| Product code | 21824946 |
| EAN | 02050004959819 |
| Manufacturer part number | 38267 |
| Category | Other AV & electronics |
| Features | |
|---|---|
| Type | AV receiver |
| Supported graphics resolutions | 1920 x 1200 (WUXGA),3840 x 2160 |
| Bandwidth | 10.2 Gbit/s |
| HDCP | Y |
| Material | Metal |
| HDCP version | 2.2 |
| Certification | CE, FCC, REACH |
| USB version | 2.0 |
| USB connector type | USB Type-A |
| Graphics | |
|---|---|
| Maximum resolution | 3840 x 2160 pixels |
| Network | |
|---|---|
| Cable types supported | Cat6 |
| Performance | |
|---|---|
| Maximum transfer distance | 100 m |
| Display | |
|---|---|
| Maximum refresh rate | 60 Hz |
| Design | |
|---|---|
| LED indicators | Link, Power |
| Product colour | Black |
| Keyboard | |
|---|---|
| Connectivity technology | Wired |
| Ports & interfaces | |
|---|---|
| RJ-45 output ports | 3 |
| VGA (D-Sub) output ports | 1 |
| Number of HDMI outputs | 1 |
| HDMI version | 2.0 |
| USB ports quantity | 4 |
| Serial interface type | RS-232 |
| DC-in jack | Y |
| Rear panel I/O ports | |
|---|---|
| Digital audio optical out | 1 |
| Serial ports quantity | 1 |
| Power | |
|---|---|
| Operating voltage | 5 V |
| Input current | 4 A |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 235 mm |
| Depth | 25 mm |
| Height | 108 mm |
| Weight | 670 g |
| Package weight | 1.4 kg |
| Packaging data | |
|---|---|
| Package width | 225 mm |
| Package depth | 190 mm |
| Package height | 80 mm |
| Packaging content | |
|---|---|
| AC adapter included | Y |
| Manual | Y |
| IR blaster included | Y |
| IR receiver included | Y |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS |
Product Description
The 4K Over IP Extender system allows users to extend a 4K video source such as a PC o PVR through a standard Gigabit IP network letting the user control it from the remote side through the extended USB interfaces.
This receiver unit can be connected to a transmitter unit (No. 38266 – not included) to create a standard point to point control system with a maximum distance of 100m (393ft).
This transmitter can also be connected to many receivers, allowing a single device to be controlled from different consoles at the receiver end or creating a Video Wall installation via a dedicated Gigabit Ethernet (supporting 8kB Jumbo frames) switch on the same private network.
Besides the HDMI embedded audio signal, this unit also manages 2 additional audio channels (1 x Line out audio from the source side and 1 for microphone connected on the remote side) and a SPDIF optical port on the receiver unit to connect a digital audio amplifier or device.
This HDMI Over IP extender system includes a convenient bidirectional IR (20-60Khz) repeating system to allow the extension of the remote control signals.
This device is a typical solution for security system management (PVR management or control rooms) or remote server administration (though the KVM control system) as well as AV signals over IP extension for distributed monitoring of industrial facilities.
Another main application for this system is big Video Wall installation (up to 16x16 screens) widely used for digital signage and retail stores.
