Lindy 38355 video splitter HDMI
Lindy 38355, HDMI, HDMI, 3.5 mm, 3840 x 2160 pixels, Black, Metal
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Lindy |
| Product code | 167901992 |
| EAN | 04002888383554 |
| Manufacturer part number | 38355 |
| Category | Audio/video/HDMI switches and splitters |
| Ports & interfaces | |
|---|---|
| Video ports quantity | 2 |
| Video port type | HDMI |
| Video out | HDMI |
| HDMI version | 2.0 |
| Ethernet LAN (RJ-45) ports | 4 |
| Audio ports quantity | 8 |
| Headphone out | Y |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Y |
| Graphics | |
|---|---|
| Maximum resolution | 3840 x 2160 pixels |
| Design | |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| Display | |
|---|---|
| HD type | 4K Ultra HD |
| Maximum refresh rate | 60 Hz |
| Network | |
|---|---|
| Maximum operating distance | 100 m |
| Ethernet LAN | Y |
| Cable types supported | Cat6 |
| Features | |
|---|---|
| Colour depth | 8 bit |
| Data transfer rate | 18 Gbit/s |
| Weight & dimensions | |
|---|---|
| Width | 220 mm |
| Depth | 130 mm |
| Height | 40 mm |
| Weight | 1.4 kg |
| Package weight | 1.89 kg |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 285 mm |
| Package depth | 274 mm |
| Package height | 100 mm |
| Package type | Box |
| Packaging content | |
|---|---|
| Manual | Y |
| Cables included | IR, Power |
| AC adapter included | Y |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
Product Description

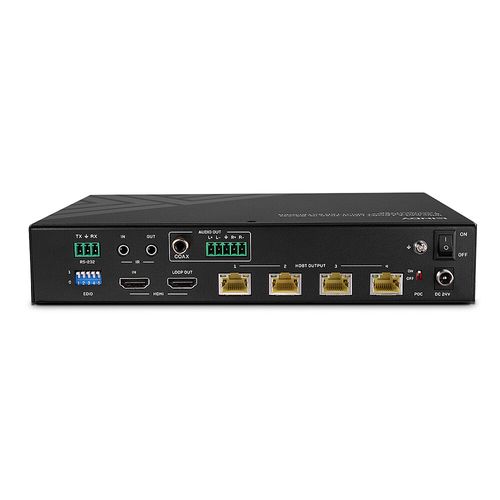

The Lindy 100m Cat.6 4 Port HDMI 4K60 HDBaseT Splitter Extender is an high end solution to Extend HDMI signals to 4 HDBaseT receivers (not included) using Cat.6 or above cables up to 100m.
Compatible with most HDBaseT receivers on the market like N. 38342 and 38214.
Supporting resolutions up to 4K60Hz including HDR and 1080p, the Splitter Extender is designed for use in Pro AV and digital signage applications for a variety of settings such as education, retail, immersive displays at events and conference rooms.
It supports several signals and features such as digital and analog de-embedded audio, IR and RS-232 control or pass-through signals. An advanced EDID management allow the user to select different EDID modes while the integrated HDMI loop-out port enables simultaneous viewing so that a local display can be connected for monitoring, or to create an additional viewing zone.
PoC (Power over Cable) functionality can be switched on and off to provide additional flexibility; this allows power to be supplied alongside data through Cat.6 network cable between the transmitter and any HDBaseT receiver with this function, meaning only a single power supply is required at the transmitter unit.
Compatible with most HDBaseT receivers on the market like N. 38342 and 38214.
Supporting resolutions up to 4K60Hz including HDR and 1080p, the Splitter Extender is designed for use in Pro AV and digital signage applications for a variety of settings such as education, retail, immersive displays at events and conference rooms.
It supports several signals and features such as digital and analog de-embedded audio, IR and RS-232 control or pass-through signals. An advanced EDID management allow the user to select different EDID modes while the integrated HDMI loop-out port enables simultaneous viewing so that a local display can be connected for monitoring, or to create an additional viewing zone.
PoC (Power over Cable) functionality can be switched on and off to provide additional flexibility; this allows power to be supplied alongside data through Cat.6 network cable between the transmitter and any HDBaseT receiver with this function, meaning only a single power supply is required at the transmitter unit.
