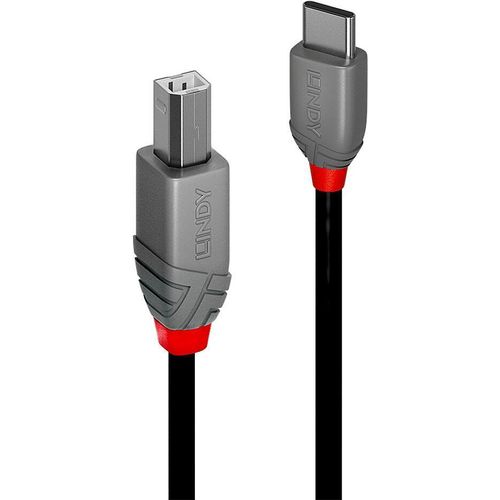

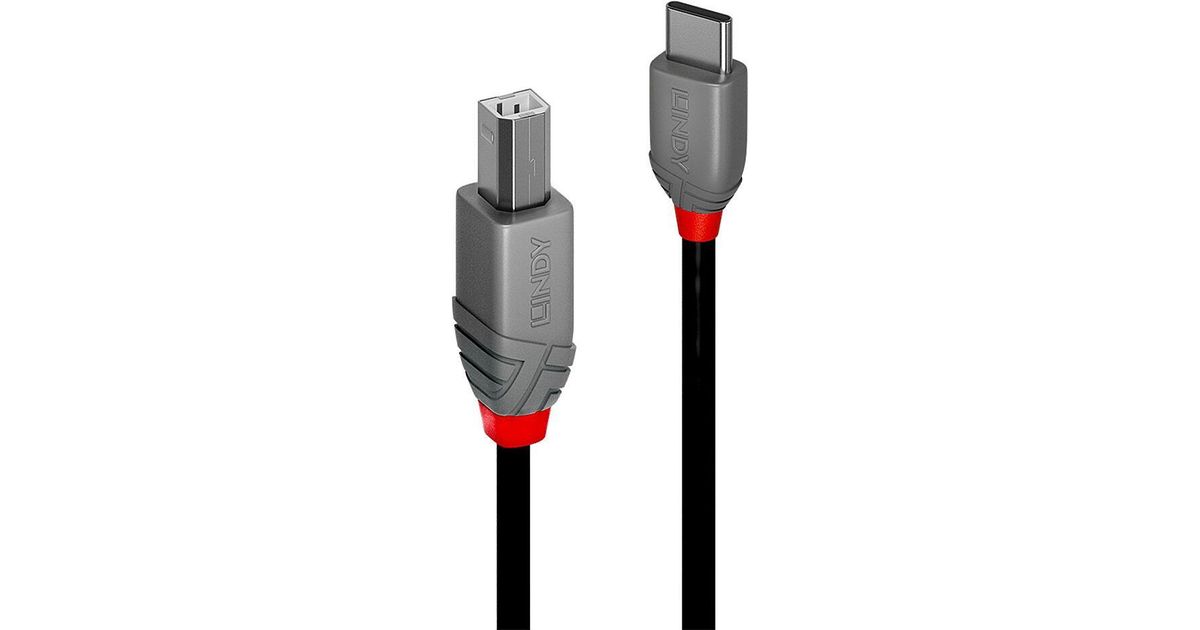

Lindy 3m USB 2.0 Typ C an B Kabel, Anthra Line
Lindy 3m USB 2.0 Typ C an B Kabel, Anthra Line, 3 m, USB C, USB B, USB 2.0, 480 Mbit/s, Black
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Lindy |
| Product code | 166432394 |
| EAN | 04002888369435 |
| Manufacturer part number | 36943 |
| Category | USB cables and adapters |
| Features | |
|---|---|
| Cable length | 3 m |
| USB version | USB 2.0 |
| Connector 1 | USB C |
| Connector 2 | USB B |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| AWG wire size | 26/28 |
| Contact material | Brass |
| Connector contacts plating | Nickel |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Conductor material | Tinned copper |
| Connector shielding | Y |
| Maximum data transfer rate | 480 Mbit/s |
| Cable type | Round cable |
| Nominal attenuation | 1-400MHz < 5.8dB |
| Harmonized System (HS) code | 84733080 |
| Design | |
|---|---|
| Product colour | Black |
| Weight & dimensions | |
|---|---|
| Cable diameter | 4.4 mm |
| Bend radius (min) | 2.5 cm |
| Connector 1 dimensions (WxDxH) | 10.9 x 28.3 x 7.2 mm |
| Connector 2 dimensions (WxDxH) | 11.8 x 47 x 10.2 mm |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package type | Polybag |
| Sustainability | |
|---|---|
| Sustainability certificates | REACH, RoHS |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | 0 - 70 °C |
Product Description
Professional choice USB 2.0 Type C to B cable for commercial and high performance AV and IT installations_x000D_
Supports data transfer speeds up to 480Mbps_x000D_
Robust PVC housing, nickel connectors and gold plated contacts_x000D_
Double shielded cable, corrosion resistant tinned copper conductors_x000D_
10 year warranty_x000D_
_x000D_
The Anthra Line USB 2.0 Type C to B cables from Lindy's Cable Lines concept are the professional choice for high performance connections in commercial AV and IT installations._x000D_
_x000D_
They are premium connections that feature double shielded construction with tinned copper conductors for performance and corrosion resistance. High quality gold plated contacts and nickel plated connectors maintain optimal signal integrity and maximum reliability._x000D_
_x000D_
Data transfer speeds up to 480Mbps are supported for the quick and effortless transfer of large data volumes._x000D_
_x000D_
USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation._x000D_
_x000D_
Anthra Line USB 2.0 Type C to B cables are available in the following lengths: 0.5m, 1m, 2m and 3m._x000D_
_x000D_
Supports data transfer speeds up to 480Mbps_x000D_
Robust PVC housing, nickel connectors and gold plated contacts_x000D_
Double shielded cable, corrosion resistant tinned copper conductors_x000D_
10 year warranty_x000D_
_x000D_
The Anthra Line USB 2.0 Type C to B cables from Lindy's Cable Lines concept are the professional choice for high performance connections in commercial AV and IT installations._x000D_
_x000D_
They are premium connections that feature double shielded construction with tinned copper conductors for performance and corrosion resistance. High quality gold plated contacts and nickel plated connectors maintain optimal signal integrity and maximum reliability._x000D_
_x000D_
Data transfer speeds up to 480Mbps are supported for the quick and effortless transfer of large data volumes._x000D_
_x000D_
USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation._x000D_
_x000D_
Anthra Line USB 2.0 Type C to B cables are available in the following lengths: 0.5m, 1m, 2m and 3m._x000D_
