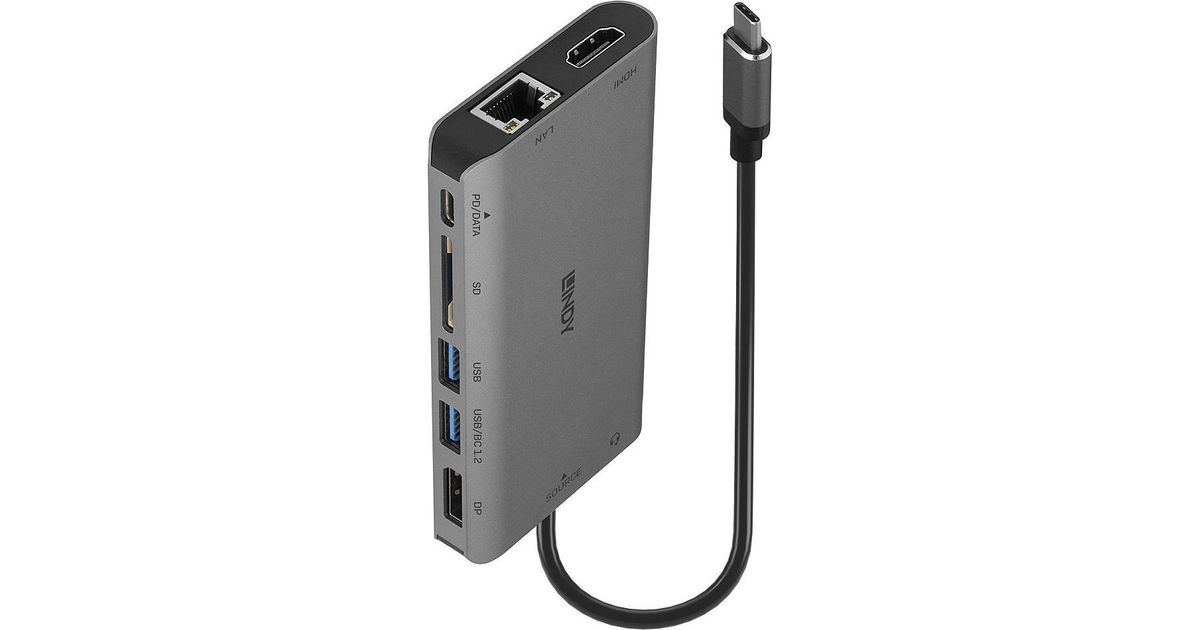

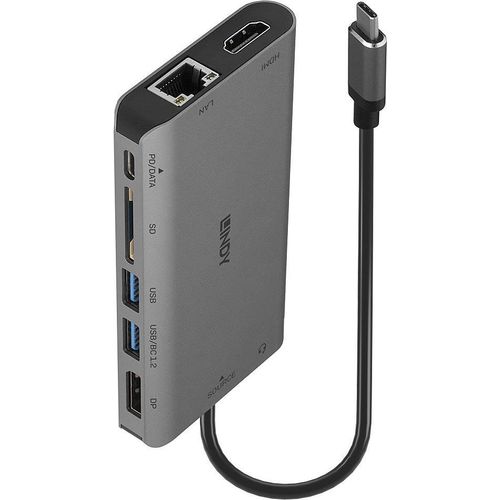

Lindy 43323 notebook dock/port replicator Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Black, Grey
Lindy 43323, Wired, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, 100 W, 1000 Mbit/s, Black, Grey, SD
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Lindy |
| Product code | 215375480 |
| EAN | 04002888433235 |
| Manufacturer part number | 43323 |
| Category | Dockingstations |
| Keyboard | |
|---|---|
| Connectivity technology | Wired |
| Ports & interfaces | |
|---|---|
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| HDMI ports quantity | 1 |
| Microphone in | N |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB Power Delivery up to | 100 W |
| HDMI version | 1.4 |
| DisplayPorts quantity | 1 |
| Combo headphone/mic port | Y |
| Ethernet LAN (RJ-45) ports | 1 |
| Features | |
|---|---|
| USB Power Delivery | Y |
| USB Power Delivery revision | 3.0 |
| DisplayPort version | 1.2 |
| HDCP | Y |
| HDCP version | 1.4 |
| Data transfer rate | 5 Gbit/s |
| Certification | CE, UKCA, FCC, REACH & RoHS |
| Network | |
|---|---|
| Ethernet LAN | Y |
| Ethernet LAN data rates | 1000 Mbit/s |
| Design | |
|---|---|
| Product colour | Black, Grey |
| Housing material | Aluminium |
| Storage | |
|---|---|
| Card reader integrated | Y |
| Compatible memory cards | SD |
| Display | |
|---|---|
| HD type | 4K Ultra HD |
| Maximum refresh rate | 30 Hz |
| Performance | |
|---|---|
| Maximum digital resolution | 3840 x 2160 pixels |
| Power source type | USB |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Sustainability | |
|---|---|
| Sustainability certificates | CE, REACH, RoHS |
| Weight & dimensions | |
|---|---|
| Width | 116.5 mm |
| Depth | 61 mm |
| Height | 16 mm |
| Weight | 115 g |
| Package weight | 150 g |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 150 mm |
| Package depth | 137 mm |
| Package height | 120 mm |
| Packaging content | |
|---|---|
| Manual | Y |
Product Description
The Lindy USB 3.2 Type C Mini Laptop Dock is a compact and versatile solution for connecting laptops to a range of interfaces including displays. Featuring all critical interfaces required for a modern workstation, this Mini Dock uses a single USB 3.2 Type C cable to connect up to two displays, while improving connectivity to other devices through Gigabit Ethernet, USB 3.2 / 3.1 Gen 1 / USB 3.0 SuperSpeed and SD card ports. It also features an Audio port for connection of a headphone or microphone.
The Mini Dock enables the connection of a display to a laptop via HDMI or DisplayPort at resolutions of 3840x2160@30Hz or of both simultaneously using DisplayPort Alternate Mode through the USB Type C port. It features a combined USB Type C data & power port which supports Power Delivery up to 100W while also transmitting data at up to 5Gbps. Power delivery 3.0 supports bidirectional power up to almost 100 Watt and enables higher voltage and current values to be negotiated between the connected devices - host or peripherals. The two integrated USB Type A ports provide up to 5Gbps of data transfer, perfect for connecting Type A peripherals such as a hard drive, printer or webcam. The right USB port also supports the USB Battery Charging Specification 1.2 for charging mobile devices, which is able to deliver 5V and up to 1.5A for faster charging compared to a standard USB port.
The Mini Dock enables the connection of a display to a laptop via HDMI or DisplayPort at resolutions of 3840x2160@30Hz or of both simultaneously using DisplayPort Alternate Mode through the USB Type C port. It features a combined USB Type C data & power port which supports Power Delivery up to 100W while also transmitting data at up to 5Gbps. Power delivery 3.0 supports bidirectional power up to almost 100 Watt and enables higher voltage and current values to be negotiated between the connected devices - host or peripherals. The two integrated USB Type A ports provide up to 5Gbps of data transfer, perfect for connecting Type A peripherals such as a hard drive, printer or webcam. The right USB port also supports the USB Battery Charging Specification 1.2 for charging mobile devices, which is able to deliver 5V and up to 1.5A for faster charging compared to a standard USB port.
