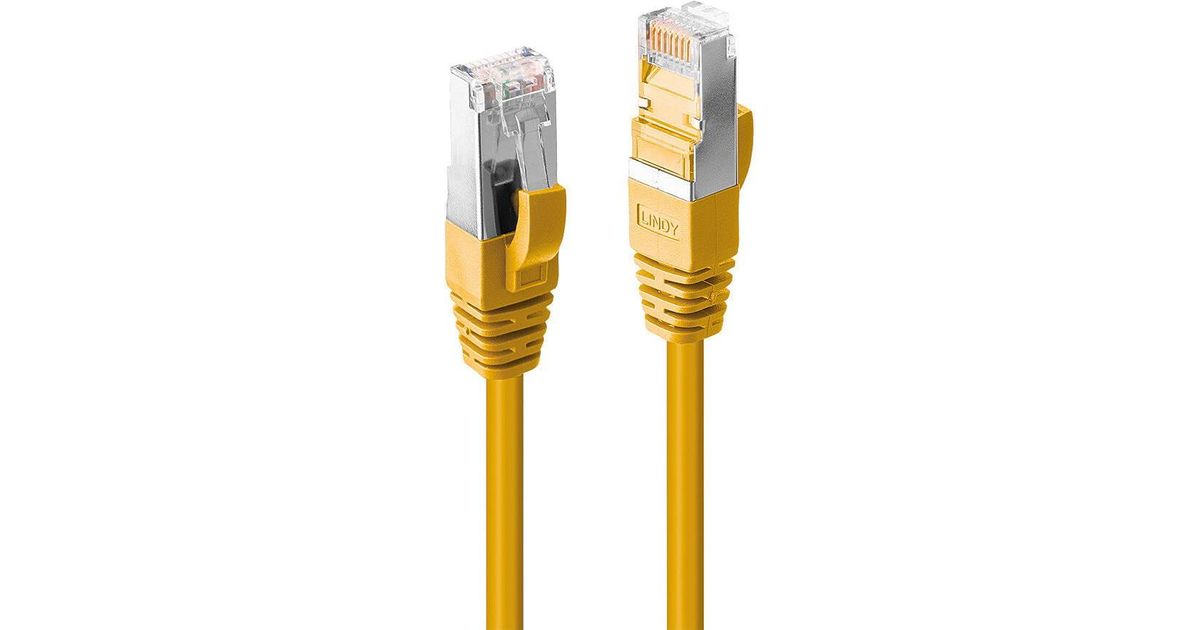

Lindy 45984 networking cable Yellow 5 m Cat6 S/FTP (S-STP)
Lindy 45984, 5 m, Cat6, S/FTP (S-STP), RJ-45, RJ-45
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Lindy |
| Product code | 167740635 |
| EAN | 04002888459846 |
| Manufacturer part number | 45984 |
| Category | Network cables |
| Features | |
|---|---|
| Cable length | 5 m |
| Cable standard | Cat6 |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Gold |
| Jacket material | Low smoke zero halogen (LSZH) |
| Conductor material | Copper |
| AWG wire size | 26 |
| Data transfer rate | 1000 Mbit/s |
| Frequency | 250 MHz |
| Design | |
|---|---|
| Product colour | Yellow |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -25 - 60 °C |
| Storage temperature (T-T) | -25 - 60 °C |
| Weight & dimensions | |
|---|---|
| Outer diameter | 6.2 mm |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
Product Description
Cat.6 S/FTP network cable with support for bandwidth up to 250MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T.
Cat.6 cable for operating frequencies up to 250MHz in shielded version with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6 cables are widespread throughout the professional sector. They are ideal for Gigabit Ethernet or AV extension applications. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.
Cat.6 cable for operating frequencies up to 250MHz in shielded version with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6 cables are widespread throughout the professional sector. They are ideal for Gigabit Ethernet or AV extension applications. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.
