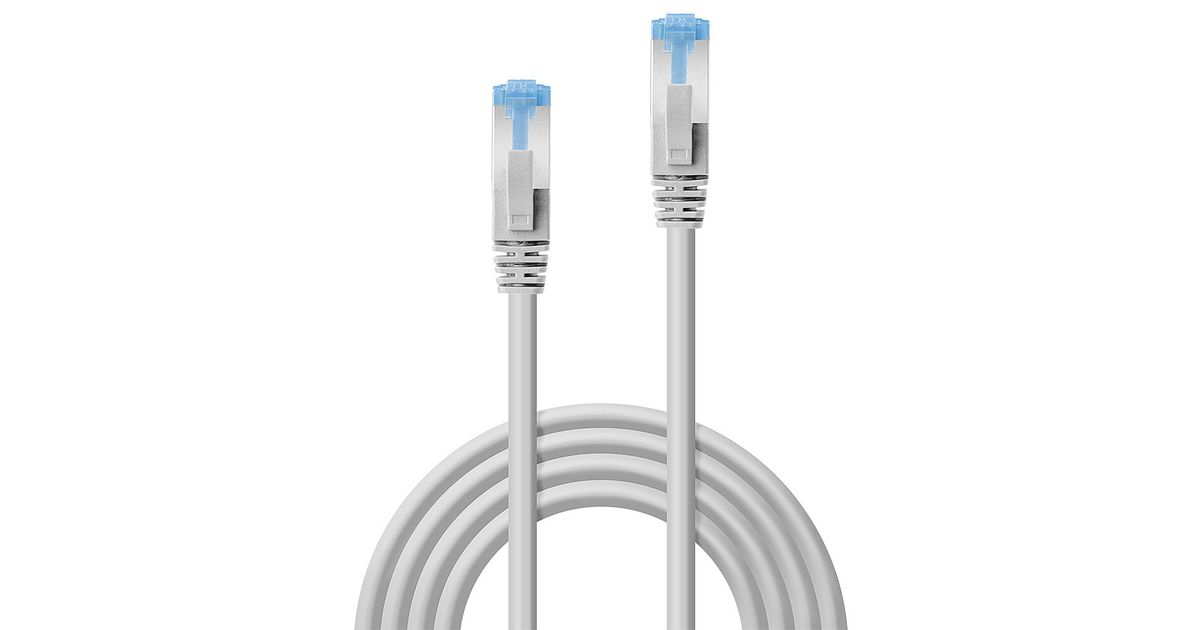

Lindy 47632 networking cable Grey 1 m Cat6 S/FTP (S-STP)
Lindy 47632, 1 m, Cat6, S/FTP (S-STP), RJ-45, RJ-45
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Lindy |
| Product code | 167871119 |
| EAN | 04002888476324 |
| Manufacturer part number | 47632 |
| Category | Network cables |
| Features | |
|---|---|
| Cable length | 1 m |
| Cable standard | Cat6 |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Nickel/Gold |
| Connector shield material | Copper alloy |
| Jacket material | Thermoplastic elastomer (TPE) |
| Cable shape | Round |
| Conductor material | Copper |
| Connector housing material | Polycarbonate (PC) |
| AWG wire size | 28 |
| Frequency | 500 MHz |
| Snagless cable boot | Y |
| Plug and Play | Y |
| Certification | RoHS, REACH, UL, California Proposition 65 |
| Quantity per box | 1 pc(s) |
| Design | |
|---|---|
| Product colour | Grey |
| Network | |
|---|---|
| Cabling technology | 10GBase-T |
| Weight & dimensions | |
|---|---|
| Bend radius (min) | 7.4 cm |
| Width | 11.6 mm |
| Depth | 22.8 mm |
| Height | 8.3 mm |
| Outer diameter | 6.2 mm |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -20 - 75 °C |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package type | Polybag |
| Sustainability | |
|---|---|
| Sustainability compliance | Y |
| Sustainability certificates | REACH, RoHS |
| Logistics data | |
|---|---|
| Warranty period | 10 year(s) |
Product Description
Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10GBase-T.
The TPE Jacket is a non-toxic alternative to PVC allowing it to be used in a variety of environments, as well as being more flexible than its counterpart with a flex rating of 10 million it has high impact and tear resistance making it a very durable jacket material.
Cat.6A cable for operating frequencies up to 500MHz in shielded version with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables are widespread throughout the professional sector. They are ideal for Gigabit Ethernet or AV extension applications. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The TPE used as a sheath material provides increased flexibility and easy handling of cables.
Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.
The TPE Jacket is a non-toxic alternative to PVC allowing it to be used in a variety of environments, as well as being more flexible than its counterpart with a flex rating of 10 million it has high impact and tear resistance making it a very durable jacket material.
Cat.6A cable for operating frequencies up to 500MHz in shielded version with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables are widespread throughout the professional sector. They are ideal for Gigabit Ethernet or AV extension applications. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The TPE used as a sheath material provides increased flexibility and easy handling of cables.
Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.
