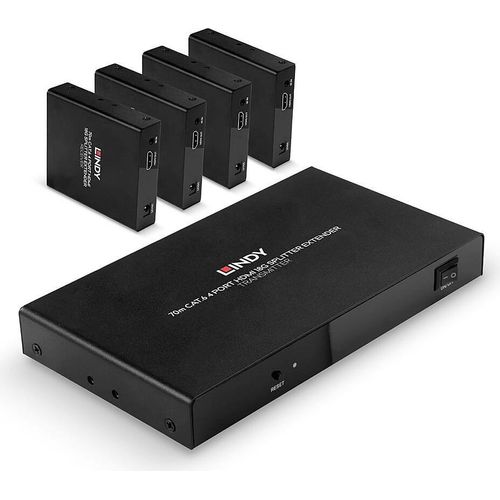

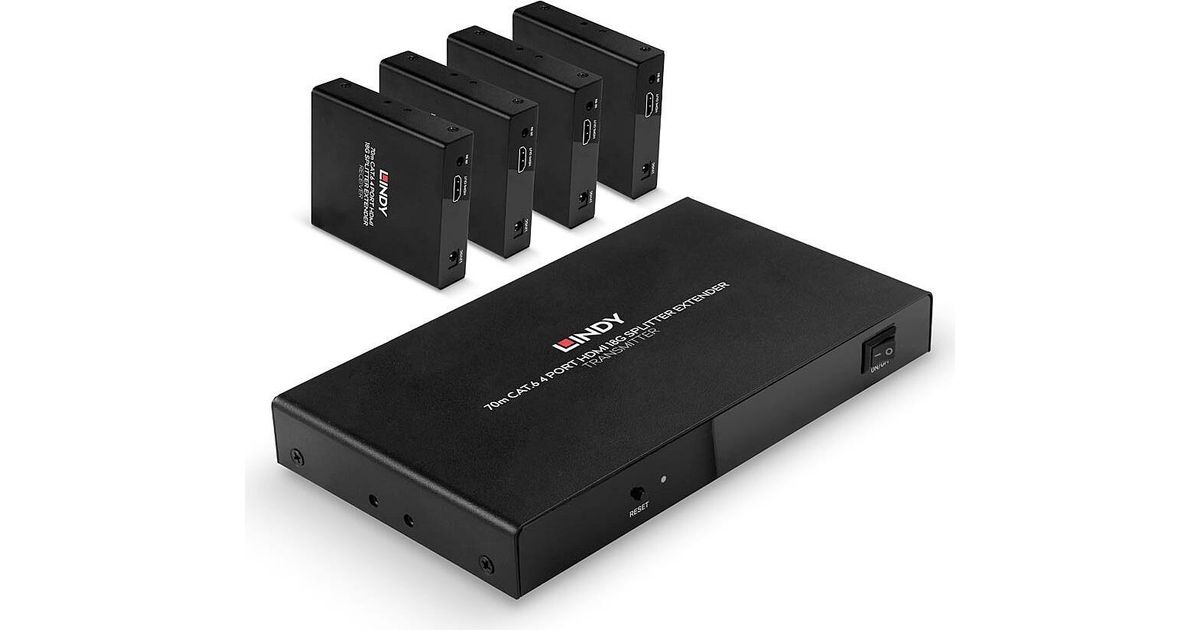

Lindy 70m 4 Port Cat.6 HDMI 4K60 Splitter Extender
Lindy 70m 4 Port Cat.6 HDMI 4K60 Splitter Extender, 3840 x 2160 pixels, AV transmitter & receiver, 70 m, Wired, Black, HDCP
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Lindy |
| Product code | 166442374 |
| EAN | 04002888382625 |
| Manufacturer part number | 38262 |
| Category | USB cables and adapters |
| Features | |
|---|---|
| Type | AV transmitter & receiver |
| Extended display identification data (EDID) | Y |
| Bandwidth | 18 Gbit/s |
| HDCP | Y |
| Material | Metal |
| HDCP version | 2.2 |
| Certification | CE, UKCA, FCC, RoHS, REACH & California Propositon 65 |
| Graphics | |
|---|---|
| Maximum resolution | 3840 x 2160 pixels |
| Network | |
|---|---|
| Cable types supported | Cat6 |
| Performance | |
|---|---|
| Maximum transfer distance | 70 m |
| Chipset | GSV2006, GSV5100 |
| Display | |
|---|---|
| Maximum refresh rate | 60 Hz |
| Media formats | |
|---|---|
| Audio formats supported | LPCM |
| Design | |
|---|---|
| Product colour | Black |
| Keyboard | |
|---|---|
| Connectivity technology | Wired |
| Ports & interfaces | |
|---|---|
| RJ-45 input ports | 4 |
| RJ-45 output ports | 4 |
| HDMI in | 1 |
| Number of HDMI outputs | 5 |
| HDMI version | 2.0 |
| Remote (IR) input | 4 |
| Remote (IR) output | 1 |
| DC-in jack | Y |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Packaging data | |
|---|---|
| Receiver dimensions (W x D x H) | 100 x 88 x 23 mm |
| Package width | 423 mm |
| Package depth | 60 mm |
| Package height | 354 mm |
| Package type | Box |
| Mounting brackets included | Y |
| Weight & dimensions | |
|---|---|
| Receiver weight | 199 g |
| Transmitter dimensions (WxDxH) | 180 x 103 x 23 mm |
| Transmitter weight | 390 g |
| Package weight | 2 kg |
| Packaging content | |
|---|---|
| Cables included | IR, IR sensor |
| Manual | Y |
Product Description
Distribute 4K HDMI signals to up to 4 displays in multiple locations_x000D_
Supports resolutions up to 4K@60Hz, with additional support for HDR_x000D_
Features a loop-through HDMI output on the transmitter for local monitoring or cascading for larger installs_x000D_
Supports Power over Cable (PoC) to the receivers, only a single power supply is required for operation_x000D_
2 year warranty_x000D_
_x000D_
The Lindy 70m Cat.6 4 Port HDMI 4K60 Splitter Extender is a simple, professional solution for distribution of 4K HDMI signals to multiple displays using standard Cat.6 network cables._x000D_
_x000D_
Scalable Content Distribution_x000D_
_x000D_
This Cat.6 splitter allows for distribution to up 4 remote locations using the included receivers, at up to 70m in distance, ideal for sharing content simultaneously in sports bars or events. The local HDMI output on the splitter allows for monitoring using a connected display, or alternatively can be combined with up to 2 additional Cat.6 splitters for even larger scale content distribution._x000D_
_x000D_
Immersive 4K and HDR Support_x000D_
_x000D_
With support for resolutions up to 3840x2160@60Hz, this splitter ensures superior clarity of high-quality video, including movies, sports, games, or live monitoring. HDR support ensures a much wider colour gamut is visualised, alongside a higher peak brightness and deeper blacks for an enhanced dynamic contrast. This provides an eye-catching and engaging experience for the viewer in a variety of different applications including digital signage in retail, content delivery in lecture halls, or information broadcasting in travel hubs._x000D_
_x000D_
Seamless IR Control_x000D_
_x000D_
The included IR cables allow for simple control via an IR remote from any of the receiver locations, removing the need to be situated at the source side on the setup._x000D_
_x000D_
Simultaneous PoC Distribution_x000D_
_x000D_
The Cat.6 HDMI 4K60 Splitter also support PoC (Power over cable) allowing for power to be distributed alongside audio and video over the cat.6 cabling. This allows for only one power source being required at the transmitter side, ensuring a minimalist and time-saving setup at the receiver locations._x000D_
_x000D_
Please Note: The quoted resolutions are possible with a direct connection between transmitter and receiver using good quality Cat.6 solid core cable. Using a different cable type, introducing wall plates, couplers or patch panels will result in a reduction of maximum distances._x000D_
Supports resolutions up to 4K@60Hz, with additional support for HDR_x000D_
Features a loop-through HDMI output on the transmitter for local monitoring or cascading for larger installs_x000D_
Supports Power over Cable (PoC) to the receivers, only a single power supply is required for operation_x000D_
2 year warranty_x000D_
_x000D_
The Lindy 70m Cat.6 4 Port HDMI 4K60 Splitter Extender is a simple, professional solution for distribution of 4K HDMI signals to multiple displays using standard Cat.6 network cables._x000D_
_x000D_
Scalable Content Distribution_x000D_
_x000D_
This Cat.6 splitter allows for distribution to up 4 remote locations using the included receivers, at up to 70m in distance, ideal for sharing content simultaneously in sports bars or events. The local HDMI output on the splitter allows for monitoring using a connected display, or alternatively can be combined with up to 2 additional Cat.6 splitters for even larger scale content distribution._x000D_
_x000D_
Immersive 4K and HDR Support_x000D_
_x000D_
With support for resolutions up to 3840x2160@60Hz, this splitter ensures superior clarity of high-quality video, including movies, sports, games, or live monitoring. HDR support ensures a much wider colour gamut is visualised, alongside a higher peak brightness and deeper blacks for an enhanced dynamic contrast. This provides an eye-catching and engaging experience for the viewer in a variety of different applications including digital signage in retail, content delivery in lecture halls, or information broadcasting in travel hubs._x000D_
_x000D_
Seamless IR Control_x000D_
_x000D_
The included IR cables allow for simple control via an IR remote from any of the receiver locations, removing the need to be situated at the source side on the setup._x000D_
_x000D_
Simultaneous PoC Distribution_x000D_
_x000D_
The Cat.6 HDMI 4K60 Splitter also support PoC (Power over cable) allowing for power to be distributed alongside audio and video over the cat.6 cabling. This allows for only one power source being required at the transmitter side, ensuring a minimalist and time-saving setup at the receiver locations._x000D_
_x000D_
Please Note: The quoted resolutions are possible with a direct connection between transmitter and receiver using good quality Cat.6 solid core cable. Using a different cable type, introducing wall plates, couplers or patch panels will result in a reduction of maximum distances._x000D_
