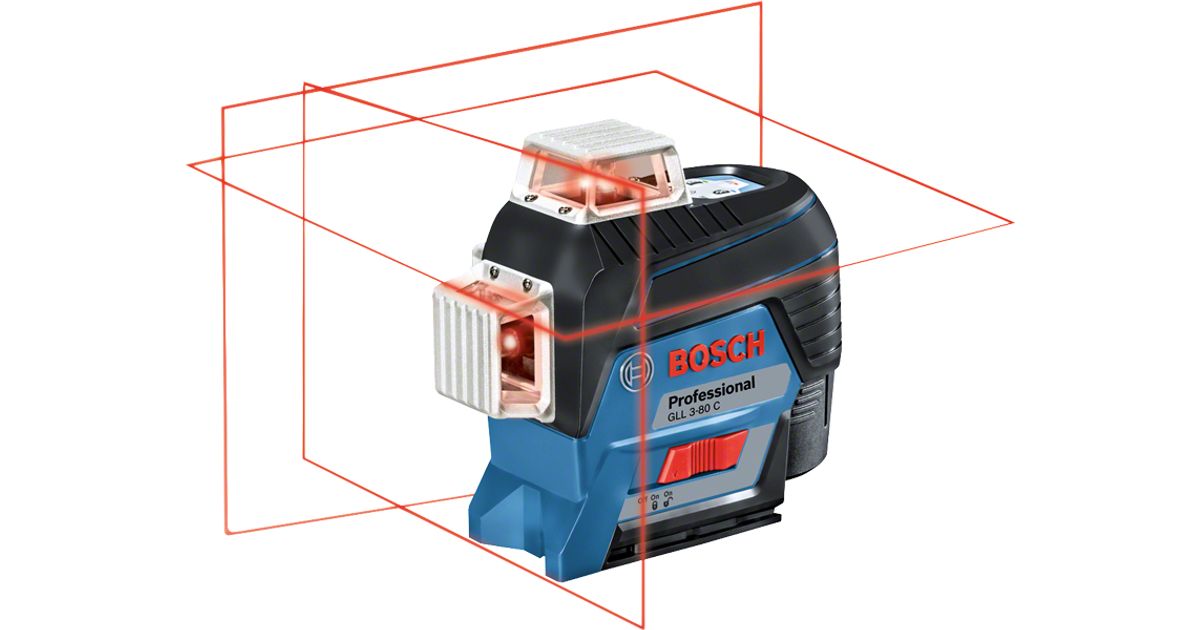

Line laser Bosch GLL 3-80 C, AA1, ± 0.2 mm/m, 30 - 120 m
Bosch GLL 3-80 C Professional, 30 m, 0.2 mm/m, 4°, 120 m, Horizontal/Vertical, Red
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Bosch |
| Product code | 11275842 |
| EAN | 03165140888288 |
| Manufacturer part number | BO0601063R00 |
| Category | Cross & line Laser |
| Performance | |
|---|---|
| Maximum range | 30 m |
| Laser class | 2 |
| Features | |
|---|---|
| Levelling accuracy (±) | 0.2 mm/m |
| Self-levelling range (±) | 4° |
| Maximum range (with receiver) | 120 m |
| Self-levelling | Y |
| Number of laser lines | 3 |
| Beam direction | Horizontal/Vertical |
| Colour of laser beam | Red |
| Fan angle (horizontal) | 360° |
| Fan angle (vertical) | 360° |
| Type | Line level |
| Design | |
|---|---|
| Product colour | Black, Blue |
| Tripod mounting supported | Y |
| Tripod thread | 1/4,5/8" |
| International Protection (IP) code | IP54 |
| Power | |
|---|---|
| Power source | Battery |
| Battery type | AA |
| Battery | |
|---|---|
| Operating time | 8 h |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery voltage | 12 V |
| Number of batteries included | 4 pc(s) |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -10 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Weight & dimensions | |
|---|---|
| Weight | 900 g |
| Packaging content | |
|---|---|
| Battery included | Y |
Product Description
Visibility on a new level in 3 x 360°. Simply Connected.
- Dual Power Source: Can be operated both with 12 V LI-ion battery and with standard alkaline batteries
- Self-levelling (±4° in <4 sec), very precise (± 0.2 mm/m) and range of up to 120 m with LR 6 or LR 7 Professional receiver (optional)
- Compact, easy to handle and extremely robust (IP54)
- Dual Power Source: Can be operated both with 12 V LI-ion battery and with standard alkaline batteries
- Self-levelling (±4° in <4 sec), very precise (± 0.2 mm/m) and range of up to 120 m with LR 6 or LR 7 Professional receiver (optional)
- Compact, easy to handle and extremely robust (IP54)
