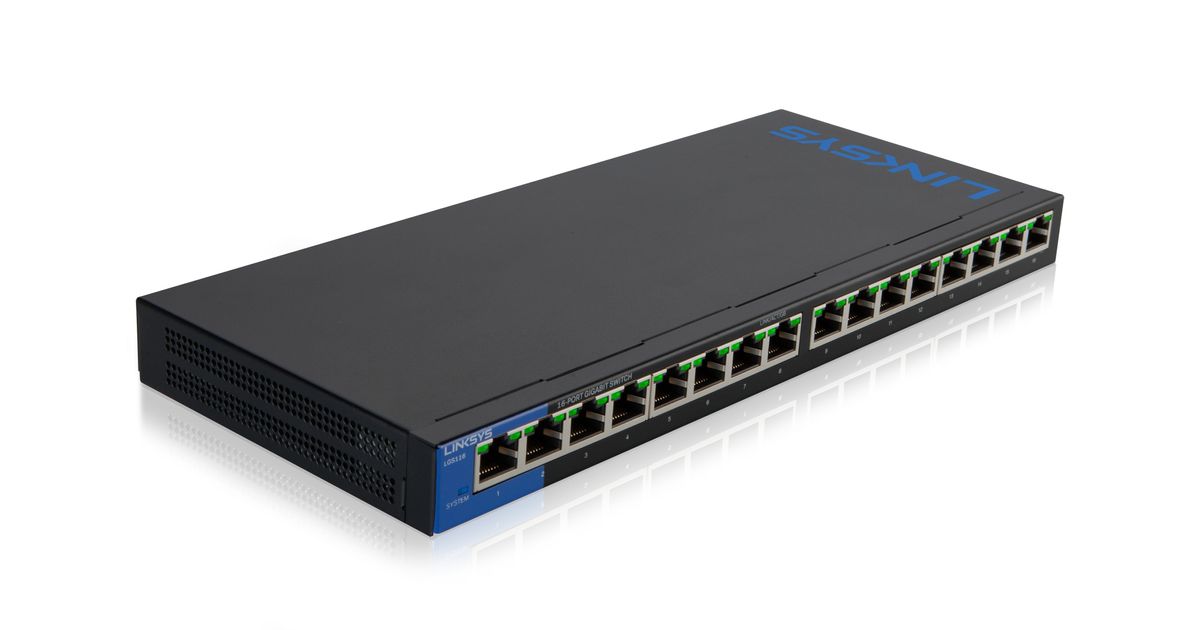

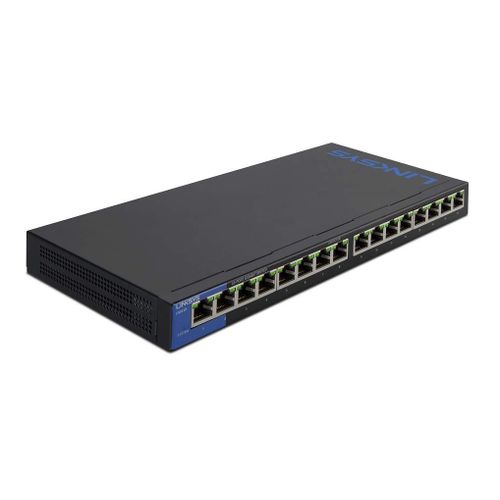

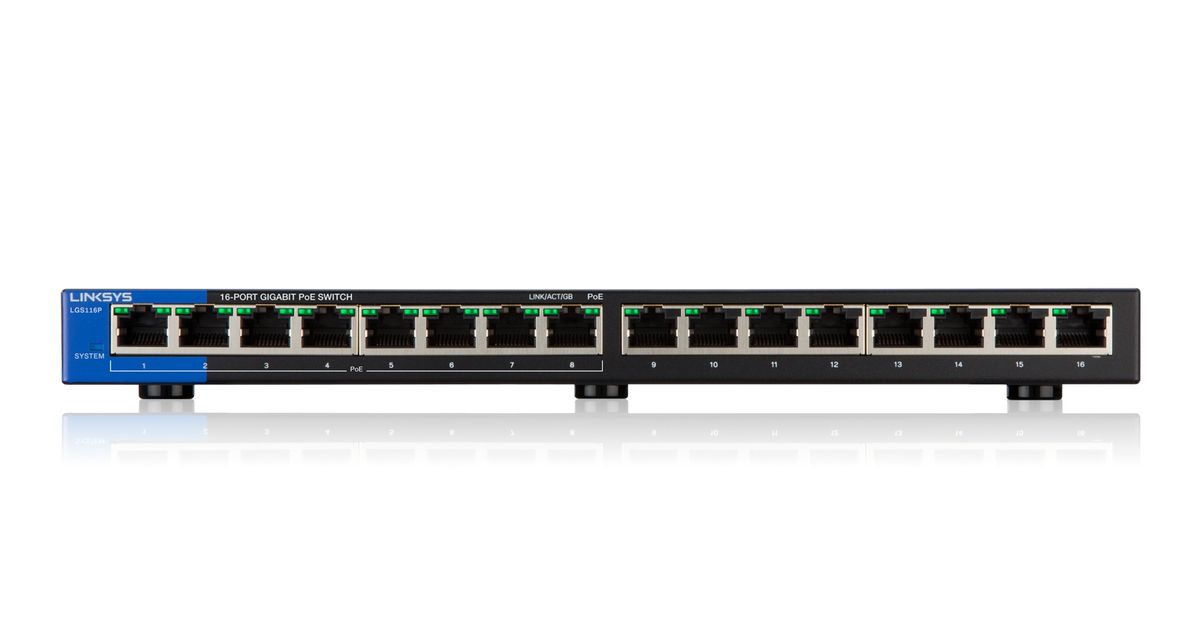

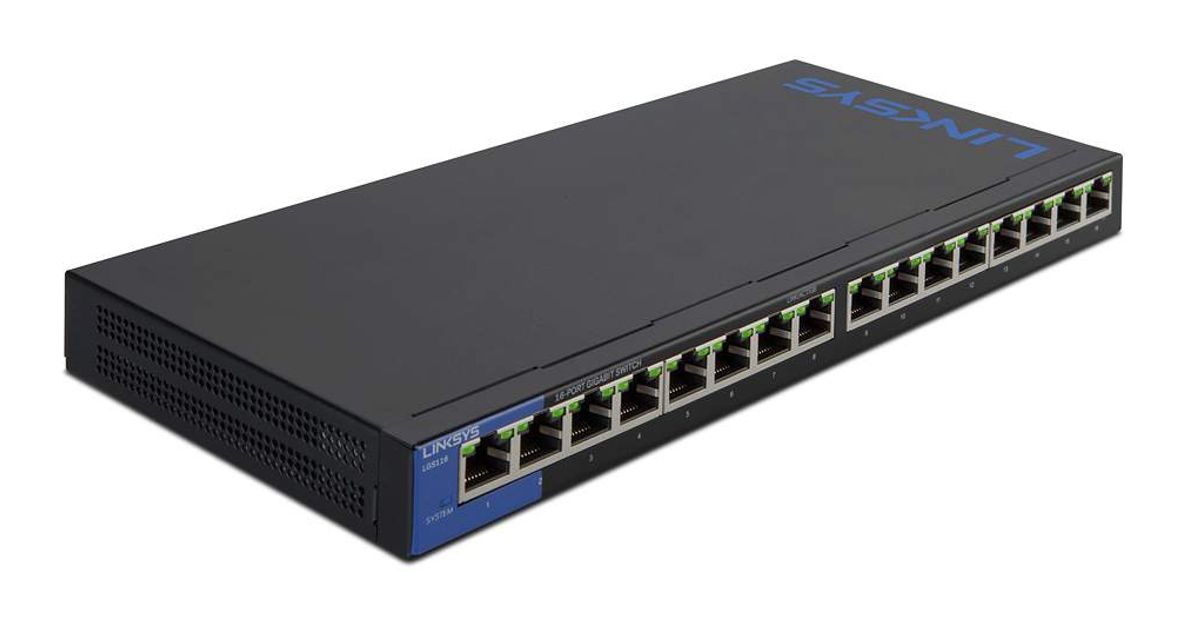

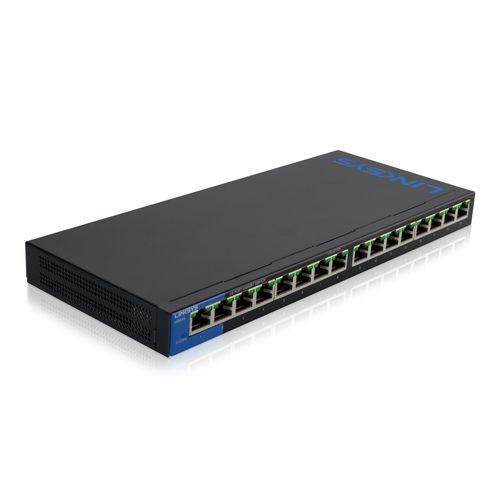

Linksys 16-Port Desktop Gigabit PoE Switch (LGS116P)
Linksys 16-Port Desktop Gigabit PoE Switch (LGS116P), Unmanaged, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Wall mountable
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Linksys |
| Product code | 11314395 |
| EAN | 04260184663576 |
| Manufacturer part number | LGS116P-EU |
| Category | Switches & accessories |
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Y |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Other features | |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Quick start guide | Y |
| Network | |
|---|---|
| 10G support | N |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Data transmission | |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 32 Gbit/s |
| Throughput | 1.488 Mpps |
| Design | |
|---|---|
| Rack mounting | N |
| Product colour | Black |
| LED indicators | Activity, Link, PoE, Speed |
| Features | |
|---|---|
| Wall mountable | Y |
| Certification | FCC Class A, CE |
| Plug and Play | Y |
| Input voltage | 54 V |
| Harmonized System (HS) code | 85176990 |
| Bandwidth | 32 Gbit/s |
| Power | |
|---|---|
| Number of power supply units | 1 |
| Input current | 1.66 A |
| Power consumption (typical) | 11.31 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Y |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 80 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 30 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 280 mm |
| Depth | 120 mm |
| Height | 25 mm |
| Weight | 822 g |
| Packaging content | |
|---|---|
| AC adapter included | Y |
Product Description
GIGABIT PERFORMANCE
The unmanaged switch offers Gigabit speeds to minimize transfer times and greatly enhance the ability to stream high-bandwidth files to connected devices without interference.
POWER WHERE YOU NEED IT
With PoE+ built-in, networking devices such as network hubs, IP phones, and IP cameras can be located anywhere without the need for AC outlets.
PLUG AND PLAY CONVENIENCE
The Linksys unmanaged switch offers a quick and easy solution to extend your office network with plug & play installation.
QUALITY OF SERVICE (QOS) TRAFFIC PRIORITIZATION
QoS traffic prioritization provides the ability to give precedence to particular devices or activities to ensure mission critical data throughput is maintained regardless of network congestion. Auto-sensing ports automatically optimize speed for each connected device.
The unmanaged switch offers Gigabit speeds to minimize transfer times and greatly enhance the ability to stream high-bandwidth files to connected devices without interference.
POWER WHERE YOU NEED IT
With PoE+ built-in, networking devices such as network hubs, IP phones, and IP cameras can be located anywhere without the need for AC outlets.
PLUG AND PLAY CONVENIENCE
The Linksys unmanaged switch offers a quick and easy solution to extend your office network with plug & play installation.
QUALITY OF SERVICE (QOS) TRAFFIC PRIORITIZATION
QoS traffic prioritization provides the ability to give precedence to particular devices or activities to ensure mission critical data throughput is maintained regardless of network congestion. Auto-sensing ports automatically optimize speed for each connected device.
