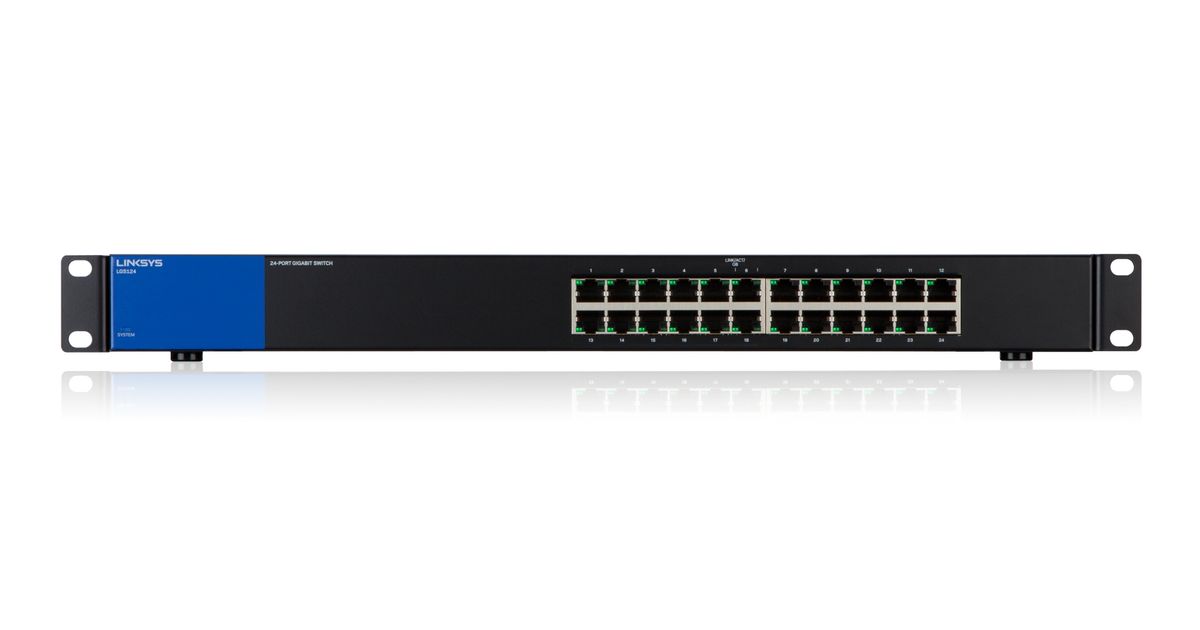

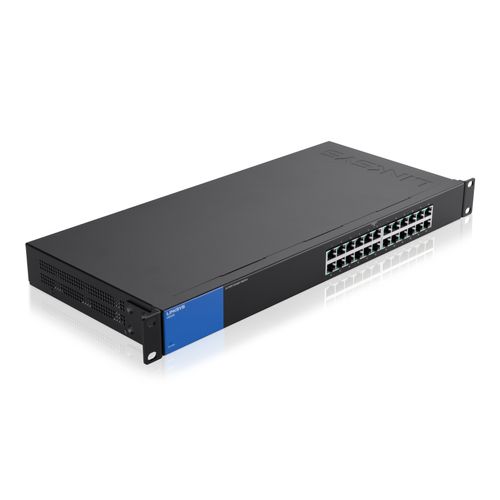

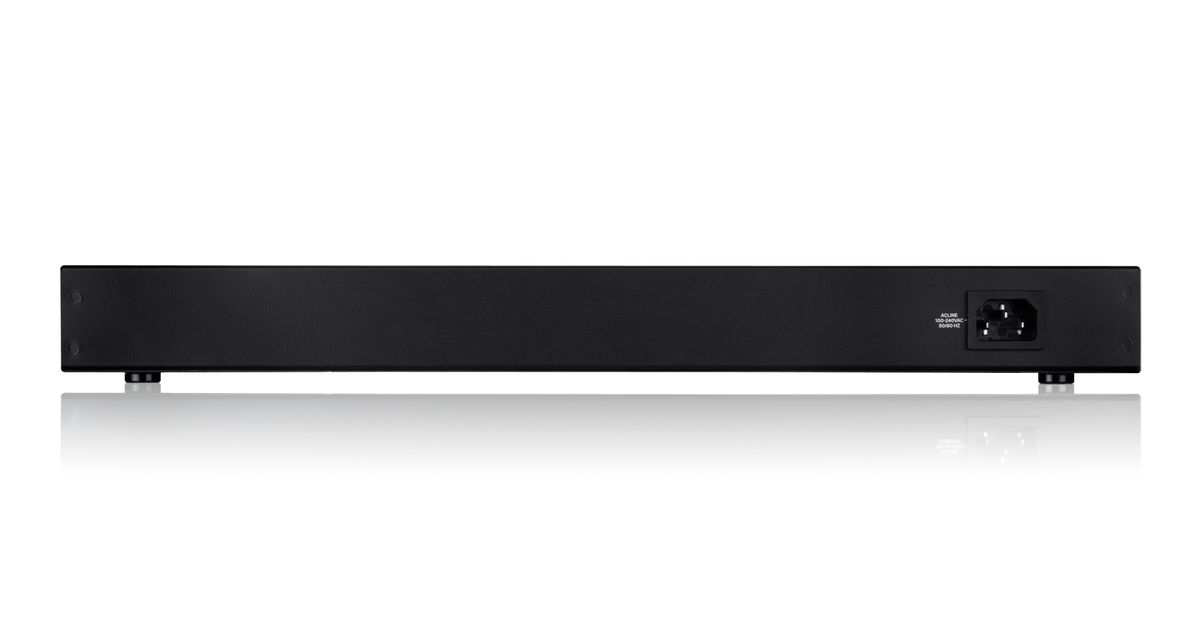

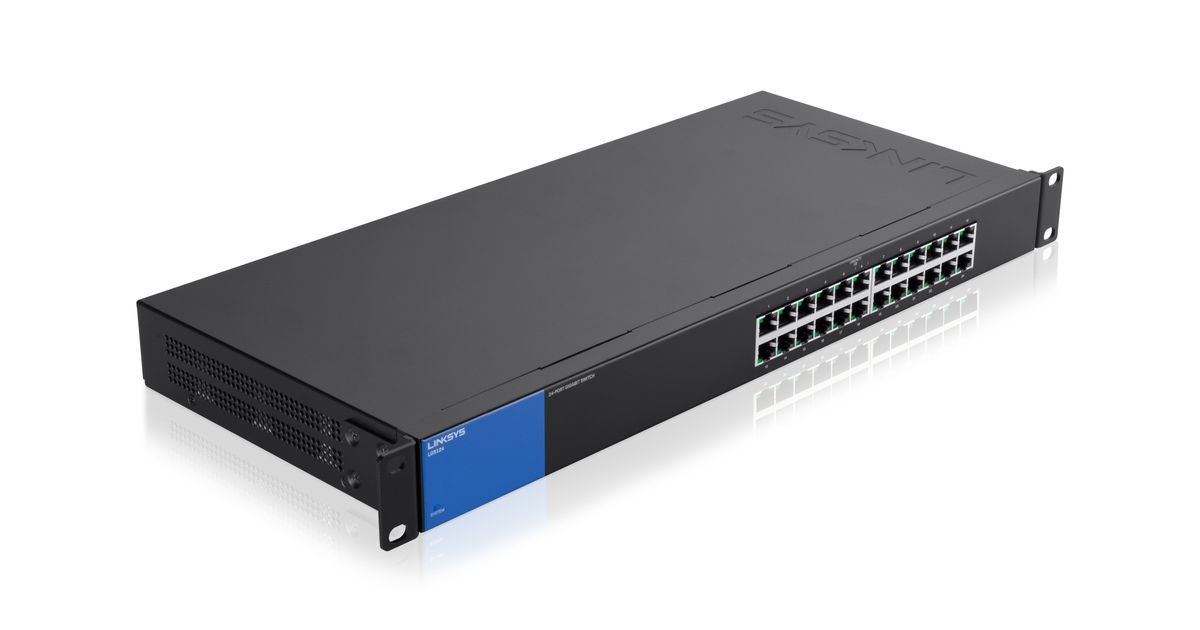

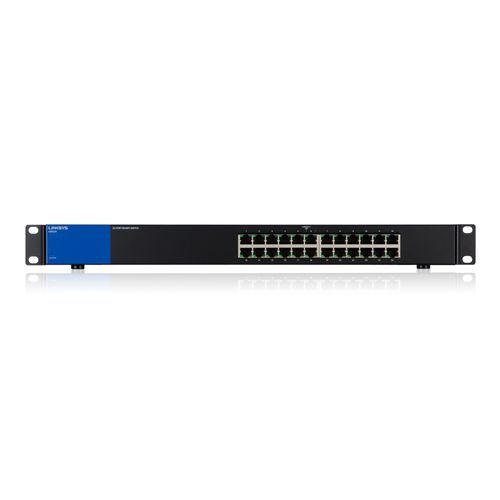

Linksys 24-Port Gigabit Switch (LGS124)
Linksys 24-Port Gigabit Switch (LGS124), Unmanaged, Gigabit Ethernet (10/100/1000), Rack mounting, 1U
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Linksys |
| Product code | 11314393 |
| EAN | 04260184663606 |
| Manufacturer part number | LGS124-EU |
| Category | Switches & accessories |
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Y |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Other features | |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Quick start guide | Y |
| Network | |
|---|---|
| 10G support | N |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Data transmission | |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 48 Gbit/s |
| Throughput | 1.488 Mpps |
| Design | |
|---|---|
| Rack mounting | Y |
| Form factor | 1U |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity, Link, Speed |
| Features | |
|---|---|
| Certification | FCC Class A, CE, UL, CB |
| Plug and Play | Y |
| Harmonized System (HS) code | 85176990 |
| Bandwidth | 48 Gbit/s |
| Power | |
|---|---|
| Redundant power supply (RPS) support | N |
| Number of power supply units | 1 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 14.16 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | N |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 440 mm |
| Depth | 200 mm |
| Height | 44 mm |
| Weight | 2.37 kg |
| Packaging content | |
|---|---|
| Cables included | AC |
Product Description
Upgrade the data paths of your local wired network to information superhighways with Gigabit switches at the desktop. Accelerate your performance and productivity when you send large files to network servers, drives, and printers at Gigabit speed.
Gigabit Performance
These unmanaged switches offer Gigabit speeds to minimize transfer times and greatly enhance the ability to stream high-bandwidth files to connected devices without interference.
Plug-and-Play Convenience
Linksys unmanaged switches offer a quick and easy solution to extend your office network with plug-and-play installation.
Power-Saving Features
- Auto power-down disables unused ports
- Port status switch to control LED lights
Quality of Service (QoS) Traffic Prioritization
QoS traffic prioritization gives precedence to particular devices or activities to ensure
mission-critical data throughput is maintained regardless of network congestion.
Auto-sensing ports automatically optimize speed for each connected device.
Gigabit Performance
These unmanaged switches offer Gigabit speeds to minimize transfer times and greatly enhance the ability to stream high-bandwidth files to connected devices without interference.
Plug-and-Play Convenience
Linksys unmanaged switches offer a quick and easy solution to extend your office network with plug-and-play installation.
Power-Saving Features
- Auto power-down disables unused ports
- Port status switch to control LED lights
Quality of Service (QoS) Traffic Prioritization
QoS traffic prioritization gives precedence to particular devices or activities to ensure
mission-critical data throughput is maintained regardless of network congestion.
Auto-sensing ports automatically optimize speed for each connected device.
