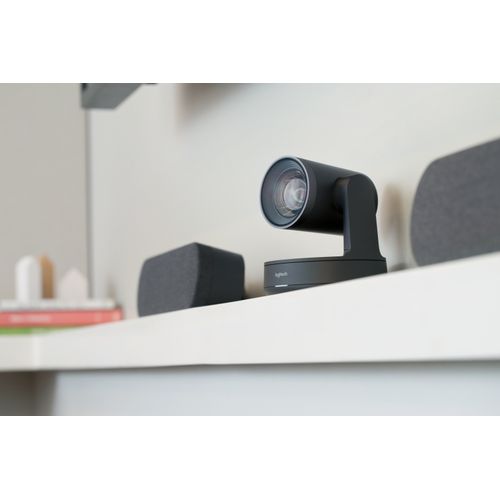

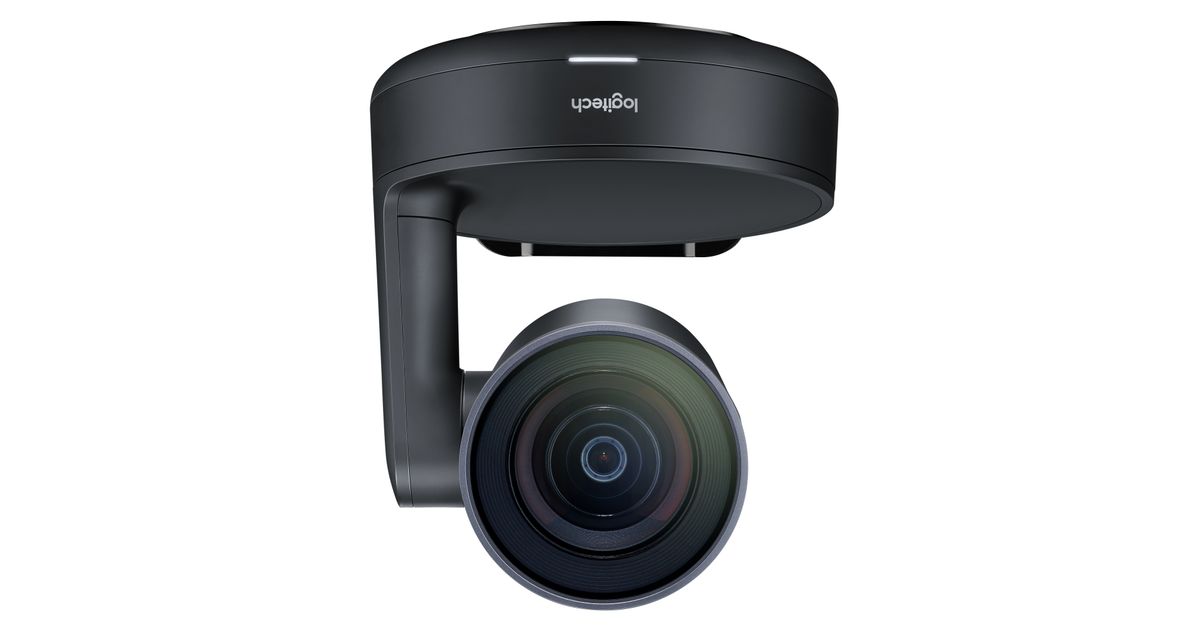

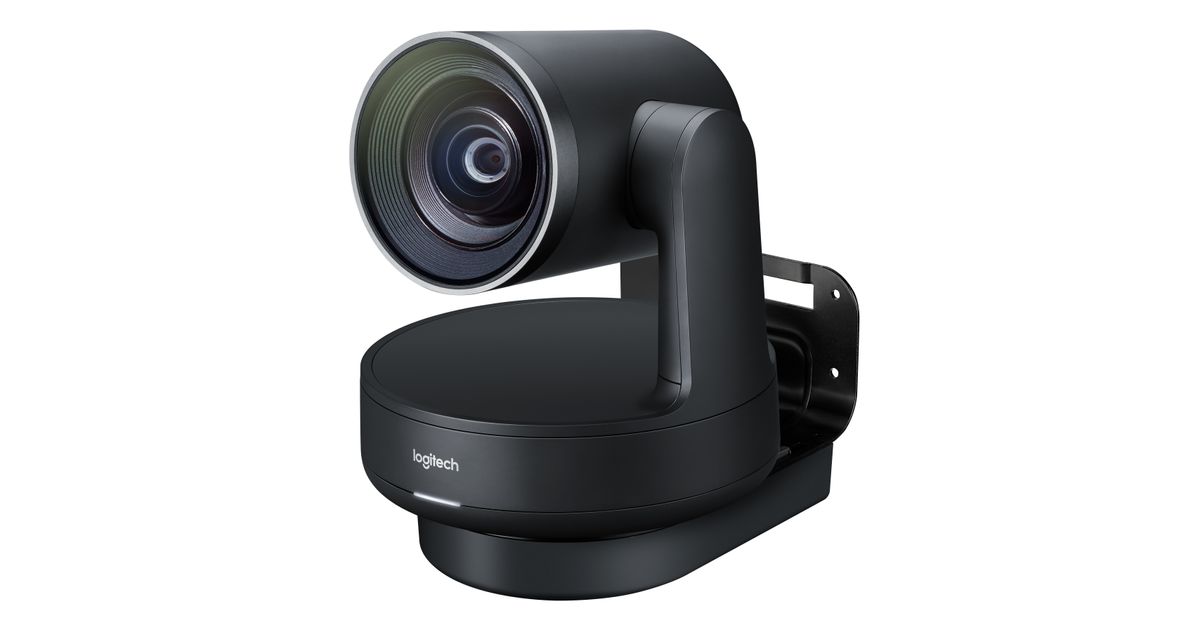

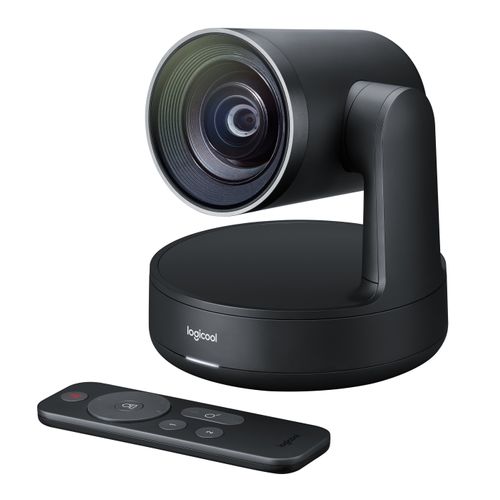

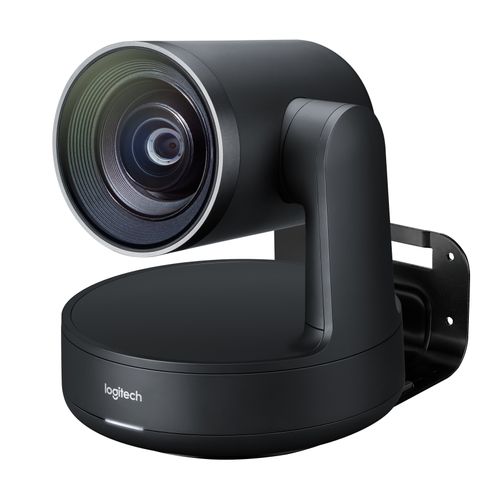

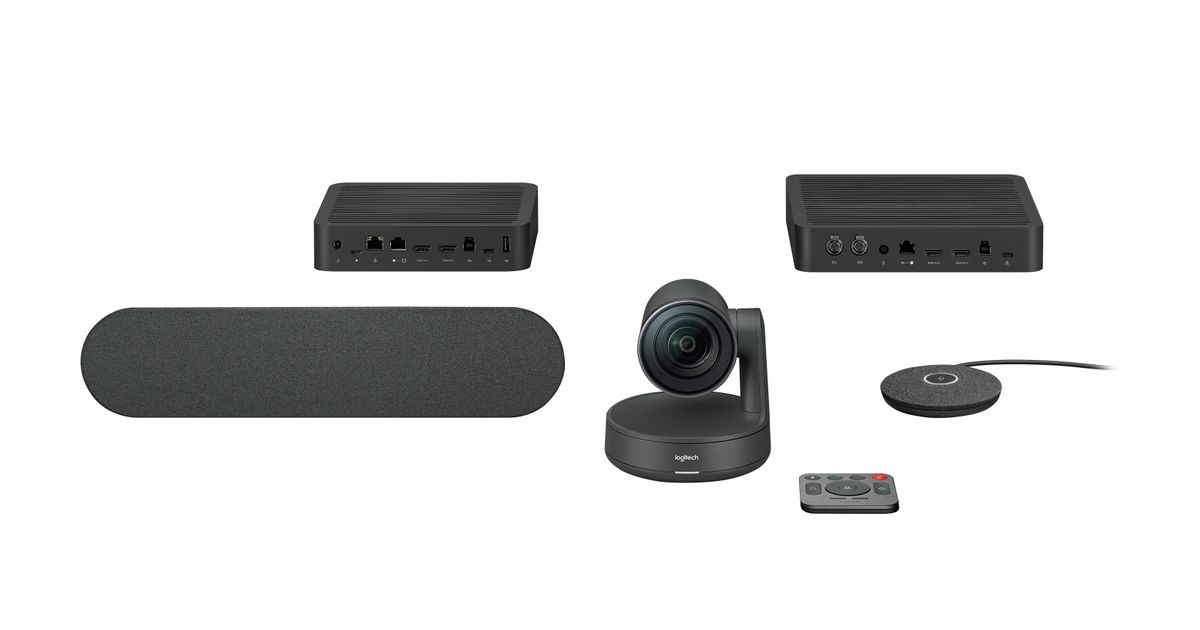

Logitech Rally Ultra-HD ConferenceCam video conferencing system 10 person(s) Ethernet LAN Group video conferencing system
Logitech Rally Ultra-HD ConferenceCam, Group video conferencing system, 4K Ultra HD, 60 fps, 15x, Black
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Logitech |
| Product code | 164047752 |
| EAN | 05706998803399 |
| Manufacturer part number | 960-001237 |
| Category | Confrenecesystem accessories |
| Design | |
|---|---|
| Product type | Group video conferencing system |
| Product colour | Black |
| Tripod mounting supported | Y |
| Cable lock slot type | Kensington |
| Features | |
|---|---|
| Number of persons | 10 person(s) |
| Harmonized System (HS) code | 85176990 |
| Supported video modes | 576p, 720p, 900p, 1080p, 1440p, 2160p |
| Echo cancellation | Y |
| USB connector type | USB Type-A, USB Type-B, USB Type-C |
| Telepresence | N |
| Camera | |
|---|---|
| Pan range | -90 - 90° |
| Pan speed | 70 °/sec |
| Tilt speed | 70 °/sec |
| Zoom capability | Y |
| Digital zoom | 15x |
| Number of camera presets | 3 |
| Camera included | Y |
| Ergonomics | |
|---|---|
| Tilt angle range | -90 - 50° |
| Performance | |
|---|---|
| PTZ control | Y |
| Sound pressure level (max) | 95 dB |
| Cable lock slot | Y |
| Power source type | AC |
| Display | |
|---|---|
| HD type | 4K Ultra HD |
| Video | |
|---|---|
| Maximum frame rate | 60 fps |
| Audio | |
|---|---|
| Frequency range | 300 - 10000 Hz |
| Output level | 95/100 dB |
| Microphone pick-up range | 4.5 m |
| Sample rates | 0 - 48 kHz |
| Number of microphones | 4 |
| Headphones | |
|---|---|
| Noise reduction | Y |
| Ports & interfaces | |
|---|---|
| HDMI ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 3 |
| DC-in jack | Y |
| Line-in | Y |
| Interface module | |
|---|---|
| Interface module HDMI input ports quantity | 2 |
| Interface module HDMI output ports quantity | 2 |
| Network | |
|---|---|
| Ethernet LAN | Y |
| Lens system | |
|---|---|
| Focus adjustment | Auto |

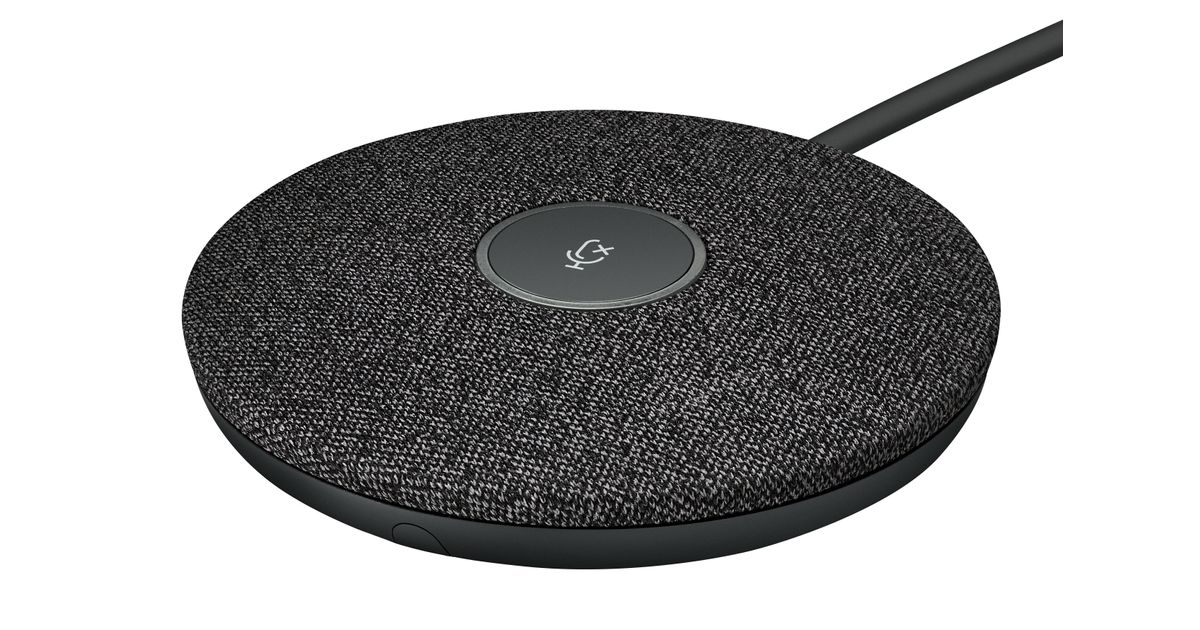

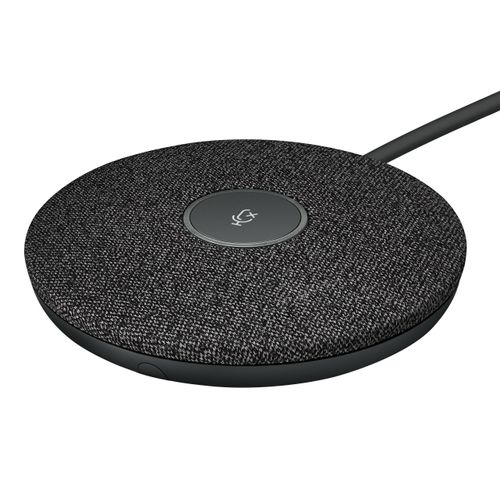

| Microphone | |
|---|---|
| Microphone colour | Black |
| Microphone sensitivity | -27 dB |
| Microphone frequency | 90 - 16000 Hz |
| Microphone direction type | Omnidirectional |
| Microphone mute | Y |
| Number of microphone arrays | 1 |
| Logistics data | |
|---|---|
| Master (outer) case gross weight | 9.5 kg |
| Master (outer) case length | 348 mm |
| Master (outer) case width | 240 mm |
| Master (outer) case height | 736 mm |
| Battery | |
|---|---|
| Battery capacity (Watt-hours) | 0.675 Wh |
| Battery technology | Lithium |
| Battery capacity | 220 mAh |
| Number of batteries supported | 2 |
| Software | |
|---|---|
| Windows operating systems supported | Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey |
| Weight & dimensions | |
|---|---|
| Microphone dimensions (WxHxD) | 102 x 102 x 21 mm |

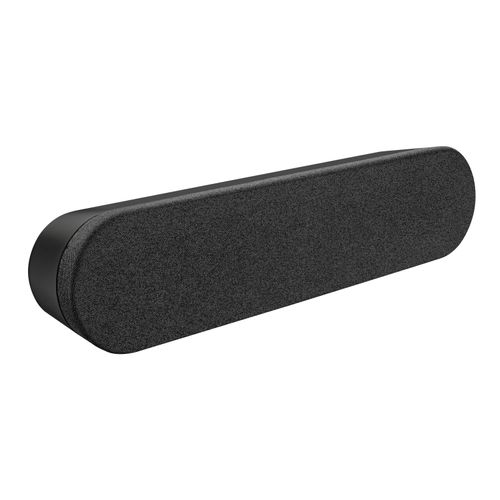

| Speaker dimensions (WxDxH) | 449 x 80 x 103 mm |
| Camera dimensions (WxDxH) | 152 x 152 x 182.5 mm |
| Package weight | 8.53 kg |
| Packaging content | Rally camera Rally display hub Rally table hub Rally speaker (x1) Rally mic pod (x1) Remote control USB Type C to USB Type C USB Type A to USB Type B CAT6A Ethernet cable HDMI Type A (x2) A/C cables (x2) Power supplies (x2) Documentation 2-year manufacturer’s guarantee |
| Packaging data | |
|---|---|
| Package width | 275 mm |
| Package depth | 700 mm |
| Package height | 220 mm |
| HDMI cable length | 2 m |
| Packaging content | |
|---|---|
| External interface module included | Y |
| Cables included | AC, HDMI, LAN (RJ-45), USB Type-A to Micro USB-B, USB Type-C to USB Type-C |
| Power cable length | 1.5 m |
| Networking cable length | 5 m |
| AC adapter included | Y |
| Speaker included | Y |
| Microphone included | Y |
| Other features | |
|---|---|
| Remote control included | Y |
| Quick start guide | Y |
Product Description
The purchase of a one-year Logitech extended warranty along with the purchase of Rally adds one additional year to the original Logitech manufacturer's two-year guarantee and is intended to ensure that your Logitech hardware is free from defects in material and workmanship.
This extended guarantee helps to protect your investment, maximise its value and ensure optimal performance of your Logitech conference room hardware for a total of three years. This is right in line with the typical depreciation and replacement cycle of most conference room equipment.
This extended guarantee helps to protect your investment, maximise its value and ensure optimal performance of your Logitech conference room hardware for a total of three years. This is right in line with the typical depreciation and replacement cycle of most conference room equipment.
