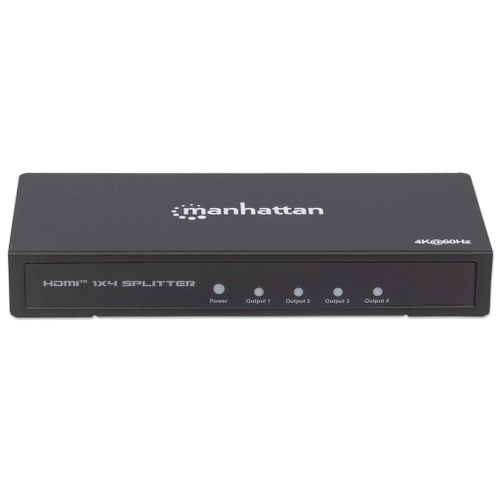

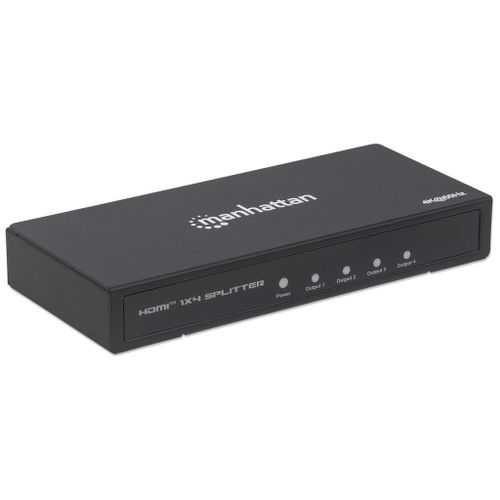

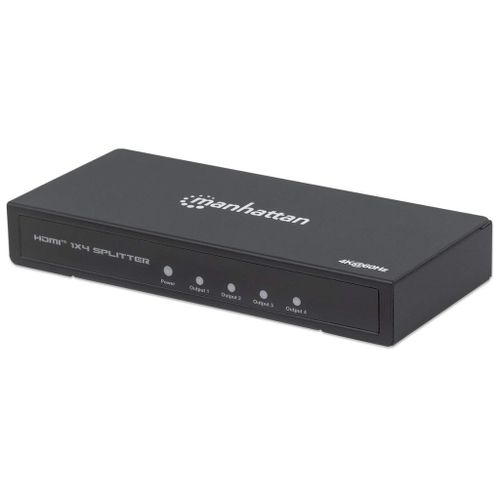

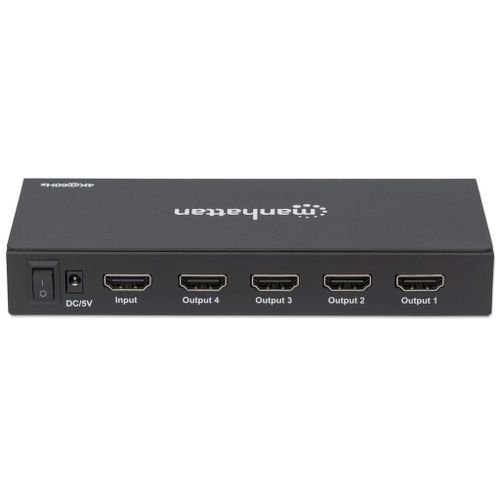

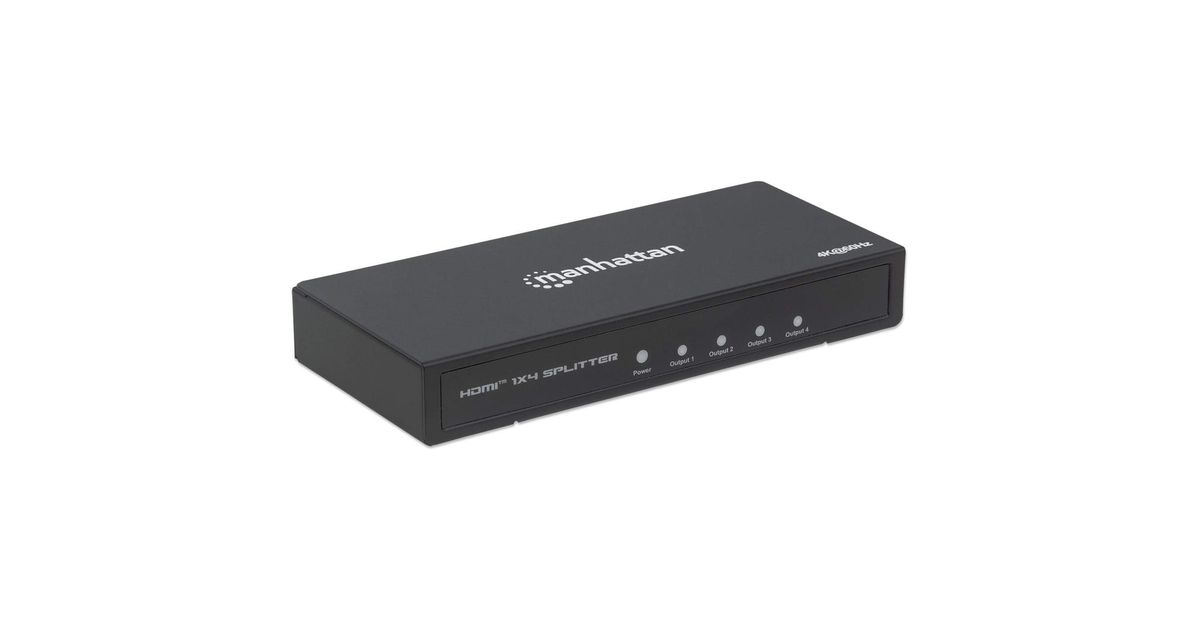

Manhattan HDMI Splitter 4-Port , 4K@60Hz, Displays output from x1 HDMI source to x4 HD displays (same output to four displays), AC Powered (cable 1.2m), Black, Three Year Warranty, Retail Box (With Euro 2-pin plug)
Manhattan HDMI Splitter 4-Port , 4K@60Hz, Displays output from x1 HDMI source to x4 HD displays (same output to four displays), AC Powered (cable 1.2m), Black, Three Year Warranty, Retail Box (With Euro 2-pin plug), HDMI, 4x HDMI, 3840 x 2160 pixels, Black, Metal, 4K Ultra HD
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Manhattan |
| Product code | 03202475 |
| EAN | 00766623207805 |
| Manufacturer part number | 207805 |
| Category | Other AV & electronics |
| Ports & interfaces | |
|---|---|
| Video ports quantity | 5 |
| Video port type | HDMI |
| Video out | 4x HDMI |
| HDMI version | 2.0 |
| DC-in jack | Y |
| Graphics | |
|---|---|
| Maximum resolution | 3840 x 2160 pixels |
| Design | |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Y |
| Display | |
|---|---|
| HD type | 4K Ultra HD |
| Other features | |
|---|---|
| 3D | Y |
| Network | |
|---|---|
| Maximum operating distance | 20 m |
| Features | |
|---|---|
| Colour depth | 36 bit |
| Bandwidth | 600 MHz |
| Cable length | 1.2 m |
| HDCP | Y |
| Connector contacts plating | Gold |
| Dolby technologies | DTS-HD Master Audio, Dolby TrueHD |
| Certification | CTS 1.4b CE FCC RoHS2 |
| Harmonized System (HS) code | 85176990 |
| Power | |
|---|---|
| AC input voltage | 5 V |
| Input current | 2 A |
| Power consumption (typical) | 5 W |
| Weight & dimensions | |
|---|---|
| Width | 69 mm |
| Depth | 154 mm |
| Height | 23 mm |
| Weight | 250 g |
| Packaging content | |
|---|---|
| AC adapter included | Y |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 96% |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS |
Product Description
Easily distribute a single Ultra-High-Definition (UHD) signal to multiple displays.
The Manhattan 4K 4-Port HDMI Splitter with built-in booster streams a 4K HDMI signal from a single UHD source to up to four UHD displays.
Best Possible Image Quality and Easy Installation
Full compliance with HDMI and HDCP 2.2 ensures the Manhattan 4K 4-Port HDMI Splitter provides nothing short of high-quality performance and reliability. It delivers cinematic 4K resolution and supports 3D video, Deep colour, HDR, as well as LPCM, DTS and Dolby TrueHD audio. Quickly connect HDMI cables (not included) and the power supply to complete this cost-effective 4K solution - no software or hardware configuration or complicated settings required.
The Manhattan 4K 4-Port HDMI Splitter with built-in booster streams a 4K HDMI signal from a single UHD source to up to four UHD displays.
Best Possible Image Quality and Easy Installation
Full compliance with HDMI and HDCP 2.2 ensures the Manhattan 4K 4-Port HDMI Splitter provides nothing short of high-quality performance and reliability. It delivers cinematic 4K resolution and supports 3D video, Deep colour, HDR, as well as LPCM, DTS and Dolby TrueHD audio. Quickly connect HDMI cables (not included) and the power supply to complete this cost-effective 4K solution - no software or hardware configuration or complicated settings required.
