For illustrative purpose only

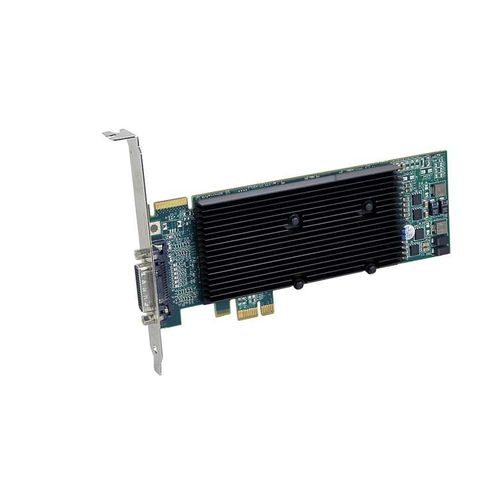

Matrox M9120-E512LAU1F graphics card GDDR2
Matrox M9120-E512LAU1F, GDDR2, 128 bit, 2048 x 1536 pixels, PCI Express x1
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Matrox |
| Product code | 03202880 |
| EAN | 00790750236124 |
| Manufacturer part number | M9120-E512LAU1F |
| Category | Graphics cards |
| Graphics | |
|---|---|
| Maximum resolution | 2048 x 1536 pixels |
| Performance | |
|---|---|
| Maximum analog resolution | 2 x 2048 pixels |
| Maximum digital resolution | 2 x 1920 pixels |
| DirectX version | N |
| OpenGL version | 2.0 |
| Memory | |
|---|---|
| Graphics adapter memory type | GDDR2 |
| Memory bus | 128 bit |
| Ports & interfaces | |
|---|---|
| Interface type | PCI Express x1 |
| DVI-I ports quantity | 2 |
| Dual VGA | Y |
| TV-out | N |
| VGA (D-Sub) ports quantity | 2 |
| DVI ports quantity | 2 |
| Features | |
|---|---|
| Dual Link DVI | Y |
| Certification | EMC Certifications: Class B |
| Harmonized System (HS) code | 84733020 |
| Cable length | 0.3 m |
| Design | |
|---|---|
| Cooling type | Passive |
| Form factor | Half-Height/Half-Length (HH/HL) |
| Weight & dimensions | |
|---|---|
| Depth | 19 mm |
| Height | 69 mm |
| Width | 168 mm |
| Software | |
|---|---|
| Bundled software | Matrox display drivers for Microsoft Windows Vista and XP (also available via download at www.matrox.com/graphics) Matrox PowerDesk desktop management software |
| Mac compatibility | N |
| Other features | |
|---|---|
| Compatible operating systems | Microsoft Windows 7 (32/64bit)*, Microsoft Windows XP (32/64bit), Microsoft Windows Vista (32/64bit)*, Microsoft Windows Server 2003/2008 (32/64bit), Linux see Website for details |
| Processor | |
|---|---|
| Number of processors installed | 1 |
Product Description
The Matrox M9120 Plus LP PCIe x1 low-profile, dual monitor graphics card renders pristine image quality on either two displays (natively) at resolutions up to 1920x1200 (digital) or 2048x1536 (analog) each. This card also supports up to four analog displays via an aftermarket quad-upgradeable cable, at resolutions of up to 1920x1200 each.
* High-resolution dual monitor support
Up to 1920 x 1200 digital; 2048 x 1536 analog per output
* Universal PCI express
PCIe x1 format allows card to work in any PCIe slot (e.g. PCIe x16, x8, x4, or x1)
* Upgrade option to four monitors
Support four VGA displays via cable (CAB-L60-4XAF); enables up to 1920 x 1200 per output
* 512 MB of memory
For enhanced performance in demanding multi-monitor applications
* Low-profile form factor
To fit in a wide variety of systems; includes bracket for full-height ATX form factor.
* Optimal support for Windows® Vista
Aero (WDDM mode), XP, among other OS platforms
* Passive cooling and low power consumption
Fanless design eliminates noise and increases product reliability
* Joined graphics card mode
Allows for an additional Matrox M-Series graphics card, to increase total monitor support
* Wide enterprise flexibility
Unified driver package compatible with other Matrox products
* Matrox PowerDesk software
Easily configure and manage program windows on multiple monitors
Hardware Included
* Matrox M9120 Plus LP PCIe x1 graphics card (with factory-installed ATX bracket)
* LFH60-to- 2 x DVI-I dual-monitor adapter cable (1 ft)
* Two DVI-I-to-HD15 connector adapters
Software Included
* Matrox display drivers for Microsoft Windows Vista and XP
(also available via download at www.matrox.com/graphics)
* Matrox PowerDesk desktop management software
* High-resolution dual monitor support
Up to 1920 x 1200 digital; 2048 x 1536 analog per output
* Universal PCI express
PCIe x1 format allows card to work in any PCIe slot (e.g. PCIe x16, x8, x4, or x1)
* Upgrade option to four monitors
Support four VGA displays via cable (CAB-L60-4XAF); enables up to 1920 x 1200 per output
* 512 MB of memory
For enhanced performance in demanding multi-monitor applications
* Low-profile form factor
To fit in a wide variety of systems; includes bracket for full-height ATX form factor.
* Optimal support for Windows® Vista
Aero (WDDM mode), XP, among other OS platforms
* Passive cooling and low power consumption
Fanless design eliminates noise and increases product reliability
* Joined graphics card mode
Allows for an additional Matrox M-Series graphics card, to increase total monitor support
* Wide enterprise flexibility
Unified driver package compatible with other Matrox products
* Matrox PowerDesk software
Easily configure and manage program windows on multiple monitors
Hardware Included
* Matrox M9120 Plus LP PCIe x1 graphics card (with factory-installed ATX bracket)
* LFH60-to- 2 x DVI-I dual-monitor adapter cable (1 ft)
* Two DVI-I-to-HD15 connector adapters
Software Included
* Matrox display drivers for Microsoft Windows Vista and XP
(also available via download at www.matrox.com/graphics)
* Matrox PowerDesk desktop management software
