For illustrative purpose only

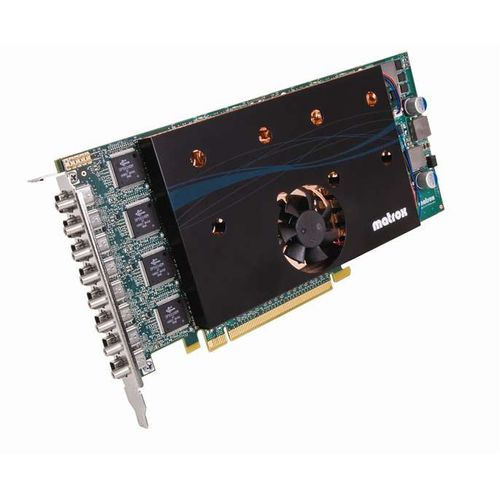

Matrox M9188 PCIe x16
Matrox M9188 PCIe x16, 2 GB, 2560 x 1600 pixels, PCI Express x16
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Matrox |
| Product code | 03202884 |
| EAN | 00790750240268 |
| Manufacturer part number | M9188-E2048F |
| Category | Graphics cards |
| Processor | |
|---|---|
| Graphics processor family | Matrox |
| CUDA | N |
| Maximum displays per videocard | 8 |
| Graphics | |
|---|---|
| Maximum resolution | 2560 x 1600 pixels |
| Parallel processing technology support | Not supported |
| Discrete graphics adapter memory | 2 GB |
| Graphics adapter family | Matrox |
| Performance | |
|---|---|
| Maximum digital resolution | 2560 x 1600 pixels |
| TV tuner integrated | N |
| OpenGL version | 2.0 |
| PhysX | N |
| Full HD | Y |
| Compatible products | Microsoft Windows 7 (32/64bit) Microsoft Windows XP (32/64bit) Microsoft Windows Vista (32/64bit) Microsoft Windows Server 2003/2008 (32/64bit) Linux |
| Ports & interfaces | |
|---|---|
| Interface type | PCI Express x16 |
| Video in | N |
| Mini DisplayPorts quantity | 8 |
| HDMI | N |
| Features | |
|---|---|
| Dual Link DVI | N |
| HDCP | N |
| Certification | EMC B ROHS & WEEE |
| Linux operating systems supported | Y |
| Harmonized System (HS) code | 84733020 |
| Design | |
|---|---|
| Cooling type | Active |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Other features | |
|---|---|
| Bracket height | Full-Height (FH) |
| Software | |
|---|---|
| Mac operating systems supported | N |
| Mac compatibility | N |
| System requirements | |
|---|---|
| Server operating systems supported | Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64 |
| Weight & dimensions | |
|---|---|
| Depth | 167.6 mm |
| Height | 111.2 mm |
Product Description
Drive Multi-Display Applications with Extraordinary Performance.
The Matrox M9188 PCIe x16 multi-display Octal graphics card addresses the need to visualize large amounts of data at once in order to effectively make decisions. The latest offering from the M-Series family is the world's first single-slot PCIe x16 octal card, featuring the ability to support both DisplayPort and DVI Single-Link outputs to ensure wide compatibility with today's monitors. With 2 GB of memory and advanced desktop management features, such as independent or stretched desktop modes, the M9188 drives energy, transportation, process control, financial trading, and other mission-critical environments with extraordinary performance.
Hardware included

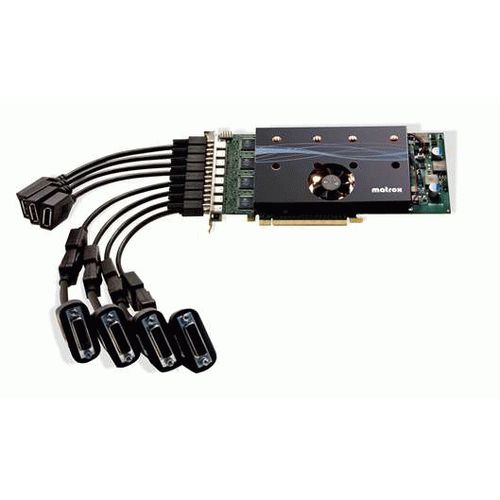

- Matrox M9188 PCIe x16 graphics card (with factory-installed ATX bracket)
- Eight Mini DisplayPort to DisplayPort adapters
- Eight DisplayPort to DVI adapters
The Matrox M9188 PCIe x16 multi-display Octal graphics card addresses the need to visualize large amounts of data at once in order to effectively make decisions. The latest offering from the M-Series family is the world's first single-slot PCIe x16 octal card, featuring the ability to support both DisplayPort and DVI Single-Link outputs to ensure wide compatibility with today's monitors. With 2 GB of memory and advanced desktop management features, such as independent or stretched desktop modes, the M9188 drives energy, transportation, process control, financial trading, and other mission-critical environments with extraordinary performance.
Hardware included
- Matrox M9188 PCIe x16 graphics card (with factory-installed ATX bracket)
- Eight Mini DisplayPort to DisplayPort adapters
- Eight DisplayPort to DVI adapters
