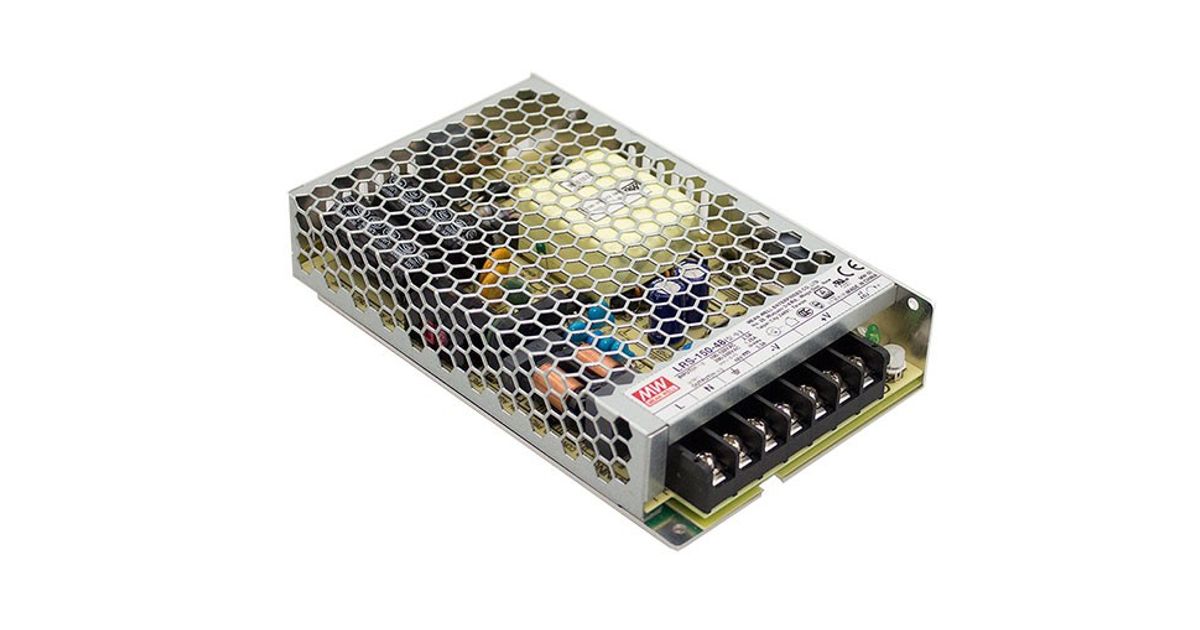

MEAN WELL LRS-150F-12 power supply unit 150 W Stainless steel
MEAN WELL LRS-150F-12, 150 W, 85 - 264 V, Over voltage, Overload, Short circuit, UL60950-1, TUV EN60950-1, EN60335-1, EN61558-1/-2-16,CCC GB4943, EN55022, GB9254 Class B, EN55014,..., Stainless steel, -20 - 70 °C
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | MEAN WELL |
| Product code | 2210246008 |
| EAN | 05410329677015 |
| Manufacturer part number | LRS-150F-12 |
| Category | Toiteplokid |
Product Description
LRS-150F series is a 150W signal-output enclosed type power supply with 30mm of low profile design. Adopting the full range 85~264VAC input, the entire series provides an output voltage line of 5V, 12V, 15V, 24V, 36V and 48V
In addition to the high efficiency up to 90%, the design of metallic mesh case enhances the heat dissipation of LRS-150F that the whole series operates from -30°C through 70°C under air convection without a fan. Delivering an extremely low no load power consumption (less than 0.5W), it allows the end system to easily meet the worldwide energy requirement. LRS-150F has the complete protection functions and 5G anti-vibration capability; it is complied with the international safety regulations such as TUV EN60950-1, EN60335-1,EN61558-1/-2-16, UL60950-1 and GB4943. LRS-150F series serves as a high price-to-performance power supply solution for various industrial applications.
In addition to the high efficiency up to 90%, the design of metallic mesh case enhances the heat dissipation of LRS-150F that the whole series operates from -30°C through 70°C under air convection without a fan. Delivering an extremely low no load power consumption (less than 0.5W), it allows the end system to easily meet the worldwide energy requirement. LRS-150F has the complete protection functions and 5G anti-vibration capability; it is complied with the international safety regulations such as TUV EN60950-1, EN60335-1,EN61558-1/-2-16, UL60950-1 and GB4943. LRS-150F series serves as a high price-to-performance power supply solution for various industrial applications.
