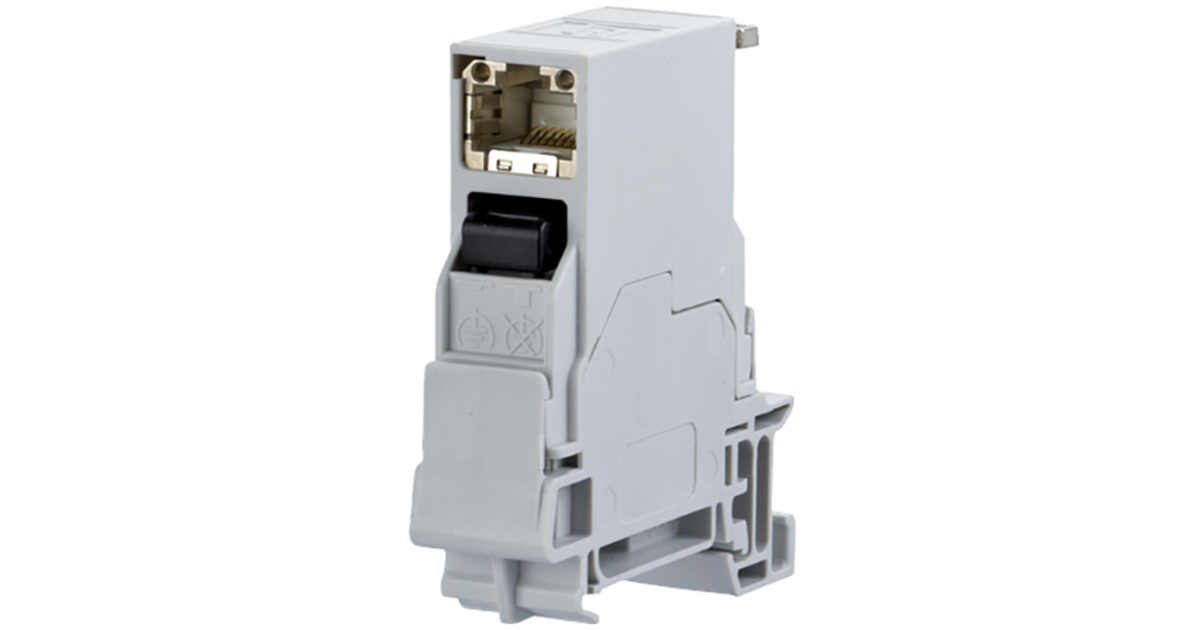

METZ CONNECT 1401806113KE wire connector Rj-45 Grey
METZ CONNECT 1401806113KE, Rj-45, Grey, Cat6, ISO/IEC 11801 Ed.2.2: 2011-06 | DIN EN 50173-1: 2011-09, TIA/EIA 568-C.2, UL 1863, DIN EN..., 17.5 mm, 59.6 mm
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | METZ CONNECT |
| Product code | 899731172 |
| EAN | 04250184119173 |
| Manufacturer part number | 1401806113KE |
| Category | Wire Connectors |
Product Description
E-DAT Industry terminal rail TS35 + RJ45 field jack insert Cat.6 Class EA, T568B
- termination unit for mounting on TH35 rails to DIN EN 60715 in electrical distribution panels for home and industrial installations
- equipped with E-DAT Industry RJ45 field jack insert
- vertical plugging direction, 90° to rail
- compliance with class EA to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09
- suitable for 10 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus and UPoE) and HDBaseT
- easy to install connection of 2 to 4 pair data lines AWG 24/1 - 22/1 and stranded wires with 7 copper conductors AWG 26/7 to BTR 8-fold insulation displacement connectors (IDC)
- width of 1HP allows mounting up to 12 units in a standard electrical distribution panel
- when mounted as a device of protection class I, the equipotential bonding is realized directly over the top hat rail by means of a switchable integrated equipotential spring. This has to be connected to the equipotential bonding of the building by means of a bonding terminal
- variants: pin assignment to T568A, T568B or PROFINET
