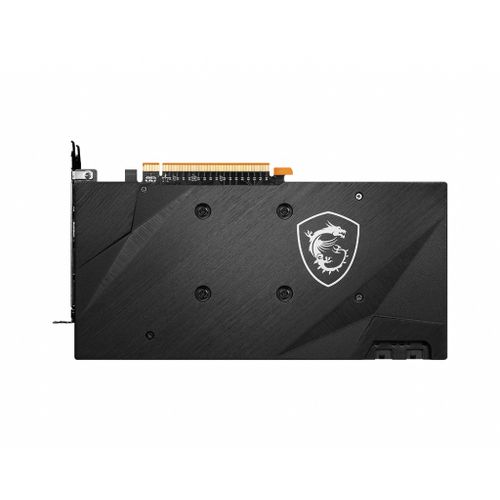

For illustrative purpose only
MSI Radeon RX 6750 XT MECH 2X 12G OC AMD 12 GB GDDR6
MSI Radeon RX 6750 XT MECH 2X 12G OC, Radeon RX 6750 XT, 12 GB, GDDR6, 192 bit, 7680 x 4320 pixels, PCI Express 4.0
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | MSI |
| Product code | 127732607 |
| EAN | 04719072961527 |
| Manufacturer part number | Radeon RX 6750 XT MECH 2X 12G OC |
| Category | Graphics cards |
| Processor | |
|---|---|
| Graphics processor family | AMD |
| Graphics processor | Radeon RX 6750 XT |
| CUDA | N |
| Processor boost clock speed (OC mode) | 2618 MHz |
| Processor boost clock speed (Gaming mode) | 2512 MHz |
| Stream processors | 2560 |
| Maximum displays per videocard | 4 |
| Graphics | |
|---|---|
| Maximum resolution | 7680 x 4320 pixels |
| Parallel processing technology support | Not supported |
| Discrete graphics adapter memory | 12 GB |
| Memory | |
|---|---|
| Graphics adapter memory type | GDDR6 |
| Memory bus | 192 bit |
| Memory clock speed | 18000 MHz |
| Ports & interfaces | |
|---|---|
| Interface type | PCI Express 4.0 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 3 |
| Mini HDMI ports quantity | 2.1 |
| Features | |
|---|---|
| DisplayPort version | 1.4 |
| Dual Link DVI | N |
| HDCP | Y |
| Supplementary power connectors | 2x 8-pin |
| Harmonized System (HS) code | 84733020 |
| Performance | |
|---|---|
| TV tuner integrated | N |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| Virtual Reality (VR) ready | Y |
| AMD FreeSync | N |
| Design | |
|---|---|
| Cooling type | Active |
| Cooling technology | MSI TORX Fan 3.0 |
| Number of fans | 2 fan(s) |
| Product colour | Black, Silver |
| Power | |
|---|---|
| Minimum system power supply | 650 W |
| Power consumption (typical) | 250 W |
| Weight & dimensions | |
|---|---|
| Weight | 932 g |
| Depth | 249 mm |
| Height | 132 mm |
| Width | 52 mm |
| Package weight | 1.41 kg |
| Packaging data | |
|---|---|
| Package type | Box |
Product Description
ARM YOURSELF FOR THE FINAL BLOW
MECH brings a performance-focused design that maintains the essentials to accomplish any task at hand.
Rocking a trusted dual fan arrangement laid into a rigid industrial design lets this sharp looking graphics card fit into any build.
BETTER SAFE THAN SORRY
Additional fuses built into the custom PCB provide additional safeguards against electrical damage.
FORGED FROM ENHANCED MATERIALS
An enhanced PCB material design with 2oz thickened copper increases conductivity, improving heat dissipation, and high-performance reliability.
TAILORED PCB DESIGN
Not all circuit boards are created equal. A custom PCB Design provides greater reliability and beefed up power circuitry for pushing the card to its limits.
SUPERCHARGED PERFORMANCE
The Radeon™ RX 6000 Series graphics cards can take on the most demanding titles at maximum settings with all the latest features enabled. With up to 80 powerful graphics compute units, coupled with up to 16GB of high-speed GDDR6 memory, and up to 128MB of low-latency AMD Infinity Cache™, these cards redefine enthusiast level performance.
VIVID VISUALS
Experience a new level of immersion with the Radeon™ RX 6000 Series graphics cards with support for the latest software innovations such as DirectX® 12 Ultimate and the latest AMD FidelityFX™ technology feature set, enabling realistic lighting, shadows, and reflections in extreme detail. AMD FidelityFX™ technology features are optimized for the AMD RDNA™ 2 architecture to power the next generation of gaming visuals at high framerates, providing a mesmerizing gaming experience.
ELEVATED EXPERIENCES
The new Radeon™ RX 6000 Series graphic cards are optimized for DirectStorage to help reduce load times in games and bring expansive worlds to life in amazing detail. Complete the experience with the widest available display ecosystem on the market3, supporting the latest HDMI™ 2.1 VRR technology with the 2000+ AMD FreeSync4 technology-enabled gaming displays available at high refresh rates. With the new AMD Link™ 5.05, enjoy co-op with up to 4 players and experience your games across different devices seamlessly, as easy as clicking a button.
GET A BOOST IN FRAMES FOR YOUR GAMES2
Maximize image quality and supercharge performance with AMD FidelityFX™ Super Resolution (FSR)2 across select supported games or boost your frame rates across a wide number of games with Radeon™ Super Resolution (RSR)1 to deliver high-quality, high-resolution, and high framerate gaming experiences on AMD Radeon™ graphics cards
Bringing It All Together
MSI's exclusive MSI Center software helps you get the most out of your MSI products. Monitor, tweak and optimize in real-time with just a few clicks.
MECH brings a performance-focused design that maintains the essentials to accomplish any task at hand.
Rocking a trusted dual fan arrangement laid into a rigid industrial design lets this sharp looking graphics card fit into any build.
BETTER SAFE THAN SORRY
Additional fuses built into the custom PCB provide additional safeguards against electrical damage.
FORGED FROM ENHANCED MATERIALS
An enhanced PCB material design with 2oz thickened copper increases conductivity, improving heat dissipation, and high-performance reliability.
TAILORED PCB DESIGN
Not all circuit boards are created equal. A custom PCB Design provides greater reliability and beefed up power circuitry for pushing the card to its limits.
SUPERCHARGED PERFORMANCE
The Radeon™ RX 6000 Series graphics cards can take on the most demanding titles at maximum settings with all the latest features enabled. With up to 80 powerful graphics compute units, coupled with up to 16GB of high-speed GDDR6 memory, and up to 128MB of low-latency AMD Infinity Cache™, these cards redefine enthusiast level performance.
VIVID VISUALS
Experience a new level of immersion with the Radeon™ RX 6000 Series graphics cards with support for the latest software innovations such as DirectX® 12 Ultimate and the latest AMD FidelityFX™ technology feature set, enabling realistic lighting, shadows, and reflections in extreme detail. AMD FidelityFX™ technology features are optimized for the AMD RDNA™ 2 architecture to power the next generation of gaming visuals at high framerates, providing a mesmerizing gaming experience.
ELEVATED EXPERIENCES
The new Radeon™ RX 6000 Series graphic cards are optimized for DirectStorage to help reduce load times in games and bring expansive worlds to life in amazing detail. Complete the experience with the widest available display ecosystem on the market3, supporting the latest HDMI™ 2.1 VRR technology with the 2000+ AMD FreeSync4 technology-enabled gaming displays available at high refresh rates. With the new AMD Link™ 5.05, enjoy co-op with up to 4 players and experience your games across different devices seamlessly, as easy as clicking a button.
GET A BOOST IN FRAMES FOR YOUR GAMES2
Maximize image quality and supercharge performance with AMD FidelityFX™ Super Resolution (FSR)2 across select supported games or boost your frame rates across a wide number of games with Radeon™ Super Resolution (RSR)1 to deliver high-quality, high-resolution, and high framerate gaming experiences on AMD Radeon™ graphics cards
Bringing It All Together
MSI's exclusive MSI Center software helps you get the most out of your MSI products. Monitor, tweak and optimize in real-time with just a few clicks.
