Neomounts by Newstar medical wall mount
Neomounts by Newstar medical wall mount, 3 kg, 25.4 cm (10"), 61 cm (24"), 100 x 100 mm, Height adjustment, White
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Neomounts by Newstar |
| Product code | 21820235 |
| EAN | 08717371446567 |
| Manufacturer part number | FPMA-HAW300 |
| Category | Monitor accessories |
| Design | |
|---|---|
| Maximum weight capacity | 3 kg |
| Cable management | Y |
| Product colour | White |
| Features | |
|---|---|
| Maximum screen size | 61 cm (24") |
| Height adjustment type | Gas spring |
| Harmonized System (HS) code | HS83025000 |
| Mounting | |
|---|---|
| Mounting type | Wall |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Number of displays supported | 1 |
| Ergonomics | |
|---|---|
| Minimum screen size | 25.4 cm (10") |
| Distance to the wall (min) | 115 cm |
| Height adjustment | Y |
| Height adjustment range | 1150 - 1350 mm |
| Tilt angle range | 0 - 60° |
| Swivel angle | 370° |
| Angle of rotation | 180° |
| Performance | |
|---|---|
| Swivel angle range | 0 - 370° |
| Weight & dimensions | |
|---|---|
| Depth | 1150 mm |
| Height | 1350 mm |
| Package net weight | 5.9 kg |
| Packaging data | |
|---|---|
| Package width | 240 mm |
| Package depth | 340 mm |
| Package height | 720 mm |
| Logistics data | |
|---|---|
| Master (outer) case width | 24 cm |
| Master (outer) case length | 34 cm |
| Master (outer) case height | 72 cm |
| Master (outer) case gross weight | 7.1 kg |
| Products per master (outer) case | 1 pc(s) |
| Master (outer) case net weight | 5.9 kg |
| Products per pallet (EU) | 12 pc(s) |
| Country of origin | Taiwan |
Product Description

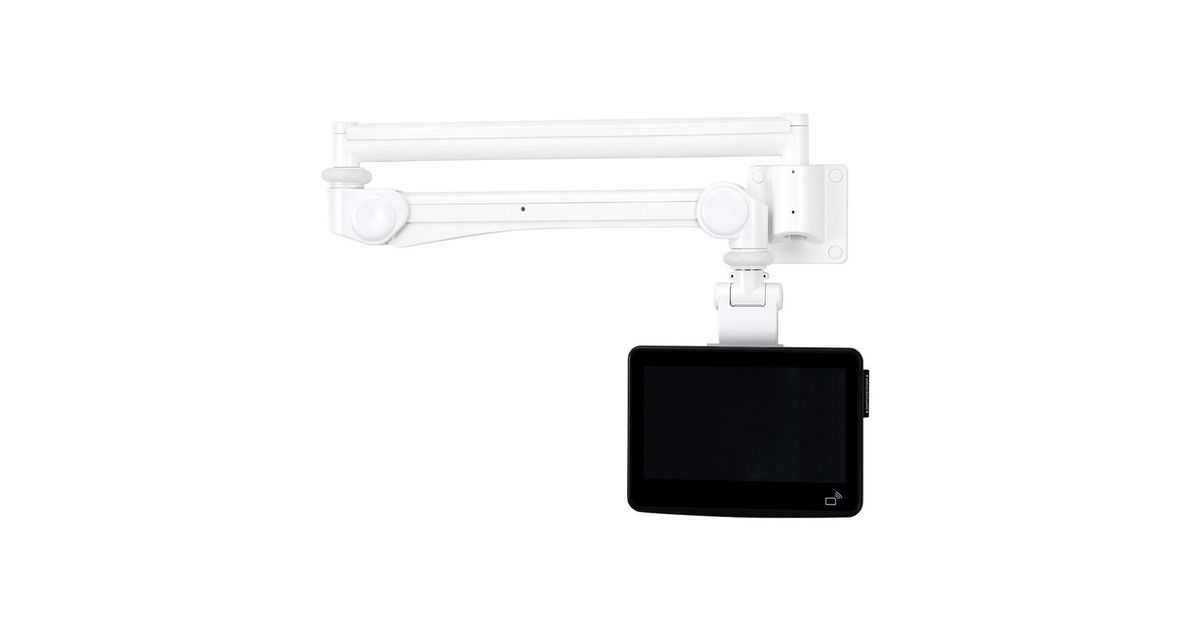

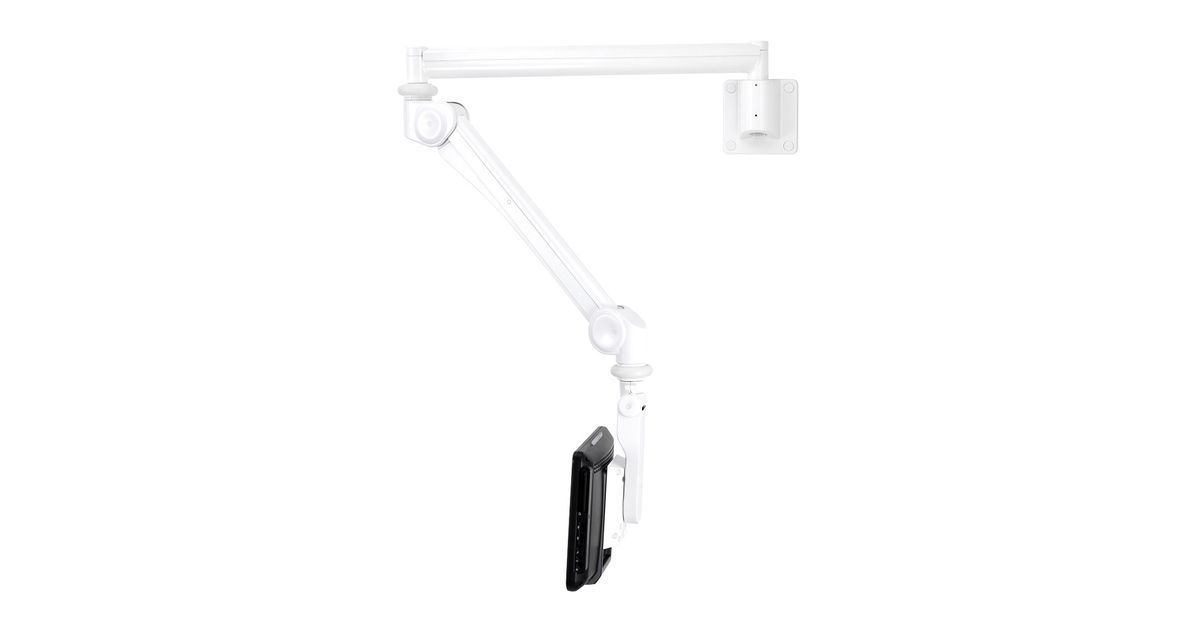

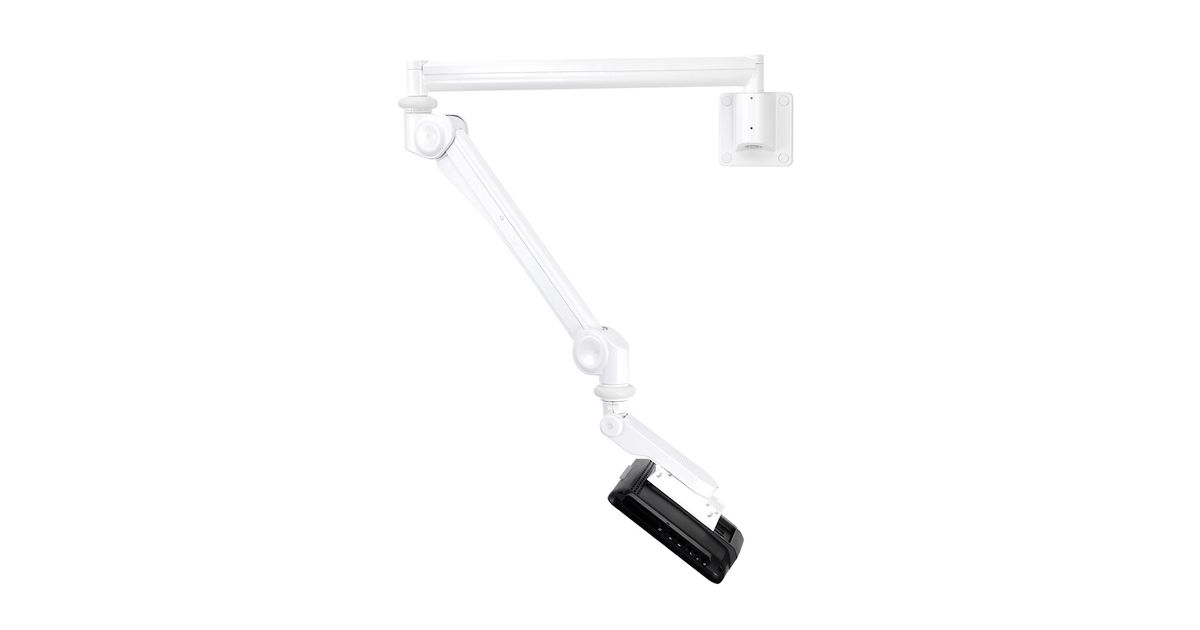

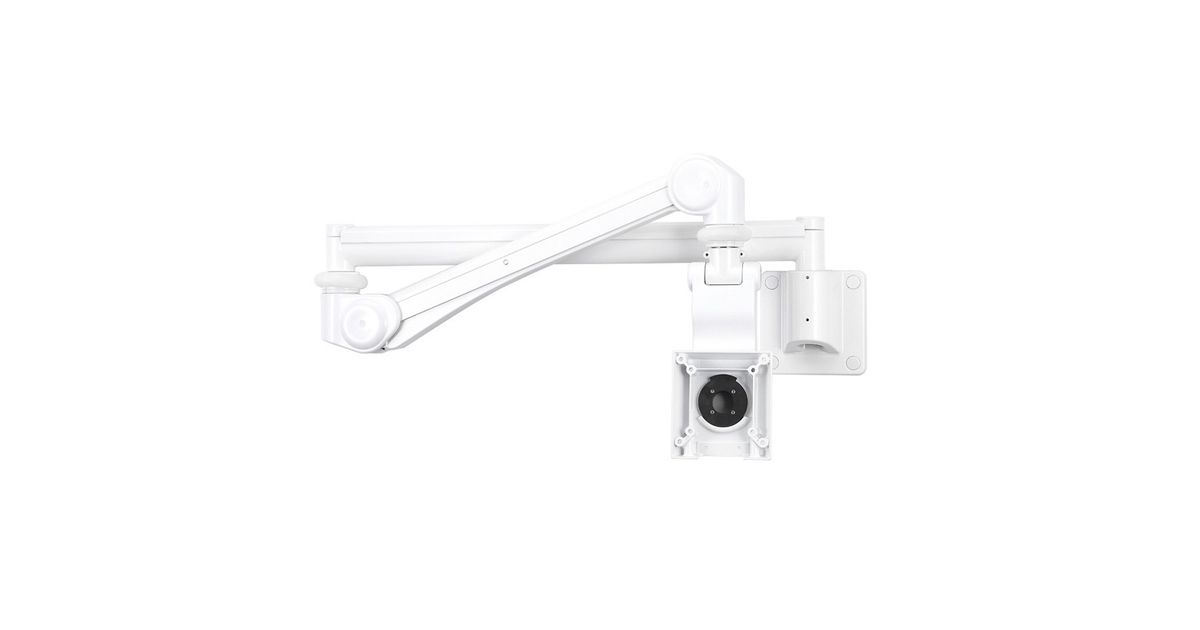

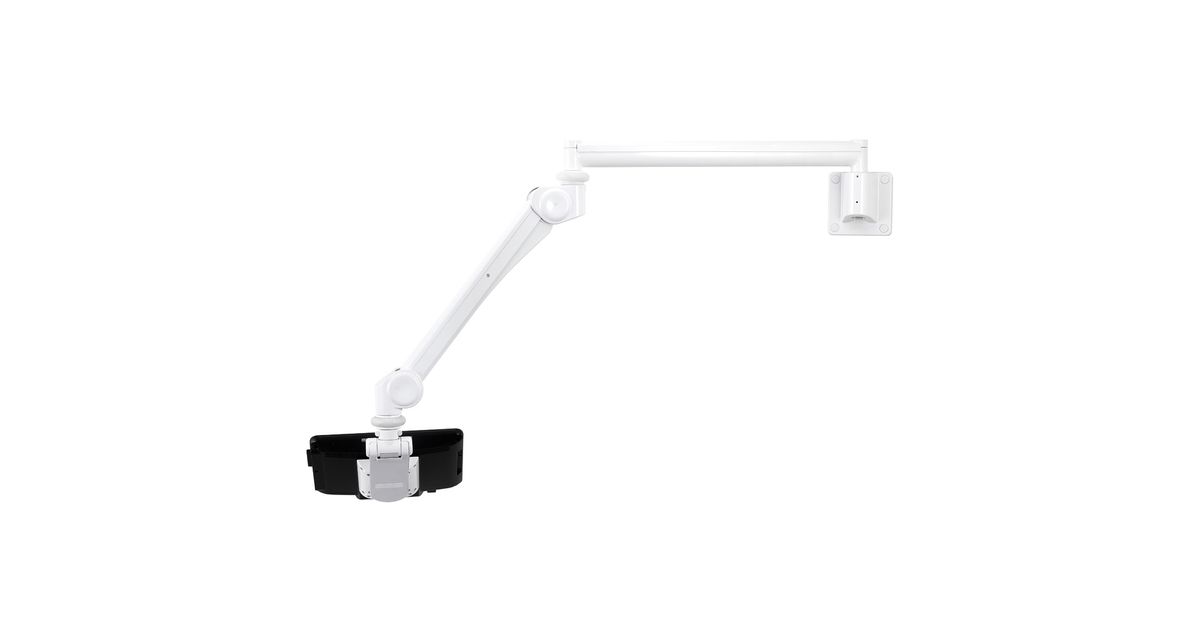

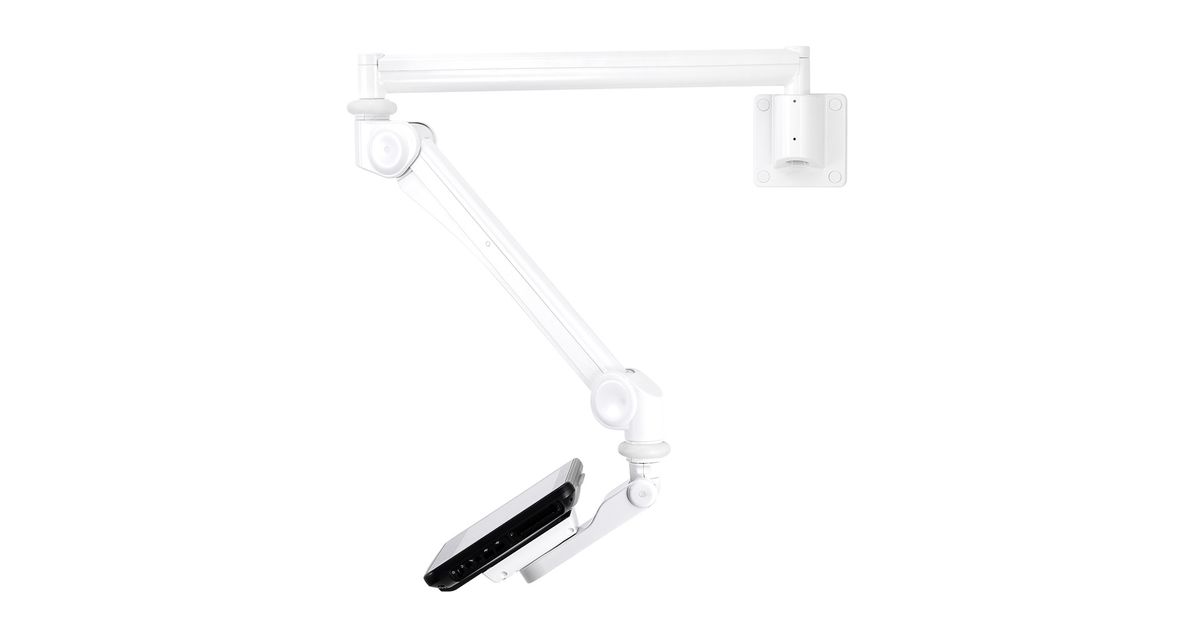

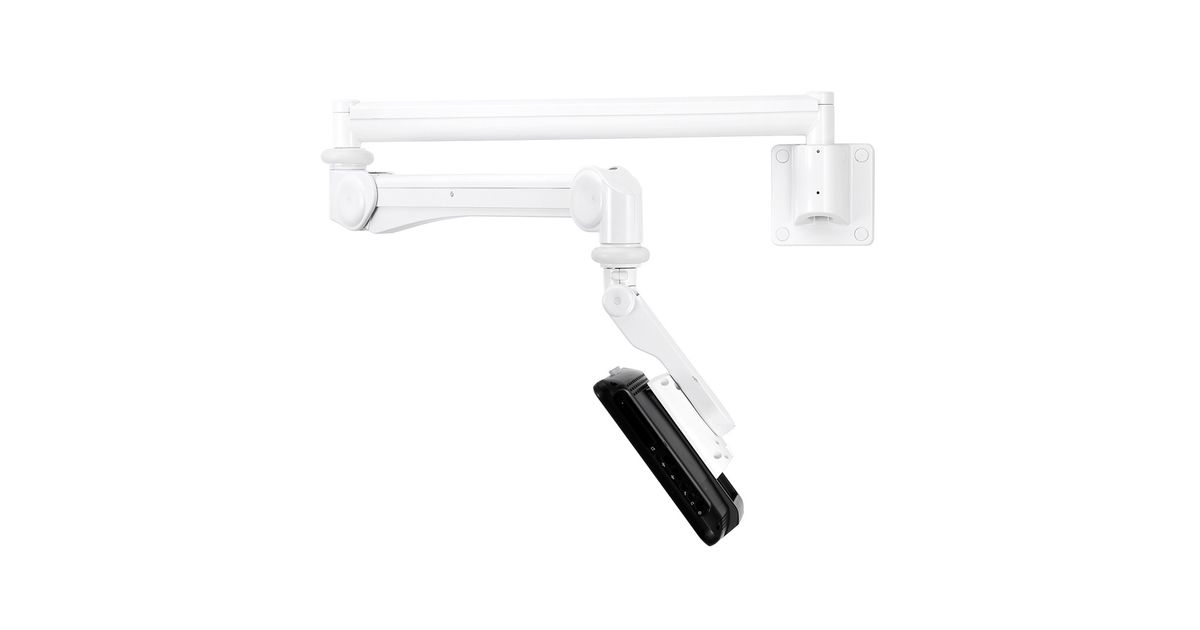

The Neomounts by Newstar wall mount, model FPMA-HAW300 is a tilt- and swivel wall mount for medical flat screens. This mount is a great choice for space saving placement or when ceiling mounting and floor placement is not an option.
Neomounts by Newstar's versatile tilt (60°) and swivel (370°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily height adjustable from 115 to 135 centimetres using a gas spring. Depth adjustable from 0 to 115 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.
Neomounts by Newstar FPMA-HAW300 has two pivot points and is suitable for flat screens. The weight capacity of this product is 3 kg. The wall mount is suitable for screens that meetVESA hole pattern 75x75 or 100x100mm.
All installation material is included with the product.
