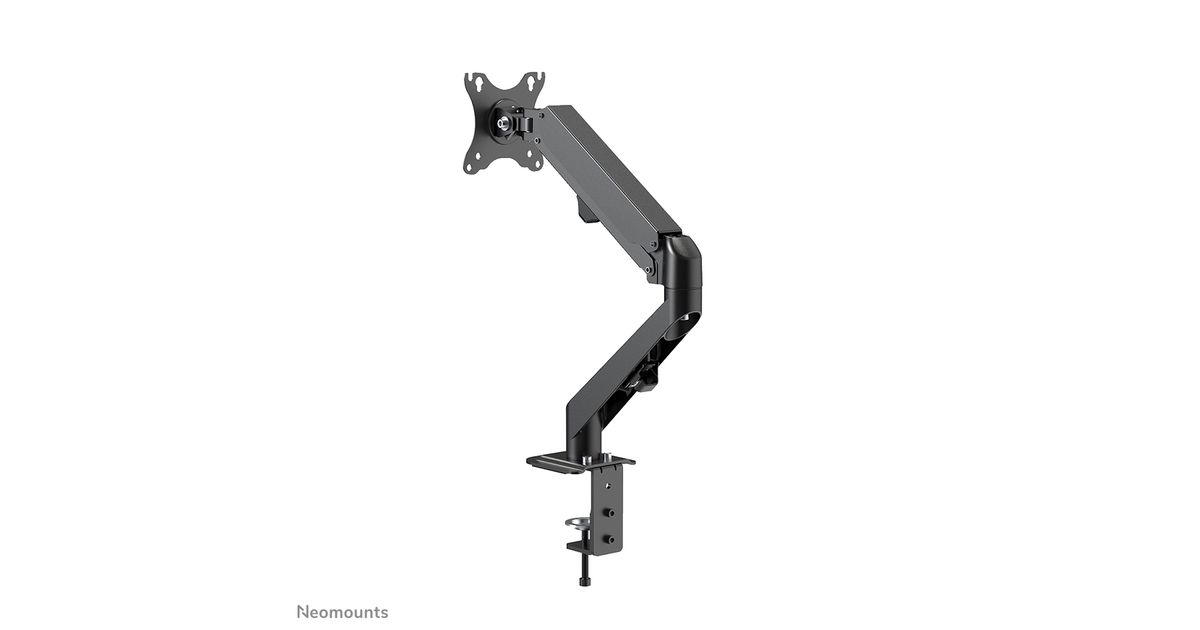

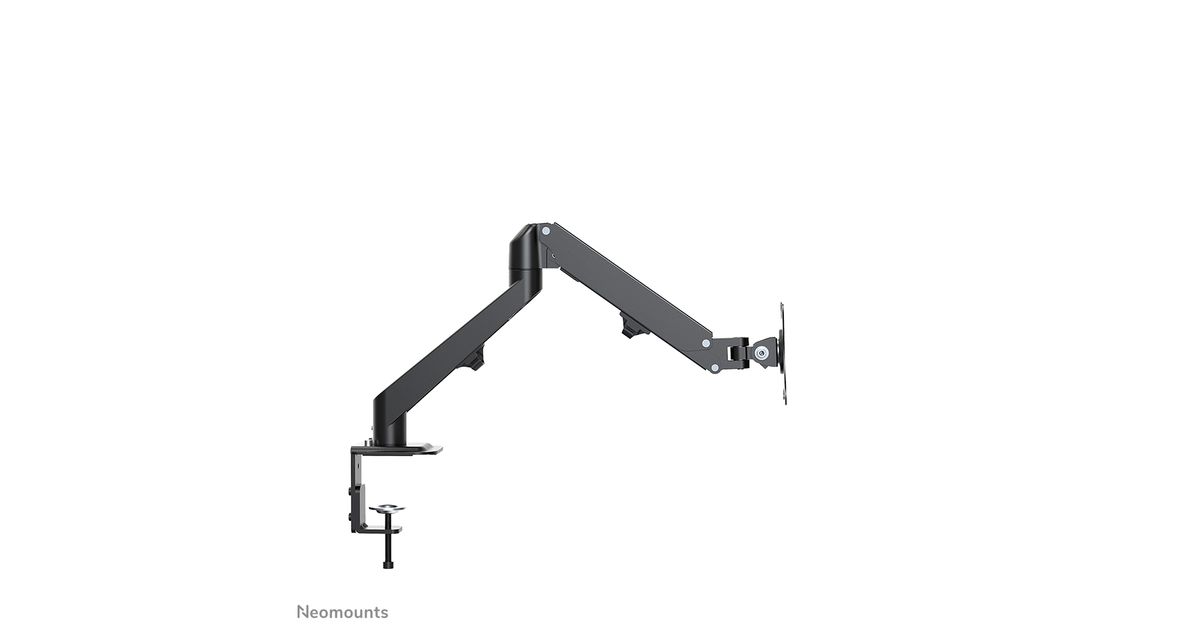

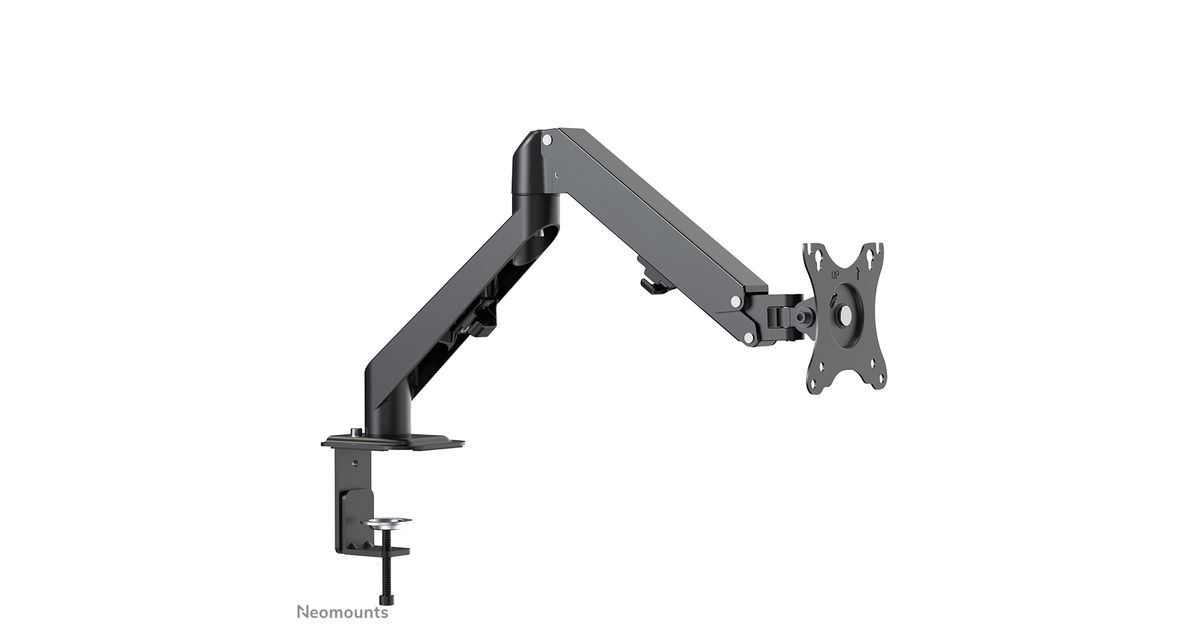

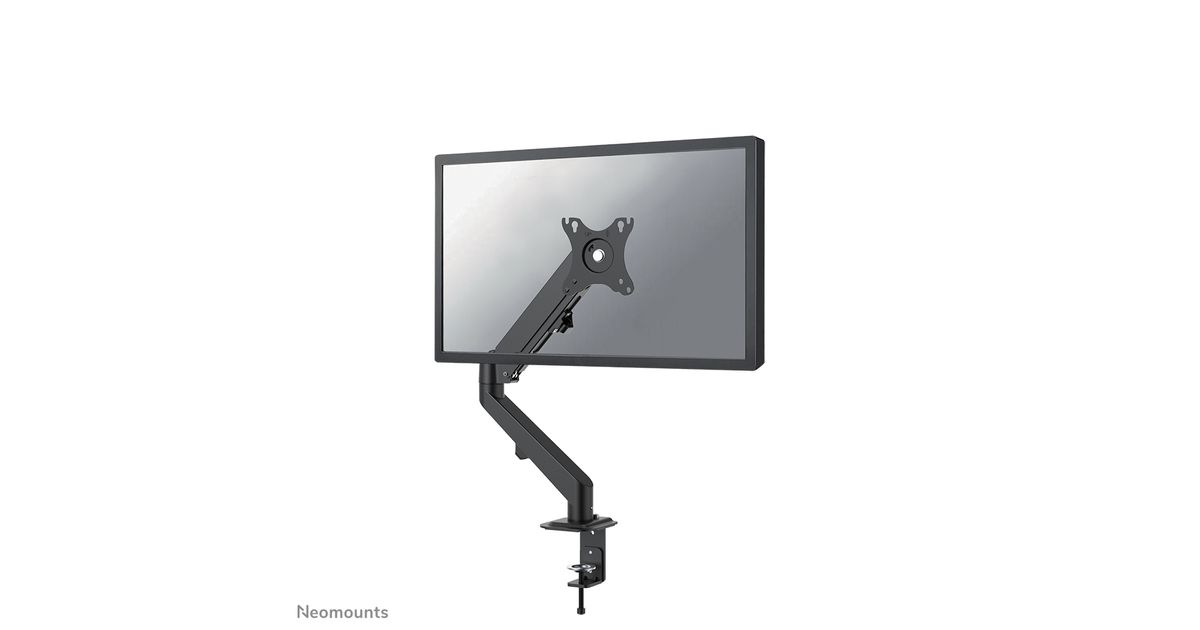

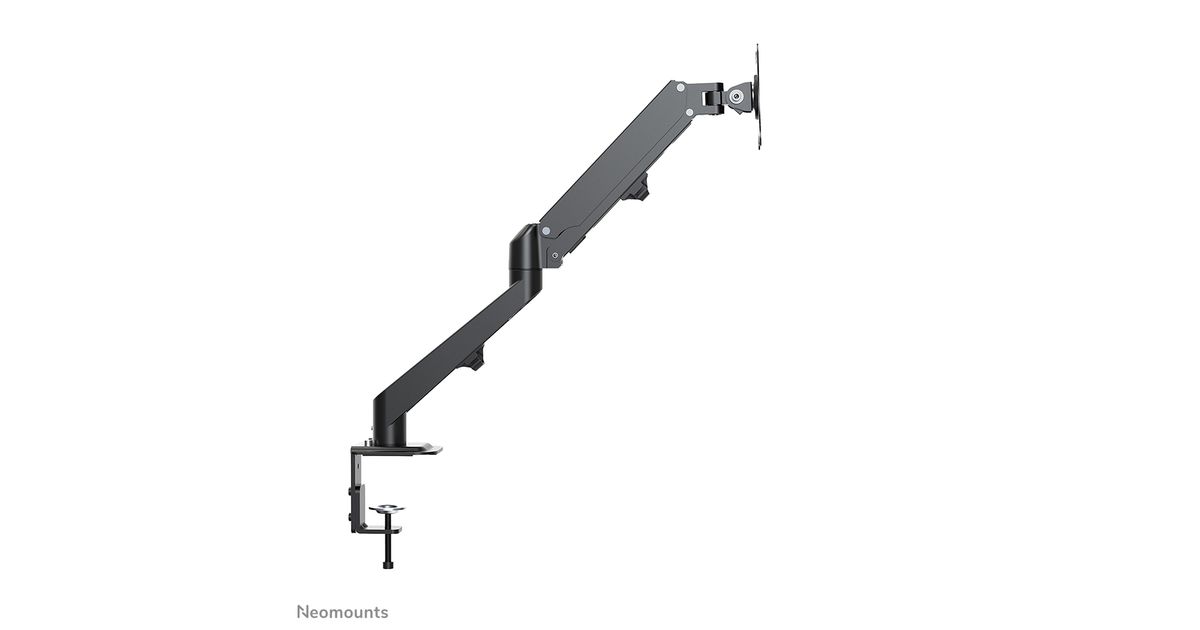

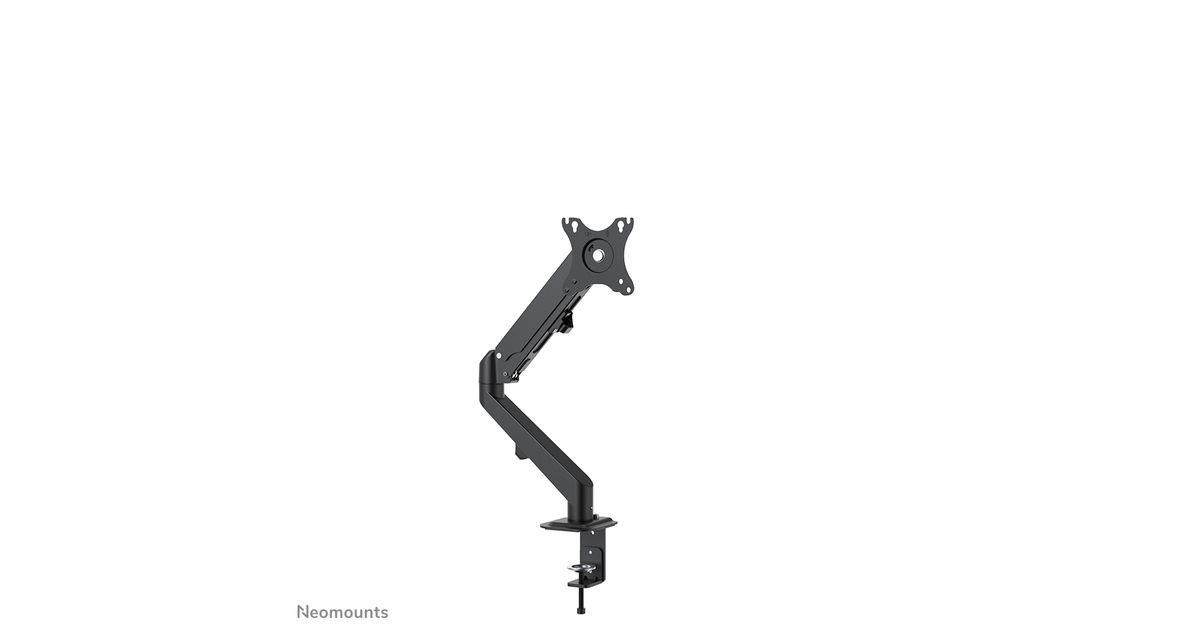

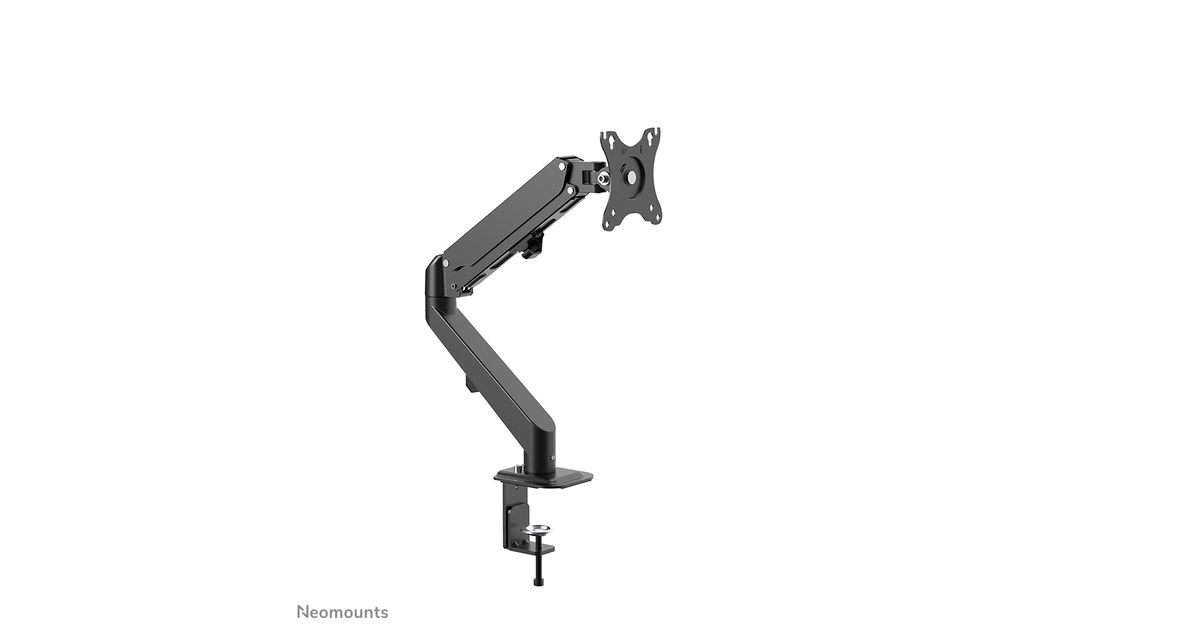

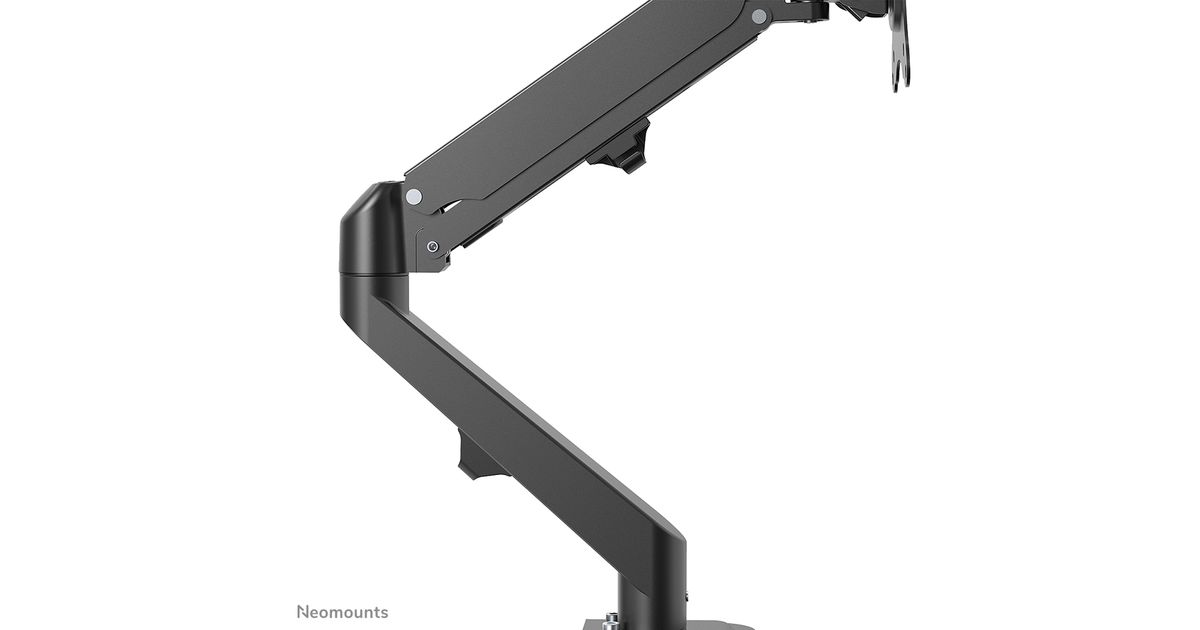

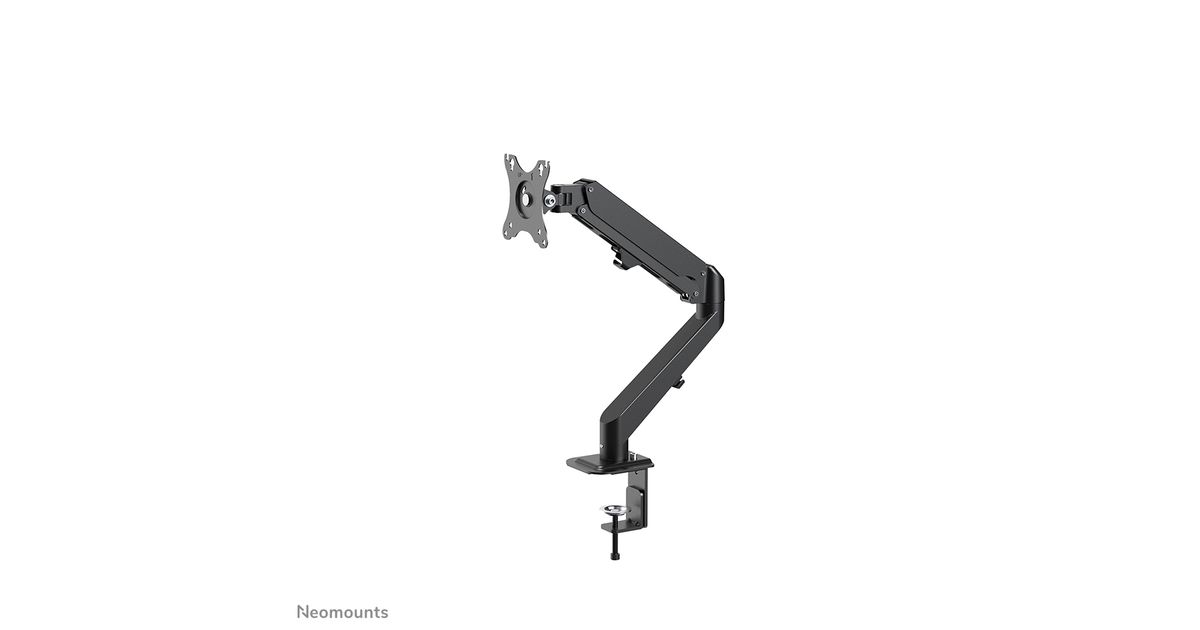

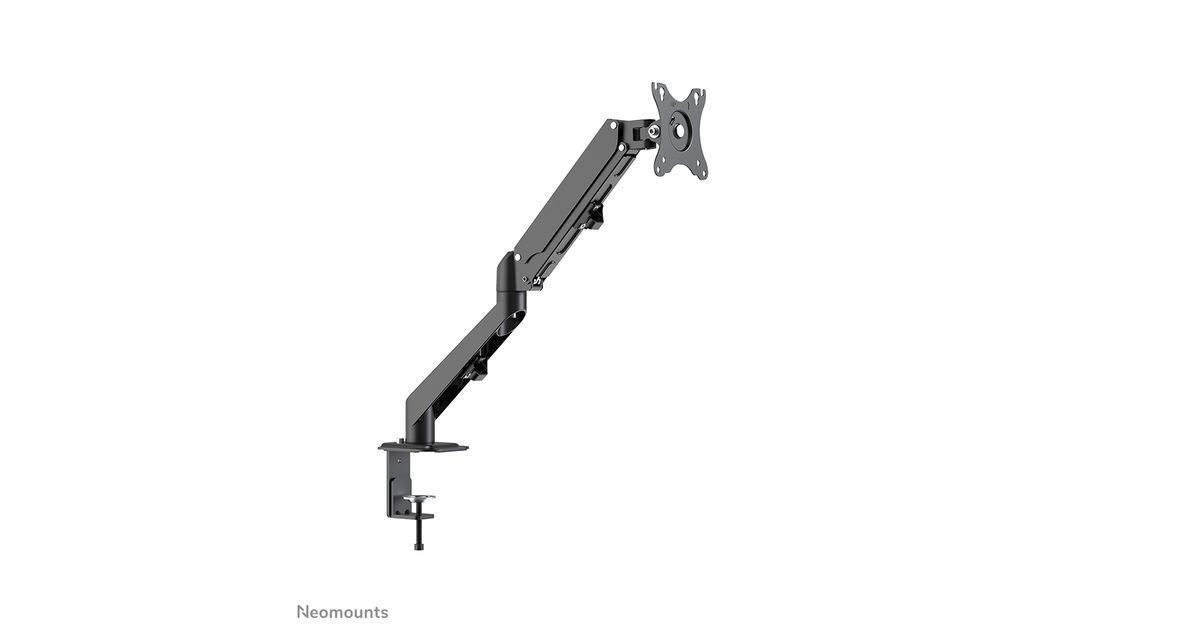

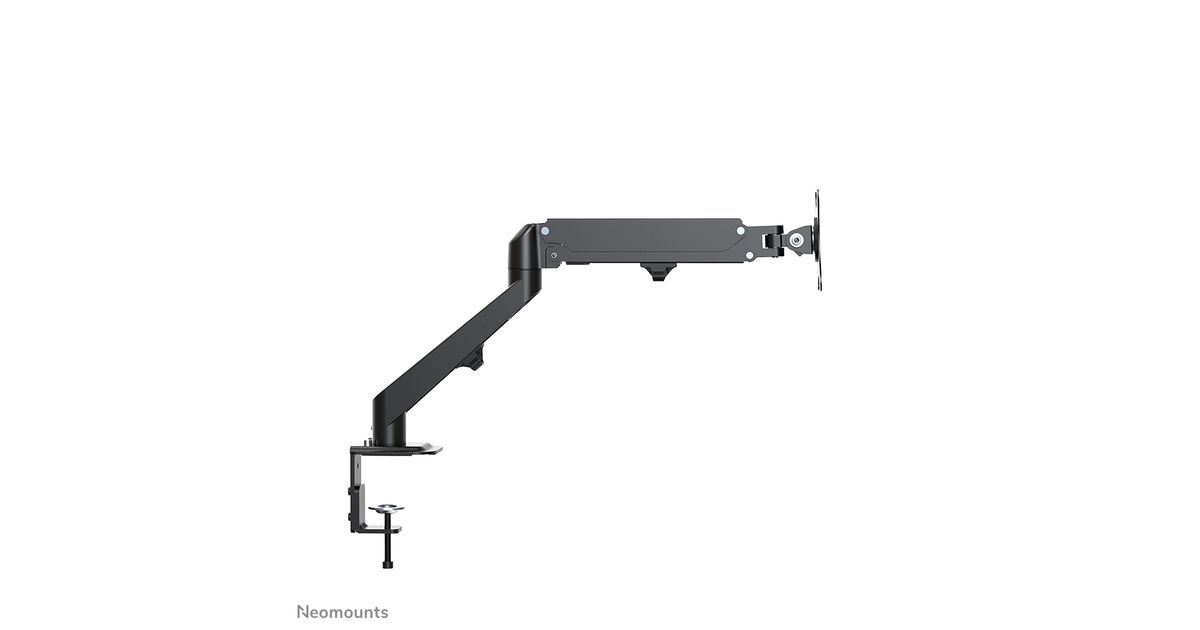

Neomounts by Newstar monitor desk mount
Neomounts by Newstar monitor desk mount, Clamp, 7 kg, 43.2 cm (17"), 68.6 cm (27"), 100 x 100 mm, Black
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Neomounts by Newstar |
| Product code | 686562386 |
| EAN | 08717371449261 |
| Manufacturer part number | DS70-700BL1 |
| Category | Projector mounts |
| Design | |
|---|---|
| Maximum weight capacity | 7 kg |
| Mounting | Clamp |

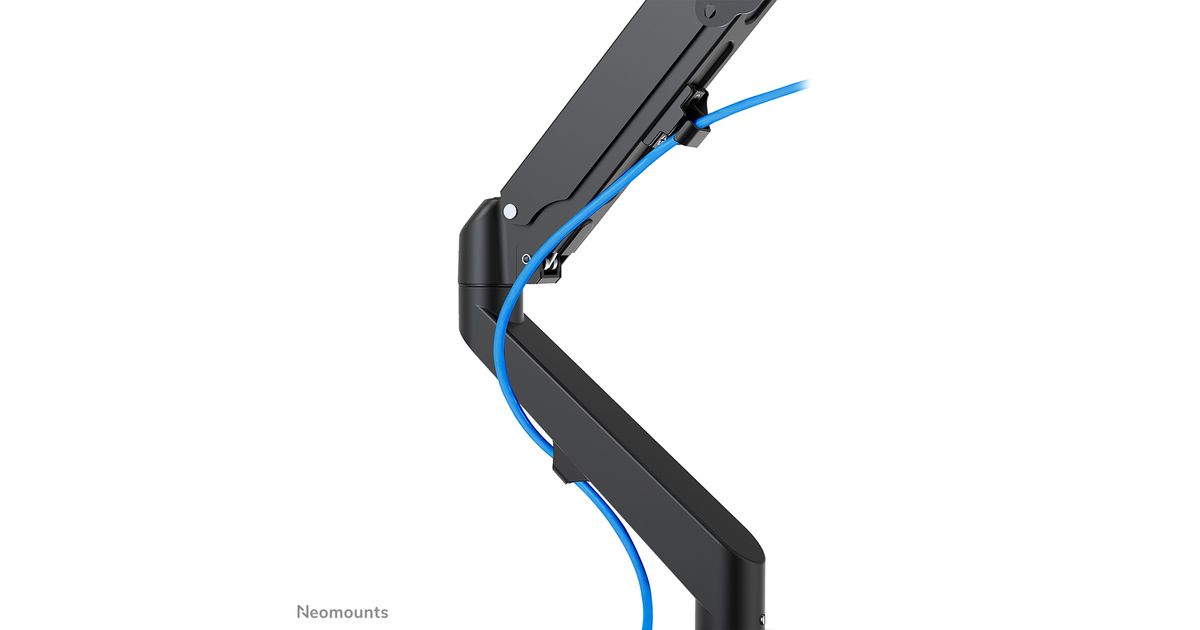

| Cable management | Y |
| Product colour | Black |
| Orientation | Landscape/Portrait |
| Features | |
|---|---|
| Maximum screen size | 68.6 cm (27") |
| Panel mounting interface | 75 x 75,100 x 100 mm |

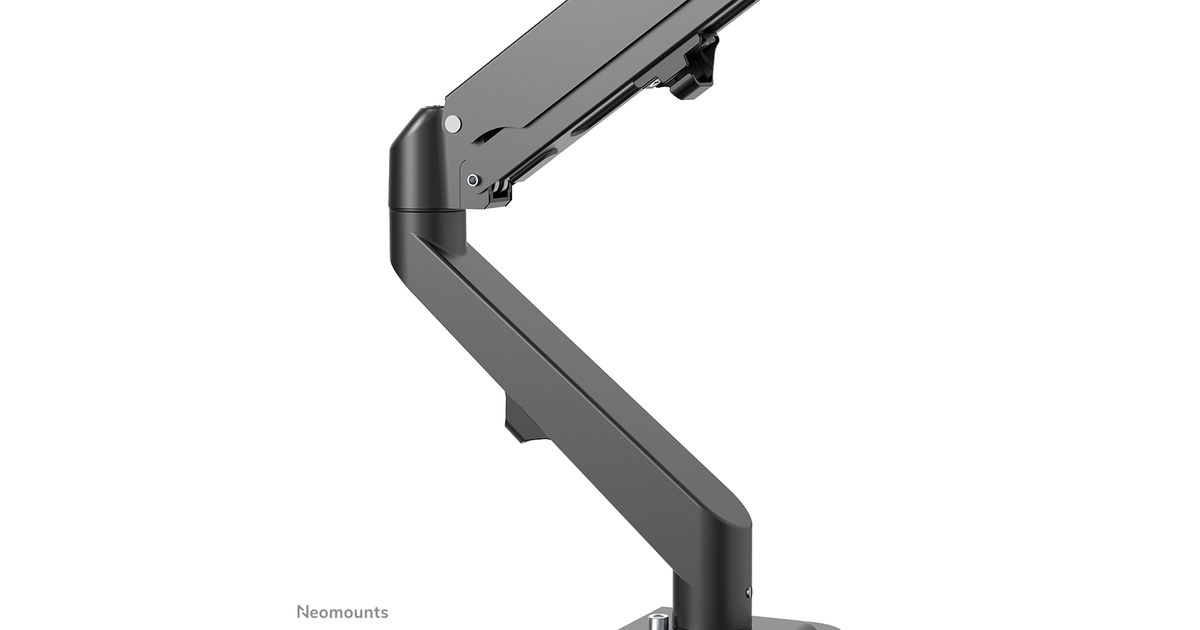

| Height adjustment type | Gas spring |
| Adjustable depth | Y |
| Harmonized System (HS) code | 85299097 |
| Mounting | |
|---|---|
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Number of displays supported | 1 |
| Ergonomics | |
|---|---|
| Minimum screen size | 43.2 cm (17") |
| Height adjustment | Y |

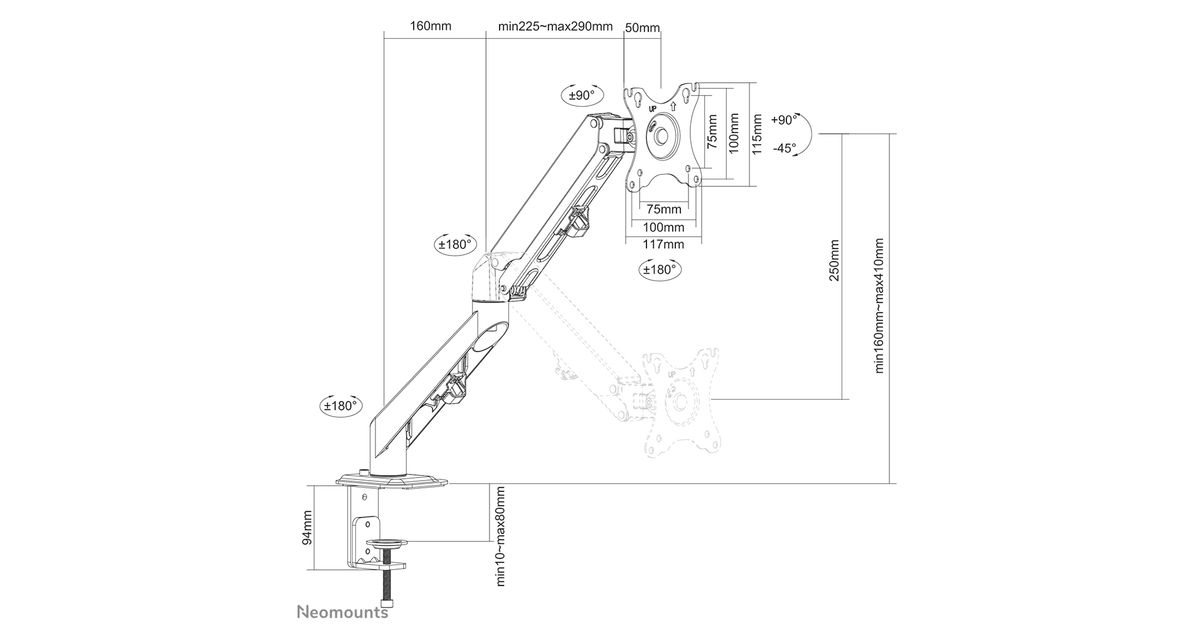

| Height adjustment range | 152 - 402 mm |
| Depth adjustment range | 0 - 480 mm |
| Tiltable | Y |
| Tilt angle range | -45 - 90° |
| Angle of rotation | 180° |
| Rotating | Y |
| Performance | |
|---|---|
| Swivel angle range | -90 - 90° |
| Weight & dimensions | |
|---|---|
| Width | 117 mm |
| Depth | 542 mm |
| Height | 566 mm |
| Package net weight | 2.5 kg |
| Packaging data | |
|---|---|
| Package width | 405 mm |
| Package depth | 270 mm |
| Package height | 90 mm |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
|---|---|
| Master (outer) case width | 405 mm |
| Master (outer) case length | 270 mm |
| Master (outer) case height | 90 mm |
| Products per master (outer) case | 1 pc(s) |
| Master (outer) case net weight | 2.1 kg |
| Products per pallet (EU) | 135 pc(s) |
| Country of origin | China |
Product Description

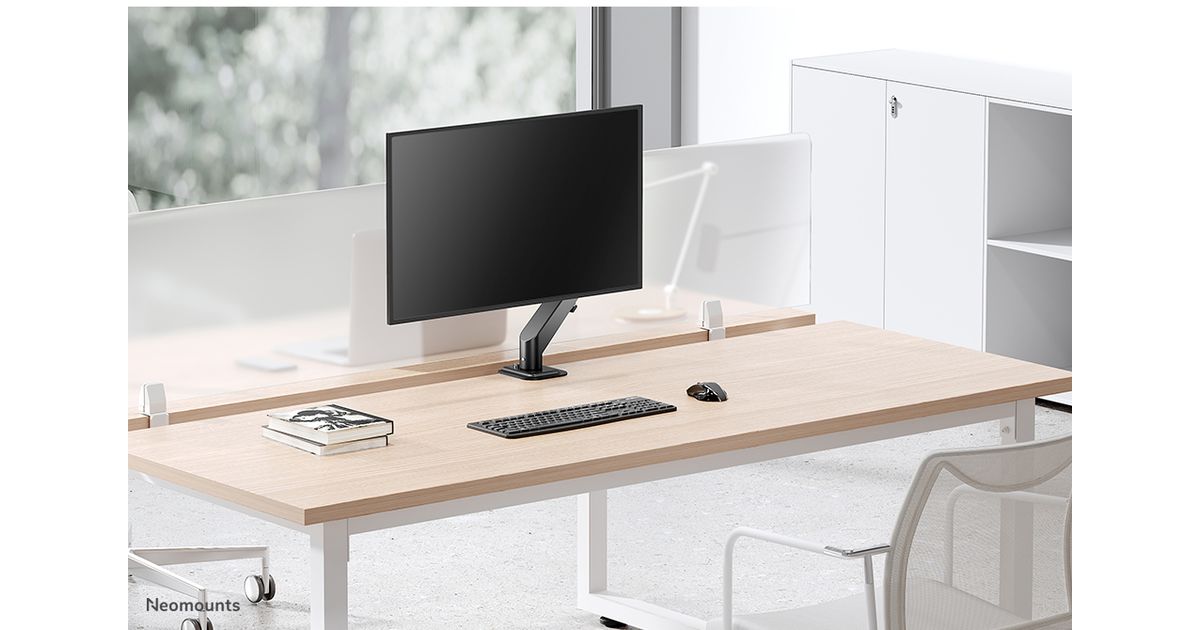

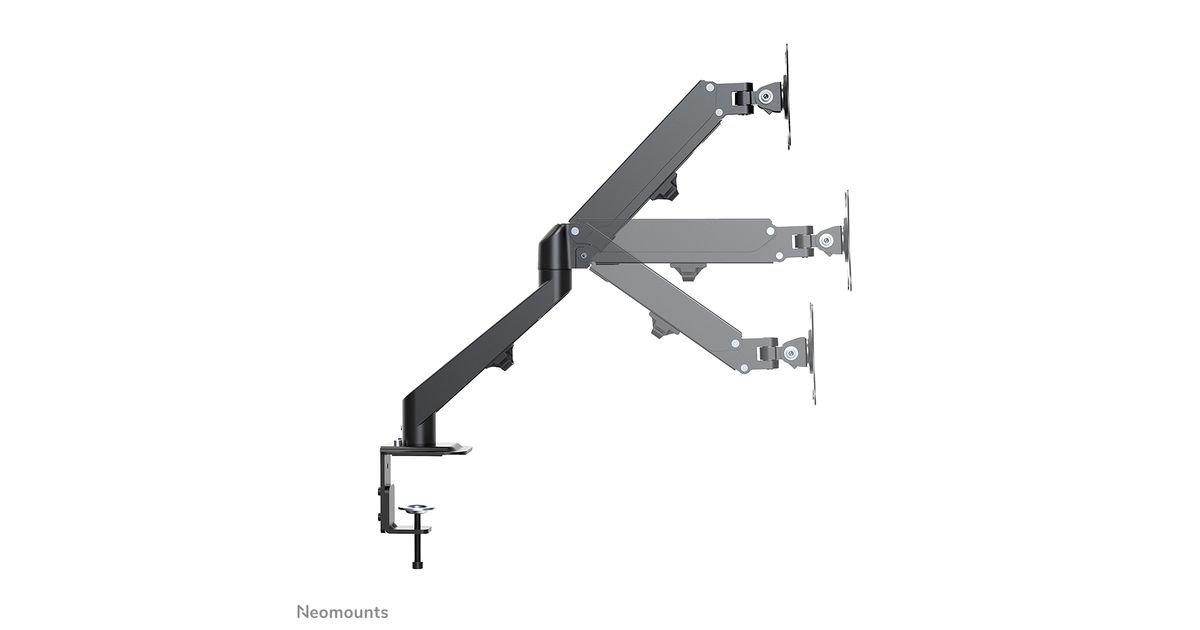

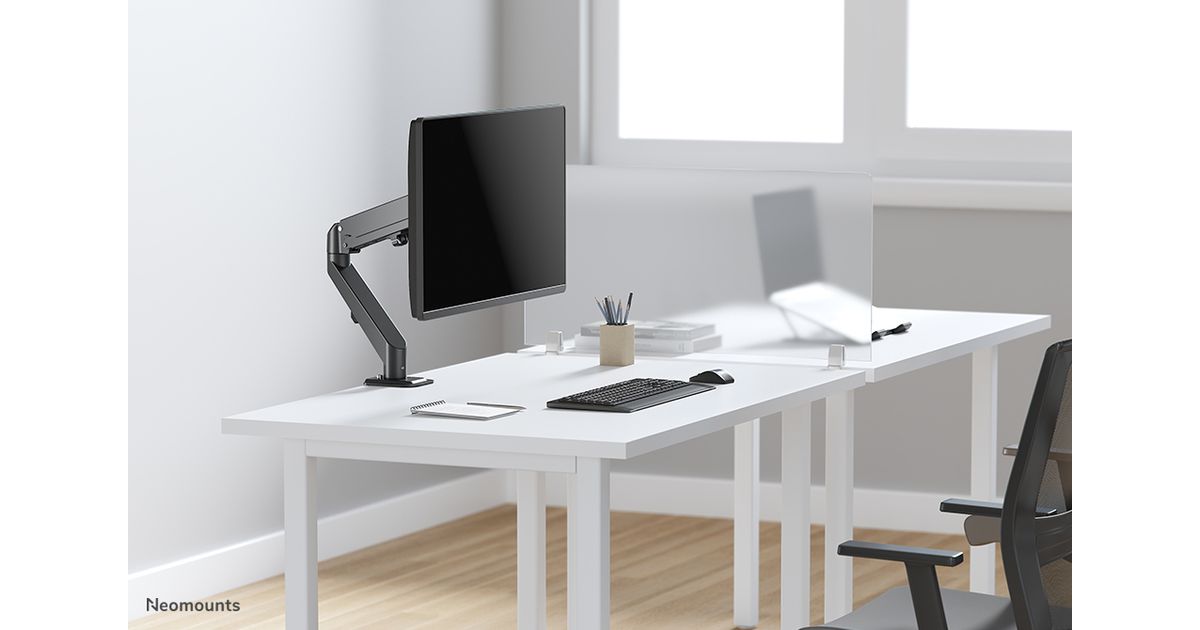

The Neomounts by Newstar DS70-700BL1 is a full motion desk mount for one flat screen up to 27" with a maximum weight capacity of 7 kg. The versatile tilt (135°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of your screen. Additionally, the mount features gas spring height adjustment (15,2-40,2 cm) and depth adjustment (0-48 cm), to create the perfect working position.
The DS70-700BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Unused hole patterns can be covered using one of Neomounts by Newstar's VESA adapter plates.
The DS70-700BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Unused hole patterns can be covered using one of Neomounts by Newstar's VESA adapter plates.
