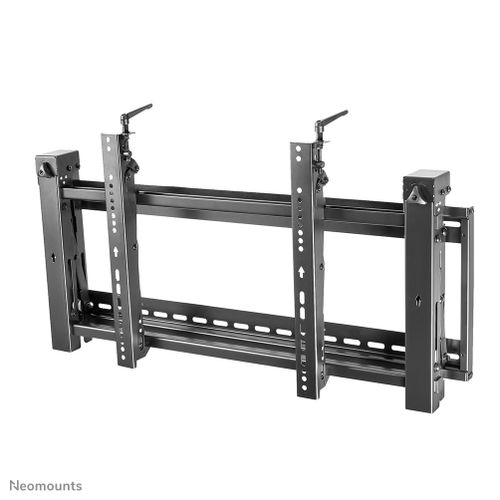

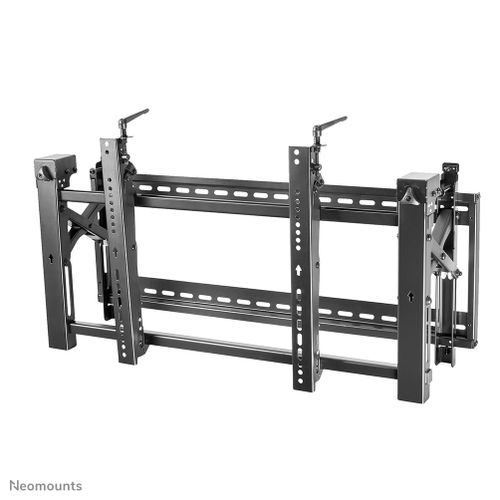

Neomounts by Newstar video wall mount
Neomounts by Newstar video wall mount, 70 kg, 81.3 cm (32"), 190.5 cm (75"), 200 x 200 mm, 600 x 400 mm, 0 - 12°
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Neomounts by Newstar |
| Product code | 03142050 |
| EAN | 08717371445522 |
| Manufacturer part number | LED-VW2000BLACK |
| Category | Wall, ceiling and other mounts |
| Design | |
|---|---|
| Maximum weight capacity | 70 kg |
| Product colour | Black |
| Features | |
|---|---|
| Maximum screen size | 190.5 cm (75") |
| Harmonized System (HS) code | 85299097 |
| Mounting | |
|---|---|
| Mounting type | Wall |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 600 x 400 mm |
| Number of displays supported | 1 |
| Ergonomics | |
|---|---|
| Minimum screen size | 81.3 cm (32") |
| Tilt angle range | 0 - 12° |
| Distance to the wall (min) | 14.3 cm |
| Distance to the wall (max) | 30.6 cm |
| Packaging data | |
|---|---|
| Package width | 200 mm |
| Package depth | 510 mm |
| Package height | 1030 mm |
| Logistics data | |
|---|---|
| Country of origin | China |
| Master (outer) case net weight | 13.7 kg |
| Products per pallet (EU) | 11 pc(s) |
| Master (outer) case width | 1030 mm |
| Master (outer) case length | 510 mm |
| Master (outer) case height | 200 mm |
| Master (outer) case gross weight | 16.3 kg |
| Products per master (outer) case | 1 pc(s) |
| Weight & dimensions | |
|---|---|
| Package net weight | 13.7 kg |
Product Description
The Neomounts by Newstar wall mount, model LED-VW2000BLACK is a fixed wall mount for flat screens up to 75" (191 cm). This mount is a great choice when you want the ultimate viewing flexibility with your flat screen. Depth of this mount is 14 to 30 centimetres. This wall mount is specially made to be used in video walls. The screen easily can be pulled out.
Neomounts by Newstar LED-VW2000BLACK is suitable for flat screens up to 75" (191 cm). The weight capacity of this product is 70 kg each screen. The wall mount is suitable for screens that meet VESA hole pattern 200x200 to 600x400mm.
Create a clean design videowall presentation with the Neomounts by Newstar LED-VW2000BLACK videowall mount solution!
- Pop-out Video Wall Mount

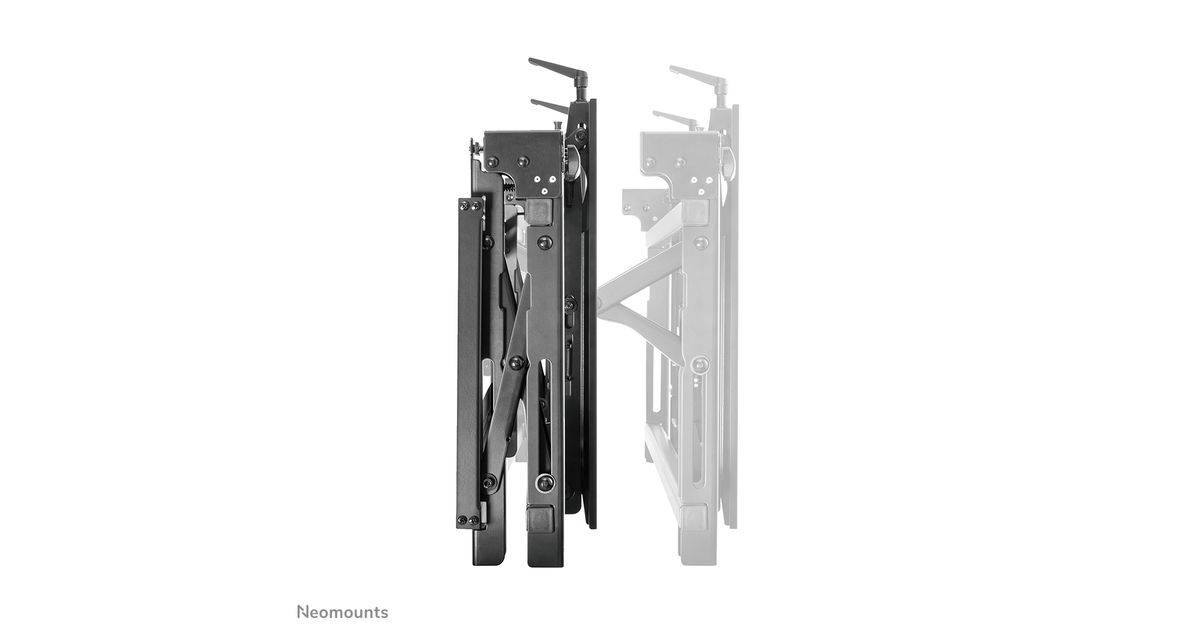

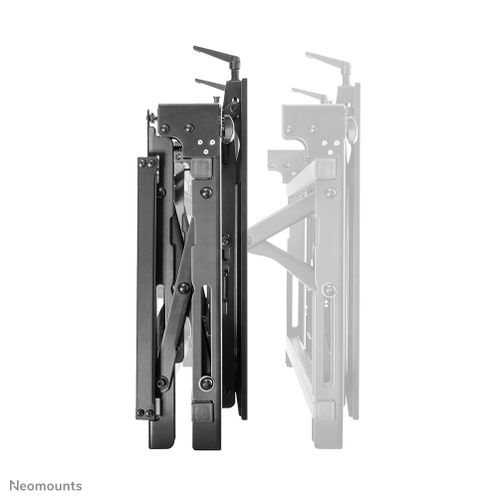

- Pop-out function allows quick release for access
- Lateral shift brackets enable fast alignment

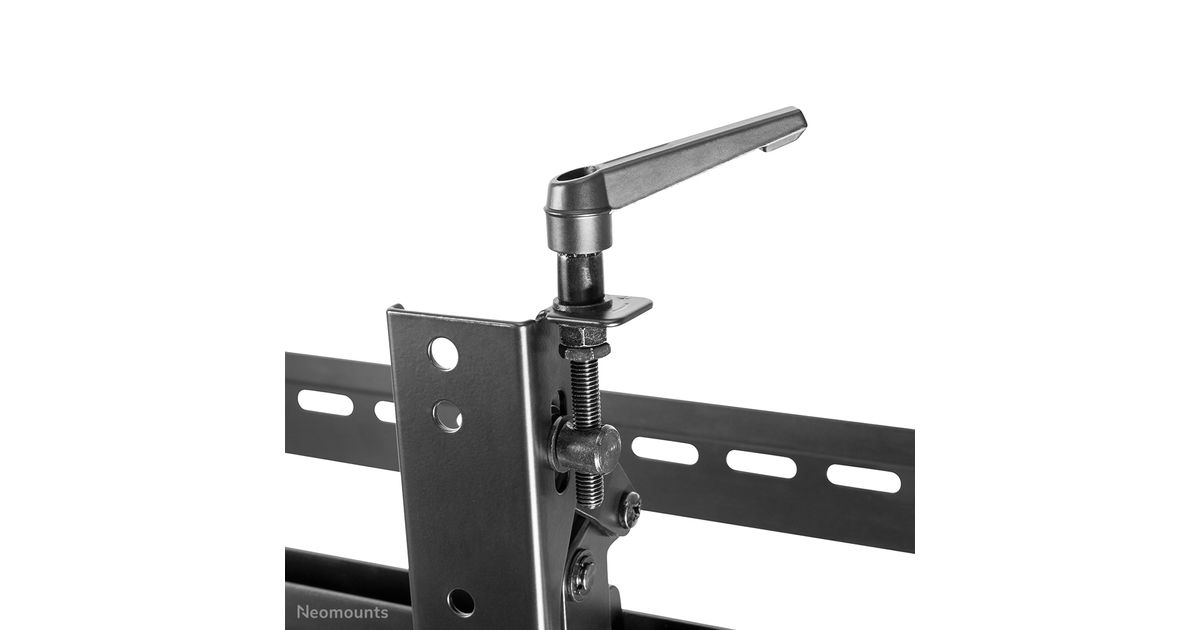

- Micro-adjustment at 8 points for seamless display alignment and level

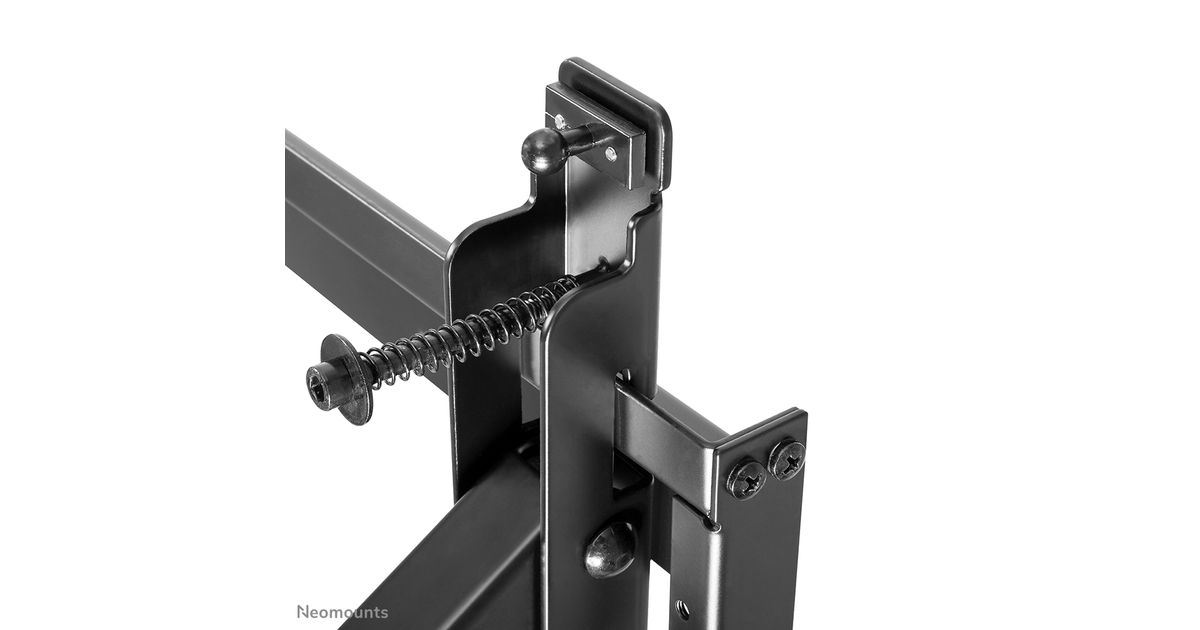

- Lock and unlock switch knob help to lock/release display out of the pop-out module
- Kickstand provides 12° of tilt for easy cable management and maintenance
- Anti-theft design for additional security (require for a padlock)
- Protects displays by removing the possibility of accidental pop-outs via the plastic locking pieces.
All installation material is included with the product.
Neomounts by Newstar LED-VW2000BLACK is suitable for flat screens up to 75" (191 cm). The weight capacity of this product is 70 kg each screen. The wall mount is suitable for screens that meet VESA hole pattern 200x200 to 600x400mm.
Create a clean design videowall presentation with the Neomounts by Newstar LED-VW2000BLACK videowall mount solution!
- Pop-out Video Wall Mount
- Pop-out function allows quick release for access
- Lateral shift brackets enable fast alignment
- Micro-adjustment at 8 points for seamless display alignment and level
- Lock and unlock switch knob help to lock/release display out of the pop-out module
- Kickstand provides 12° of tilt for easy cable management and maintenance
- Anti-theft design for additional security (require for a padlock)
- Protects displays by removing the possibility of accidental pop-outs via the plastic locking pieces.
All installation material is included with the product.
