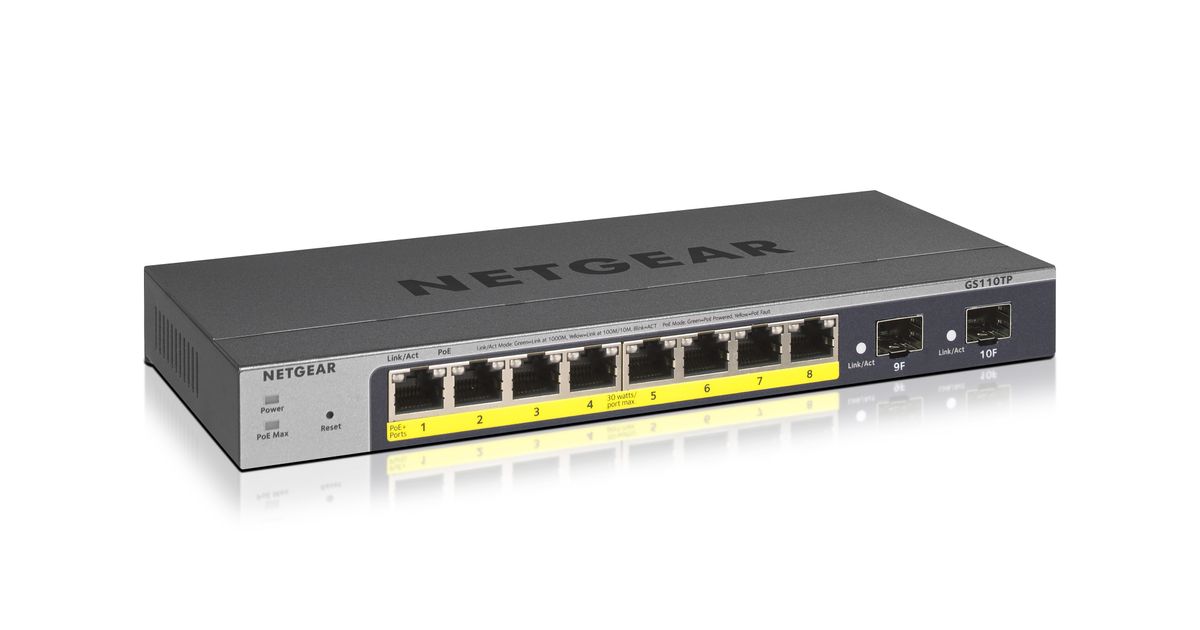

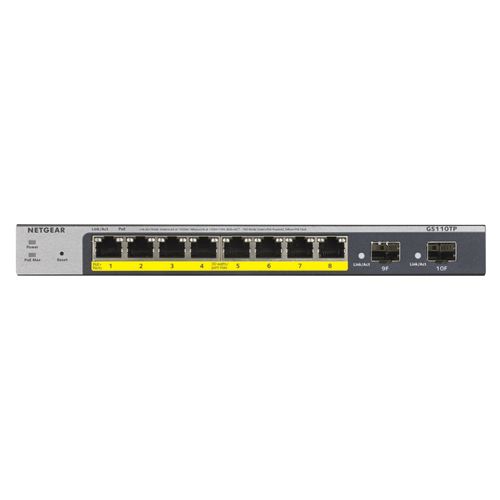

Netgear GS110TP Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
Netgear GS110TP, Managed, L2/L3/L4, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE)
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | NETGEAR |
| Product code | 16486722 |
| EAN | 00606449137644 |
| Manufacturer part number | NUNTGSS8P000011 |
| Category | Switches & accessories |
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3/L4 |
| Quality of Service (QoS) support | Y |
| Web-based management | Y |
| ARP inspection | Y |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| Data link protocols | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Other features | |
|---|---|
| Networking standards | IEEE 802.3ab,IEEE 802.3af,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| Number of VLANs | 64 |
| Internal memory | 128 MB |
| Network | |
|---|---|
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
| Port mirroring | Y |
| Link aggregation | Y |
| Broadcast storm control | Y |
| Rate limiting | Y |
| Spanning tree protocol | Y |
| MAC address auto-learning supported | Y |
| Security algorithms | 802.1x RADIUS |
| Features | |
|---|---|
| Full duplex | Y |
| Flow control support | Y |
| Certification | CE, FCC, VCCI Class B, C-Tick |
| Memory type | RAM |
| Data transmission | |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 20 Gbit/s |
| Store-and-forward | Y |
| Jumbo frames support | Y |
| Packet buffer memory | 0.5 MB |
| Security | |
|---|---|
| DHCP features | DHCP client |
| Access Control List (ACL) | Y |
| Access Control List (ACL) IPv6 entries | 100 |
| IGMP snooping | Y |
| MAC address filtering | Y |
| Multicast features | |
|---|---|
| Multicast support | Y |
| IPv4 multicast entries | 32 |
| Number of multicast groups filtered | 256 |
| Performance | |
|---|---|
| Management protocols | SNMP |
| Flash memory | 32 MB |
| Mean time between failures (MTBF) | 1200041 h |
| Heat dissipation | 237.38 BTU/h |
| Protocols | |
|---|---|
| Switching protocols | SNMP |
| Supported network protocols | HTTP, HTTPS |
| Design | |
|---|---|
| Product colour | Grey |
| LED indicators | Activity, LAN, Link, PoE, Power, Speed |
| Processor | |
|---|---|
| Processor frequency | 500 MHz |
| Power supply | |
|---|---|
| Power supply included | Y |
| Power | |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| DC input voltage | 54 V |
| Input current | 1.25 A |
| Power consumption (max) | 15.1 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Y |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 55 W |
| Total Power over Ethernet (PoE) budget | 69.5 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 3000 m |
| Weight & dimensions | |
|---|---|
| Width | 236 mm |
| Depth | 101 mm |
| Height | 27 mm |
| Weight | 610 g |
| Package weight | 1.49 kg |
| Packaging content | |
|---|---|
| Manual | Y |
| Packaging data | |
|---|---|
| Package type | Box |
| Package width | 161 mm |
| Package depth | 267 mm |
| Package height | 86 mm |
| Logistics data | |
|---|---|
| Master (outer) case width | 27.4 cm |
| Master (outer) case length | 35 cm |
| Master (outer) case height | 30.9 cm |
| Master (outer) case gross weight | 9.73 kg |
| Products per master (outer) case | 6 pc(s) |
Product Description
The NETGEAR GS110TPv3 8-Port Gigabit PoE+ Ethernet Smart Managed Pro Switch comes with 8 PoE copper ports and 2 dedicated SFP ports for fiber uplinks. Cautious spender organizations can now deploy PoE devices with a reasonable PoE power budget of 55W. Each PoE port can provide up to 30 watts to power up the connected devices. Fanless, the GS110TPv3 supports perfectly silent desktop operation or wall mounting. The GS110TPv3 Smart Managed Pro Switch offers an easy-to-use, Web browser-based management GUI with configurable L2 network features like VLANs and PoE operation scheduling, allowing SMB customers to deploy PoE-based VoIP phones and IP surveillance. This switch also comes with NETGEAR Insight Cloud management activation (free for the first two devices) for anytime remote management and monitoring through an intuitive app or Cloud Portal. Advanced features such as IPv4 Layer 2+ static routing including IPv6 management, ACL, DiffServ QoS, LACP link aggregation and Spanning Tree will satisfy even the most advanced small business networks. The GS110TPv3 features Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings and is backed by NETGEAR’s Lifetime Limited Warranty and 24/7 support including lifetime chat.
