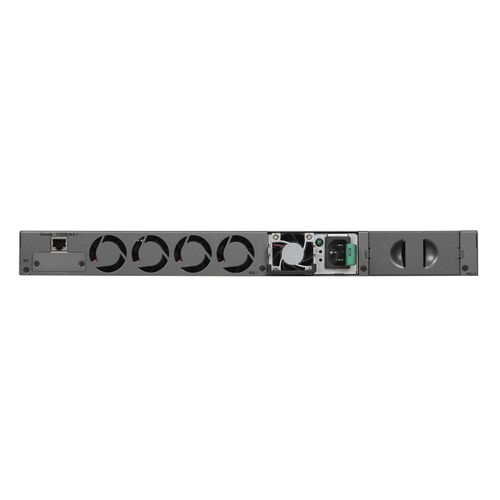

For illustrative purpose only
Netgear M4300-52G-PoE+ 550W PSU Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Netgear M4300-52G-PoE+ 550W PSU, Managed, L2/L3/L4, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | NETGEAR |
| Product code | 07179527 |
| EAN | 00606449112832 |
| Manufacturer part number | NUNTGSZ48430000 |
| Category | Switches & accessories |
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3/L4 |
| Quality of Service (QoS) support | Y |
| Web-based management | Y |
| ARP inspection | Y |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 2 |
| Console port | RJ-45/Mini-USB |
| Optical fiber | |
|---|---|
| Fiber optic connector | SFP+ |
| Fiber ethernet cabling technology | 10GBASE-LR,10GBASE-LRM,10GBASE-SR |
| Other features | |
|---|---|
| USB 2.0 ports quantity | 1 |
| Networking standards | IEEE 802.11ad,IEEE 802.11az,IEEE 802.3ad,IEEE 802.3az |
| Number of VLANs | 4000 |
| Internal memory | 1024 MB |
| Noise level | 39.8 dB |
| User guide | Y |
| Network | |
|---|---|
| 10G support | Y |
| Cable types supported | Cat5, Cat5e, Cat6, Cat7, Fiber |
| Port mirroring | Y |
| IP routing | Y |
| Link aggregation | Y |
| Rate limiting | Y |
| Auto MDI/MDI-X | Y |
| Spanning tree protocol | Y |
| Auto-sensing | Y |
| Auto-negotiation | Y |
| VLAN support | Y |
| Virtual LAN features | Private VLAN |
| Security algorithms | HTTPS,SNMP,SSH |
| Features | |
|---|---|
| Flow control support | Y |
| Built-in processor | Y |
| Data transmission | |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 128 Gbit/s |
| Forwarding rate | 357 Mpps |
| Store-and-forward | Y |
| Number of static routes | 64 |
| Jumbo frames support | Y |
| Jumbo frames | 9000 |
| Packet buffer memory | 16 MB |
| Security | |
|---|---|
| DHCP features | DHCP server,DHCP client |
| Access Control List (ACL) | Y |
| IGMP snooping | Y |
| SSH/SSL support | Y |
| BPDU filtering/protection | Y |
| Multicast features | |
|---|---|
| Multicast support | Y |
| Number of multicast groups filtered | 4000 |
| Design | |
|---|---|
| Rack mounting | Y |
| Stackable | Y |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Activity, Power, Speed |
| Electromagnetic compatibility | CE, FCC 15 A, VCCI A, A EN 55022, (CISPR 22) A, EN 50082-1, EN 55024 |
| Performance | |
|---|---|
| Safety | CSA 22.2 #950, UL 1950)/cUL IEC 950/EN 60950 |
| Flash memory | 256 MB |
| Mean time between failures (MTBF) | 673207 h |
| Heat dissipation | 207913 BTU/h |
| Processor | |
|---|---|
| Processor frequency | 800 MHz |
| Power supply | |
|---|---|
| Power supply included | Y |
| Power | |
|---|---|
| Redundant power supply (RPS) support | Y |
| Number of power supply units | 1 |
| AC input voltage | 110 - 220 V |
| Power consumption (max) | 865 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Y |
| Power over Ethernet (PoE) ports quantity | 48 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 480 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 3000 m |
| Weight & dimensions | |
|---|---|
| Width | 440 mm |
| Depth | 388 mm |
| Height | 44 mm |
| Weight | 6.67 kg |
| Packaging content | |
|---|---|
| Cables included | AC, LAN (RJ-45), Mini-USB |
| Rack mount kit | Y |
| Resource CD | Y |
| Packaging data | |
|---|---|
| Rubber feet | Y |
Product Description
The NETGEAR M4300 Stackable Switch Series delivers L2/L3/L4 and IPv4/IPv6 cost-effective services for mid-enterprise edge with full PoE+ and SMB core deployments with unrivalled ease of use: 10 Gigabit models can seamlessly stack with 1 Gigabit models within the series, enabling spine and leaf line-rate stacking topologies. Non-stop forwarding (NSF) virtual chassis architectures provide advanced High Availability (HA) with hitless failover across the stack. Dual redundant, modular power supplies equipping full width models contribute to business continuity management. Layer 3 feature set includes static, dynamic and policy-based routing – as standard. Perfect for wireless access, unified communications and IP video, the NETGEAR M4300 Switch Series is also ready for the future, with Software-defined Network (SDN) and OpenFlow 1.3 enabled for your network.
Best-in-class stacking
- M4300 is flexible enough for mixed stacking between 10 Gigabit and 1 Gigabit models, using any 10G port with any media type (RJ45, SFP+, DAC cables)
- High-availability is another key differentiator for stackable solutions: in case of a master switch failure, NSF and hitless failover ensure the standby switch takes over while forwarding plane continues to forward traffic on the operational stack members without any service interruption
Higher flexibility
- Two half-width M4300 switches can be paired in a single rack space for redundant Top of Rack installations with Auto-iSCSI prioritization
- 10 Gigabit ports are all independent and 1G backward compatible for progressive transition to 10G speeds
Lower complexity
- Entire feature set including L2 switching (multi-tiered access control) and L3 routing (static, RIP, OSPF, VRRP, PIM, PBR) is available without license
- DHCP/BootP innovative auto-installation including firmware and configuration file upload automation
Investment protection
- Line-rate spine and leaf stacking topologies offer multiple possibilities in server rooms, in branch collapsed cores or at the edge of growing networks
- Even if an organization is not ready for SDN, OpenFlow support offers future-ready design for maximum investment protection
Secure services
- With successive tiering, the Authentication Manager allows for authentication methods per port for a tiered authentication based on configured time-outs
- With BYOD, tiered Dot1x -> MAB -> Captive Portal authentication is powerful and simple to implement with strict policies
Industry standard management
- Industry standard command line interface (CLI), functional NETGEAR web interface (GUI), SNMP, sFlow and RSPAN
- Single-pane-of-glass NMS300 management platform with centralized firmware updates and mass-configuration support
Industry leading warranty
- NETGEAR M4300 series is covered under NETGEAR ProSafe Lifetime Hardware Warranty
- 90 days of Technical Support via phone and email, Lifetime Technical Support through online chat and Lifetime Next Business Day hardware replacement
