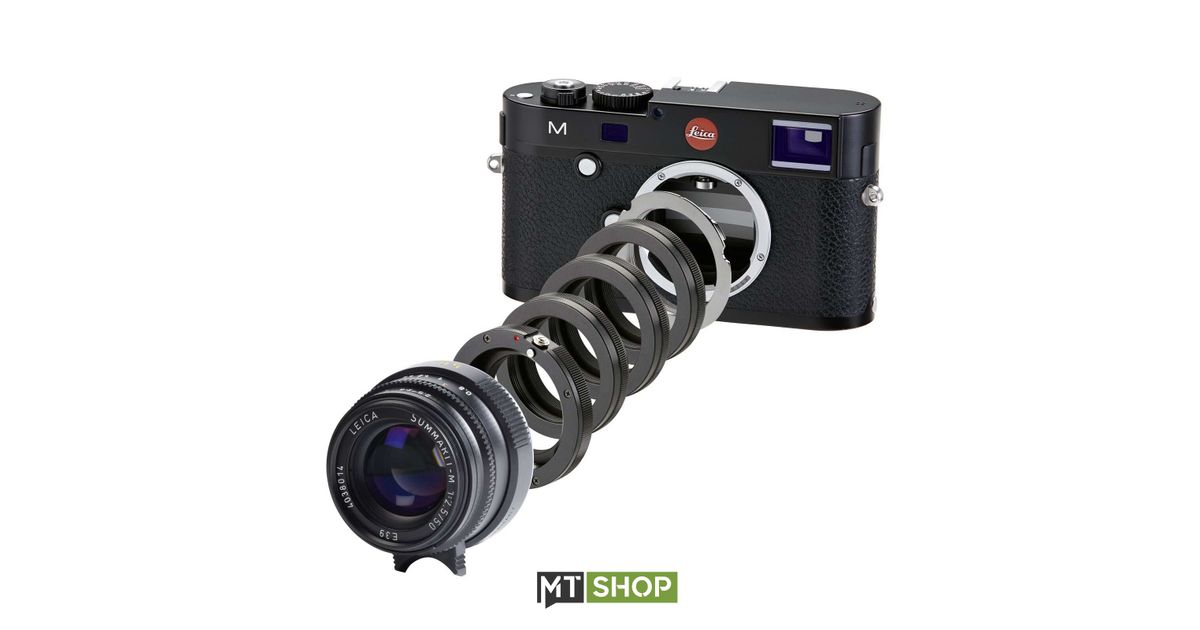

For illustrative purpose only
Novoflex Visoflex II/III to Leica M Extension Tube Set
Product Information
| Information | |
|---|---|
| Manufacturer | Novoflex |
| Product code | 11267285 |
| EAN | 04030432730400 |
| Manufacturer part number | LEM/VIS III |
| Category | Lens adapters |
Product Description
The LEM/VIS-III adapter set expands the range of application of compatible Leica M cameras by several possible applications. It is an adapter and intermediate ring set in one. You have the following options:
- Visoflex II/III lenses can be focused indefinitely on the Leica M240, M240P, M246, M10
- Leica screw thread lenses can be used on all Leica M cameras
- Leica M-lenses can be used on the Leica M240, M240P, M246, M10 in the close-up and macro range with variable extension (3 middle rings, each 10mm extension)
With a 50mm Leica M lens, imaging scales between 0.28:1 - 0.84:1 can be achieved, depending on the use of the spacers.
NOTE
It is recommended to use this adapter kit only on Leica M cameras with Live View function. On all other M-cameras, focusing of the connected lenses is not possible due to the missing rangefinder coupling.
In order to avoid oblique positioning of cameras, lenses, bellows, etc., the rear of the 3 middle extension rings has an adjustable threaded insert.
-
Adapter
- Lens Mount:
- Leica M
- Camera Connection:
- Leica M
-
General
- Material:
- Metal / Plastic
- Colour:
- Black
