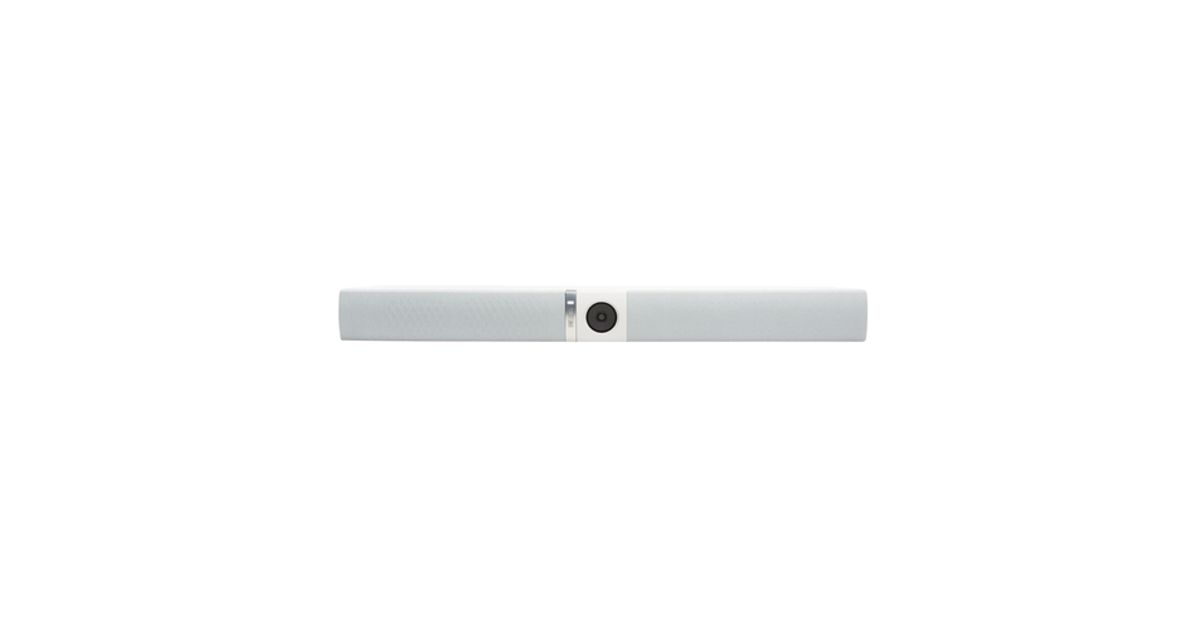

Owl Labs Owl Bar video conferencing system 48 MP Ethernet LAN Video collaboration bar
Owl Labs Owl Bar, Video collaboration bar, CMOS, 4K Ultra HD, 30 fps, Grey
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Owl Labs |
| Product code | 169569651 |
| EAN | 00850022203602 |
| Manufacturer part number | FRS100-2000 |
| Category | Confrenecesystems |
| Design | |
|---|---|
| Product type | Video collaboration bar |
| Product colour | Grey |
| Packaging content | |
|---|---|
| Number of cameras | 1 |
| Display | |
|---|---|
| HD type | 4K Ultra HD |
| Camera | |
|---|---|
| Maximum video resolution | 3840 x 2160 pixels |
| Horizontal field of view | 114° |
| Vertical field of view | 73° |
| Features | |
|---|---|
| Supported video modes | 360p, 1080p, 1440p, 2160p |
| Harmonized System (HS) code | 8525.5000.00 |
| Video | |
|---|---|
| Maximum frame rate | 30 fps |
| Audio | |
|---|---|
| Built-in speaker(s) | Y |
| Number of speakers | 1 |
| Output level | 83/1 dB |
| Microphone pick-up range | 5.48 m |
| Number of microphones | 4 |
| Multimedia | |
|---|---|
| RMS rated power | 5 W |
| Ports & interfaces | |
|---|---|
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| DC-in jack | Y |
| Network | |
|---|---|
| Ethernet LAN | Y |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Y |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Performance | |
|---|---|
| Megapixel | 48 MP |
| Power source type | DC |
| Image sensor | |
|---|---|
| Sensor type | CMOS |
| Picture quality | |
|---|---|
| Camera type | Single camera |
| Microphone | |
|---|---|
| Microphone sensitivity | 69 dB |
| Microphone frequency | 100 - 10000 Hz |
| Microphone direction type | Omnidirectional |
| Logistics data | |
|---|---|
| Country of origin | Vietnam |
| Processor | |
|---|---|
| Processor family | Qualcomm Snapdragon |
| Software | |
|---|---|
| Windows operating systems supported | Y |
| Mac operating systems supported | Y |
| Other features | |
|---|---|
| Other operating systems supported | ChromeOS, Linux |
| Weight & dimensions | |
|---|---|
| Width | 97 mm |
| Depth | 769 mm |
| Height | 76 mm |
| Weight | 1.88 kg |
| Package weight | 5 kg |
| Packaging content | Owl Bar, table stand, 6' USB Type C Cable, 6' HDMI cable, power supply, AC line cord, QSG, table card english, table card french, safety/regulatory/warranty slipsheet, Owl card holder, Owl Connect card, Owl Labs sticker |
| Packaging data | |
|---|---|
| Package width | 149 mm |
| Package depth | 820 mm |
| Package height | 162 mm |
Product Description
Our intelligent 114° 4K front-of-room camera, mic, and speaker device. Featuring a 4K, 30MP camera lens, 4 omnidirectional microphones, and an integrated speaker. Pairs with the Meeting Owl 3 or Pro (sold separately) to automatically focus on whoever is speaking and switch between cameras to always share the best perspective of the room for remote participants.
