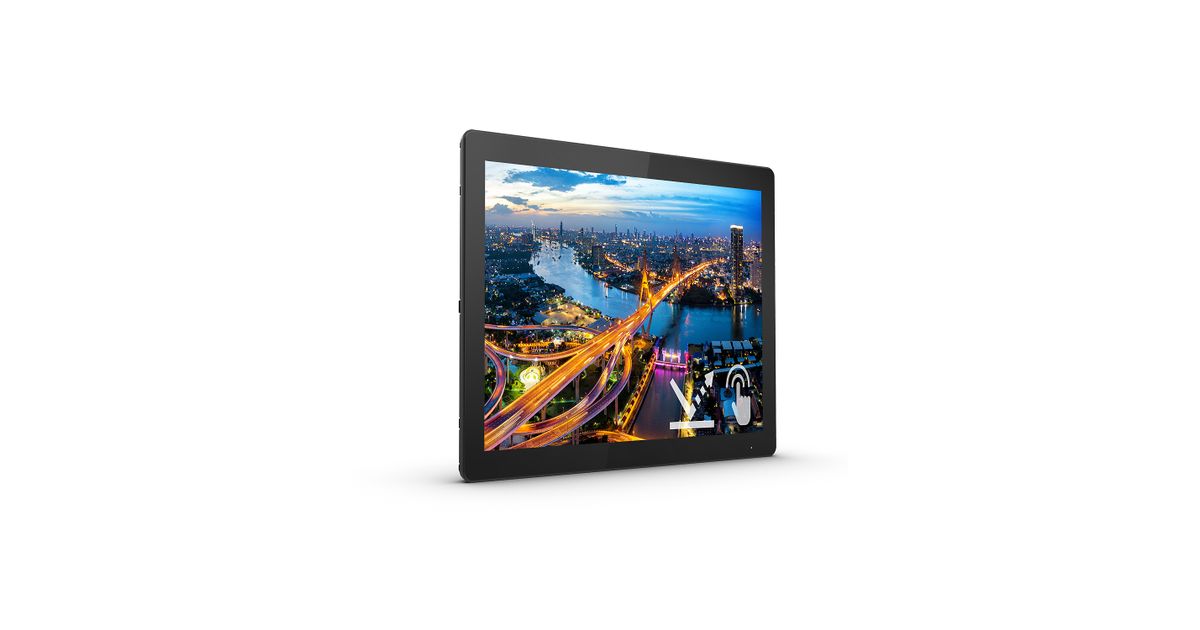

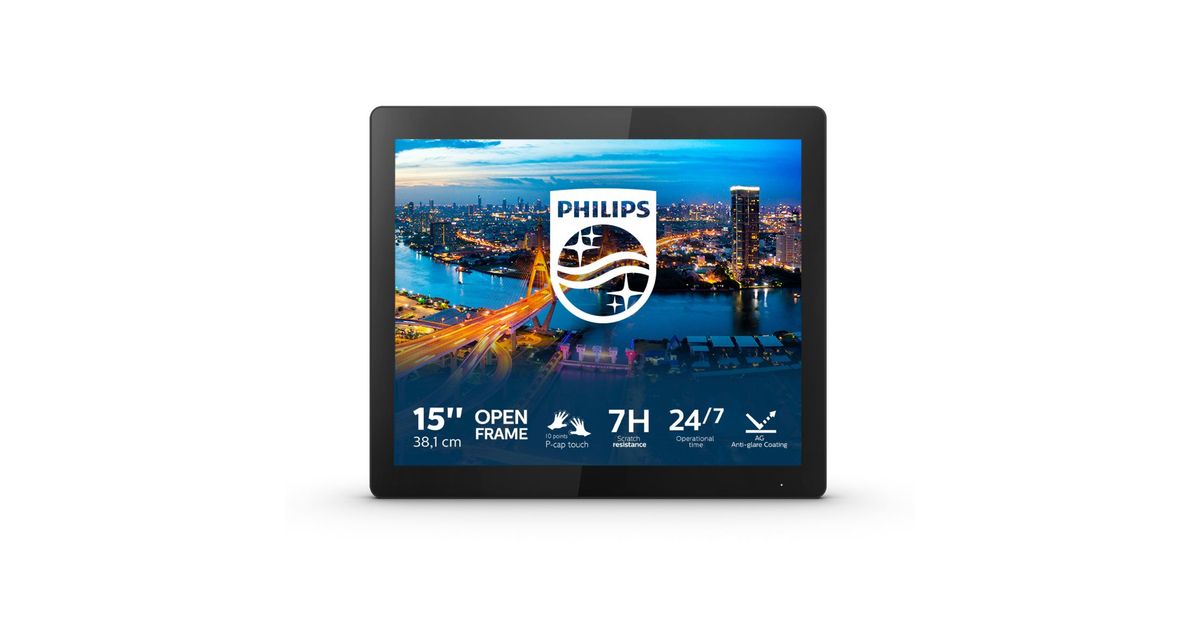

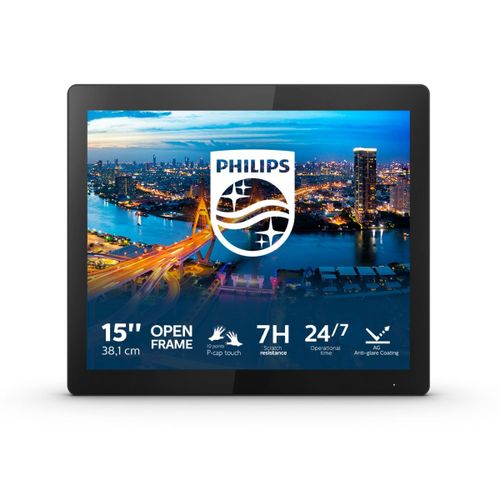

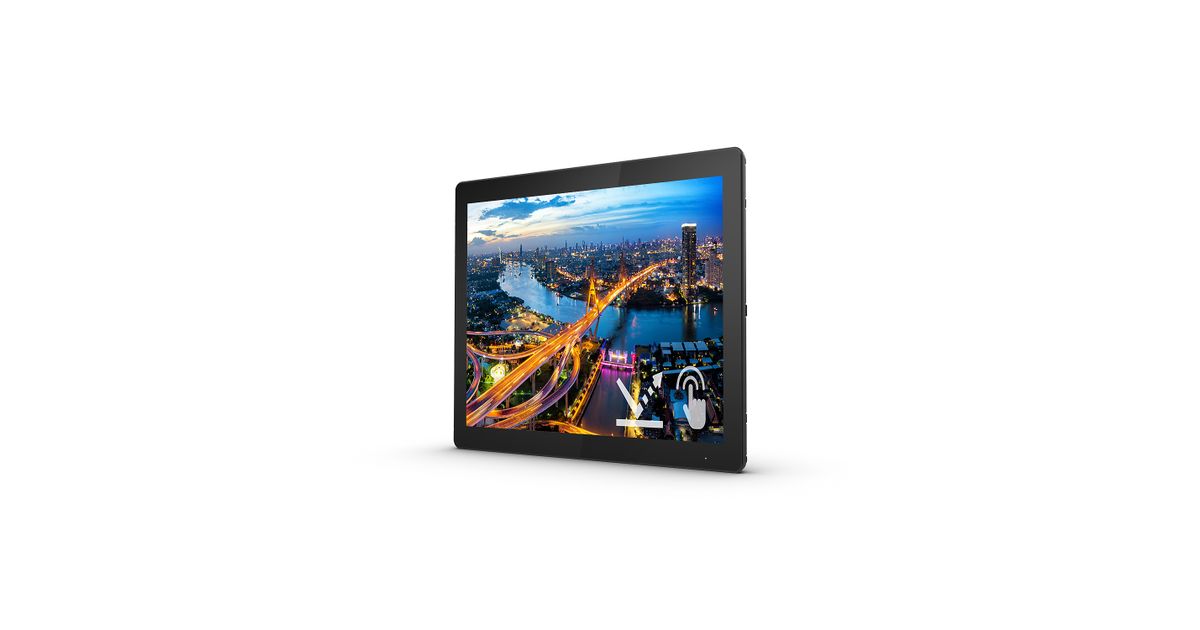

Philips B Line 152B1TFL/00 computer monitor 38.1 cm (15") 1024 x 768 pixels LED Touchscreen Black
Philips B Line 152B1TFL/00, 38.1 cm (15"), 1024 x 768 pixels, LED, 4 ms, Black
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Philips |
| Product code | 324908508 |
| EAN | 08712581772895 |
| Manufacturer part number | 152B1TFL/00 |
| Category | Touchscreen monitors |
| Display | |
|---|---|
| Display diagonal | 38.1 cm (15") |
| Display resolution | 1024 x 768 pixels |
| Native aspect ratio | 4:3 |
| Display technology | LED |
| Touchscreen | Y |
| Panel type | TN |
| Screen shape | Flat |
| Contrast ratio (typical) | 800:1 |
| Maximum refresh rate | 75 Hz |
| Display number of colours | 16.2 million colours |
| Touch technology | Multi-touch |
| Display brightness (typical) | 450 cd/m² |
| Response time | 4 ms |
| Aspect ratio | 4:3 |
| Contrast ratio (dynamic) | 50000000:1 |
| Dynamic contrast ratio marketing name | SmartContrast |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 150° |
| Pixel pitch | 0.297 x 0.297 mm |
| Pixel density | 85 ppi |
| Horizontal scan range | 30 - 60 kHz |
| Vertical scan range | 50 - 75 Hz |
| Viewable size, horizontal | 30.4 cm |
| Viewable size, vertical | 22.8 cm |
| Display diagonal (metric) | 38.1 cm |
| DDC/CI | Y |
| Haze rate | 5% |
| Surface hardness | 7H |
| NTSC coverage (typical) | 60% |
| Display brightness | 450 cd/m² |
| On Screen Display (OSD) | Y |
| Display viewable area (HxV) | 304.128 x 228.096 mm |
| Design | |
|---|---|
| Backlight type | W-LED |
| Product colour | Black |
| Front bezel colour | Black |
| International Protection (IP) code | IP65 |
| Cable lock slot type | Kensington |
| LED indicators | Operation, Stand-by |
| Regulatory Approvals | CB; CE Mark; FCC Class B; SEMKO; UKRAINIAN; ICES-003; TUV/GS; TUV Ergo; CU-EAC; EAEU RoHS; TUV Eye Comfort certified |
| Performance | |
|---|---|
| Touchscreen technology | Projected capacitive system |
| Number of simultaneous touchpoints | 10 |
| Display sRGB | Y |
| NVIDIA G-SYNC | N |
| AMD FreeSync | N |
| Component video sync | Separate sync, Sync-on-green (SOG) |
| Flicker-free technology | Y |
| Low Blue Light technology | Y |
| Cable lock slot | Y |
| Palm rejection area | 30 x 30 mm |
| Mean time between failures (MTBF) | 70000 h |
| Software | |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Bundled software | SmartControl |
| Other features | |
|---|---|
| Other operating systems supported | Android |
| Exterior finish type | Textured |
| Recyclable packaging material | 100% |
| EasyRead mode | Y |
| Picture enhancement | SmartImage |
| Touch method | Stylus, Finger, Glove |
| Energy efficiency class (old) | D |
| Camera | |
|---|---|
| Built-in camera | N |
| Battery | |
|---|---|
| Heavy metals free | Hg (mercury) |
| Features | |
|---|---|
| Certification | CB, CE Mark, FCC Class B, SEMKO, UKRAINIAN, ICES-003, TUV/GS, TUV Ergo, CU-EAC, EAEU RoHS, TUV Eye Comfort certified |
| DisplayPort version | 1.2 |

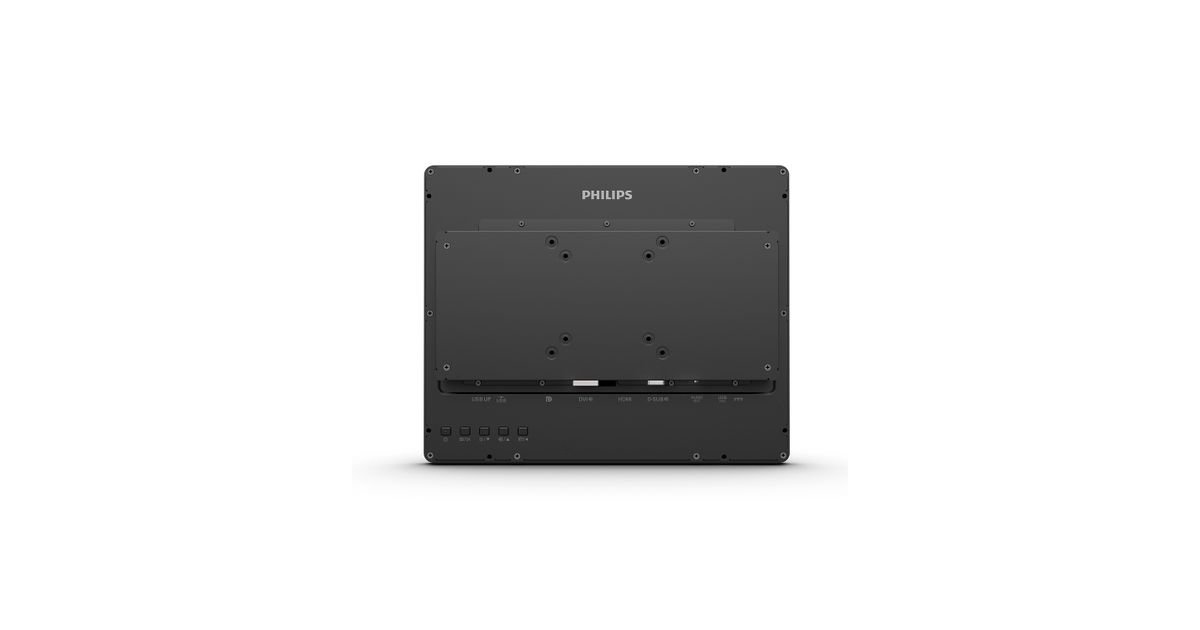

| VESA mounting | Y |
| Panel mounting interface | 100 x 100 mm |
| Wall mountable | Y |
| Plug and Play | Y |
| Power supply type | External |
| Ports & interfaces | |
|---|---|
| Built-in USB hub | Y |
| HDMI | Y |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Number of upstream ports | 1 |
| USB Touch port | Y |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Y |
| HDMI ports quantity | 1.4 |
| HDMI version | 1.4 |
| DisplayPorts quantity | 1.2 |
| Audio output | Y |
| Rear panel I/O ports | |
|---|---|
| DVI-D ports quantity | 1 |
| Ergonomics | |
|---|---|
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian |
| Number of OSD languages | 21 |
| Power | |
|---|---|
| Energy efficiency class (SDR) | D |
| Power consumption (typical) | 9.6 W |
| Power consumption (standby) | 0.3 W |
| Power consumption (off) | 0.3 W |
| Power consumption (PowerSave) | 6.1 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating altitude | 0 - 3658 m |
| Non-operating altitude | 0 - 12192 m |
| Packaging content | |
|---|---|
| Cables included | HDMI, DisplayPort, USB Type-A to USB Type-B, AC |
| Manual | Y |
| Weight & dimensions | |
|---|---|
| Width (without stand) | 35 cm |
| Depth (without stand) | 4.9 cm |
| Height (without stand) | 28.6 cm |
| Weight (without stand) | 3.42 kg |
| Package weight | 4.13 kg |
| Packaging data | |
|---|---|
| Package width | 465 mm |
| Package depth | 123 mm |
| Package height | 350 mm |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS |
| Doesn't contain | PVC/BFR, Mercury |
Product Description
Philips open-frame touch monitor provides optimal flexibility for mounting. A sturdy, water and dust resistant, edge-to-edge design to fit your needs. Great brightness performance and anti-glare display creates outstanding picture clarity.
