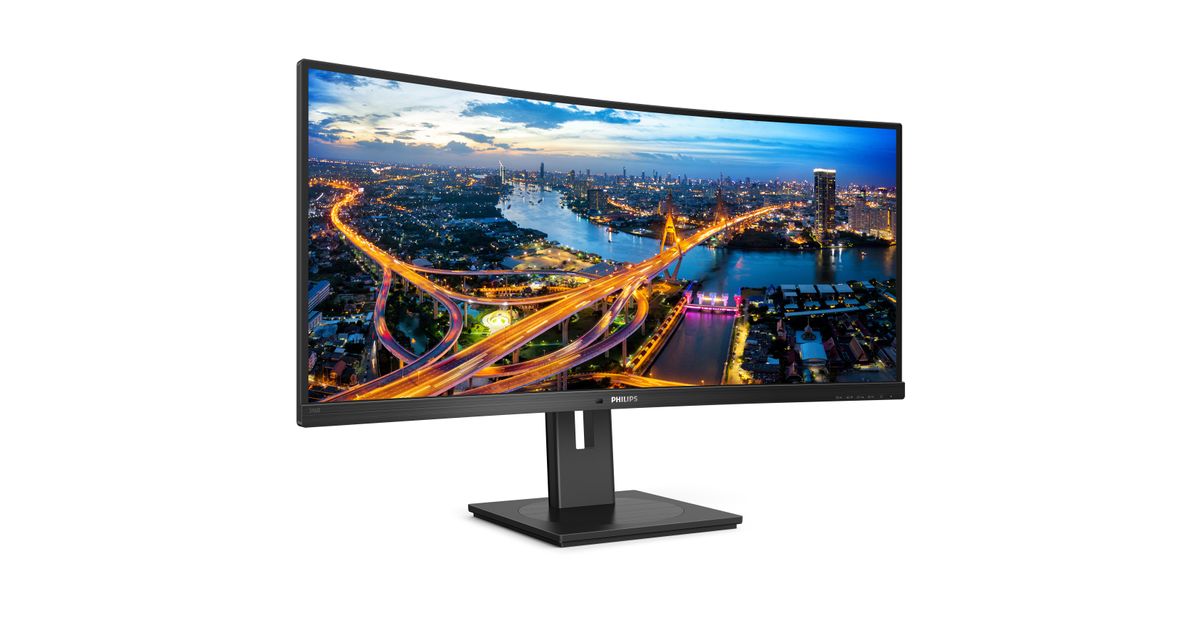

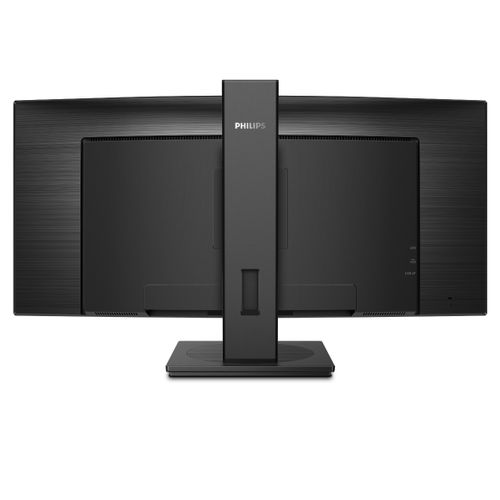

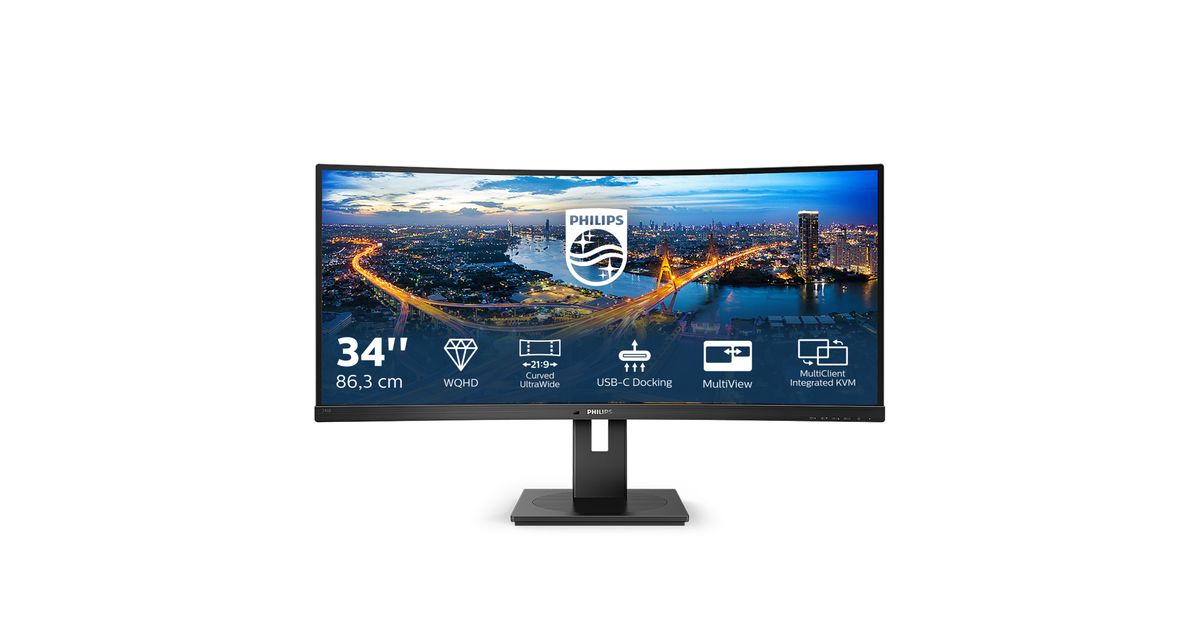

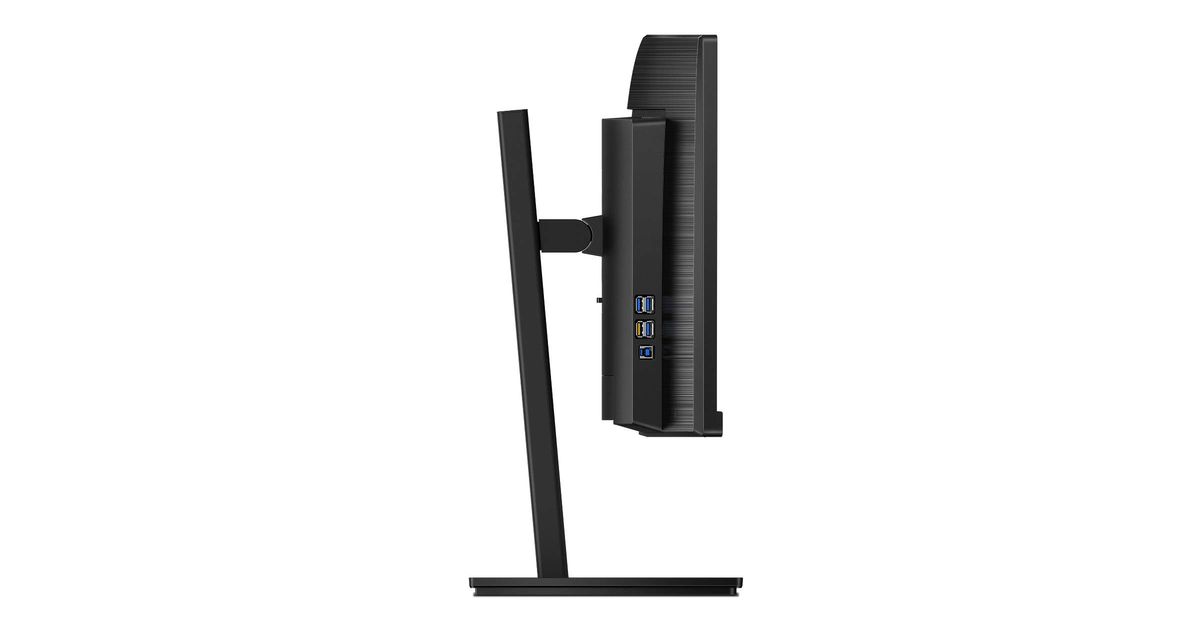

Philips B Line 346B1C/00 computer monitor 86.4 cm (34") 3440 x 1440 pixels Quad HD LCD Black
Philips B Line 346B1C/00, 86.4 cm (34"), 3440 x 1440 pixels, Quad HD, LCD, 4 ms, Black
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Philips |
| Product code | 03205009 |
| EAN | 08712581760816 |
| Manufacturer part number | UPPHI034XS00005 |
| Category | Monitors |
| Display | |
|---|---|
| Display diagonal | 86.4 cm (34") |
| Display resolution | 3440 x 1440 pixels |
| Native aspect ratio | 21:9 |
| Display technology | LCD |
| Touchscreen | N |
| HD type | Quad HD |
| Panel type | VA |
| Screen shape | Curved |
| Contrast ratio (typical) | 3000:1 |
| Maximum refresh rate | 100 Hz |
| Display number of colours | 16.7 million colours |
| Display brightness (typical) | 300 cd/m² |
| Response time | 4 ms |
| Display surface | Matt |
| Anti-glare screen | Y |
| Screen curvature rating | 1500R |
| Aspect ratio | 21:9 |
| Contrast ratio (dynamic) | 80000000:1 |
| Dynamic contrast ratio marketing name | SmartContrast |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.23175 x 0.23175 mm |
| Pixel density | 110 ppi |
| Horizontal scan range | 30 - 160 kHz |
| Vertical scan range | 48 - 100 Hz |
| Viewable size, horizontal | 79.7 cm |
| Viewable size, vertical | 33.4 cm |
| Digital horizontal frequency | 30 - 160 kHz |
| Digital vertical frequency | 48 - 100 Hz |
| Display diagonal (metric) | 86.36 cm |
| DDC/CI | Y |
| Haze rate | 25% |
| Surface hardness | 2H |
| RGB colour space | sRGB |
| Colour gamut | 100% |
| sRGB coverage (typical) | 119% |
| NTSC coverage (typical) | 100% |
| Adobe RGB coverage | 90% |
| Screen curvature | 150 cm |
| On Screen Display (OSD) | Y |
| Design | |
|---|---|
| Backlight type | W-LED |
| Market positioning | Home |
| Product colour | Black |
| Front bezel colour | Black |
| Feet colour | Black |
| Cable lock slot type | Kensington |
| LED indicators | Operation, Stand-by |
| Tilt adjustment | Y |
| On/off switch | Y |
| Regulatory Approvals | CB; EPA; cETLus; FCC Class B; ICES-003; CE Mark; TUV/GS; TUV Ergo; SEMKO; CU-EAC; UKRAINIAN; TUV Eye Comfort certified |
| Features | |
|---|---|
| Supported graphics resolutions | 3440 x 1440 |
| Certification | CB, EPA, cETLus, FCC Class B, ICES-003, CE Mark, TUV/GS, TUV Ergo, SEMKO, CU-EAC, UKRAINIAN, TUV Eye Comfort certified |
| USB Power Delivery | Y |
| DisplayPort version | 1.2 |
| HDCP | Y |
| HDCP version | 1.4/2.2 |
| VESA mounting | Y |
| Panel mounting interface | 100 x 100 mm |
| Height adjustment | 18 cm |
| Plug and Play | Y |
| Power supply type | Internal |
| Harmonized System (HS) code | 85285210 |
| USB Power Delivery revision | 3.0 |
| Other features | |
|---|---|
| 3D | N |
| External power adapter | N |
| Picture-by-Picture (PbP) | Y |
| Exterior finish type | Textured |
| Recyclable packaging material | 100% |
| EasyRead mode | Y |
| LowBlue mode | Y |
| Philips SmartUniformity | 93 - 105% |
| Picture enhancement | SmartImage |
| MultiView | PIP/PBP mode, 2 x devices |
| Delta E | 2 |
| Wake-on-LAN | Y |
| Performance | |
|---|---|
| Display sRGB | Y |
| VESA Adaptive Sync support | Y |
| Component video sync | Separate sync |
| Flicker-free technology | Y |
| Low Blue Light technology | Y |
| Cable lock slot | Y |
| Swivel angle range | -180 - 180° |
| TV tuner integrated | N |
| Mean time between failures (MTBF) | 70000 h |
| Software | |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Bundled software | SmartControl |
| Audio | |
|---|---|
| Built-in speaker(s) | Y |
| Number of speakers | 2 |
| Camera | |
|---|---|
| Built-in camera | N |
| Multimedia | |
|---|---|
| RMS rated power | 10 W |
| Battery | |
|---|---|
| Heavy metals free | Hg (mercury), Pb (lead) |
| Ports & interfaces | |
|---|---|
| Built-in USB hub | Y |
| HDMI | Y |
| Headphone out | Y |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| USB upstream port type | USB Type-B, USB Type-C |
| Number of upstream ports | 2 |
| USB Type-A downstream ports quantity | 4 |
| USB Type-C DisplayPort Alternate Mode | Y |
| USB Power Delivery up to | 90 W |
| DVI port | N |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 1 |
| Audio input | N |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| Network | |
|---|---|
| Ethernet LAN | Y |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ergonomics | |
|---|---|
| Height adjustment | Y |
| Swivelling | Y |
| Tilt angle range | -5 - 30° |
| Picture-in-Picture | Y |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian |
| Power | |
|---|---|
| Energy efficiency class (SDR) | G |
| Energy consumption (SDR) per 1000 hours | 35 kWh |
| Power consumption (typical) | 28.36 W |
| Power consumption (standby) | 0.3 W |
| Power consumption (PowerSave) | 34 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency scale | A to G |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating altitude | 0 - 3658 m |
| Non-operating altitude | 0 - 12192 m |
| Packaging content | |
|---|---|
| Stand included | Y |
| Cables included | HDMI, DisplayPort, USB Type-C, AC |
| Manual | Y |
| Weight & dimensions | |
|---|---|
| Width (with stand) | 807 mm |
| Depth (with stand) | 250 mm |
| Height (with stand) | 601 mm |
| Weight (with stand) | 11.5 kg |
| Width (without stand) | 80.7 cm |
| Depth (without stand) | 11 cm |
| Height (without stand) | 36.7 cm |
| Weight (without stand) | 7.79 kg |
| Package weight | 15.3 kg |
| Packaging data | |
|---|---|
| Package width | 930 mm |
| Package depth | 282 mm |
| Package height | 525 mm |
| Package type | Box |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR, TCO, RoHS |
| Doesn't contain | Mercury, PVC/BFR |
| Security | |
|---|---|
| Light sensor | Y |
Product Description
The Philips B line 34" curved UltraWide display gives wrap-around view of your work. All-in-one USB-C and ergonomic stand design make for optimal working conditions. Eye comfort features with TUV certified to reduce eye fatigue.
