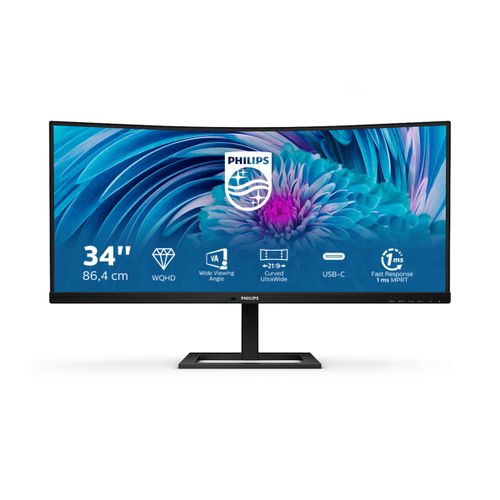

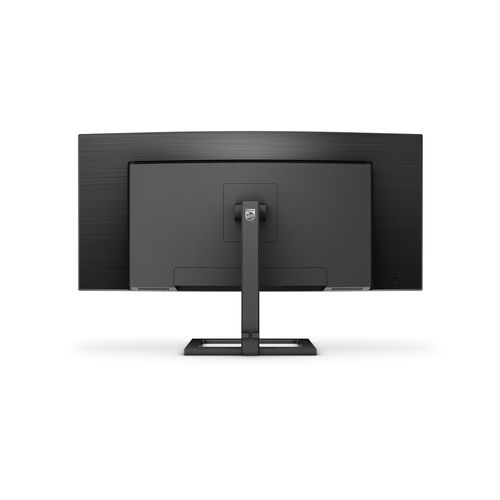

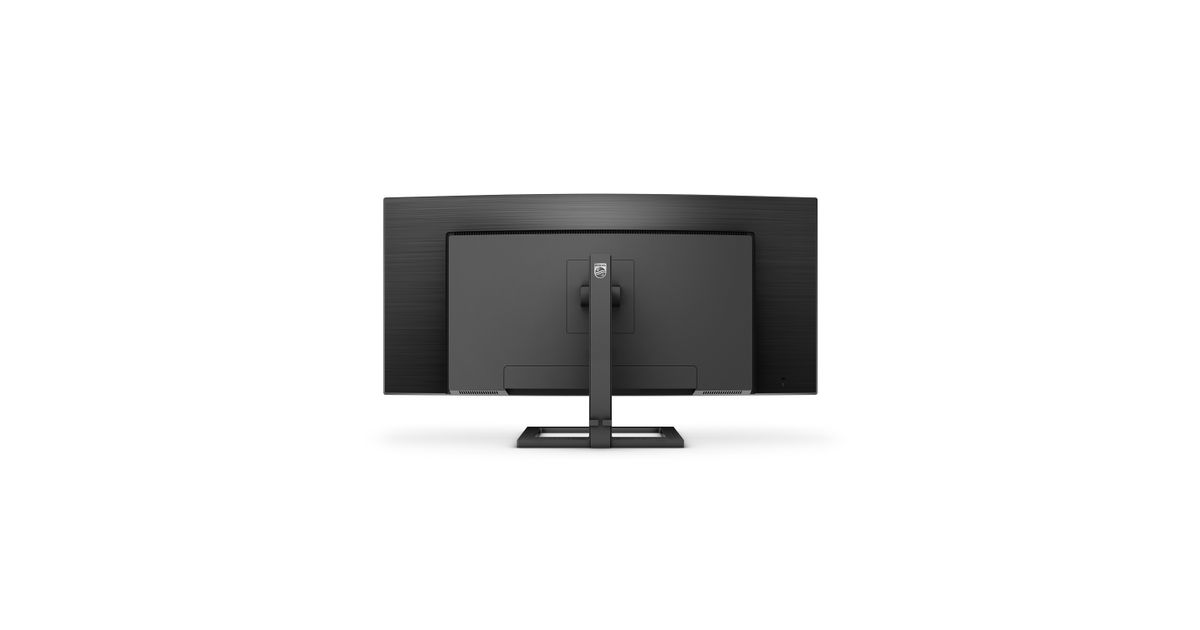

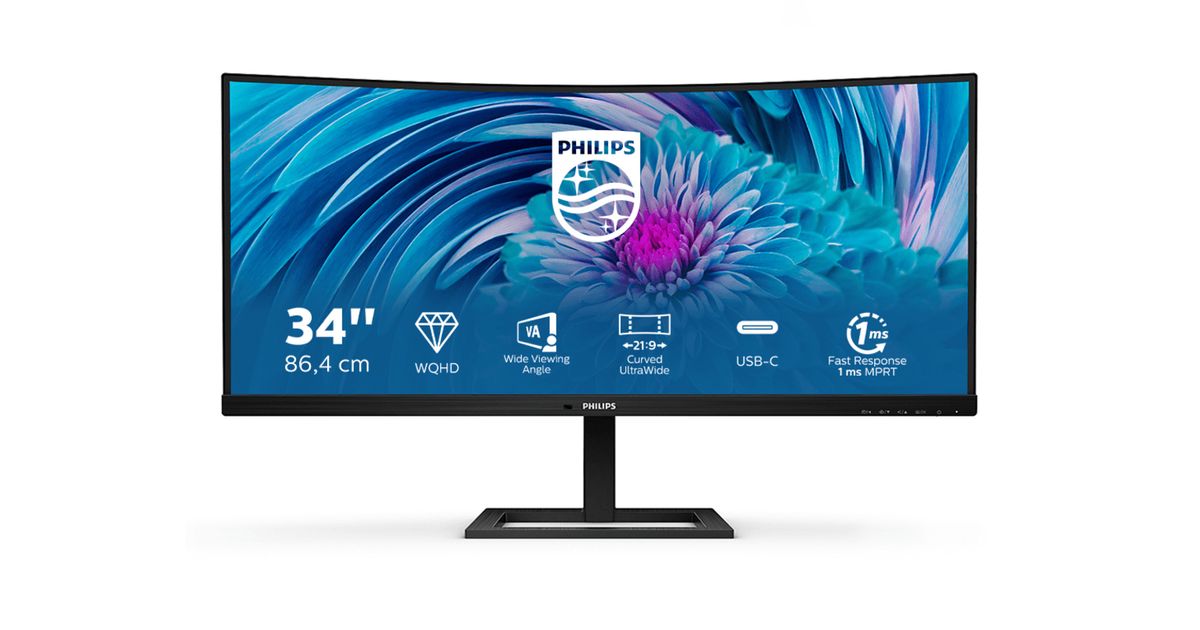

Philips E Line 346E2CUAE/00 computer monitor 86.4 cm (34") 3440 x 1440 pixels Wide Quad HD+ LCD Black
Philips E Line 346E2CUAE/00, 86.4 cm (34"), 3440 x 1440 pixels, Wide Quad HD+, LCD, 4 ms, Black
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Philips |
| Product code | 114694038 |
| EAN | 08712581770662 |
| Manufacturer part number | UPPHI034XS00009 |
| Category | Monitors |
| Display | |
|---|---|
| Display diagonal | 86.4 cm (34") |
| Display resolution | 3440 x 1440 pixels |
| Native aspect ratio | 21:9 |
| Display technology | LCD |
| Touchscreen | N |
| HD type | Wide Quad HD+ |
| Panel type | VA |
| Screen shape | Curved |
| Contrast ratio (typical) | 3000:1 |
| Maximum refresh rate | 100 Hz |
| Display number of colours | 16.7 million colours |
| Display brightness (typical) | 300 cd/m² |
| Response time | 4 ms |
| Display surface | Matt |
| Anti-glare screen | Y |
| Screen curvature rating | 1500R |
| Aspect ratio | 21:9 |
| Dynamic contrast ratio marketing name | Mega Infinity DCR |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Response time (fast) | 1 ms |
| Pixel pitch | 0.23175 x 0.23175 mm |
| Pixel density | 110 ppi |
| Horizontal scan range | 30 - 160 kHz |
| Vertical scan range | 48 - 100 Hz |
| Viewable size, horizontal | 79.7 cm |
| Viewable size, vertical | 33.4 cm |
| Digital horizontal frequency | 30 - 160 kHz |
| Digital vertical frequency | 48 - 120 Hz |
| Display diagonal (metric) | 86.36 cm |
| DDC/CI | Y |
| Haze rate | 25% |
| Surface hardness | 3H |
| sRGB coverage (typical) | 121.3% |
| NTSC coverage (typical) | 99.5% |
| On Screen Display (OSD) | Y |
| Design | |
|---|---|
| Backlight type | W-LED |
| Product colour | Black |
| Cable lock slot type | Kensington |
| LED indicators | Operation, Stand-by |
| Tilt adjustment | Y |
| Regulatory Approvals | cETLus; CB; TUV/GS; TUV Ergo; CU-EAC; EAEU RoHS; CE Mark; FCC Class B; ICES-003; UKRAINIAN |
| Other features | |
|---|---|
| Display brightness (peak) | 350 cd/m² |
| Picture-by-Picture (PbP) | Y |
| Exterior finish type | Textured |
| Recyclable packaging material | 100% |
| EasyRead mode | Y |
| LowBlue mode | Y |
| Picture enhancement | SmartImage game |
| MultiView | PIP/PBP mode, 2 x devices |
| Performance | |
|---|---|
| Display sRGB | Y |
| NVIDIA G-SYNC | N |
| AMD FreeSync | Y |
| AMD FreeSync type | FreeSync Premium |
| Component video sync | Separate sync |
| Flicker-free technology | Y |
| Low Blue Light technology | Y |
| Cable lock slot | Y |
| Mean time between failures (MTBF) | 50000 h |
| Audio | |
|---|---|
| Built-in speaker(s) | Y |
| Number of speakers | 2 |
| Camera | |
|---|---|
| Built-in camera | N |
| Multimedia | |
|---|---|
| RMS rated power | 5 W |
| Battery | |
|---|---|
| Heavy metals free | Hg (mercury), Pb (lead) |
| Features | |
|---|---|
| Certification | cETLus, CB, TUV/GS, TUV Ergo, CU-EAC, EAEU RoHS, CE Mark, FCC Class B, ICES-003, UKRAINIAN |
| USB Power Delivery | Y |
| DisplayPort version | 1.2 |
| VESA mounting | Y |
| Panel mounting interface | 100 x 100 mm |
| Height adjustment | 10 cm |
| Plug and Play | Y |
| Power supply type | Internal |
| Harmonized System (HS) code | 85285210 |
| USB Power Delivery revision | 3.0 |
| Ports & interfaces | |
|---|---|
| Built-in USB hub | Y |
| HDMI | Y |
| Headphone out | N |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| USB upstream port type | USB Type-C |
| Number of USB Type-B upstream ports quantity | 1 |
| USB Type-A downstream ports quantity | 4 |
| USB Type-C downstream ports quantity | 1 |
| USB Type-C DisplayPort Alternate Mode | Y |
| USB Power Delivery up to | 65 W |
| DVI port | N |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 1 |
| Audio input | N |
| Audio output | Y |
| DC-in jack | Y |
| Ergonomics | |
|---|---|
| Height adjustment | Y |
| Tilt angle range | -5 - 20° |
| Picture-in-Picture | Y |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian |
| Number of OSD languages | 21 |
| Power | |
|---|---|
| Energy efficiency class (SDR) | G |
| Energy consumption (SDR) per 1000 hours | 39 kWh |
| Power consumption (typical) | 41.6 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency scale | A to G |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating altitude | 0 - 3658 m |
| Non-operating altitude | 0 - 12192 m |
| Packaging content | |
|---|---|
| Stand included | Y |
| Cables included | USB Type-C to USB Type-C, AC |
| Manual | Y |
| Weight & dimensions | |
|---|---|
| Width (with stand) | 807 mm |
| Depth (with stand) | 257 mm |
| Height (with stand) | 495 mm |
| Weight (with stand) | 10.1 kg |
| Width (without stand) | 80.7 cm |
| Depth (without stand) | 11 cm |
| Height (without stand) | 36.7 cm |
| Weight (without stand) | 7.83 kg |
| Package weight | 13.1 kg |
| Packaging data | |
|---|---|
| Package width | 980 mm |
| Package depth | 224 mm |
| Package height | 500 mm |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS |
| Doesn't contain | Mercury, PVC/BFR |
Product Description
The Philips E line curved UltraWide display offers expansive panoramic visuals. A WQHD display with an ergonomic stand make for optimal viewing conditions. All-in-one USB-C and MultiView meet the need for productivity.
