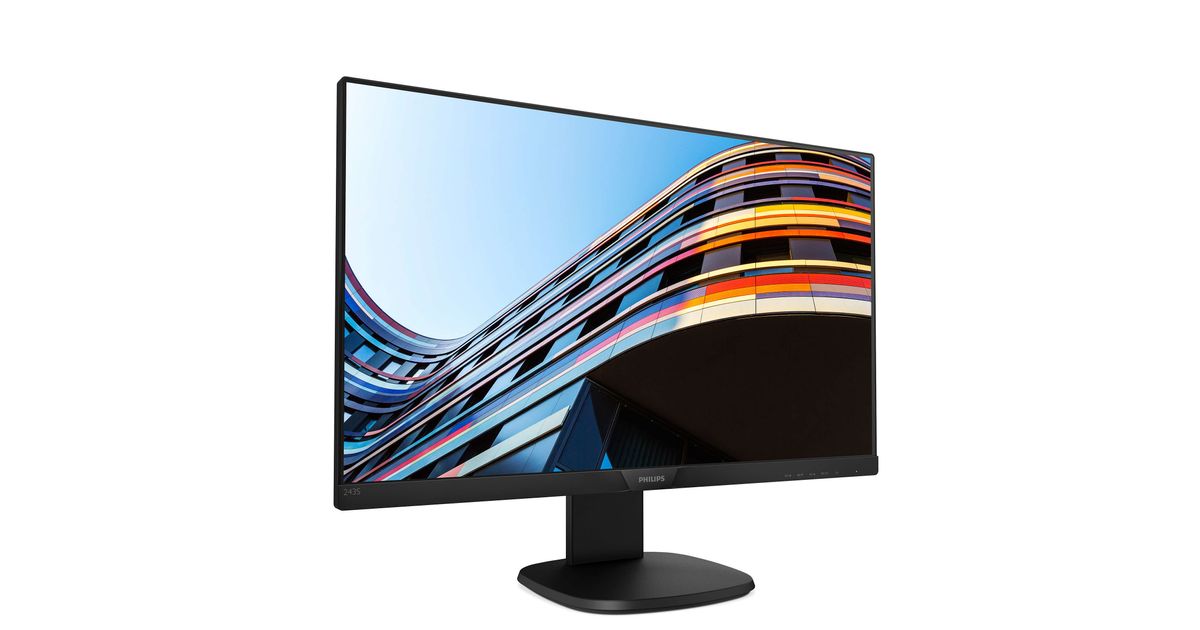

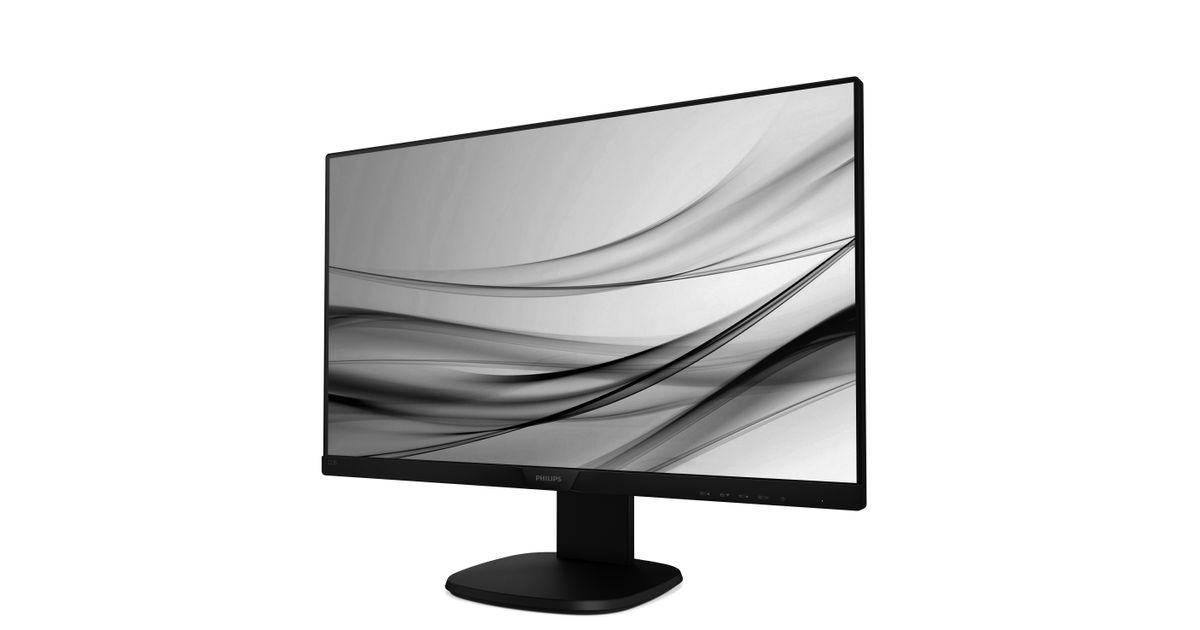

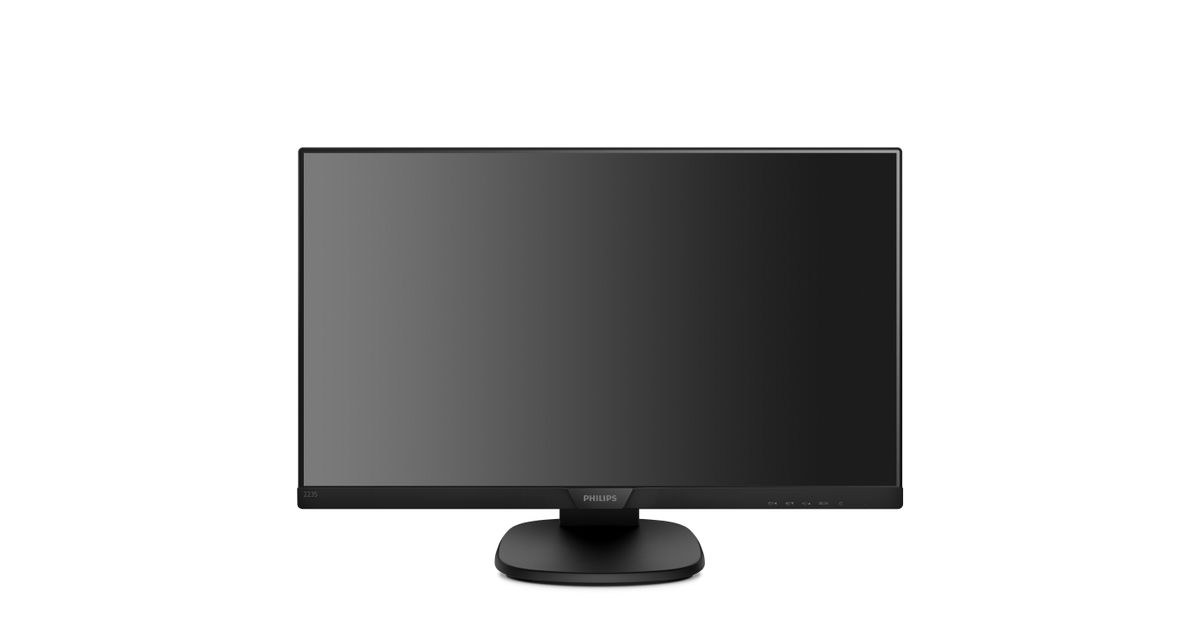

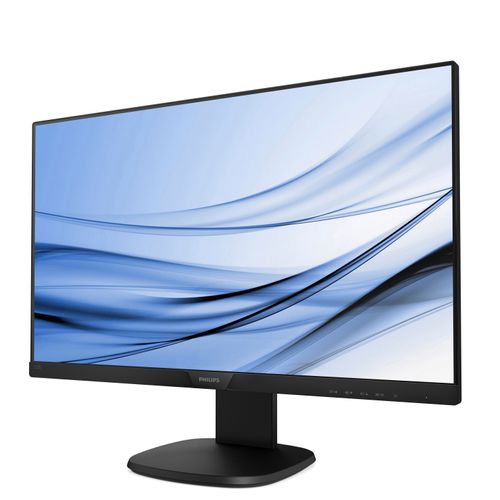

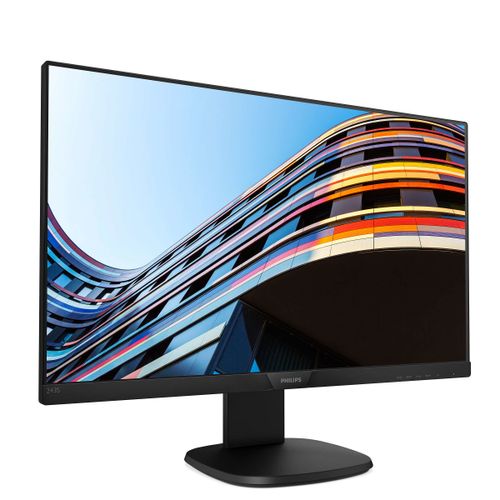

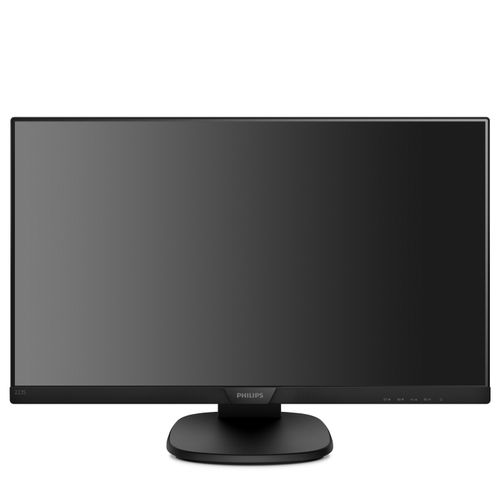

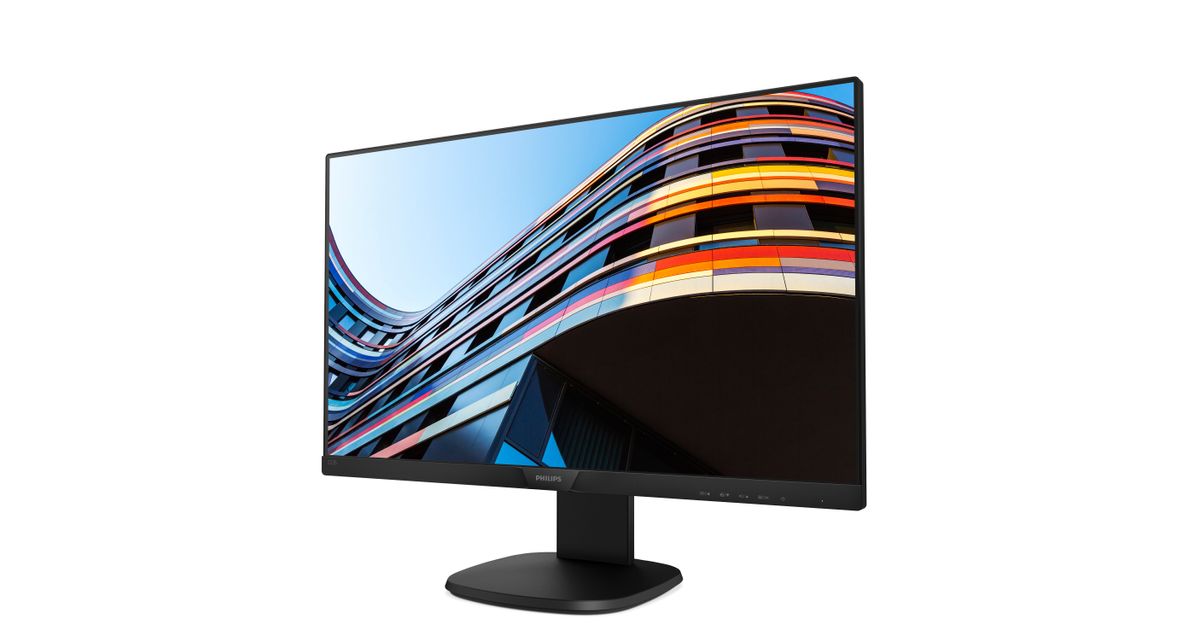

Philips S Line LCD monitor with SoftBlue Technology 243S7EHMB/00
Philips S Line LCD monitor with SoftBlue Technology 243S7EHMB/00, 60.5 cm (23.8"), 1920 x 1080 pixels, Full HD, LED, 5 ms, Black
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Philips |
| Product code | 03143625 |
| EAN | 04058154201923 |
| Manufacturer part number | UPPHI024XS00020 |
| Category | Monitors |
| Display | |
|---|---|
| Display diagonal | 60.5 cm (23.8") |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Touchscreen | N |
| HD type | Full HD |
| Panel type | IPS |
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Maximum refresh rate | 60 Hz |
| Display number of colours | 16.7 million colours |
| Display brightness (typical) | 250 cd/m² |
| Response time | 5 ms |
| Aspect ratio | 16:9 |
| Contrast ratio (dynamic) | 20000000:1 |
| Dynamic contrast ratio marketing name | SmartContrast |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.275 x 0.275 mm |
| Pixel density | 93 ppi |
| Horizontal scan range | 30 - 83 kHz |
| Vertical scan range | 56 - 76 Hz |
| Viewable size, horizontal | 52.7 cm |
| Viewable size, vertical | 29.6 cm |
| Digital horizontal frequency | 30 - 83 kHz |
| Digital vertical frequency | 56 - 76 Hz |
| Sync-on-green (SOG) | Y |
| Display diagonal (metric) | 60.5 cm |
| DDC/CI | Y |
| RGB colour space | sRGB |
| Separate H/V sync | Y |
| On Screen Display (OSD) | Y |
| Design | |
|---|---|
| Backlight type | W-LED |
| Market positioning | Home |
| Product colour | Black |
| Front bezel colour | Black |
| Feet colour | Black |
| Cable lock slot type | Kensington |
| LED indicators | Operation, Stand-by |
| Tilt adjustment | Y |
| On/off switch | Y |
| Regulatory Approvals | CE Mark; FCC Class B; SEMKO; cETLus; CU-EAC; EPA; WEEE; UKRAINIAN; ICES-003; TUV/ISO9241-307; PSB; CECP; TUV Cert. — blue light cut-off |
| Features | |
|---|---|
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Detachable stand | Y |
| Certification | CE Mark, FCC Class B, SEMKO, cETLus, CU-EAC, EPA, WEEE, UKRAINIAN, ICES-003, TUV/ISO9241-307, PSB, CECP, TUV Cert. — blue light cut-off |

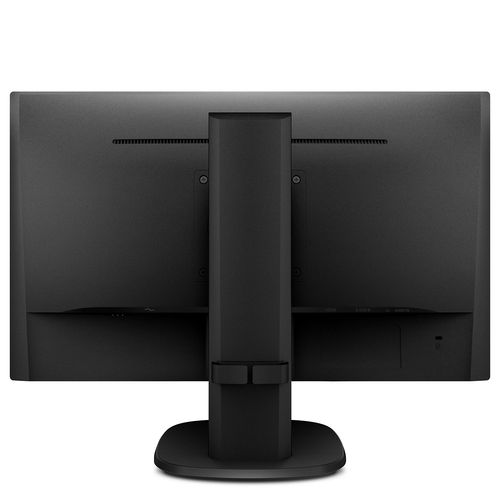

| VESA mounting | Y |
| Panel mounting interface | 100 x 100 mm |
| Height adjustment | 13 cm |
| Plug and Play | Y |
| Power supply type | Internal |
| Harmonized System (HS) code | 85285210 |
| Other features | |
|---|---|
| 3D | N |
| Exterior finish type | Textured |
| Recyclable packaging material | 100% |
| SoftBlue | Y |
| EasyRead mode | Y |
| Recommended resolution | 1920 x 1080 @ 60 Hz |
| Picture enhancement | SmartImage |
| Performance | |
|---|---|
| Display sRGB | Y |
| Component video sync | Separate sync, Sync-on-green (SOG) |
| Flicker-free technology | Y |
| Cable lock slot | Y |
| Swivel angle range | -175 - 175° |
| TV tuner integrated | N |
| Mean time between failures (MTBF) | 70000 h |
| Audio | |
|---|---|
| Built-in speaker(s) | Y |
| Number of speakers | 2 |
| Camera | |
|---|---|
| Built-in camera | N |
| Multimedia | |
|---|---|
| RMS rated power | 2 W |
| Battery | |
|---|---|
| Heavy metals free | Hg (mercury) |
| Ports & interfaces | |
|---|---|
| Built-in USB hub | N |
| HDMI | Y |
| Headphone out | Y |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | N |
| HDMI ports quantity | 1.4 |
| HDMI version | 1.4 |
| Audio input | N |
| Headphone outputs | 1 |
| PC Audio in | Y |
| AC (power) in | Y |
| Ergonomics | |
|---|---|
| Height adjustment | Y |

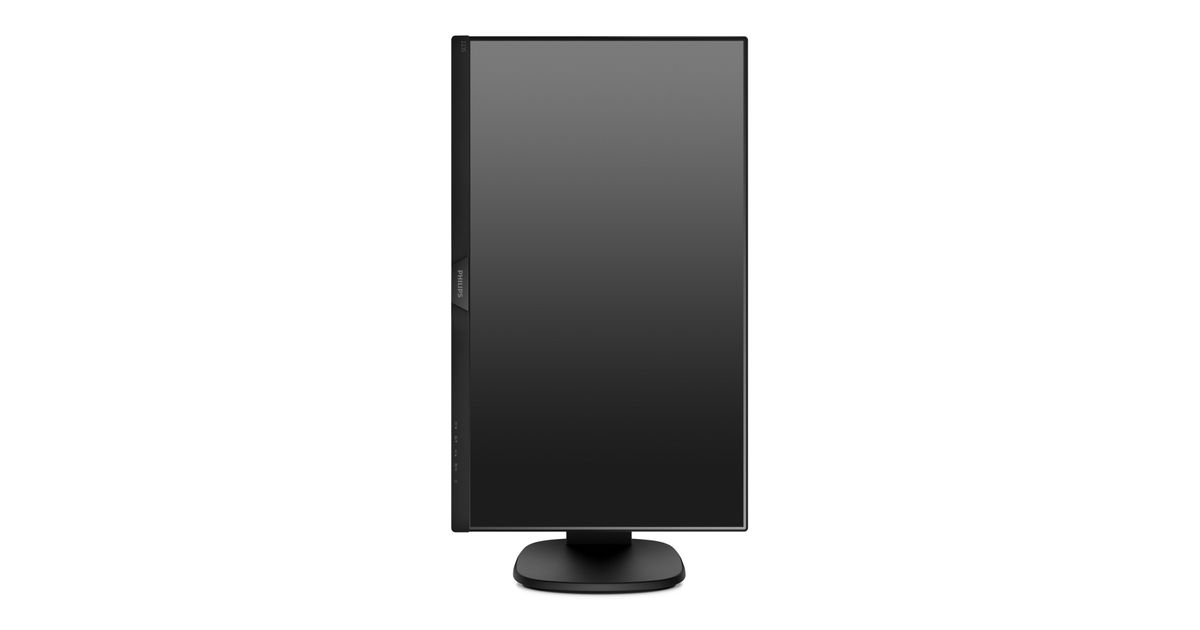

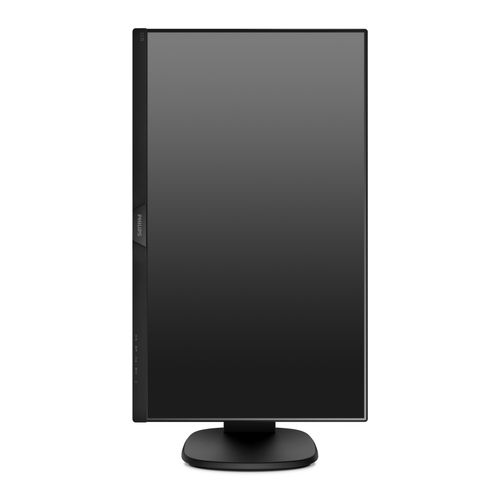

| Pivot | Y |
| Pivot angle | 90 - 90° |
| Swivelling | Y |
| Tilt angle range | -5 - 25° |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian |
| Number of OSD languages | 21 |
| Power | |
|---|---|
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 18 kWh |
| Power consumption (typical) | 12.84 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 20 W |
| Power consumption (off) | 0.3 W |
| Power consumption (PowerSave) | 11 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency scale | A to G |
| Annual energy consumption | 29 kWh |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating altitude | 0 - 3658 m |
| Non-operating altitude | 0 - 12192 m |
| Packaging content | |
|---|---|
| Stand included | Y |
| Cables included | VGA, HDMI, Audio (3.5mm), AC |
| Manual | Y |
| Software | |
|---|---|
| Bundled software | SmartControl |
| Weight & dimensions | |
|---|---|
| Width (with stand) | 540 mm |
| Depth (with stand) | 202 mm |
| Height (with stand) | 483 mm |
| Weight (with stand) | 5 kg |
| Width (without stand) | 54 cm |
| Depth (without stand) | 4.5 cm |
| Height (without stand) | 32.5 cm |
| Weight (without stand) | 3.1 kg |
| Package weight | 7.29 kg |
| Packaging data | |
|---|---|
| Package width | 602 mm |
| Package depth | 199 mm |
| Package height | 457 mm |
| Package type | Box |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR, TCO, RoHS |
| Doesn't contain | PVC/BFR, Mercury |
Product Description
Our S Line monitor delivers business efficiency. A wide-view IPS display with SoftBlue technology is great for easy-on-the-eyes productivity. The height-adjustable, frameless display allows for tiling multiple monitors for an expanded view.
