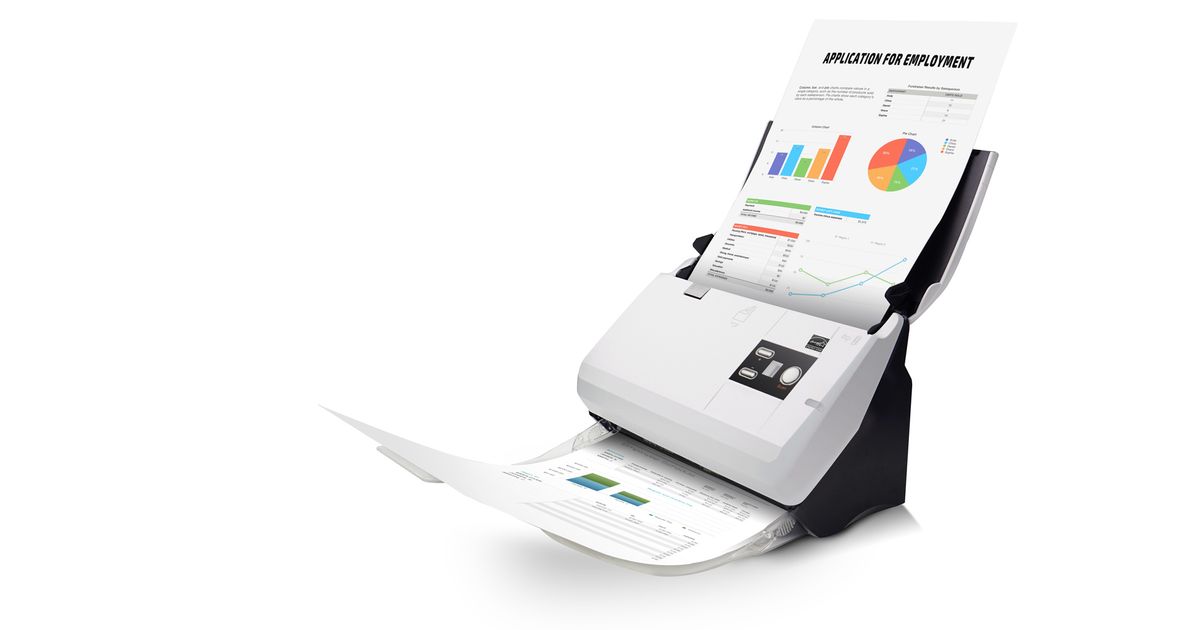

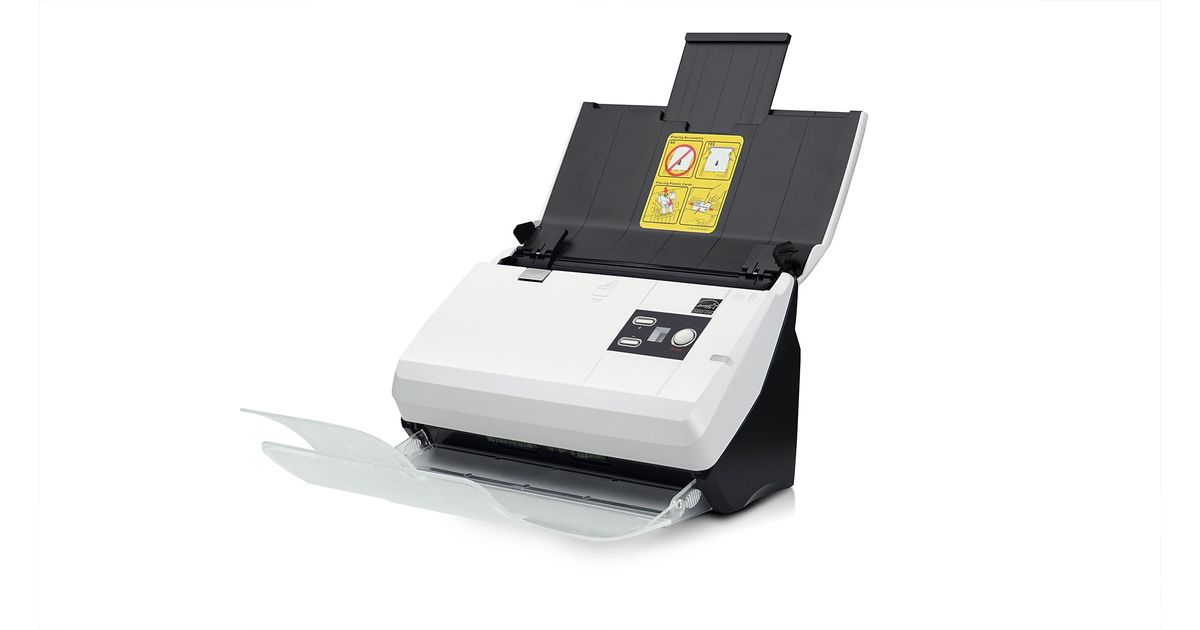

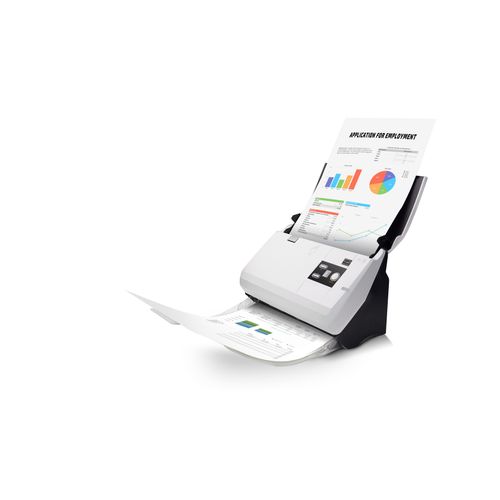

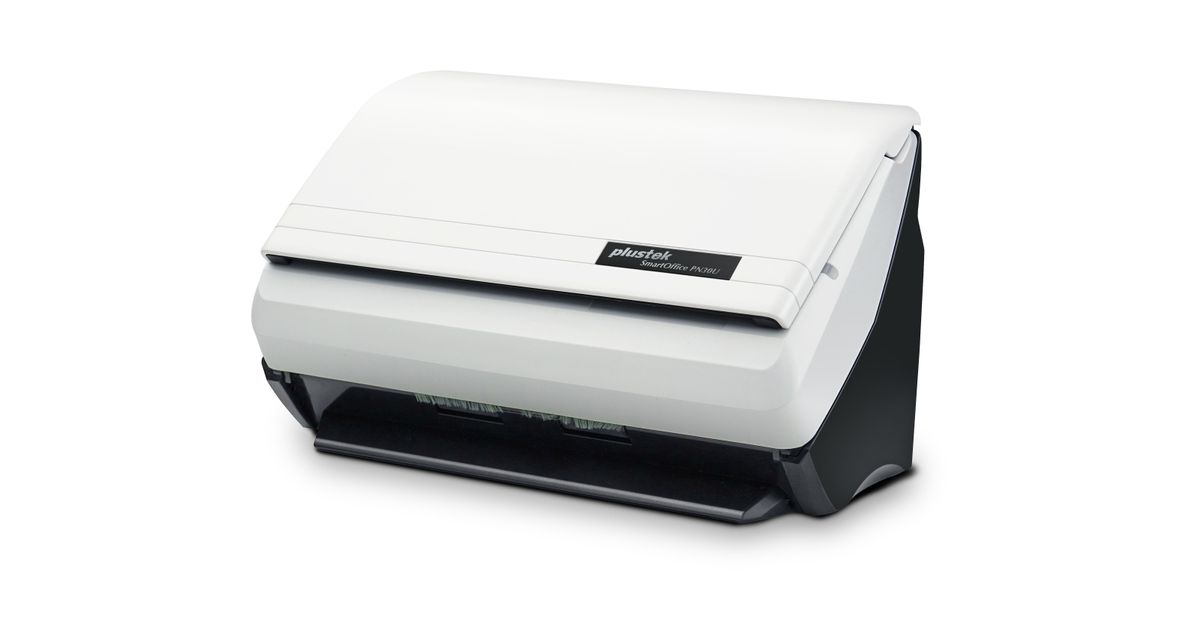

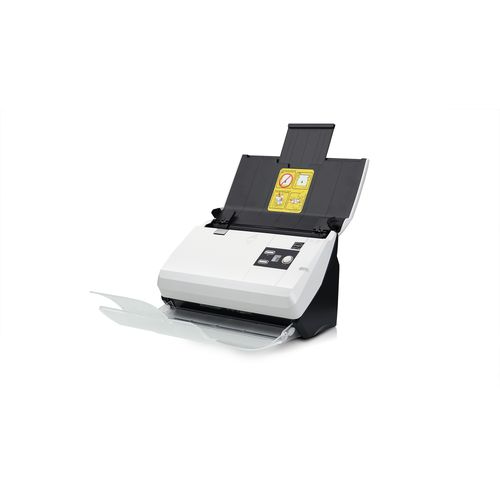

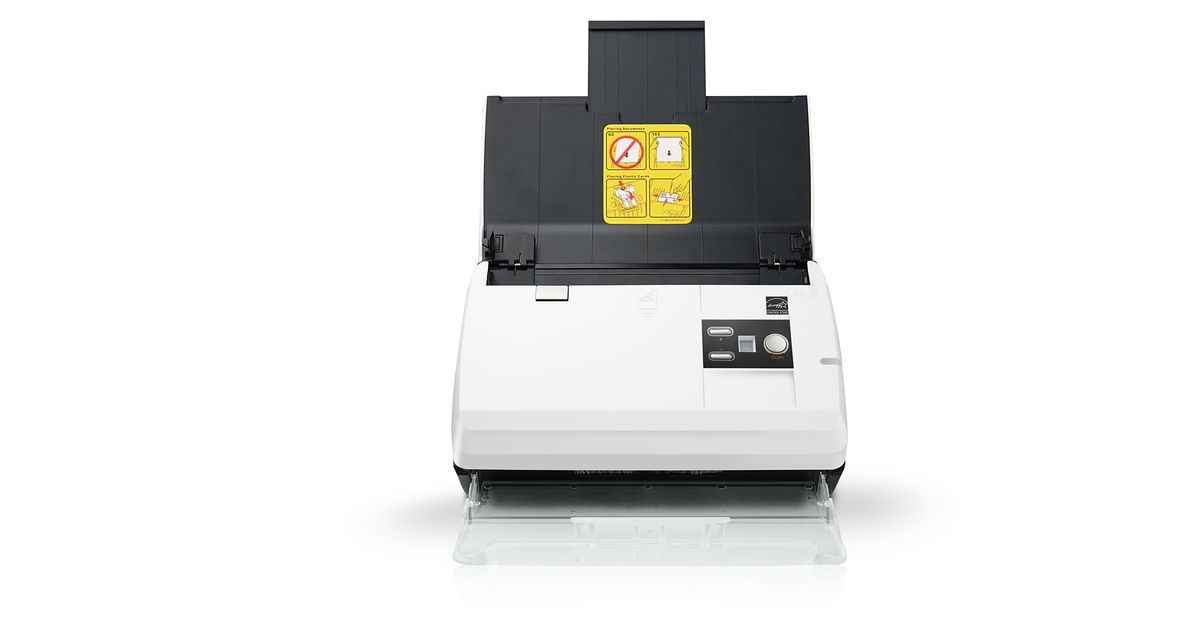

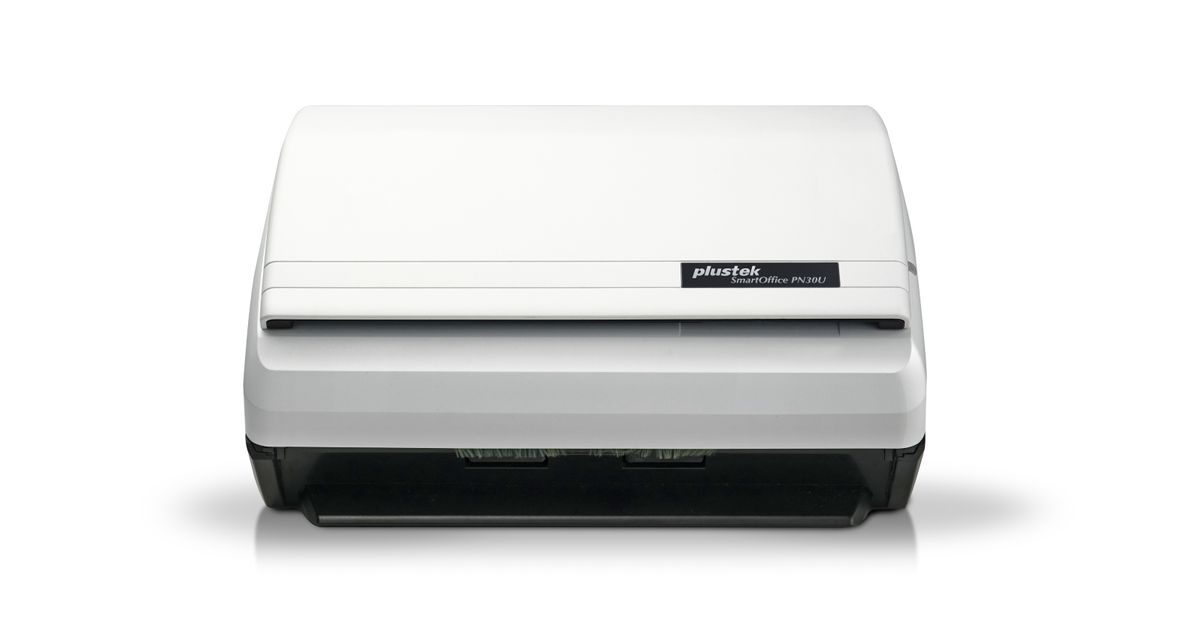

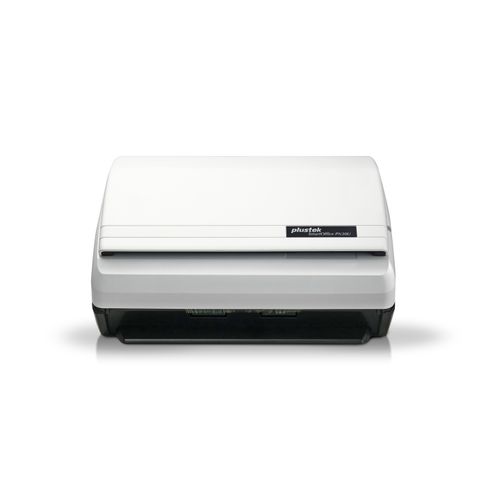

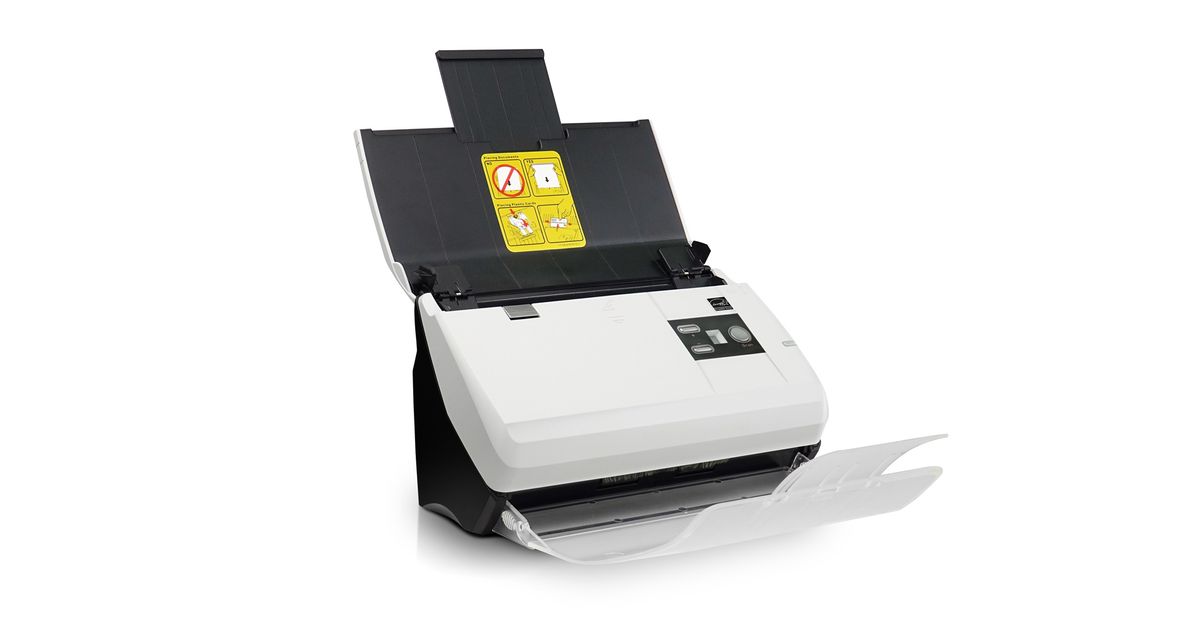

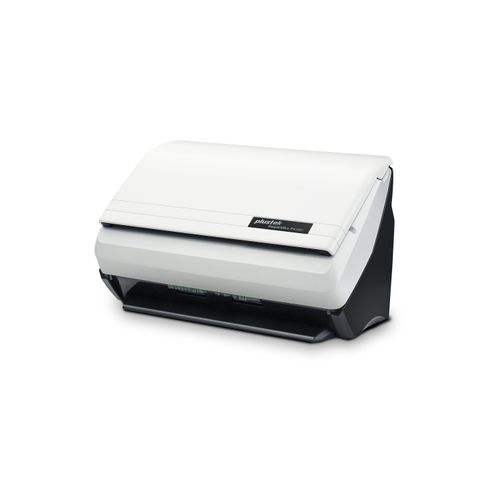

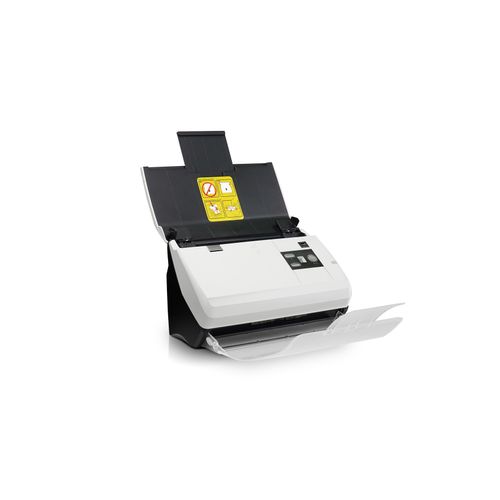

Plustek SmartOffice PN30U ADF scanner 600 x 600 DPI A4 Black, White
Plustek SmartOffice PN30U, 216 x 5080 mm, 600 x 600 DPI, 48 bit, 24 bit, 16 bit, 8 bit
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Plustek |
| Product code | 03287169 |
| EAN | 04042490000005 |
| Manufacturer part number | 0307 |
| Category | Photoconductor kits |
| Scanning | |
|---|---|
| Maximum scan size | 216 x 5080 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Duplex scanning | Y |
| Colour scanning | Y |
| Input colour depth | 48 bit |
| Input greyscale depth | 16 bit |
| Output greyscale depth | 8 bit |
| Output monochrome depth | 1 bit |
| ADF scan speed (b/w, A4) | 30 ppm |
| ADF scan speed (greyscale, A4) | 30 ppm |
| ADF scan speed (colour, A4) | 30 ppm |
| Duplex ADF scan speed (b/w, A4) | 60 ipm |
| Duplex ADF scan speed (colour, A4) | 60 ipm |
| Roller lifetime | 300000 pages |
| Pad lifetime | 50000 pages |
| Scanner type | ADF scanner |
| Scan to | E-mail, FTP, HTTP |
| Performance | |
|---|---|
| Output colour depth | 24 bit |
| Daily duty cycle (max) | 4000 pages |
| Light source | LED |
| Scan drivers | TWAIN |
| Ultrasonic double sheet detection | Y |
| Design | |
|---|---|
| Built-in display | N |
| Product colour | Black, White |
| Image sensor | |
|---|---|
| Sensor type | Dual CIS |
| Mouse | |
|---|---|
| Button functions | down, Scan, Up |
| Input capacity | |
|---|---|
| Auto document feeder (ADF) input capacity | 50 sheets |
| Paper handling | |
|---|---|
| Maximum ISO A-series paper size | A4 |
| Scanning media types supported | Business Card, Plastic Card |
| Multi feed detection | Y |
| Card thickness (max) | 1.2 mm |
| Auto Document Feeder (ADF) media weight | 50 - 105 g/m² |
| Maximum scan width | 21.6 cm |
| Maximum scan length | 5.08 m |
| Minimum scan area (ADF) | 13.2 x 13.2 mm |

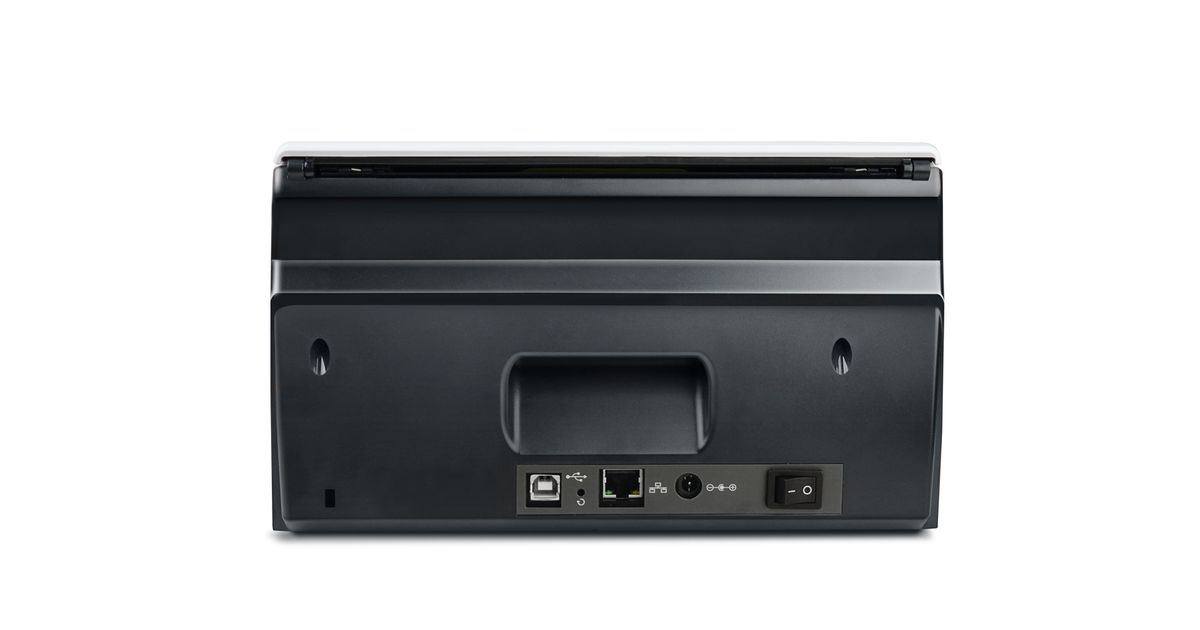

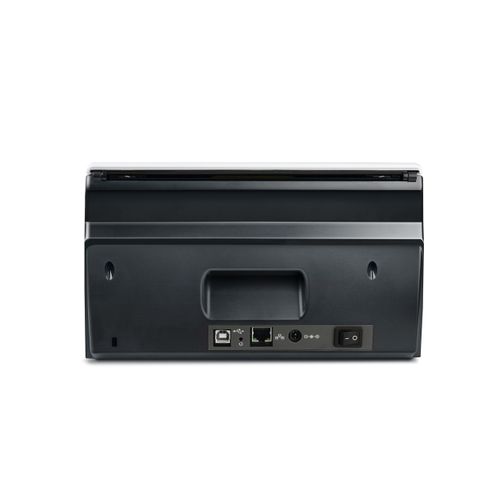

| Ports & interfaces | |
|---|---|
| USB port | Y |
| Features | |
|---|---|
| USB version | 2.0 |
| Input voltage | 24 V |
| Other features | |
|---|---|
| Standard interfaces | Ethernet, USB 2.0 |
| Minimum processor | Pentium R IV 2.4 GHz |
| Power | |
|---|---|
| Current | 0.75 A |
| Network | |
|---|---|
| Ethernet LAN | Y |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| System requirements | |
|---|---|
| Minimum storage drive space | 2000 MB |
| Minimum RAM | 1024 MB |
| Software | |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Weight & dimensions | |
|---|---|
| Width | 263 mm |
| Depth | 128 mm |
| Height | 148 mm |
| Weight | 1.66 kg |
Product Description
The Plustek SmartOffice PN30U scanner is an easy to use network based scanning solution for sharing documents in today's multi-location and global environment. It delivers speed, image quality, and great paper handling, along with easy integration and compatibility with document imaging applications. Designed to perform in today’s demanding working environments, it effortlessly handles mission-critical or routine daily scanning tasks, thanks to scanning speeds up to 30ppm in color (200 & 300dpi).
Scan to any PC on your network
The SmartOffice PN30U is perfect for small and medium sized offices that have the need to scan documents, but do not have the daily scan volume to justify a dedicated scanner for each employee. All PC users in the office can share using the SmartOffice PN30U
Ultrasonic Multi-Feed Detection
With the ultrasonic multifeed detection capability, the scanner allows you to set overlapped paper by detecting paper thickness between documents. The ultrasonic function can be turned off when scanning document with labels, sticky notes, or taped receipts. This innovative design prevents double feeding and effectively scans documents of different weights or thickness.
Advanced One-Button Scanning
With Plustek’s DocAction exclusive software application, users only need to properly place the document on the scanner, the press the”Scan” button. Auto Deskew, Auto Crop, Auto Size for Page Detection, Gamma, Contrast, Brightness, Color Dropout (RGB), Image Edge Fill, Preview, Page Size, Scan Mode, Multi-image Output, Job Function, Merge Page/Split Page, Card Scanning Mode, Outputs scanned documents in a variety of formats such as PDF, PDF/A, JPEG and TIFF formats. It can also recognize text using OCR and create multi-page pdfs with automatic document feeders. With the wired networking capability, the PN30U offers network scanning to e-mails, a shared folder and a FTP server.
Scan to any PC on your network
The SmartOffice PN30U is perfect for small and medium sized offices that have the need to scan documents, but do not have the daily scan volume to justify a dedicated scanner for each employee. All PC users in the office can share using the SmartOffice PN30U
Ultrasonic Multi-Feed Detection
With the ultrasonic multifeed detection capability, the scanner allows you to set overlapped paper by detecting paper thickness between documents. The ultrasonic function can be turned off when scanning document with labels, sticky notes, or taped receipts. This innovative design prevents double feeding and effectively scans documents of different weights or thickness.
Advanced One-Button Scanning
With Plustek’s DocAction exclusive software application, users only need to properly place the document on the scanner, the press the”Scan” button. Auto Deskew, Auto Crop, Auto Size for Page Detection, Gamma, Contrast, Brightness, Color Dropout (RGB), Image Edge Fill, Preview, Page Size, Scan Mode, Multi-image Output, Job Function, Merge Page/Split Page, Card Scanning Mode, Outputs scanned documents in a variety of formats such as PDF, PDF/A, JPEG and TIFF formats. It can also recognize text using OCR and create multi-page pdfs with automatic document feeders. With the wired networking capability, the PN30U offers network scanning to e-mails, a shared folder and a FTP server.
