Plustek SmartOffice PT2160 ADF scanner 600 x 600 DPI A3 Black
Plustek SmartOffice PT2160, 216 x 5080 mm, 600 x 600 DPI, 48 bit, 24 bit, 16 bit, 8 bit
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Plustek |
| Product code | 113554345 |
| EAN | 04042485718878 |
| Manufacturer part number | 0308 |
| Category | Document scanners |
| Scanning | |
|---|---|
| Maximum scan size | 216 x 5080 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Duplex scanning | Y |
| Colour scanning | Y |
| Input colour depth | 48 bit |
| Input greyscale depth | 16 bit |
| Output greyscale depth | 8 bit |
| Output monochrome depth | 1 bit |
| Film scanning | N |
| ADF scan speed (b/w, A4) | 60 ppm |
| ADF scan speed (greyscale, A4) | 60 ppm |
| ADF scan speed (colour, A4) | 60 ppm |
| Duplex ADF scan speed (b/w, A4) | 120 ipm |
| Duplex ADF scan speed (colour, A4) | 120 ipm |
| Black/white scanning colour modes | Grayscale, Monochrome |
| Roller lifetime | 300000 pages |
| Pad lifetime | 100000 pages |
| Scanner type | ADF scanner |
| Performance | |
|---|---|
| Output colour depth | 24 bit |
| Daily duty cycle (max) | 8000 pages |
| Light source | LED |
| Scan file formats | |
| Scan drivers | TWAIN |
| Ultrasonic double sheet detection | Y |
| Ultrasonic sensor | Y |
| Design | |
|---|---|
| Built-in display | Y |
| Product colour | Black |
| Image sensor | |
|---|---|
| Sensor type | Dual CIS |
| Mouse | |
|---|---|
| Button functions | down, Scan, Standby, Up |
| Input capacity | |
|---|---|
| Auto document feeder (ADF) input capacity | 100 sheets |
| Paper handling | |
|---|---|
| Maximum ISO A-series paper size | A3 |
| Scanning media types supported | Business Card, Plain paper, Plastic Card |
| Multi feed detection | Y |
| Card thickness (max) | 1.2 mm |
| Auto Document Feeder (ADF) media weight | 27 - 413 g/m² |
| Maximum scan area (ADF) | 216 x 5080 mm |
| Minimum scan area (ADF) | 13.2 x 13.2 mm |
| Maximum media width | 244 |
| Maximum media length | 5.08 m |
| Features | |
|---|---|
| ISO A-series sizes (A0...A9) | A3, A4 |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Input voltage | 24 V |
| Media formats | |
|---|---|
| Letter | Y |
| Ports & interfaces | |
|---|---|
| USB port | Y |
| Other features | |
|---|---|
| Standard interfaces | USB 3.2 Gen 1 (3.1 Gen 1) |
| Minimum processor | Intel Core i5 2.5 GHz |
| Power | |
|---|---|
| Current | 1.25 A |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| System requirements | |
|---|---|
| Minimum RAM | 4096 MB |
| Software | |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7, Windows 8 |
| Bundled software | Plustek OCR Plustek DocAction Plustek DocTWAIN |
| Weight & dimensions | |
|---|---|
| Width | 319.9 mm |
| Depth | 298.2 mm |
| Height | 236.6 mm |
| Weight | 4.1 kg |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR |
Product Description
The SmartOffice PT2160 has been designed to help office workgroups optimize their workflow. Organize working progress faster with the PT2160’s robust feeding functionalities. Scan passport, stapled document and any folded paper easily with a dedicated switch, simply switch from automatic document feeding mode to sheetfed.

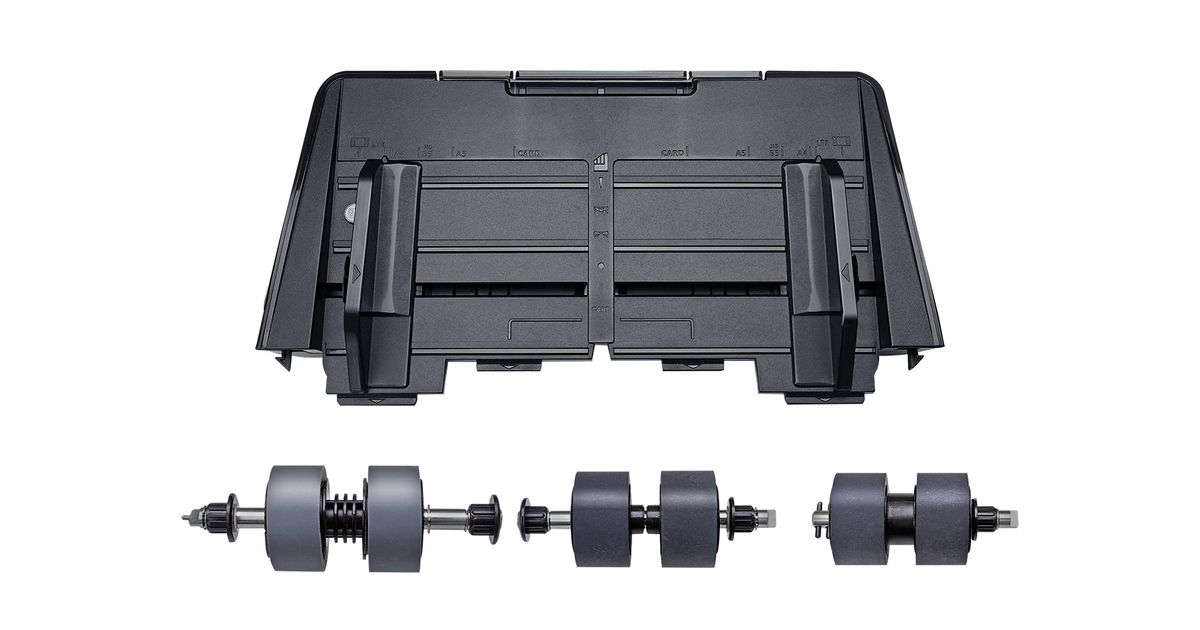

Reversible friction roller
The innovative reversible friction rollers increase the stability of document feeding and the ability of paper separation. It avoids the risk of multi-feed and incorrect result when you scan batch of document/card in di¬fferent thickness and size.
Ideal for passport, ID card, batch document and folded A3 paper scanning
Dedicated paper feeding button switch from sheet-fed to automatic document feeding, one scanner multiple uses. You will be able to scan the passport and regular size document without getting any damage.
Switch designed for different paper thickness
Due to the different types of papers for every industry, PT2160 provides a thickness switch for more reliable scanning, including preventing the thin paper damaged from friction roller and the risk of the paper jam.
Auto Threshold
Automatically thresholds the current image into a binary black and white image.
Auto Rotate
Automatically rotates document based on the contents of the document.
Auto Crop & Deskew
Automatically straightens and crops image to the documents actual size.
Auto Mode
Automatically detects document color and scans document in color, grayscale or black & white mode.
Multi-Image Output
Scans and saves documents in 2 or 3 modes at same time.
Color Dropout
Removes red, green or blue color when scanning forms.
Blank Page Removal
Automatically removes blank pages without manual editing.
Reversible friction roller
The innovative reversible friction rollers increase the stability of document feeding and the ability of paper separation. It avoids the risk of multi-feed and incorrect result when you scan batch of document/card in di¬fferent thickness and size.
Ideal for passport, ID card, batch document and folded A3 paper scanning
Dedicated paper feeding button switch from sheet-fed to automatic document feeding, one scanner multiple uses. You will be able to scan the passport and regular size document without getting any damage.
Switch designed for different paper thickness
Due to the different types of papers for every industry, PT2160 provides a thickness switch for more reliable scanning, including preventing the thin paper damaged from friction roller and the risk of the paper jam.
Auto Threshold
Automatically thresholds the current image into a binary black and white image.
Auto Rotate
Automatically rotates document based on the contents of the document.
Auto Crop & Deskew
Automatically straightens and crops image to the documents actual size.
Auto Mode
Automatically detects document color and scans document in color, grayscale or black & white mode.
Multi-Image Output
Scans and saves documents in 2 or 3 modes at same time.
Color Dropout
Removes red, green or blue color when scanning forms.
Blank Page Removal
Automatically removes blank pages without manual editing.
