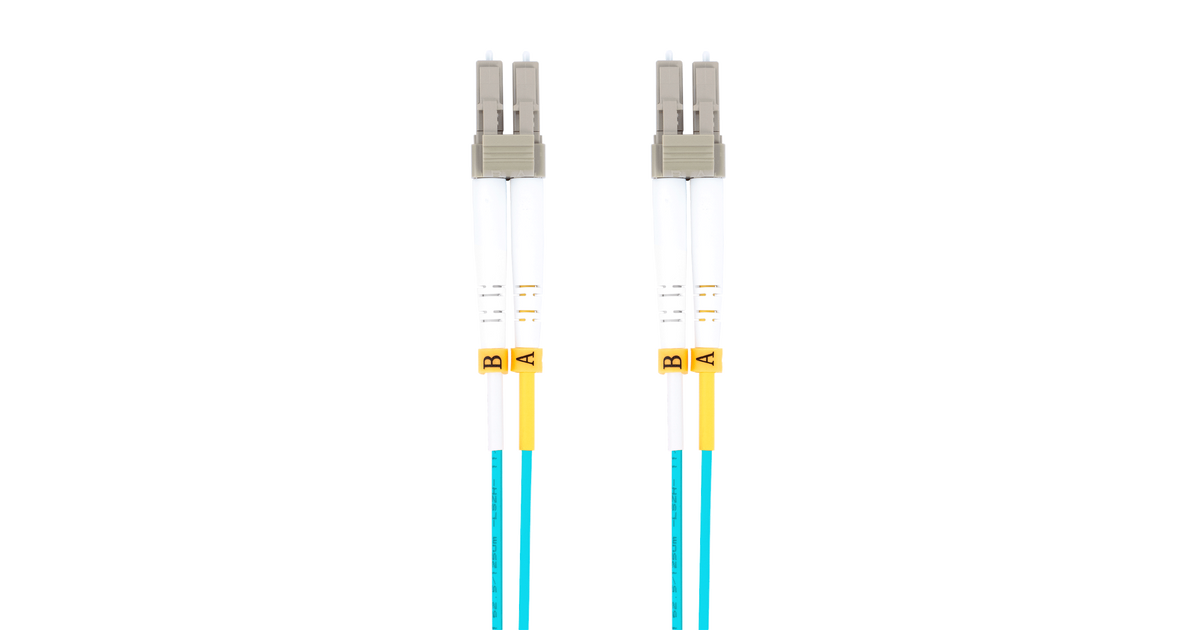

For illustrative purpose only
ProXtend LC-LC UPC OM3 Duplex MM Fiber Cable 10M
ProXtend LC-LC UPC OM3 Duplex MM Fiber Cable 10M, 10 m, OM3, LC/UPC, LC/UPC, Male
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | ProXtend |
| Product code | 164286151 |
| EAN | 05714590009330 |
| Manufacturer part number | FO-LCLCOM3D-010 |
| Category | TV and monitor accessories |
| Features | |
|---|---|
| Cable length | 10 m |
| Fibre optic type | OM3 |
| Connector 1 | LC/UPC |
| Connector 2 | LC/UPC |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Jacket material | Low smoke zero halogen (LSZH) |
| Connector gender | Male |
| Full duplex | Y |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Fiber mode structure | Multi-mode |
| Data transfer rate | 2 Gbit/s |
| Insertion loss | 0.3 dB |
| Return loss | 55 dB |
| Plug and Play | Y |
| Design | |
|---|---|
| Product colour | Aqua colour |
| Logistics data | |
|---|---|
| Country of origin | China |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -20 - 70 °C |
| Weight & dimensions | |
|---|---|
| Cable diameter | 2 mm |
| Weight | 75 g |
| Bending radius | 5 cm |
| Package weight | 0.2 g |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 1.7 mm |
| Package depth | 1.7 mm |
| Package height | 0.1 mm |
Product Description
When engineering a high speed and bandwidth heavy network over long distances, there is no doubt that a fiber optic cable network is the most efficient and cost-effective choice.
The ProXtend fiber optic patch cable range supports full duplex singlemode and multimode communication through cables with a transparent glass core, that are coated in a LSZH jacket and able to withstand temperatures from -20 up to 70 degrees Celsius.
The ProXtend fiber optic patch cable range supports full duplex singlemode and multimode communication through cables with a transparent glass core, that are coated in a LSZH jacket and able to withstand temperatures from -20 up to 70 degrees Celsius.
