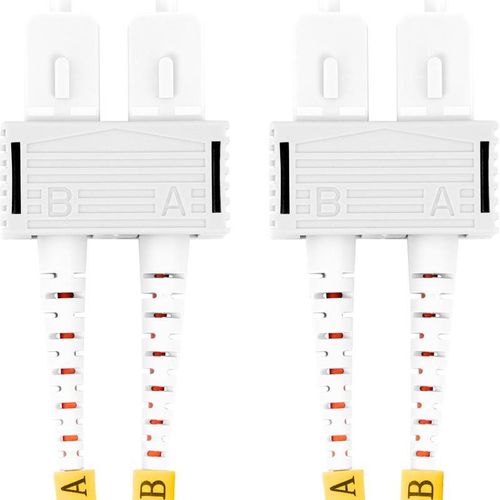

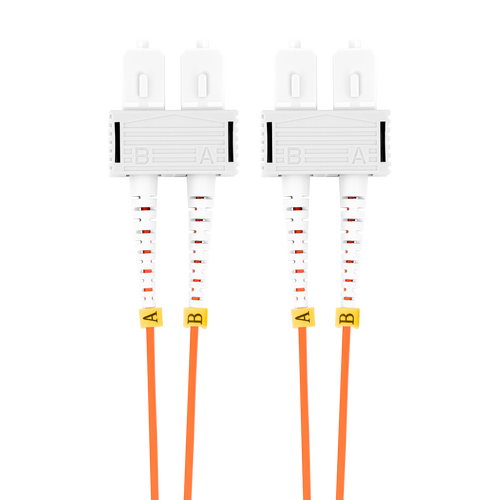

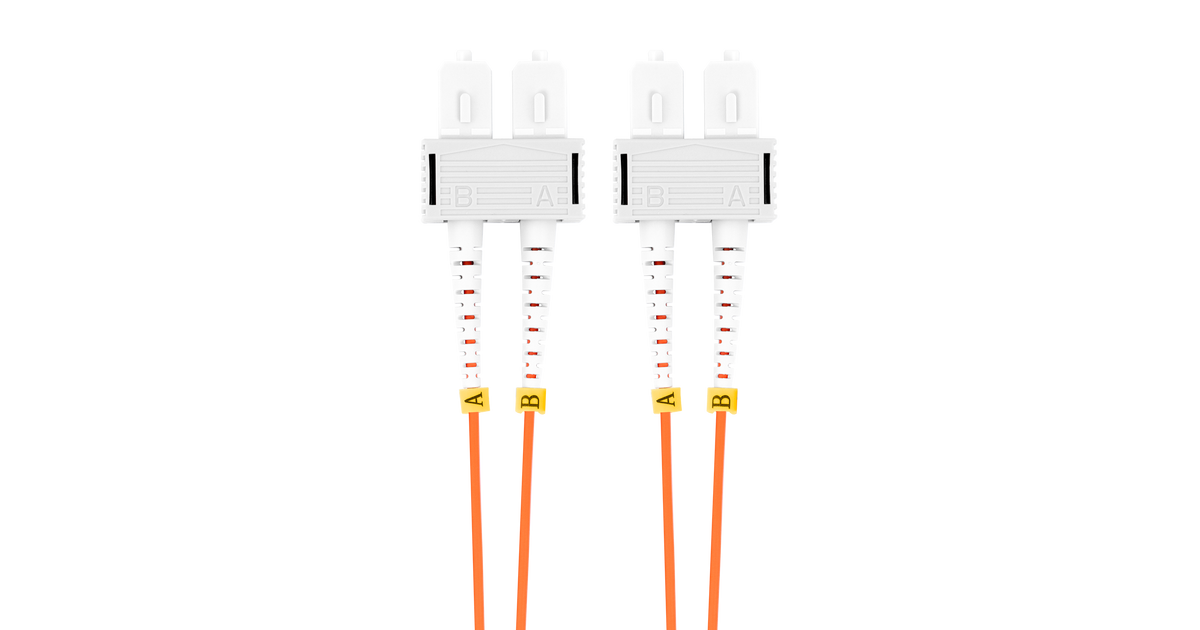

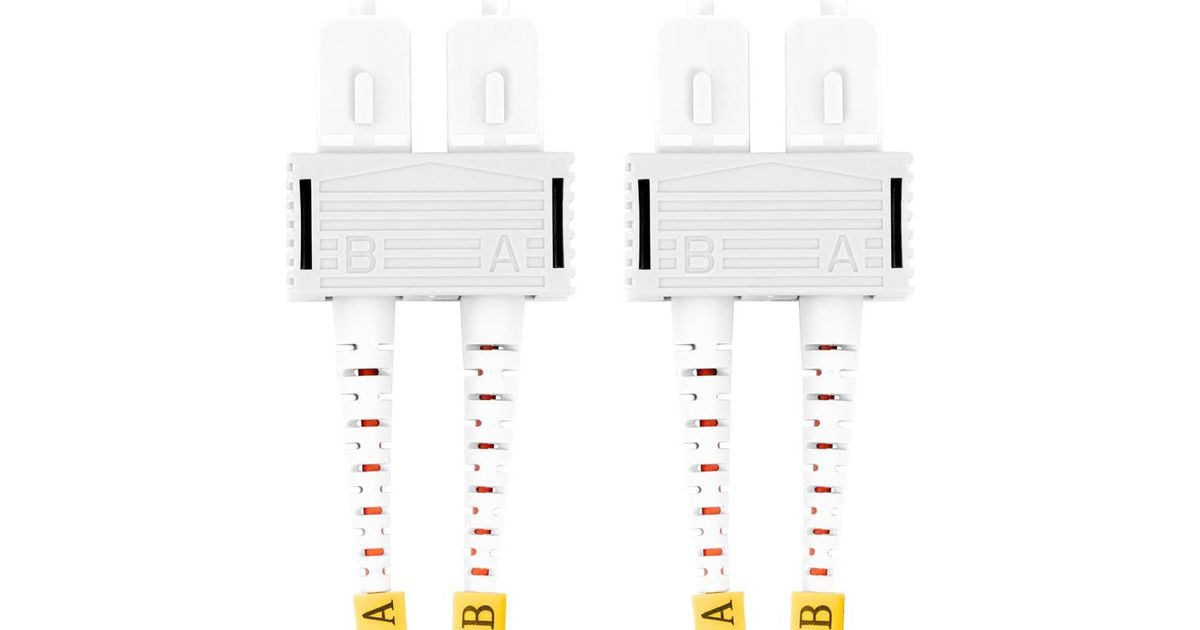

ProXtend SC-SC UPC OM1 Duplex MM Fiber Cable 5M
ProXtend SC-SC UPC OM1 Duplex MM Fiber Cable 5M, 5 m, OM1, SC/UPC, SC/UPC, Male
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | ProXtend |
| Product code | 164603641 |
| EAN | 05714590107609 |
| Manufacturer part number | FO-SCSCOM1D-005 |
| Category | TV and monitor accessories |
| Features | |
|---|---|
| Cable length | 5 m |
| Fibre optic type | OM1 |
| Connector 1 | SC/UPC |
| Connector 2 | SC/UPC |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Jacket material | Low smoke zero halogen (LSZH) |
| Connector gender | Male |
| Full duplex | Y |
| Core diameter | 62.5 µm |
| Cladding diameter | 125 µm |
| Fiber mode structure | Multi-mode |
| Data transfer rate | 2 Gbit/s |
| Insertion loss | 30 dB |
| Return loss | 55 dB |
| Plug and Play | Y |
| Design | |
|---|---|
| Product colour | Orange |
| Logistics data | |
|---|---|
| Country of origin | China |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -20 - 70 °C |
| Weight & dimensions | |
|---|---|
| Cable diameter | 2 mm |
| Weight | 42 g |
| Bending radius | 5 cm |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
Product Description
When engineering a high speed and bandwidth heavy network over long distances, there is no doubt that a fiber optic cable network is the most efficient and cost-effective choice.
The ProXtend fiber optic patch cable range supports full duplex singlemode and multimode communication through cables with a transparent glass core, that are coated in a LSZH jacket and able to withstand temperatures from -20 up to 70 degrees Celsius.
The ProXtend fiber optic patch cable range supports full duplex singlemode and multimode communication through cables with a transparent glass core, that are coated in a LSZH jacket and able to withstand temperatures from -20 up to 70 degrees Celsius.
