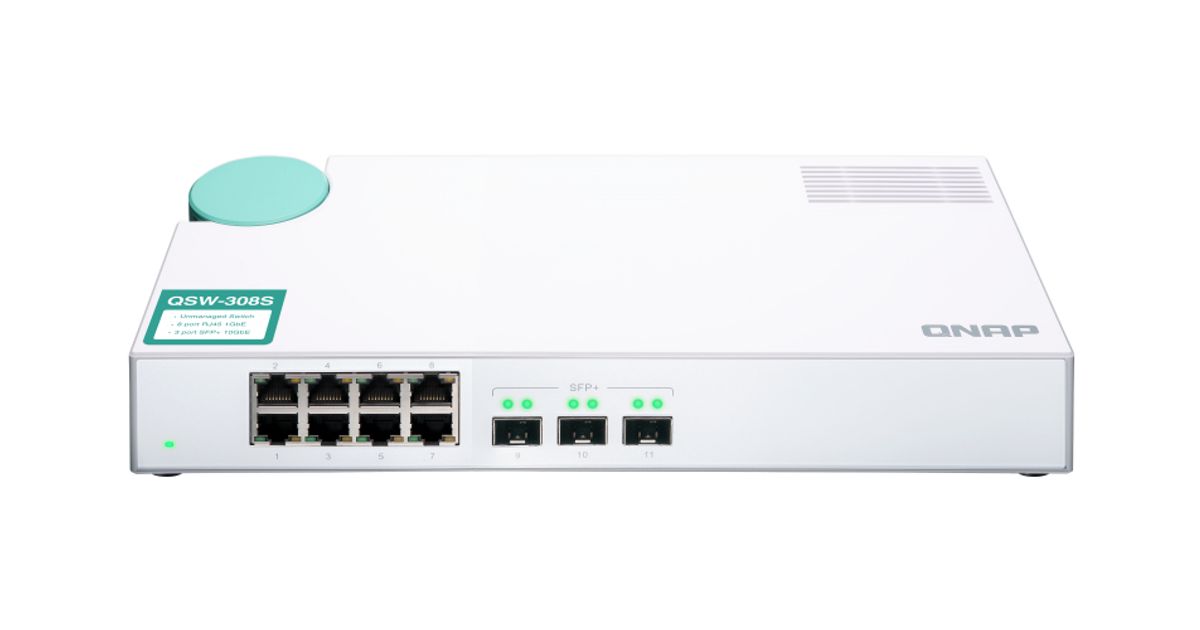

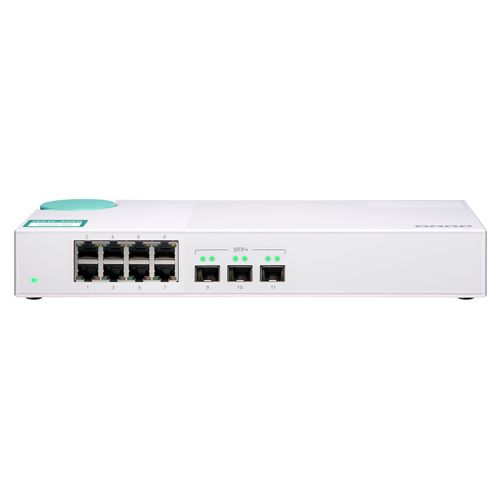

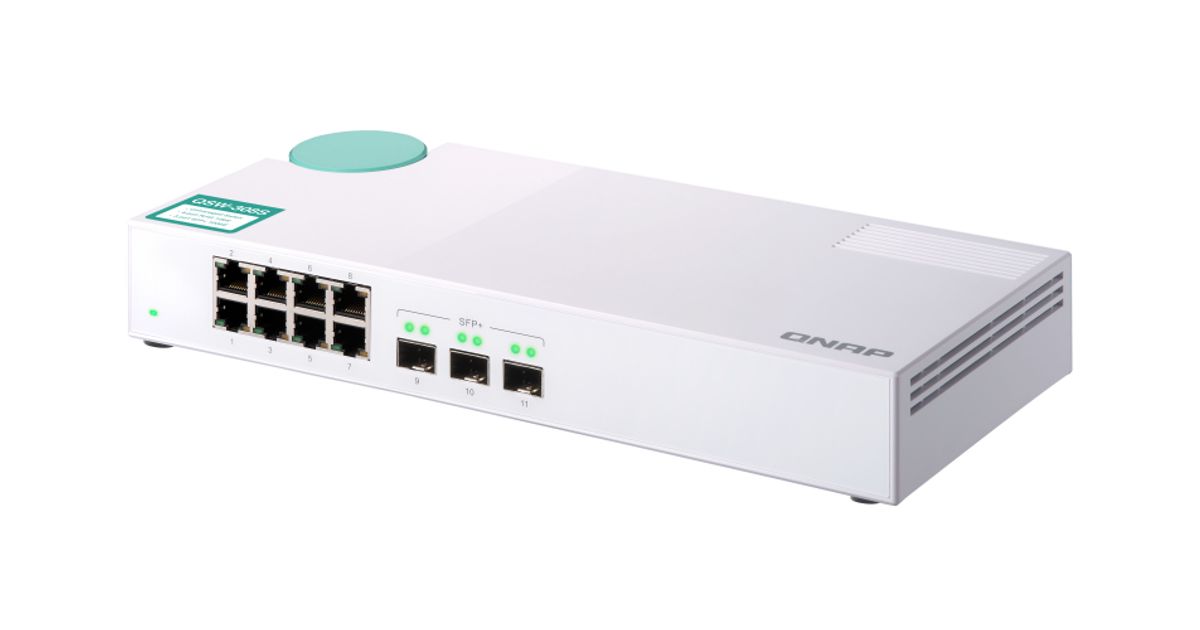

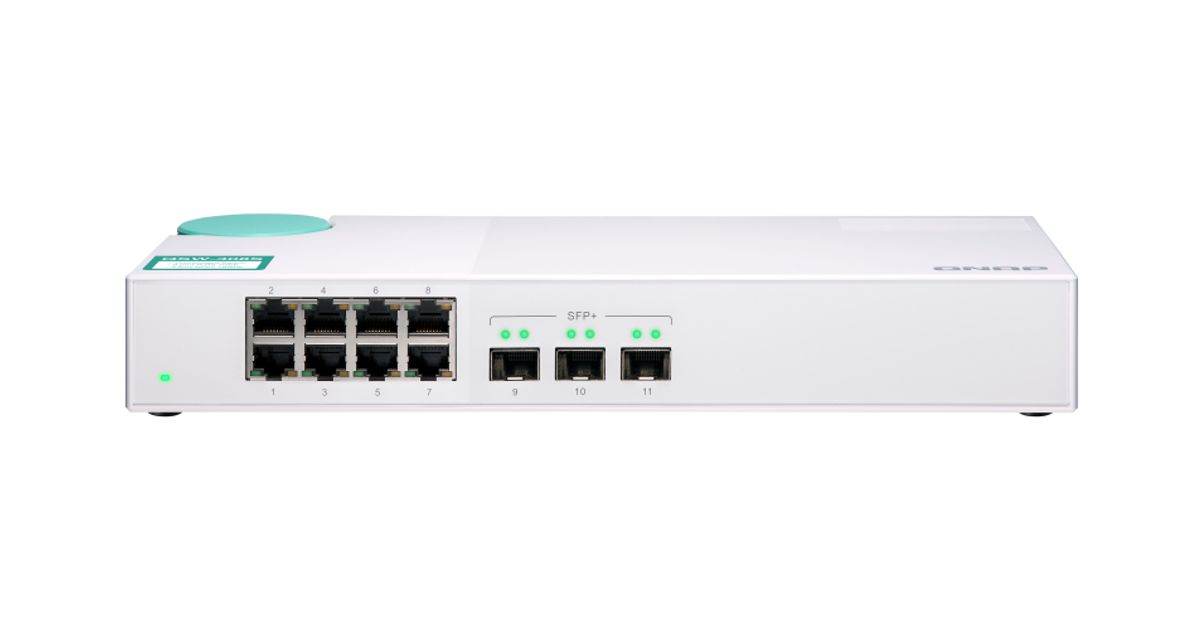

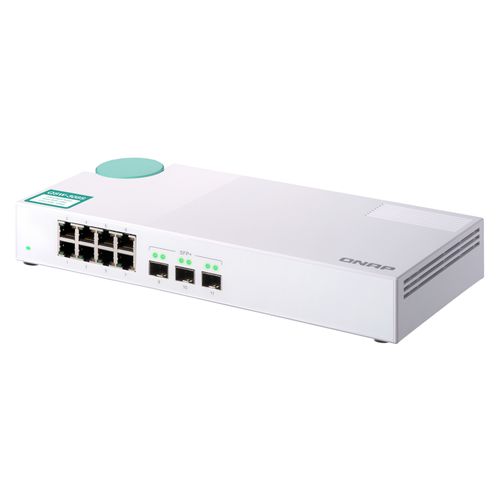

QNAP QSW-308S network switch Unmanaged Gigabit Ethernet (10/100/1000) White
QNAP QSW-308S, Unmanaged, Gigabit Ethernet (10/100/1000)
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | QNAP |
| Product code | 16486696 |
| EAN | 00885022017966 |
| Manufacturer part number | QSW-308S |
| Category | Switches & accessories |
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP+ modules quantity | 3 |
| Gigabit Ethernet (copper) ports quantity | 8 |
| SFP+ module slots quantity | 3 |
| Other features | |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Quick start guide | Y |
| Network | |
|---|---|
| 10G support | Y |
| Copper ethernet cabling technology | 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat5, Cat5e, Cat6 |
| Data transmission | |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 76 Gbit/s |
| Throughput | 38 Gbit/s |
| Number of queues | 8 |
| Jumbo frames support | Y |
| Jumbo frames | 10000 |
| Design | |
|---|---|
| Rack mounting | N |
| Product colour | White |
| LED indicators | Activity, Link, Power, Speed, Status |
| Electromagnetic compatibility | CLASS B, UL62368 |
| Features | |
|---|---|
| Certification | CE, FCC, VCCI, BSMI RCM, CCC |
| Harmonized System (HS) code | 85176990 |
| Performance | |
|---|---|
| Fanless | Y |
| Power | |
|---|---|
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 2.5 A |
| Power consumption (max) | 36 W |
| Power supply | |
|---|---|
| Power supply included | Y |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | N |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
|---|---|
| Width | 290 mm |
| Depth | 127 mm |
| Height | 42.5 mm |
| Weight | 740 g |
| Package weight | 1.16 kg |
| Packaging content | |
|---|---|
| Cables included | AC |
Product Description
The QSW-308S is a 3-port 10G SFP+ and 8-port Gigabit Unmanaged Switch, allowing you to instantly upgrade to a hybrid high-speed network environment at a cost-effective price. With its desktop size and silent operation, the QSW-308S perfectly blends into homes and offices while providing high performance, low latency and superb functionality.
Flexible deployment with multiple 10G SFP+ fiber and Gigabit ports
The QSW-308S provides three 10GbE SFP+ ports and eight Gigabit ports for connecting various devices and enabling a hybrid high-speed network in homes and offices. With SFP+ interfaces, direct attach copper (DAC) cables can be used for connecting directly to SFP+ devices. You can also use 10G-SFP-T copper transceiver modules to connect 10GBASE-T/NBASE-T™ devices through RJ45 Category 6, 5 or 5e cabling. The switching capacity of QSW-308S is 76Gbps, guaranteeing the full potential of each port.
Improve your productivity with a 10GbE-enabled QNAP NAS
Many QNAP NAS series are designed with 10GbE readiness, and can be immediately upgraded by purchasing and installing a 10GbE network adapter. QNAP NAS are also available with 10GbE SFP+ and 10GBASE-T as standard to fully support 10GbE high-speed networks, making them beneficial for IOPS-demanding applications such as virtualization, databases, high-resolution video editing, and sharing workflows.
Easily build a High-Speed Network with QNAP Network Adapters
QNAP provides a wide range of network devices to assist business and home users with upgrading their network infrastructure to meet growing bandwidth requirements. QNAP's Thunderbolt 3 to 10GbE Network Adapter provides a quick and budget-friendly method for laptops (and other upgrade-constrained devices) to take advantage of high-speed 10GbE connectivity.
Cool and quiet operation
The QSW-308S features a fanless design for silent operations. The unique ventilated construction assists in cooling while maintaining high performance.
Desktop size for easy use in homes and offices
With a compact and modern design, the QSW-308S fits perfectly alongside other devices in modern digital homes and offices. Featuring a delicate white polished or textured surface design, the QSW-308S helps users to easily identify each port. The flexible DC power connector also assists in universally deploying the QSW-308S.
Flexible deployment with multiple 10G SFP+ fiber and Gigabit ports
The QSW-308S provides three 10GbE SFP+ ports and eight Gigabit ports for connecting various devices and enabling a hybrid high-speed network in homes and offices. With SFP+ interfaces, direct attach copper (DAC) cables can be used for connecting directly to SFP+ devices. You can also use 10G-SFP-T copper transceiver modules to connect 10GBASE-T/NBASE-T™ devices through RJ45 Category 6, 5 or 5e cabling. The switching capacity of QSW-308S is 76Gbps, guaranteeing the full potential of each port.
Improve your productivity with a 10GbE-enabled QNAP NAS
Many QNAP NAS series are designed with 10GbE readiness, and can be immediately upgraded by purchasing and installing a 10GbE network adapter. QNAP NAS are also available with 10GbE SFP+ and 10GBASE-T as standard to fully support 10GbE high-speed networks, making them beneficial for IOPS-demanding applications such as virtualization, databases, high-resolution video editing, and sharing workflows.
Easily build a High-Speed Network with QNAP Network Adapters
QNAP provides a wide range of network devices to assist business and home users with upgrading their network infrastructure to meet growing bandwidth requirements. QNAP's Thunderbolt 3 to 10GbE Network Adapter provides a quick and budget-friendly method for laptops (and other upgrade-constrained devices) to take advantage of high-speed 10GbE connectivity.
Cool and quiet operation
The QSW-308S features a fanless design for silent operations. The unique ventilated construction assists in cooling while maintaining high performance.
Desktop size for easy use in homes and offices
With a compact and modern design, the QSW-308S fits perfectly alongside other devices in modern digital homes and offices. Featuring a delicate white polished or textured surface design, the QSW-308S helps users to easily identify each port. The flexible DC power connector also assists in universally deploying the QSW-308S.
