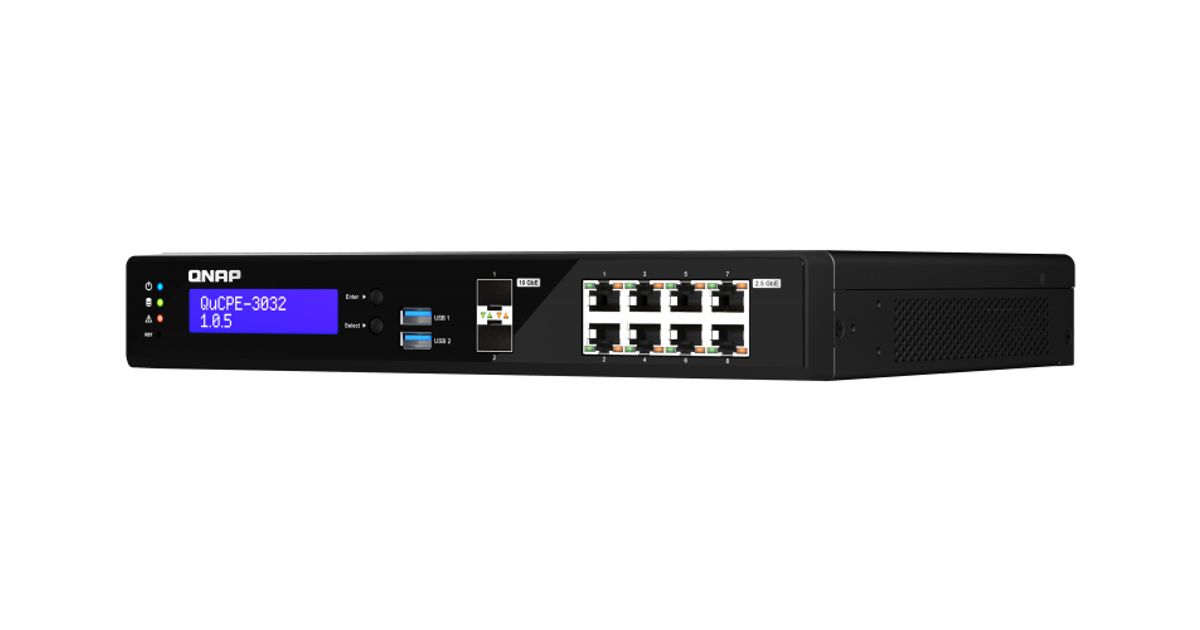

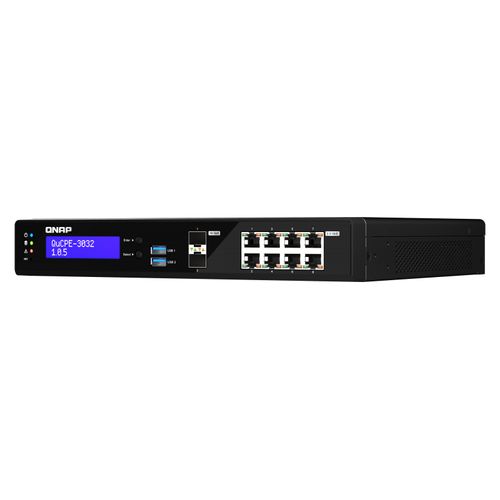

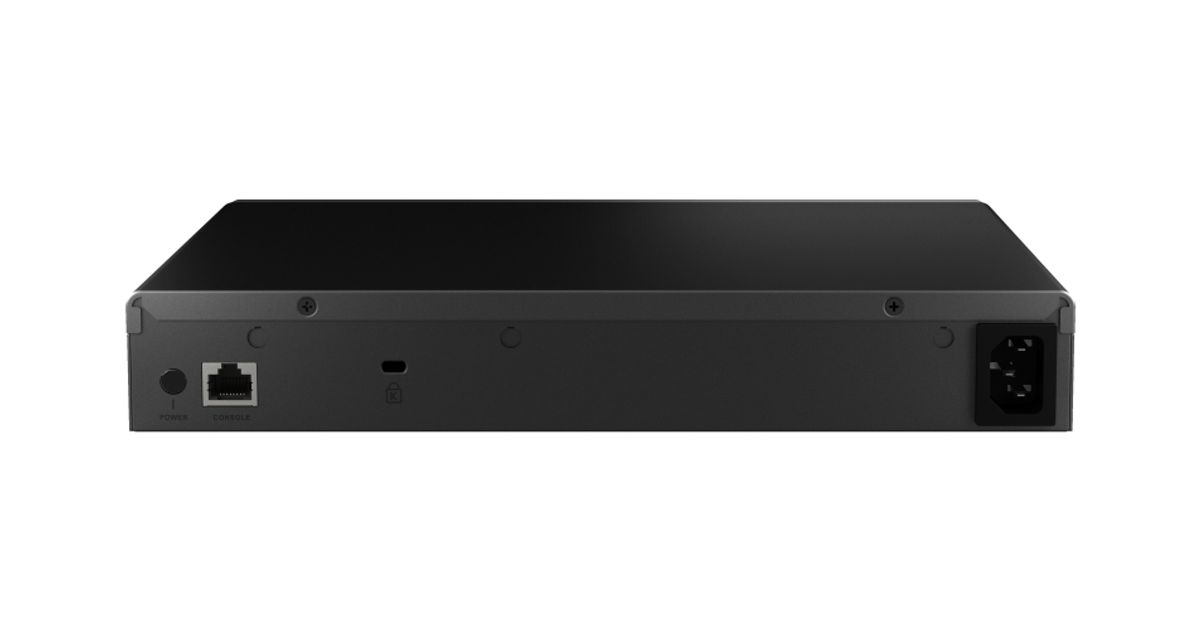

QNAP QuCPE-3032
QNAP QuCPE-3032, Intel, Intel Atom®, C3558R, 2.4 GHz, 8 MB, DDR4
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | QNAP |
| Product code | 187372822 |
| EAN | 00885022023332 |
| Manufacturer part number | NBQNPOQUCPE3032 |
| Category | Servers |
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Atom® |
| Processor model | C3558R |
| Processor frequency | 2.4 GHz |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor cache | 8 MB |
| Other features | |
|---|---|
| Number of processors supported | 1 |
| USB 2.0 ports quantity | 1 |
| PCI-SIG* SR-IOV Capable | Y |
| Memory | |
|---|---|
| Internal memory type | DDR4 |
| Internal memory | 8 GB |
| Memory clock speed | 2400 MHz |
| Maximum RAM supported | 128 GB |
| Memory slots | 2 x 288pin |
| Memory form factor | UDIMM |
| ECC | N |
| Features | |
|---|---|
| Number of storage drives supported | 2 |
| Storage controllers | |
|---|---|
| Supported storage drive types | SSD |
| Supported storage drive interfaces | M.2 |
| Network | |
|---|---|
| Ethernet LAN | Y |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 8 |
| USB port | Y |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Fiber ports quantity | 2 |
| Console port | RJ-45 |
| AC (power) in | Y |
| Power cables quantity | 1 |
| Optical fiber | |
|---|---|
| Fiber optic connector | QSFP+ |
| Design | |
|---|---|
| Chassis type | Compact |
| Built-in display | Y |
| Cooling type | Active |
| Product colour | Black |
| Number of fans | 2 fan(s) |
| LED indicators | Y |
| Display type | LCD |
| Display | |
|---|---|
| Backlight display | Y |
| Software | |
|---|---|
| Data Plane Development Kit (DPDK) | Y |
| Power | |
|---|---|
| Power consumption (typical) | 60 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
|---|---|
| Width | 285 mm |
| Depth | 237 mm |
| Height | 46 mm |
| Weight | 2.17 kg |
| Packaging content | |
|---|---|
| Cables included | AC, LAN (RJ-45) |
| Rack mount kit | Y |
| Processor special features | |
|---|---|
| Intel® AES New Instructions (Intel® AES-NI) | Y |
Product Description
QNAP’s QuCPE-3032 Network Virtualization Premise Equipment is a universal virtualization platform specifically designed for SMBs. The QuCPE-3032 adopts the high-performance Intel® Atom Refresh quad-core processor that supports Intel® QAT, Smart NIC SR-IOV and DPDK hardware acceleration technologies while also providing eight 2.5GbE RJ45 ports and two 10GbE SFP+ ports. With enhanced bandwidth and computing performance for running VNFs and connecting SD-WAN (Supporting VPN/WireGuard), the QuCPE-3032 is suitable for multi-user and multi-tasking business applications. The QuCPE-3032 also features the QNE (QNAP Network Equipment) OS for chaining VNF services and AMIZ Cloud centralized deployment and management platform to realize flexible Zero Touch Provisioning.
Network Function Virtualization
The QuCPE-3032 is powered by QNAP’s proprietary QNE operating system, providing convenient and intuitive Network Service Composer with the world’s first visualized VM / VNF service chaining topology.
Multi-site Network Infrastructure
The incorporated QuWAN SD-WAN solution helps achieve multi-site network infrastructure expansion.
Hardware Acceleration Technologies
Intel® QAT, Smart NIC SR-IOV and DPDK hardware acceleration technologies offer superior computing power for virtualization deployment and enhance SD-WAN and VPN transmission efficiency.
Cloud Management
AMIZ Cloud is a centralized management platform that enables HQ-based IT staff to centrally monitor all edge devices, virtual machines, and containers. The QuCPE-3032 helps enterprises achieve Zero Touch Provisioning to enhance IT deployment efficiency and reduce maintenance costs.
Installation-On-Demand
The Application Store is a software platform providing various Virtualized Network Functions (VNF) and applications including firewalls and software routers.
WireGuard VPN
Supports WireGuard VPN to offer privacy protection and advanced encrypted security transmission for faster and stable remote working networks.
Network Function Virtualization
The QuCPE-3032 is powered by QNAP’s proprietary QNE operating system, providing convenient and intuitive Network Service Composer with the world’s first visualized VM / VNF service chaining topology.
Multi-site Network Infrastructure
The incorporated QuWAN SD-WAN solution helps achieve multi-site network infrastructure expansion.
Hardware Acceleration Technologies
Intel® QAT, Smart NIC SR-IOV and DPDK hardware acceleration technologies offer superior computing power for virtualization deployment and enhance SD-WAN and VPN transmission efficiency.
Cloud Management
AMIZ Cloud is a centralized management platform that enables HQ-based IT staff to centrally monitor all edge devices, virtual machines, and containers. The QuCPE-3032 helps enterprises achieve Zero Touch Provisioning to enhance IT deployment efficiency and reduce maintenance costs.
Installation-On-Demand
The Application Store is a software platform providing various Virtualized Network Functions (VNF) and applications including firewalls and software routers.
WireGuard VPN
Supports WireGuard VPN to offer privacy protection and advanced encrypted security transmission for faster and stable remote working networks.
