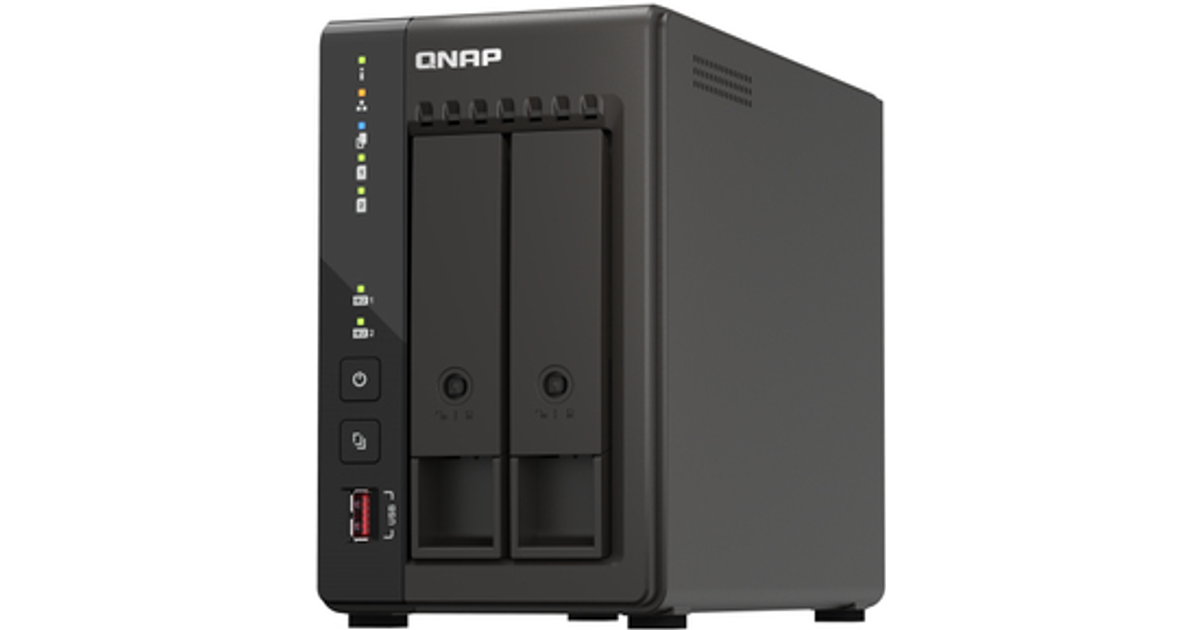

For illustrative purpose only
QNAP TS-253E NAS Tower Ethernet LAN Black J6412
QNAP TS-253E, NAS, Tower, Intel® Celeron®, J6412, Black
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | QNAP |
| Product code | 187372821 |
| EAN | 04711103082171 |
| Manufacturer part number | TS-253E-8G# |
| Category | NAS systems |
| Storage | |
|---|---|
| Storage drives installed | N |
| Installed storage drive type | N |
| Number of M.2 (M & B) slots | 2 |
| Features | |
|---|---|
| Number of storage drives supported | 4 |
| Storage drive sizes supported | 2.5,M.2 |
| Type | NAS |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| RAID support | N |
| Supported storage drive interfaces | M.2, Serial ATA III |
| Processor | |
|---|---|
| Processor family | Intel® Celeron® |
| Processor manufacturer | Intel |
| Processor model | J6412 |
| Processor frequency | 2.6 GHz |
| Processor cores | 4 |
| Processor threads | 4 |
| Memory | |
|---|---|
| Internal memory | 8 GB |
| Network | |
|---|---|
| Ethernet LAN | Y |
| Wake-on-LAN ready | Y |
| Data transmission | |
|---|---|
| Jumbo frames support | Y |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB port | Y |
| HDMI ports quantity | 2 |
| HDMI version | 1.4b |
| Other features | |
|---|---|
| USB 2.0 ports quantity | 2 |
| External power adapter | Y |
| Rear panel I/O ports | |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Design | |
|---|---|
| Chassis type | Tower |
| Cooling type | Active |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| LED indicators | LAN, Power, Status |
| Reset button | Y |
| On/off switch | Y |
| Ergonomics | |
|---|---|
| Buzzer | Y |
| Power | |
|---|---|
| Power supply unit (PSU) capacity | 90 W |
| Power consumption (max) | 18.09 W |
| Power consumption (sleep) | 10.56 W |
| AC input voltage | 100 - 240 V |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
Product Description
The TS-253E features 2.5GbE connectivity, 8GB RAM, and M.2 slots for NVMe SSD caching to deliver high performance for applications such as surveillance systems, virtual machines, file servers or backup servers. Dual HDMI outputs also provide direct multimedia playback and robust surveillance monitoring. QNAP will provide long-term availability and support for the TS-253E, providing a great choice for businesses requiring matching NAS models deployed in multiple locations.
Dual 2.5GbE ports
2.5 times faster network speed with existing CAT5e cables; supports port trunking to deliver up to 5Gbps.
Dual M.2 2280 PCIe slots
Attain greater NAS performance by installing M.2 2280 NVMe PCIe SSDs (sold separately) or Edge TPU.
8GB RAM onboard
System performance and multitasking is optimized with 8GB RAM.
Long-term model
The TS-253E will be available and supported by QNAP for an extended period, up to 2029.
Dual HDMI output
The dual-screen extension can be used for surveillance or 4K high-resolution video playback.
Expand storage capacity
Supports USB expansion enclosures (see the compatibility list).
Dual 2.5GbE ports
2.5 times faster network speed with existing CAT5e cables; supports port trunking to deliver up to 5Gbps.
Dual M.2 2280 PCIe slots
Attain greater NAS performance by installing M.2 2280 NVMe PCIe SSDs (sold separately) or Edge TPU.
8GB RAM onboard
System performance and multitasking is optimized with 8GB RAM.
Long-term model
The TS-253E will be available and supported by QNAP for an extended period, up to 2029.
Dual HDMI output
The dual-screen extension can be used for surveillance or 4K high-resolution video playback.
Expand storage capacity
Supports USB expansion enclosures (see the compatibility list).
