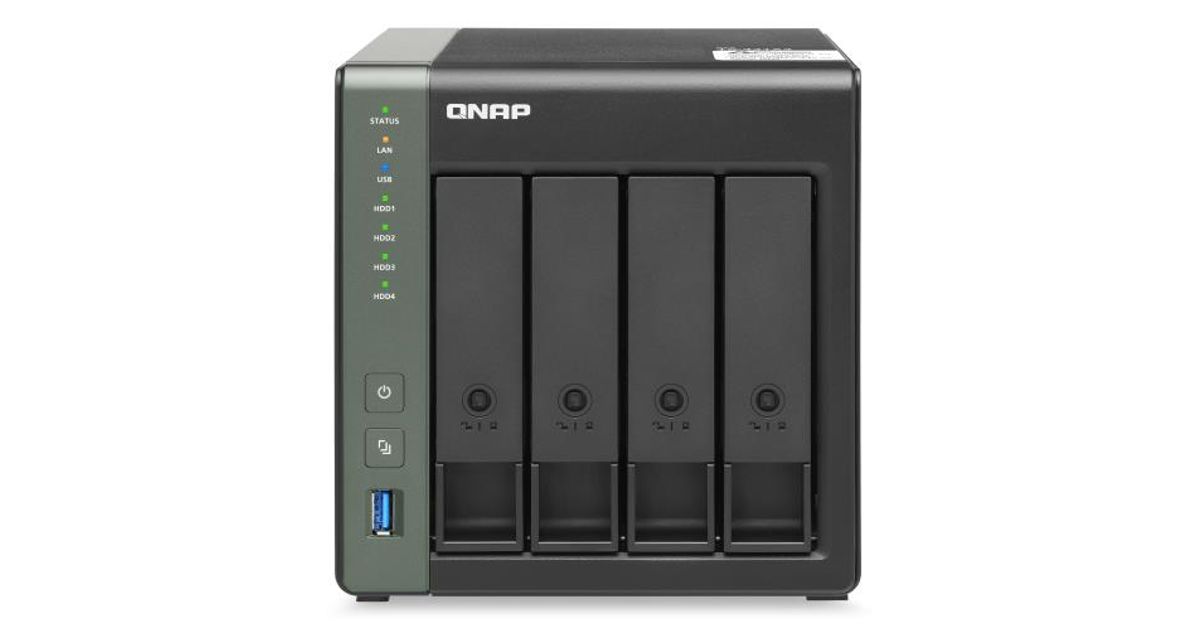

QNAP TS-431X3 NAS Tower Ethernet LAN Black AL314
QNAP TS-431X3, NAS, Tower, Annapurna Labs, AL314, Black
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | QNAP |
| Product code | 213842862 |
| EAN | 00885022018888 |
| Manufacturer part number | TS-431X3-4G-Promo |
| Category | NAS systems |
| Storage | |
|---|---|
| Storage drives installed | N |
| Installed storage drive type | N |
| Online RAID migration | Y |
| Online RAID expansion | Y |
| RAID rebuild | Y |
| Hot-swap drive bays | Y |
| Supported file systems | FAT32,HFS+,NTFS,ext3,ext4 |
| Bad block scan | Y |
| Features | |
|---|---|
| Number of storage drives supported | 4 |
| Storage drive sizes supported | 2.5,3.5" |
| Type | NAS |
| S.M.A.R.T. support | Y |
| Linux operating systems supported | Y |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| RAID support | Y |
| Supported storage drive interfaces | Serial ATA II, Serial ATA III |
| RAID levels | 0,1,5,6,10,JBOD |
| Processor | |
|---|---|
| Processor family | Annapurna Labs |
| Processor manufacturer | Annapurna Labs |
| Processor model | AL314 |
| Processor frequency | 1.7 GHz |
| Processor cores | 4 |
| Memory | |
|---|---|
| Internal memory | 4 GB |
| Internal memory type | DDR3 |
| Maximum RAM supported | 8 GB |
| Memory slots | 1 |
| Memory form factor | SO-DIMM |
| Performance | |
|---|---|
| Flash memory | 512 MB |
| DHCP server | Y |
| Load balancing system | Y |
| Fan diameter | 12 cm |
| Cable lock slot | Y |
| Device class | Small & Medium Business |
| Backup function | Y |
| Backup features | Cloud, iSCSI LUN |
| Multilingual support | Y |
| Snapshot | Y |
| Built-in FTP server | Y |
| System log | Y |
| Hot spare | Y |
| Share folder | CIFS/SMB |
| USB copy function | Y |
| Network | |
|---|---|
| Ethernet LAN | Y |
| Ethernet LAN data rates | 1000,2500,10000 Mbit/s |
| Ethernet LAN data rate supported (max) | 10000 Mbit/s |
| DHCP client | Y |
| iSCSI support | Y |
| Wake-on-LAN ready | Y |
| Link aggregation | Y |
| WLAN adapter supported | Y |
| Security algorithms | 256-bit AES,FIPS 140-2,HTTPS,SSH,SSL/TLS |
| Data transmission | |
|---|---|
| Jumbo frames support | Y |
| Protocols | |
|---|---|
| Supported network protocols | PPTP, L2TP/IPSec, OpenVPN, QBelt |
| Universal Plug and Play (UPnP) | Y |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB port | Y |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Fiber ports quantity | 1 |
| Optical fiber | |
|---|---|
| Fiber optic connector | SFP+ |
| Design | |
|---|---|
| Chassis type | Tower |
| Cooling type | Active |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| LED indicators | HDD, LAN, Power, Status, USB |
| Cable lock slot type | Kensington |
| Reset button | Y |
| On/off switch | Y |
| Ergonomics | |
|---|---|
| Buzzer | Y |
| Management features | |
|---|---|
| Web-based management | Y |
| Security | |
|---|---|
| Access Control List (ACL) | Y |
| Other features | |
|---|---|
| Browser supported | Mozilla Firefox, Microsoft Internet Explorer 10+, Apple Safari 7+, Google Chrome |
| Operating system version | 4.4.2 |
| External power adapter | Y |
| Software | |
|---|---|
| Operating system installed | QNAP Turbo System |
| Windows operating systems supported | Windows 10,Windows 7,Windows 8 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina |
| System requirements | |
|---|---|
| Server operating systems supported | Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019 |
| Power supply | |
|---|---|
| Power supply location | External |
| Power | |
|---|---|
| Power supply unit (PSU) capacity | 90 W |
| Number of power supply units | 1 |
| Fan voltage | 12 V |
| Weight & dimensions | |
|---|---|
| Width | 160 mm |
| Depth | 219 mm |
| Height | 169 mm |
| Weight | 2.01 kg |
| Package weight | 3.47 kg |
| Packaging content | |
|---|---|
| Cables included | AC, LAN (RJ-45) |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Product Description
The quad-core TS-431X3 provides four drive bays for high-capacity storage with expandable memory up to 8GB RAM to meet data backup, recovery, and virtualized storage needs of SMBs. The built-in 10GbE SFP+ port provides high bandwidth for intensive data transmission. Coupled with the QNAP 10GbE switch, you can build a high-speed 10GbE network environment. The TS-431X3 also features a 2.5GbE RJ45 port and a 1GbE RJ45 port for enhancing team file sharing and collaboration efficiency. The TS-431X3 provides comprehensive local, off-site and cloud backup and secure Snapshot technology to help create a reliable backup and disaster recovery plan. In the event of a system crash or accidental file deletion, you can quickly restore the system to its normal state.
High-speed 10GbE and 2.5GbE connectivity
Powered by AnnapurnaLabs AL-314 quad-core 1.7 GHz processor with 4 GB DDR3L RAM (expandable to 8 GB), the TS-431X3 features one 10 GbE SFP+ port, one 2.5 GbE RJ45 port and one Gigabit port, allowing you to enjoy higher transfer speeds using existing CAT5e or CAT6 RJ45 cables in your network environment. Coupled with QNAP QSW series network switch, you can easily build a high-speed network affordably. You can also use your laptop with a QNAP USB 3.2 Gen 1 to 5GbE adapter (QNA-UC5G1T) or your desktop computer with a QNAP 5 GbE network expansion card (QXG-5G1T-111C) and directly connect to the TS-431X3’s 2.5GbE port to enjoy 2.5 times faster transfer speeds.
Easily Create a High-speed Network Environment
10GbE improves overall network performance and everyday tasks with ten times the bandwidth of 1GbE. From 10GbE NAS, to switches, to network adapters, QNAP provides a complete range of everything needed to upgrade to 10GbE environments.
Multi-point file backup, access and sync
HBS (Hybrid Backup Sync) consolidates data backup, recovery, and synchronization, coupled with high-speed 10GbE and 2.5GbE connectivity of the TS-431X3, allowing you to easily backup or sync data to another QNAP NAS, remote server or cloud storage to build a reliable disaster recovery solution. Qsync turns the TS-431X3 into a secure, high-capacity data center for file synchronization. Any file uploaded to the TS-431X3 will be made available for all linked devices, such as computers, laptops, and mobile devices. You can also sync shared folders or create team folders to enhance team collaboration.
Boost productivity with QNAP applications
QNAP File Station provides centralized file management allowing you to view and manage files on your TS-431X3 and other storage sources or devices. Qfiling helps automate file organization, and Qsirch can make your file searches faster. You can also use Qfile mobile app to access NAS files from a mobile device.
Protects your sensitive data with file encryption
When sharing sensitive or confidential files on your TS-431X3, you can enhance data security by using File Station to encrypt them into .qenc files and set a password. The file recipients need to download and install QENC Decrypter on their computers and enter the correct password to decrypt, view and use encrypted .qenc files.
Protect data against malware with Snapshots
Snapshots help protect your data by fully recording the NAS system state and metadata. If a file is accidentally deleted or modified, you can use snapshots from the Storage & Snapshots Manager or the File Station to quickly restore files to its previously-recorded state. QNAP snapshots are block-based and only record changed data. Not only does this save storage space, but it also reduces time required to back up and restore data. The TS-431X3 supports up to 64 snapshots per volume/LUN, and up to 256 snapshots in total.
Take full control of NAS system status and data security
Notification Center consolidates all QTS system events and alerts, providing you with a single-app solution for notifications. Security Counselor can evaluate and recommend TS-431X3 security settings to improve NAS security.
Host container applications
Container Station integrates both LXC and Docker lightweight virtualization technologies. You can download apps from the built-in Docker Hub, easily import or export container apps, manage access controls and rapidly deploy application services across several platforms including the cloud, servers, and PCs.
High-speed 10GbE and 2.5GbE connectivity
Powered by AnnapurnaLabs AL-314 quad-core 1.7 GHz processor with 4 GB DDR3L RAM (expandable to 8 GB), the TS-431X3 features one 10 GbE SFP+ port, one 2.5 GbE RJ45 port and one Gigabit port, allowing you to enjoy higher transfer speeds using existing CAT5e or CAT6 RJ45 cables in your network environment. Coupled with QNAP QSW series network switch, you can easily build a high-speed network affordably. You can also use your laptop with a QNAP USB 3.2 Gen 1 to 5GbE adapter (QNA-UC5G1T) or your desktop computer with a QNAP 5 GbE network expansion card (QXG-5G1T-111C) and directly connect to the TS-431X3’s 2.5GbE port to enjoy 2.5 times faster transfer speeds.
Easily Create a High-speed Network Environment
10GbE improves overall network performance and everyday tasks with ten times the bandwidth of 1GbE. From 10GbE NAS, to switches, to network adapters, QNAP provides a complete range of everything needed to upgrade to 10GbE environments.
Multi-point file backup, access and sync
HBS (Hybrid Backup Sync) consolidates data backup, recovery, and synchronization, coupled with high-speed 10GbE and 2.5GbE connectivity of the TS-431X3, allowing you to easily backup or sync data to another QNAP NAS, remote server or cloud storage to build a reliable disaster recovery solution. Qsync turns the TS-431X3 into a secure, high-capacity data center for file synchronization. Any file uploaded to the TS-431X3 will be made available for all linked devices, such as computers, laptops, and mobile devices. You can also sync shared folders or create team folders to enhance team collaboration.
Boost productivity with QNAP applications
QNAP File Station provides centralized file management allowing you to view and manage files on your TS-431X3 and other storage sources or devices. Qfiling helps automate file organization, and Qsirch can make your file searches faster. You can also use Qfile mobile app to access NAS files from a mobile device.
Protects your sensitive data with file encryption
When sharing sensitive or confidential files on your TS-431X3, you can enhance data security by using File Station to encrypt them into .qenc files and set a password. The file recipients need to download and install QENC Decrypter on their computers and enter the correct password to decrypt, view and use encrypted .qenc files.
Protect data against malware with Snapshots
Snapshots help protect your data by fully recording the NAS system state and metadata. If a file is accidentally deleted or modified, you can use snapshots from the Storage & Snapshots Manager or the File Station to quickly restore files to its previously-recorded state. QNAP snapshots are block-based and only record changed data. Not only does this save storage space, but it also reduces time required to back up and restore data. The TS-431X3 supports up to 64 snapshots per volume/LUN, and up to 256 snapshots in total.
Take full control of NAS system status and data security
Notification Center consolidates all QTS system events and alerts, providing you with a single-app solution for notifications. Security Counselor can evaluate and recommend TS-431X3 security settings to improve NAS security.
Host container applications
Container Station integrates both LXC and Docker lightweight virtualization technologies. You can download apps from the built-in Docker Hub, easily import or export container apps, manage access controls and rapidly deploy application services across several platforms including the cloud, servers, and PCs.
