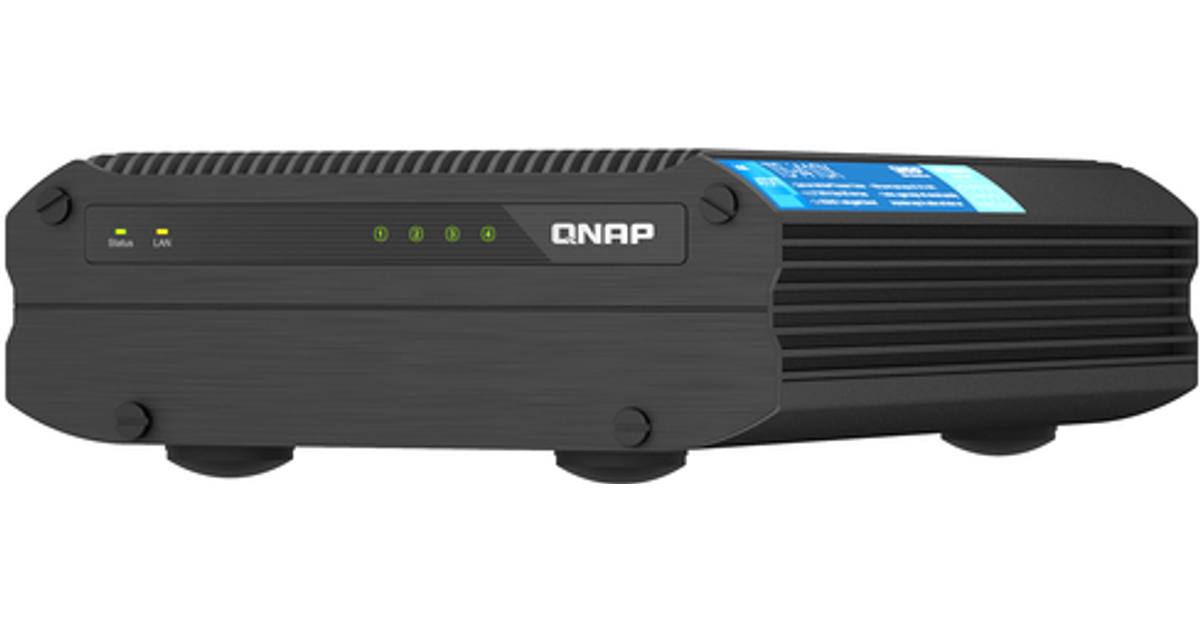

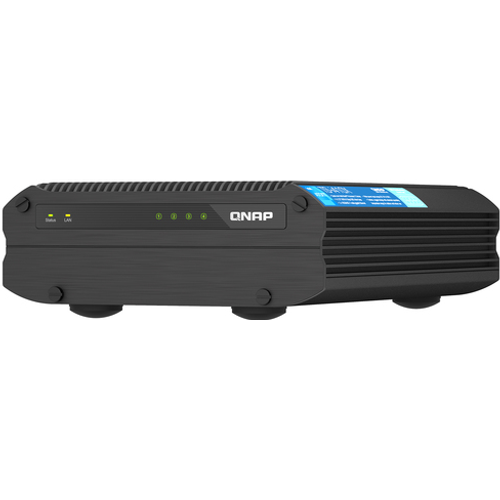

QNAP TS-I410X NAS Tower Ethernet LAN Black x6425E
QNAP TS-I410X, NAS, Tower, Intel Atom®, x6425E, Black
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | QNAP |
| Product code | 187058216 |
| EAN | 04711103081464 |
| Manufacturer part number | NBQNPNT04TSI410 |
| Category | NAS systems |
| Storage | |
|---|---|
| Storage drives installed | N |
| Installed storage drive type | N |
| Features | |
|---|---|
| Number of storage drives supported | 4 |
| Storage drive sizes supported | 2.5" |
| Type | NAS |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | Serial ATA III |
| Processor | |
|---|---|
| Processor family | Intel Atom® |
| Processor manufacturer | Intel |
| Processor model | x6425E |
| Processor frequency | 3 GHz |
| Memory | |
|---|---|
| Internal memory | 8 GB |
| Network | |
|---|---|
| Ethernet LAN | Y |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T |
| Wake-on-LAN ready | Y |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB port | Y |
| HDMI ports quantity | 1 |
| HDMI version | 1.4b |
| Rear panel I/O ports | |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| Design | |
|---|---|
| Chassis type | Tower |
| Cooling type | Passive |
| Product colour | Black |
| LED indicators | LAN, Power, SSD, Status |
| Reset button | Y |
| On/off switch | Y |
| Ergonomics | |
|---|---|
| Buzzer | Y |
| Power supply | |
|---|---|
| Power supply location | External |
| Power | |
|---|---|
| Power supply unit (PSU) capacity | 90 W |
| AC input voltage | 100 - 240 V |
| Weight & dimensions | |
|---|---|
| Width | 180 mm |
| Depth | 254 mm |
| Height | 65 mm |
| Weight | 2.54 kg |
| Package weight | 3.73 kg |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -45 - 85 °C |
| Storage relative humidity (H-H) | 5 - 95% |
Product Description
With a fanless design and rock-solid chassis, the TS-i410X industrial grade NAS is designed for harsh environments. The TS-i410X can operate in temperatures of -40 ~ 70 Celsius (-40°F ~ 158°F) while its 9V ~ 36V DC wide-range power supply is ideal for factories, warehouses, transportation, and other rugged operating environments.
10GbE connectivity
Two 10GBASE-T/NBASE-T RJ45 ports accelerate virtualization tasks, high speed backup/recovery, file sharing, and video transmission.
4K HDMI output
Supports 4K playback and real-time transcoding.
Optimized SSD performance and lifespan
Install SATA 6Gb/s SSDs and activate SSD caching for increased IOPS performance.
Virtualization applications
Host multiple virtual machines and containers to run a wide range of applications and microservices.
Data backup and recovery
Protect PC/Macs, virtual machines, software containers, and cloud data.
Hybrid cloud applications
Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS.
10GbE connectivity
Two 10GBASE-T/NBASE-T RJ45 ports accelerate virtualization tasks, high speed backup/recovery, file sharing, and video transmission.
4K HDMI output
Supports 4K playback and real-time transcoding.
Optimized SSD performance and lifespan
Install SATA 6Gb/s SSDs and activate SSD caching for increased IOPS performance.
Virtualization applications
Host multiple virtual machines and containers to run a wide range of applications and microservices.
Data backup and recovery
Protect PC/Macs, virtual machines, software containers, and cloud data.
Hybrid cloud applications
Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS.
