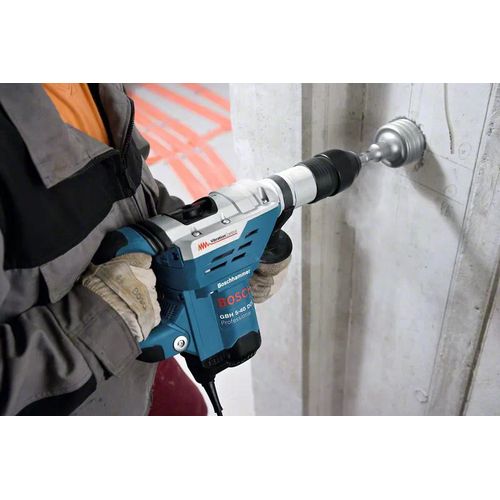

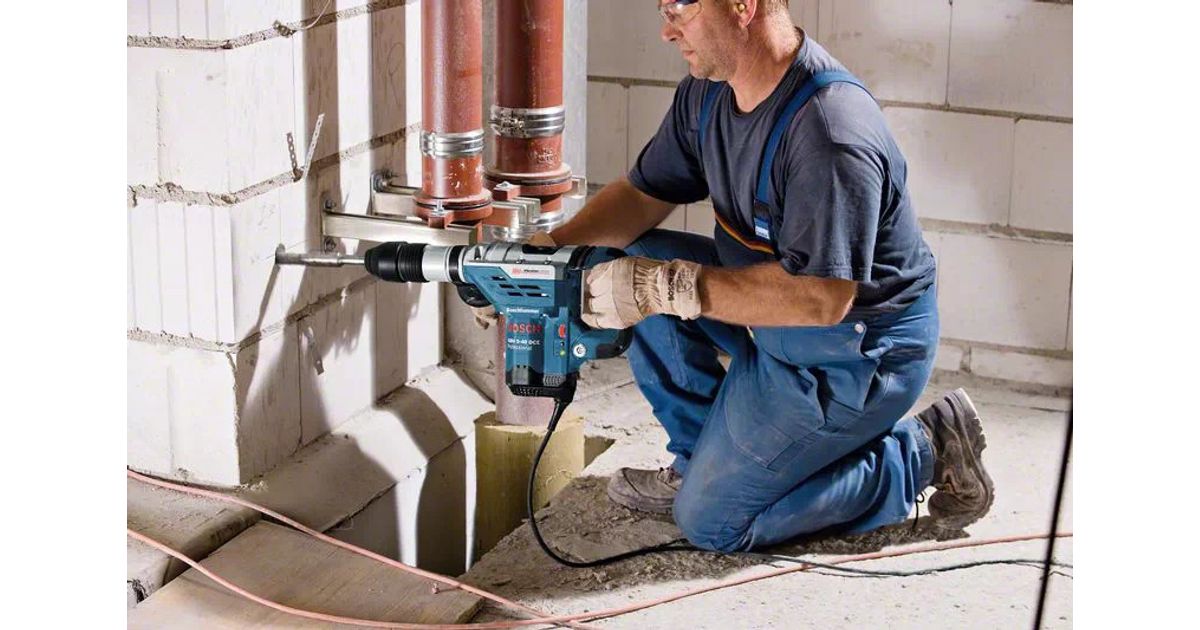

Rotary hammer drill Bosch GBH 5-40 DCE, SDS Max, 1150 W, 8.8 J
Bosch GBH 5-40 DCE Professional, SDS Max, Black, Blue, Red, Silver, II, 5.5 cm, 170 RPM, 340 RPM
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Bosch |
| Product code | 16511981 |
| EAN | 03165140461214 |
| Manufacturer part number | BO0611264000 |
| Category | Impact drills |
| Features | |
|---|---|
| Drilling | Y |
| Hammer drilling | Y |
| Chiseling | Y |
| Chuck type | SDS Max |
| Reverse | Y |
| Adjustable speed | Y |
| Protection class | II |
| Adjustable chisel positions | Y |
| Number of chisel positions | 12 |
| Design | |
|---|---|
| Product colour | Black, Blue, Red, Silver |
| Performance | |
|---|---|
| Drilling diameter in concrete (max) | 5.5 cm |
| Rated speed (min) | 170 RPM |
| Rated speed (max) | 340 RPM |
| Impact energy (max) | 8.8 J |
| Optimum drilling diameter (concrete) | 18 - 32 mm |
| Drilling diameter in brickwork (max) | 9 cm |
| Hammer drilling diameter (min) | 1.8 cm |
| Hammer drilling diameter (max) | 3.2 cm |
| Vibration level (hammer drilling) | 10.5 m/s² |
| Vibration level uncertainty (hammer drilling) | 1.5 m/s² |
| Vibration level (chiselling) | 7.5 m/s² |
| Vibration level uncertainty (chiselling) | 1.5 m/s² |
| Power | |
|---|---|
| Power source | AC |
| Input power | 1150 W |
| AC input voltage | 230 V |
| Weight & dimensions | |
|---|---|
| Weight | 6.8 kg |
| Depth | 485 mm |
| Height | 260 mm |
| Packaging data | |
|---|---|
| Package width | 410 mm |
| Package depth | 615 mm |
| Package height | 145 mm |
| Carrying case | Y |
| Packaging content | |
|---|---|
| Auxiliary handle | Y |
Product Description
Rotary Hammer with SDS max GBH 5-40 DCE Professional
The fast all-rounder with Vibration Control
The fast all-rounder with Vibration Control
