Salicru SLC-1000-TWIN PRO2 B1
Salicru SLC-1000-TWIN PRO2 B1, Double-conversion (Online), 1 kVA, 900 W, Sine, 220 V, 240 V
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Salicru |
| Product code | 2210239708 |
| EAN | 08436035921706 |
| Manufacturer part number | 699CA000004 |
| Category | UPS hardware |
| Features | |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 1 kVA |
| Output power | 900 W |
| Waveform | Sine |
| Input operation voltage (min) | 220 V |
| Input operation voltage (max) | 240 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Output voltage regulation | 1% |
| Efficiency (On-line mode) | 92% |
| Input power factor | 0.99 |
| Output power factor | 0.9 |
| Crest factor | 3:1 |
| Emergency Power Off (EPO) | Yes |
| Overload capacity (1 minute) | 130% |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Surge protection | Yes |
| Power protection features | Under voltage |
| Audible alarm(s) | Yes |
| Audible alarm modes | Alarm when on battery, Fault, Low battery alarm |
| Certification | EN 62040-2 EN 62040-3 ISO-9001 ISO-14001 |
| Harmonized System (HS) code | 85078000 |
| Other features | |
|---|---|
| Noise level | 49 dB |
| USB 2.0 ports quantity | 1 |
| Ports & interfaces | |
|---|---|
| AC outlet types | C13 coupler |
| AC outlets quantity | 3 AC outlet(s) |
| USB port | Yes |
| Emergency Power Off (EPO) connector | Yes |
| Battery | |
|---|---|
| Battery technology | Lead-Calcium (Pb-Ca) |
| Battery recharge time | 4 h |
| Design | |
|---|---|
| Form factor | Tower |
| Product colour | Black |
| Cooling type | Active |
| Display type | LCD |
| LED indicators | Yes |
| Performance | |
|---|---|
| Safety | EN 62040-1:2008+A1:2013 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 2400 m |
| Weight & dimensions | |
|---|---|
| Width | 102 mm |
| Depth | 346 mm |
| Height | 228 mm |
| Weight | 4.9 kg |
| Power | |
|---|---|
| Battery type | AGM |
Product Description

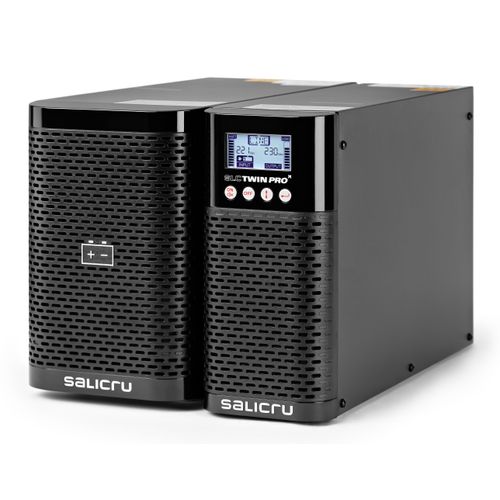

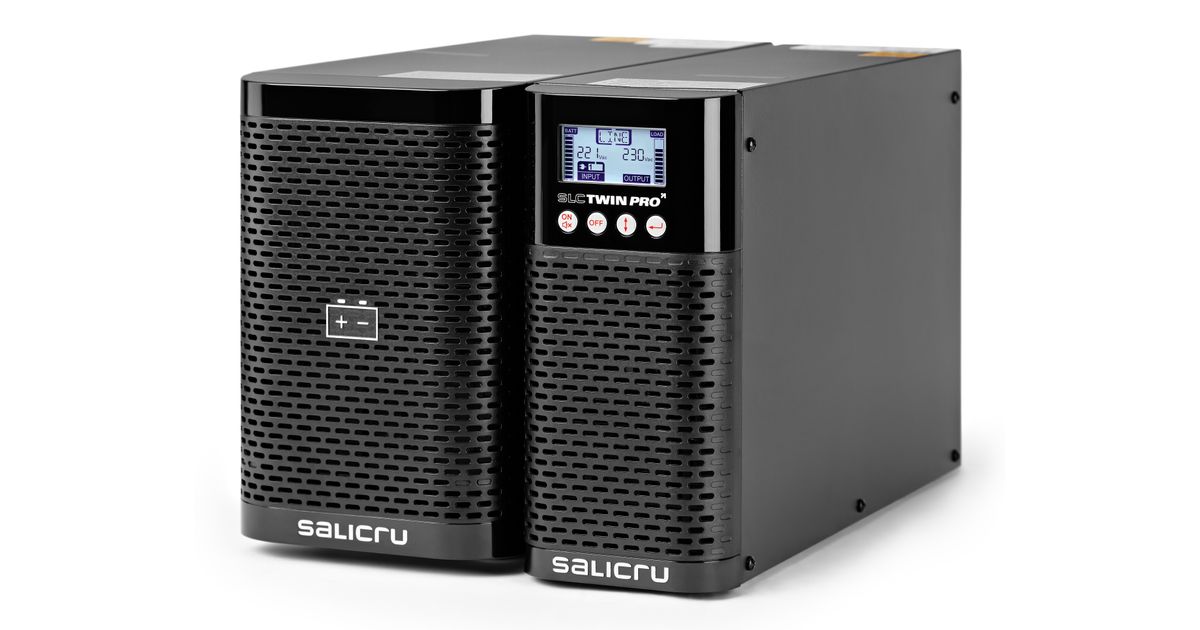

Salicru's SLC TWIN PRO2 series is a UPS range in a tower format equipped with on-line double-conversion technology and the latest features to make it an advanced protection system for sensitive and critical loads. High output power factor (PF=0.9) to ensure availability to all types of loads. Full control through status information via LCD display and keypad. And extensive monitoring and communication options via the built-in USB HID interface, an intelligent slot for SNMP cards or relays and a wide range of software packages available – free monitoring version downloadable for Windows, Linux, Unix or Mac and packages available for multi servers or virtualised systems. For facilities that require more back-up time, there is a possibility of backup extensions using UPSs with extra charger and additional battery modules. Also notable is the possibility of Eco-mode operation to improve the efficiency of the device, EPO (emergency power off) functions, operation as a frequency converter and built-in battery test. Salicru's SLC TWIN PRO2 range is available in power ratings of 700, 1000, 1500, 2000 and 3000 VA.
