Salicru SLC-10000-TWIN PRO2 B1
Salicru SLC-10000-TWIN PRO2 B1, Double-conversion (Online), 10 kVA, 10000 W, 110 V, 276 V, 50/60 Hz
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Salicru |
| Product code | 2210239728 |
| EAN | 08436035922765 |
| Manufacturer part number | 699CB000010 |
| Category | UPS hardware |
| Features | |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 10 kVA |
| Output power | 10000 W |
| Input operation voltage (min) | 110 V |
| Input operation voltage (max) | 276 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 208 V |
| Output operation voltage (max) | 240 V |
| Output frequency regulation | 4 Hz |
| Output voltage regulation | 1% |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Efficiency (On-line mode) | 94% |
| Input power factor | 0.99 |
| Output power factor | 1 |
| Crest factor | 3:1 |
| ECO mode | Yes |
| Emergency Power Off (EPO) | Yes |
| Overload capacity (10 minutes) | 110% |
| Overload capacity (1 minute) | 130% |
| Output voltage Total Harmonic Distortion (THD) | 4% |
| Input current Total Harmonic Distortion (THD) | 4% |
| Total Harmonic Distortion (THD) (linear load) | 1% |
| Total Harmonic Distortion (THD) (non-linear load) | 4% |
| Surge protection | Yes |
| Power protection features | Under voltage |
| Maximum number of paralleling UPSs | 3 |
| Input frequency converter | Yes |
| Synchronisation with mains | 4 Hz |
| Synchronisation without mains | 0.1 Hz |
| Temperature voltage compensation | Yes |
| Certification | EN 62040-2 C3 EN 62040-3 ISO-9001 ISO-14001 |
| Harmonized System (HS) code | 85078000 |
| Other features | |
|---|---|
| Noise level | 60 dB |
| Maintenance-free | Yes |
| USB 2.0 ports quantity | 1 |
| Bypass | Hybrid, Nill |
| I/O ports | Intelligent slot |
| Ports & interfaces | |
|---|---|
| AC outlet types | C13 coupler |
| AC outlets quantity | 2 AC outlet(s) |
| Number of output IEC jumpers | 2 |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| RS-232 ports | 1 |
| Parallel ports quantity | 3 |
| Emergency Power Off (EPO) connector | Yes |
| Battery | |
|---|---|
| Battery technology | Lead-Calcium (Pb-Ca) |
| Battery recharge time | 7 h |
| Automatic battery test | Yes |
| Cold start | Yes |
| Off-mode charging | Yes |
| Design | |
|---|---|
| Form factor | Tower |
| Product colour | Black |
| Cooling type | Active |
| Display type | LCD |
| LED indicators | Yes |
| Performance | |
|---|---|
| Built-in fan | Yes |
| Safety | EN 62040-1; EN 60950-1 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 2400 m |
| Weight & dimensions | |
|---|---|
| Width | 250 mm |
| Depth | 592 mm |
| Height | 576 mm |
| Weight | 28 kg |
| Power | |
|---|---|
| Battery type | AGM |
Product Description

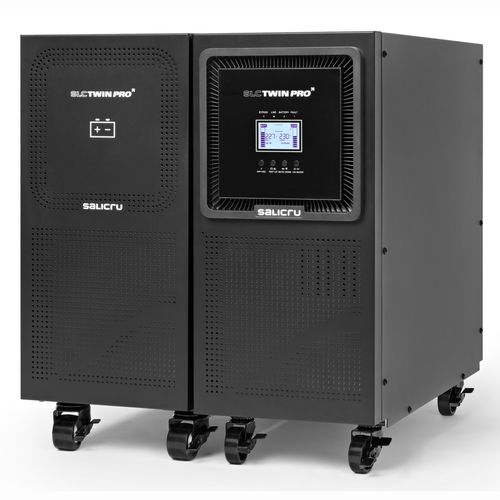

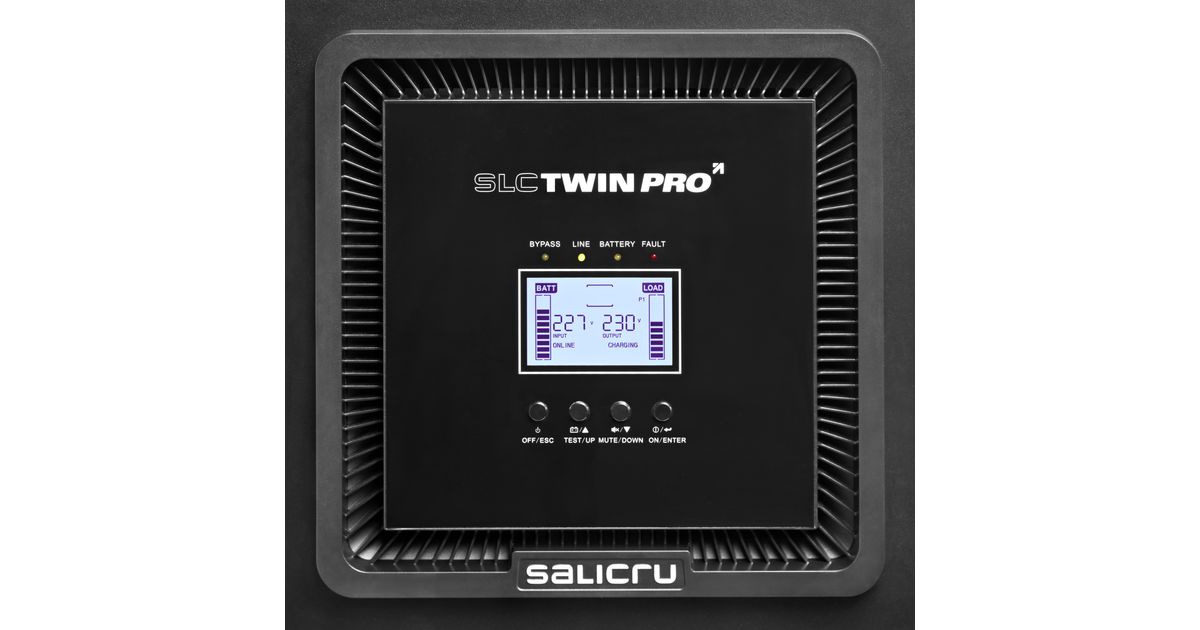

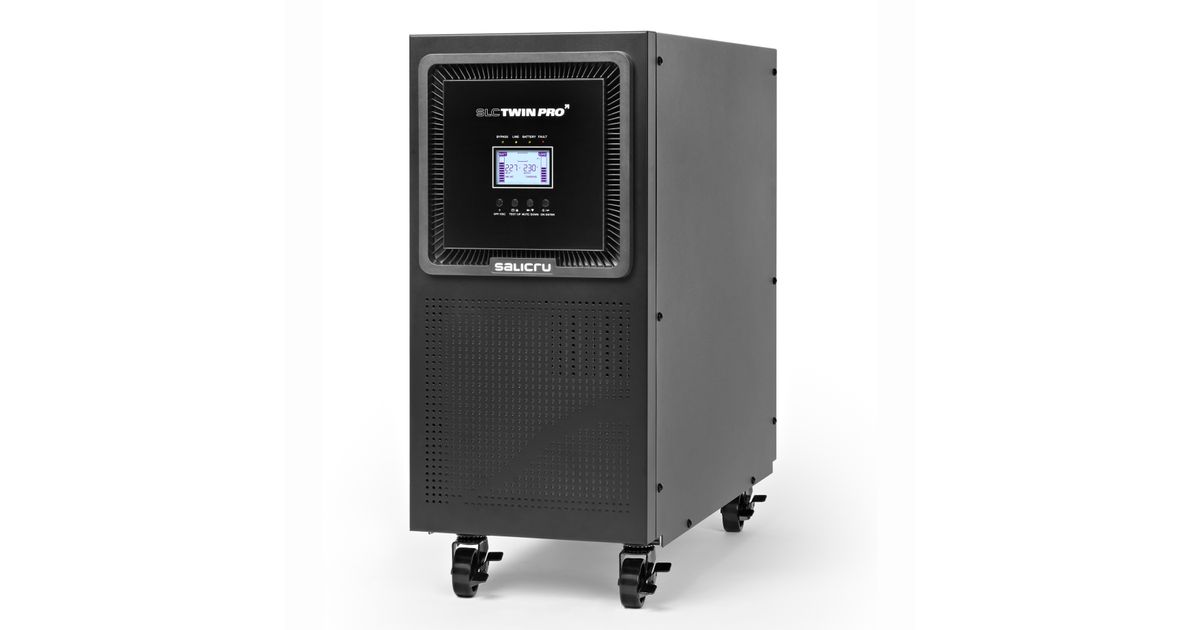

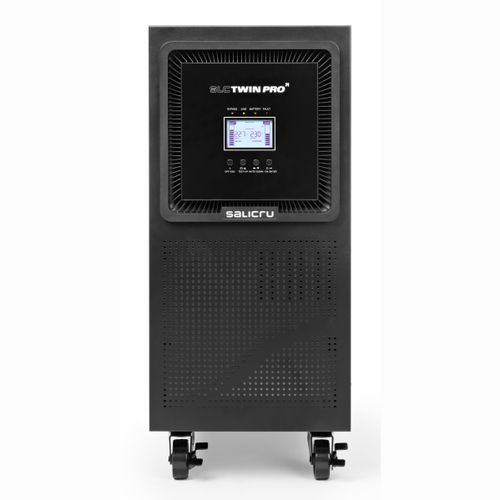

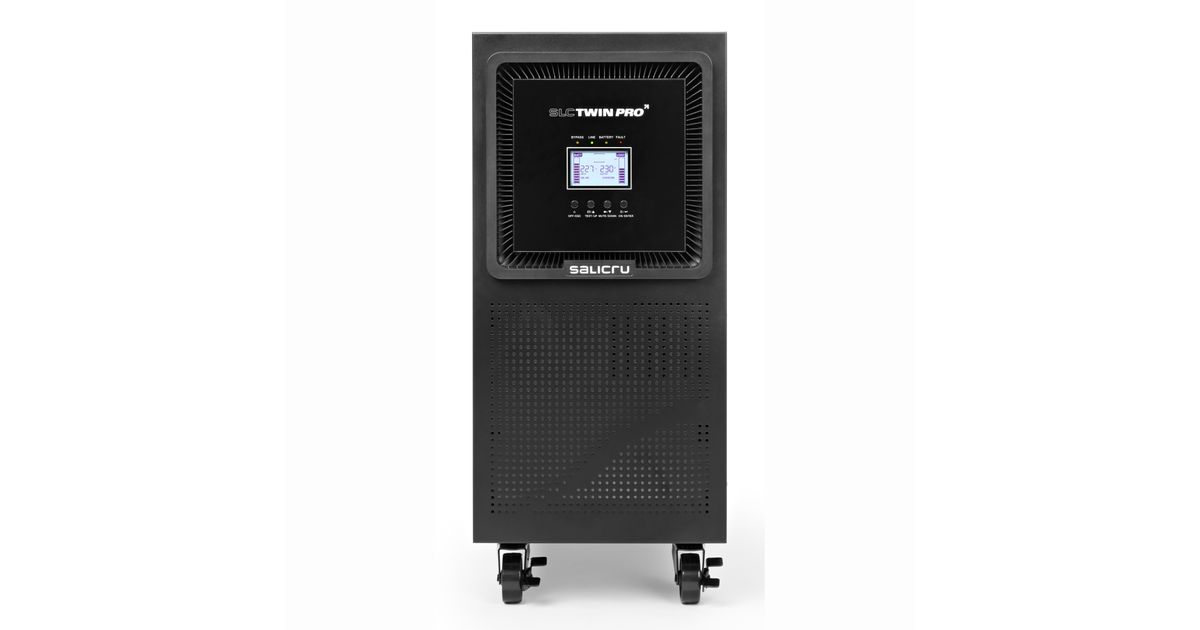

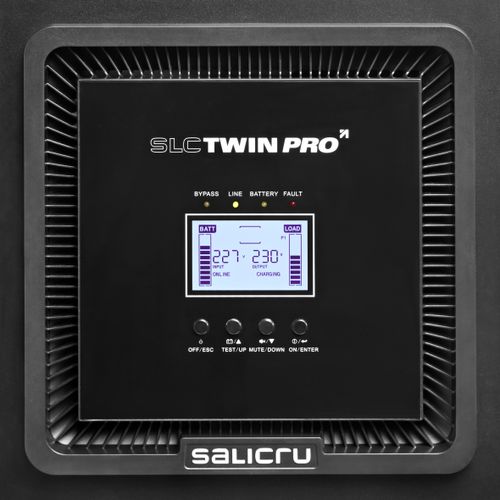

Salicru's SLC TWIN PRO2 series UPS systems feature on-line double conversion technology, currently the most advanced for the protection of critical systems as it provides a fully stabilised and filtered sinusoidal supply voltage. The systems come in a tower format and are available in power ratings of 4, 5, 6, 8, 10, 15 and 20 kVA. The Salicru SLC TWIN PRO2's output voltage is always single-phase, featuring a single-phase input of 4 to 20 kVA and a three-phase input of 8 to 20 kVA. All devices with single-phase input provide a unitary output power factor (1), the most optimum for systems and environments with high energy needs. Adaptability is another important feature thanks to the numerous operating modes available: On-line, Batteries, Eco-mode, Bypass, Frequency converter and Parallel redundant. The possibilities of control and monitoring are varied: on the one hand, an LCD display + keypad for local operation of the device, and, on the other, various communication options (USB HID and RS-232 interfaces, and slot for SNMP, RS-485 and AS-400 cards) that enable the UPS to be integrated into standard or virtualised platforms for management, incident notification and remote maintenance. (1) Except 15 and 20 kVA I / I models
