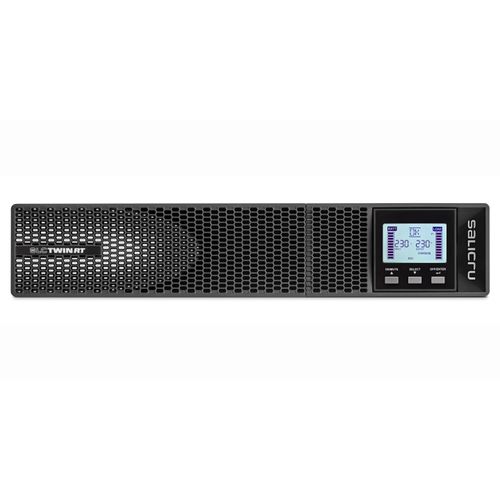

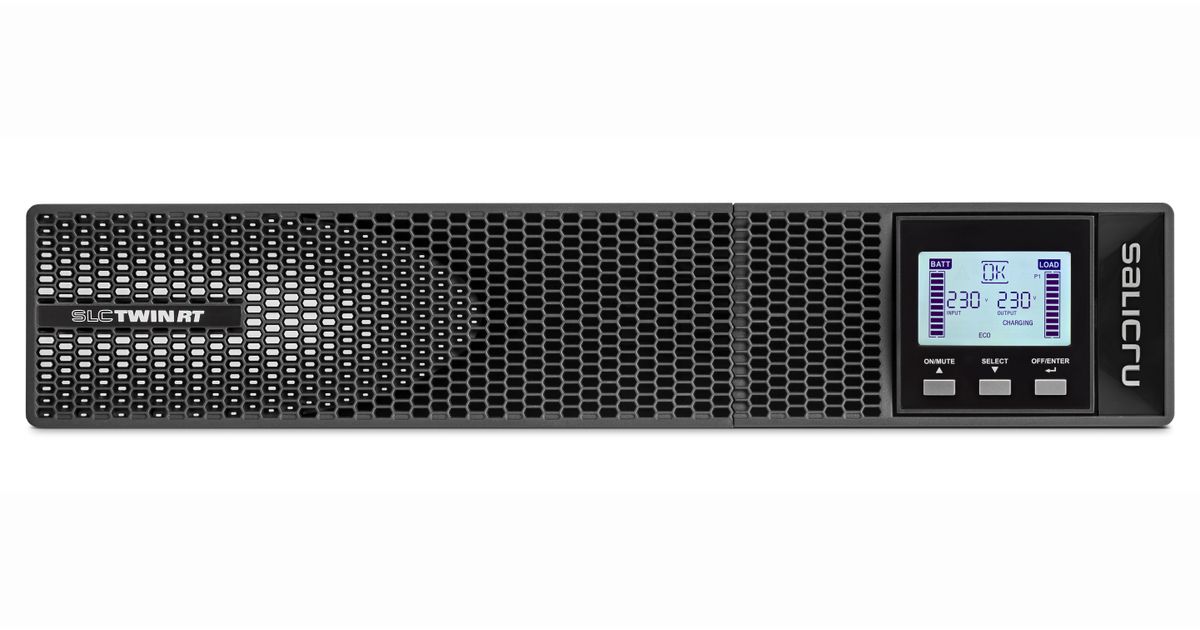

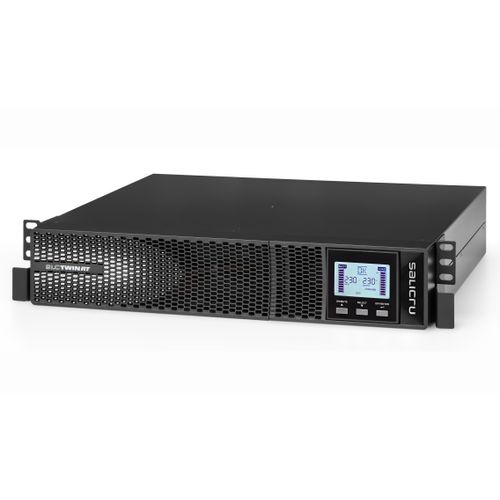

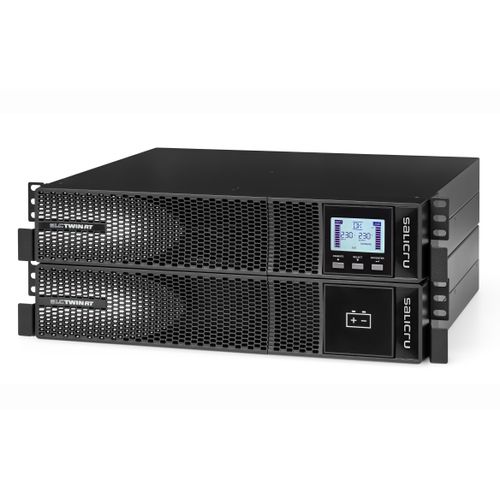

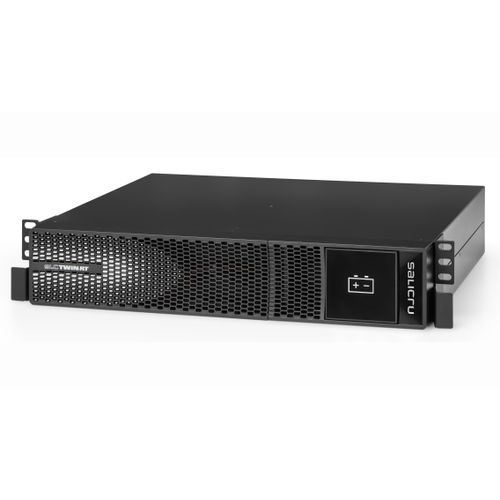

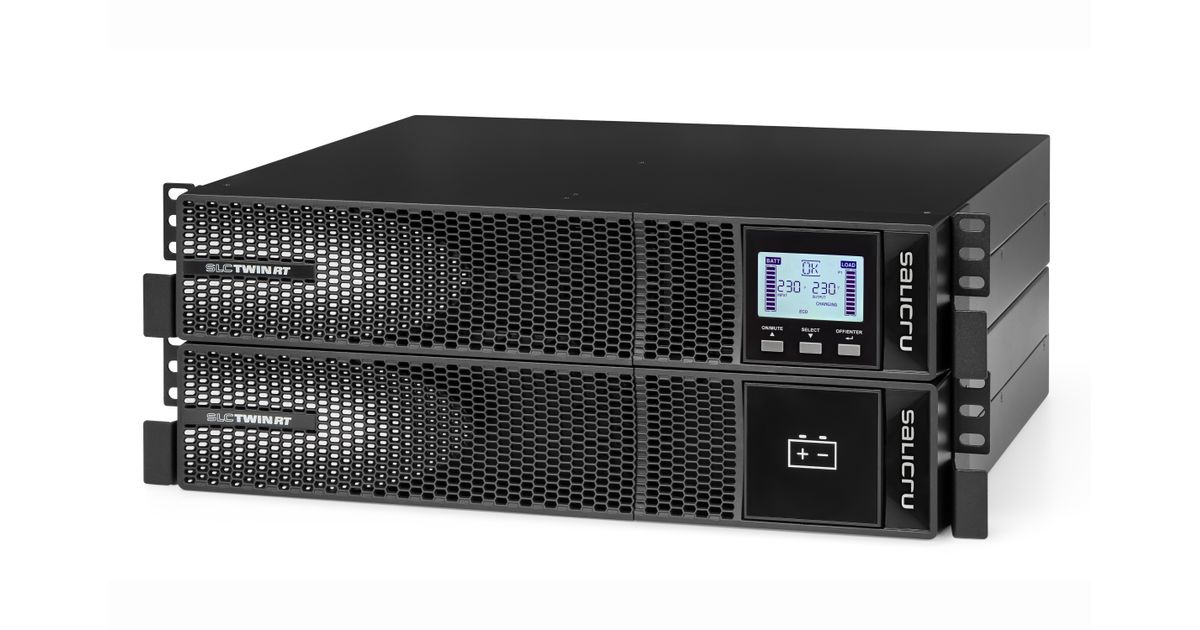

Salicru SLC-1500-TWIN RT2 B1
Salicru SLC-1500-TWIN RT2 B1, Double-conversion (Online), 1.5 kVA, 1500 W, 200 V, 240 V, 50/60 Hz
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Salicru |
| Product code | 2210239744 |
| EAN | 08436035922963 |
| Manufacturer part number | 698CA000008 |
| Category | UPS hardware |
| Features | |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 1.5 kVA |
| Output power | 1500 W |
| Input operation voltage (min) | 200 V |
| Input operation voltage (max) | 240 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Output frequency regulation | 3 Hz |
| Output voltage regulation | 1% |
| Emergency Power Off (EPO) | Yes |
| Overload capacity (10 minutes) | 110% |
| Overload capacity (5 minute) | 130% |
| Overload capacity (1 minute) | 130% |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Input current Total Harmonic Distortion (THD) | 5% |
| Total Harmonic Distortion (THD) (linear load) | 2% |
| Total Harmonic Distortion (THD) (non-linear load) | 4% |
| Surge protection | Yes |
| Power protection features | Under voltage |
| Input frequency converter | Yes |
| Synchronisation with mains | 3 Hz |
| Synchronisation without mains | 0.1 Hz |
| Temperature voltage compensation | Yes |
| Certification | ISO 9001 ISO 14001 |
| Harmonized System (HS) code | 85078000 |
| Power | |
|---|---|
| Efficiency | 91% |
| Power factor | 1 |
| Battery type | AGM |
| Other features | |
|---|---|
| Noise level | 55 dB |
| USB 2.0 ports quantity | 1 |
| Ports & interfaces | |
|---|---|

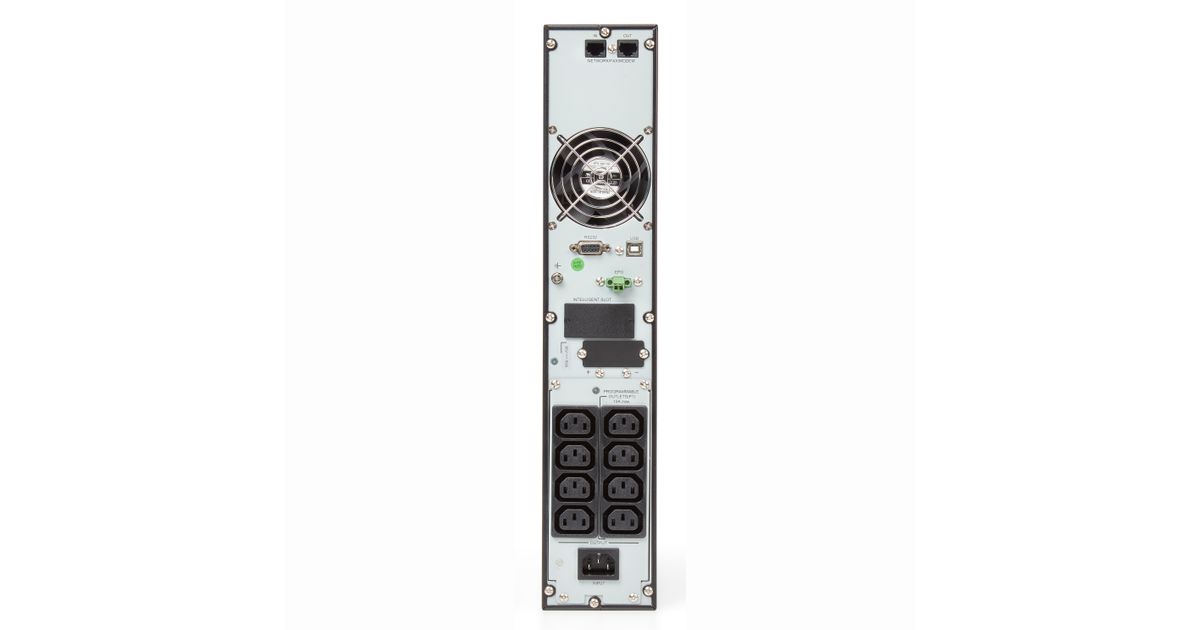

| AC outlet types | C13 coupler |
| AC outlets quantity | 8 AC outlet(s) |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| RS-232 ports | 1 |
| SmartSlot | Yes |
| Programmable sockets | Yes |
| Battery | |
|---|---|
| Battery technology | Lead-Calcium (Pb-Ca) |
| Battery recharge time | 3 h |
| Cold start | Yes |
| Charge type | I/U |
| Design | |
|---|---|
| Form factor | Rackmount/Tower |
| Product colour | Black |
| Rack capacity | 2U |
| Cooling type | Active |
| Display type | LCD |
| LED indicators | Yes |
| Performance | |
|---|---|
| Safety | EN 62040-1:2008, EN 62040-2:2006(C2), EN 62040-3:2011 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | 0 - 95 °C |
| Operating altitude | 0 - 5000 m |
| Weight & dimensions | |
|---|---|
| Width | 438 mm |
| Depth | 405 mm |
| Height | 88 mm |
| Weight | 8.1 kg |
Product Description

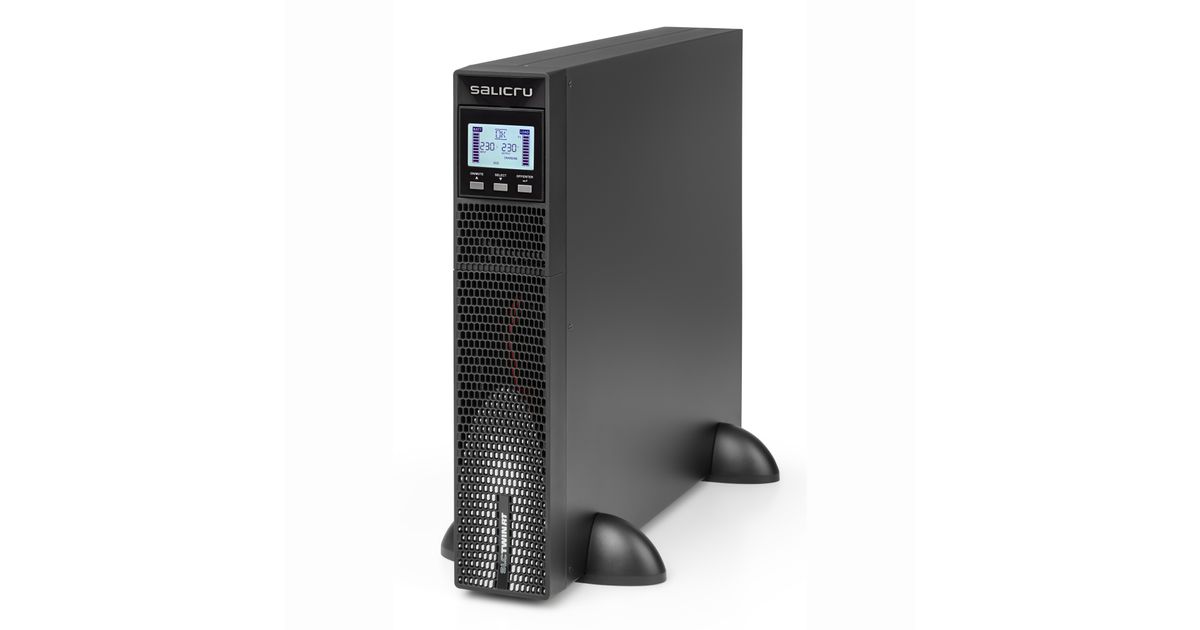

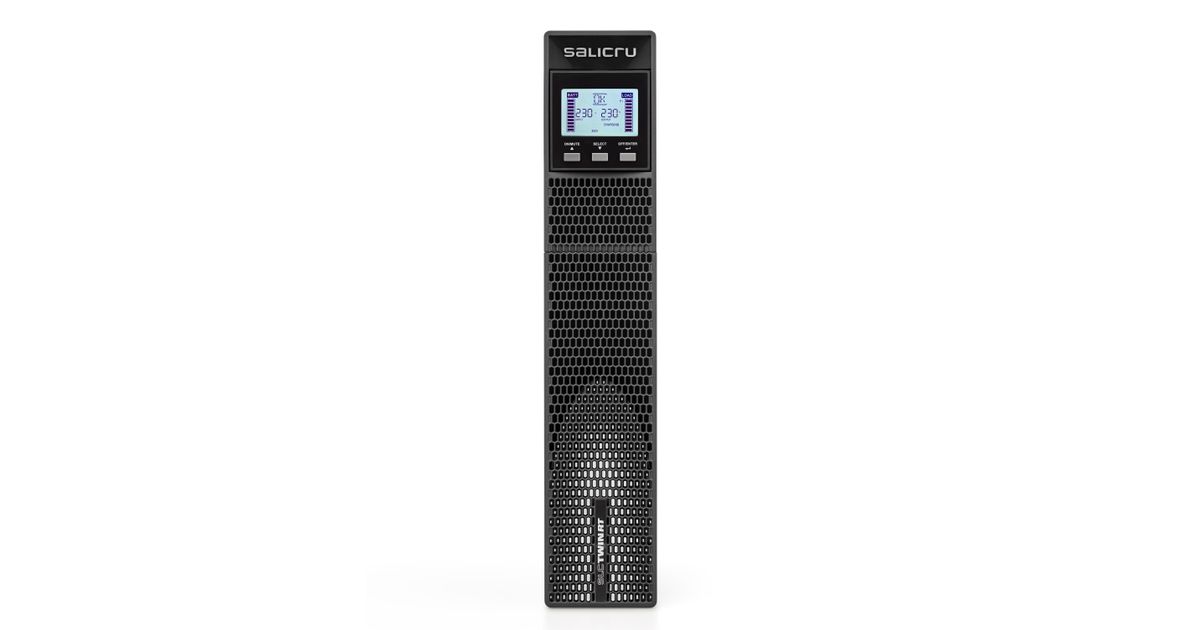

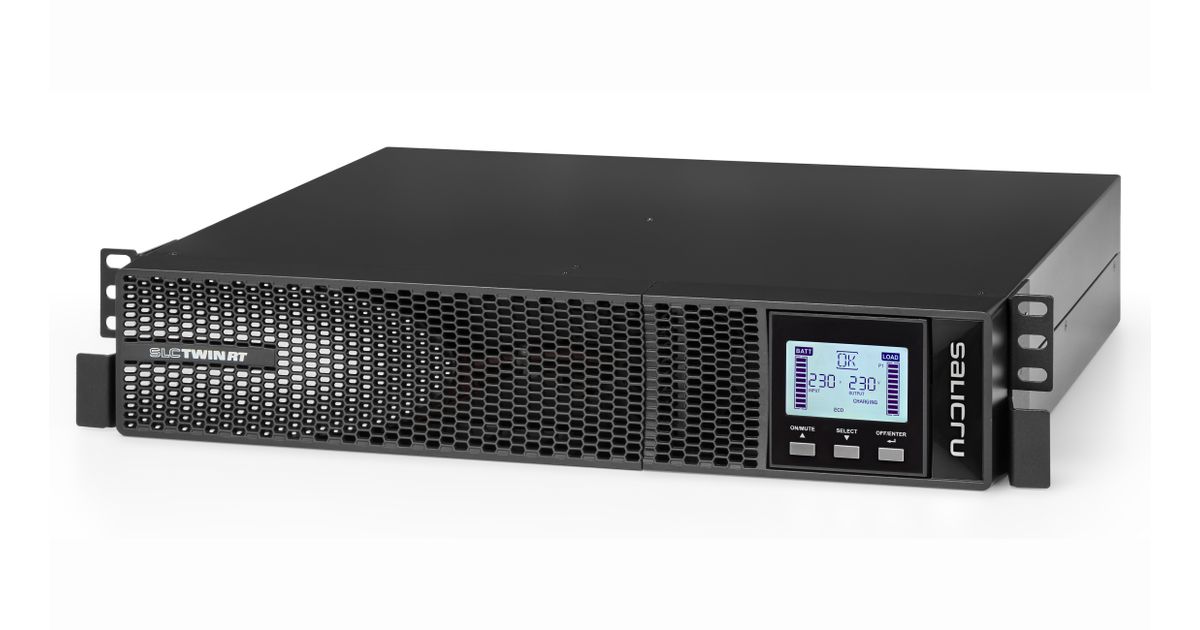

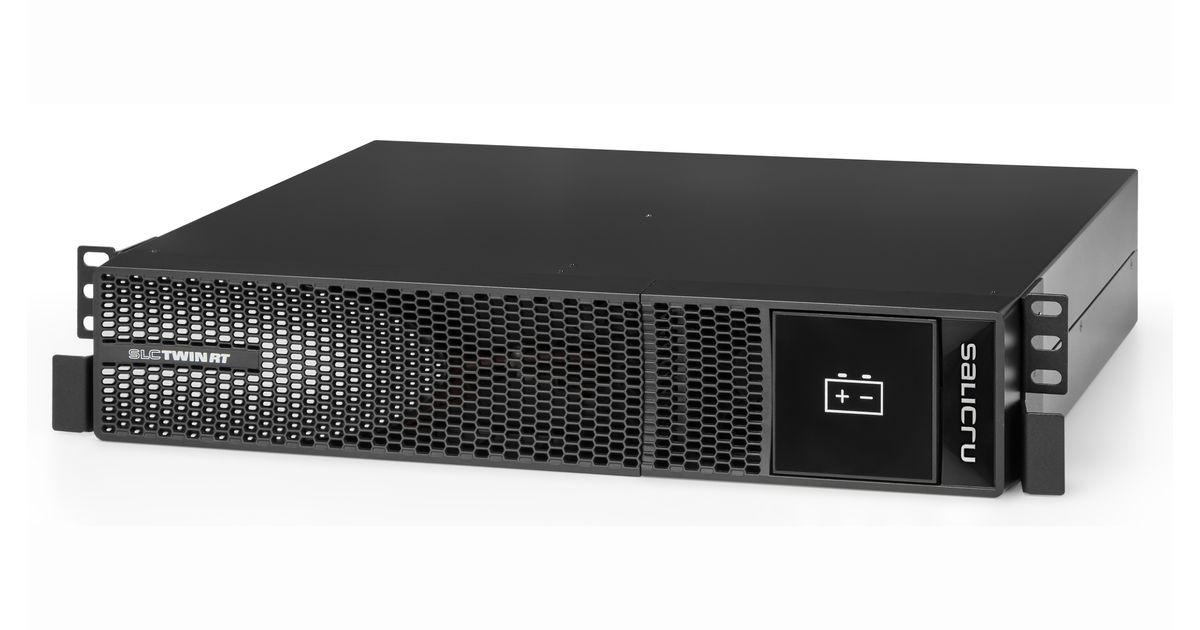

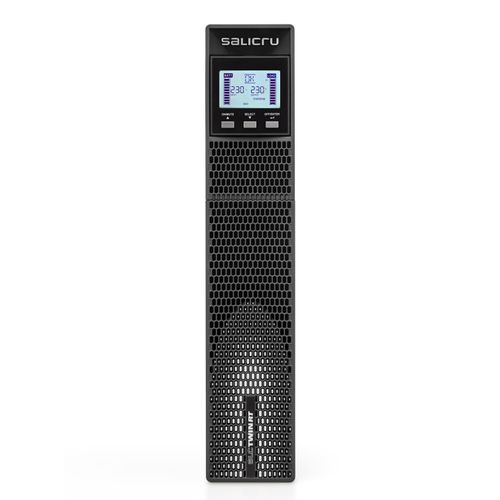

Salicru's SLC TWIN RT2 UPS range is a highly advanced continuity solution for the electrical protection of critical systems. It combines the most reliable double-conversion technology (AC/DC-DC/AC) on the market and boasts a unity output power factor (VA=W) to enable it to power systems with high energy requirements, while offering high operating efficiency. The range of power ratings from 700 VA(W) to 3,000 VA(W), it comes in a 2U, convertible to tower format, with a swivel mount LCD display, according to the needs of the facility. Also available are solutions with an extra charger and additional battery modules for applications that require greater backup. In terms of communications, it features an RS-232/USB interface compatible with HID protocol and a smart slot that can optionally hold an SNMP card, MODBUS or potential free contacts; also available are software packages for local or virtual monitoring and management of protected devices. Other outstanding features include: 50/60 or 60/50 Hz frequency converter, emergency stop (EPO), and programmable outputs for critical/non-critical loads.
