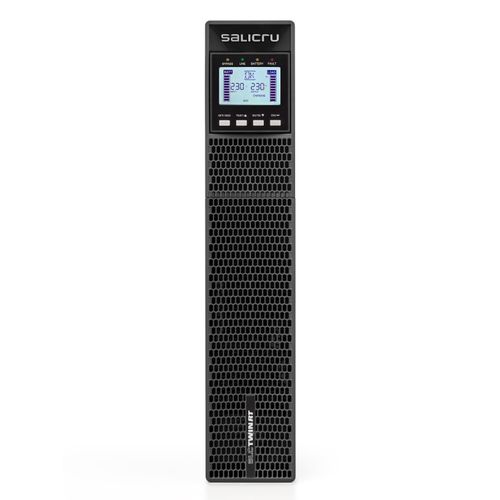

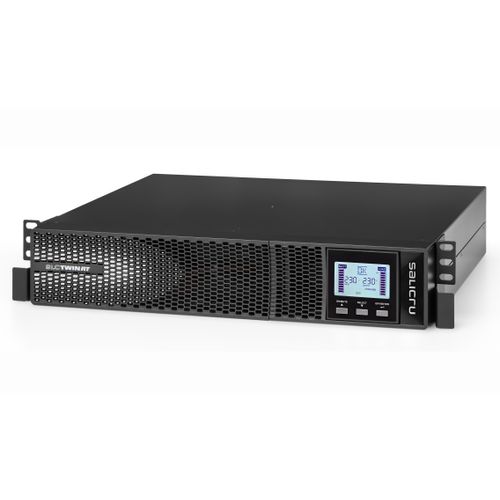

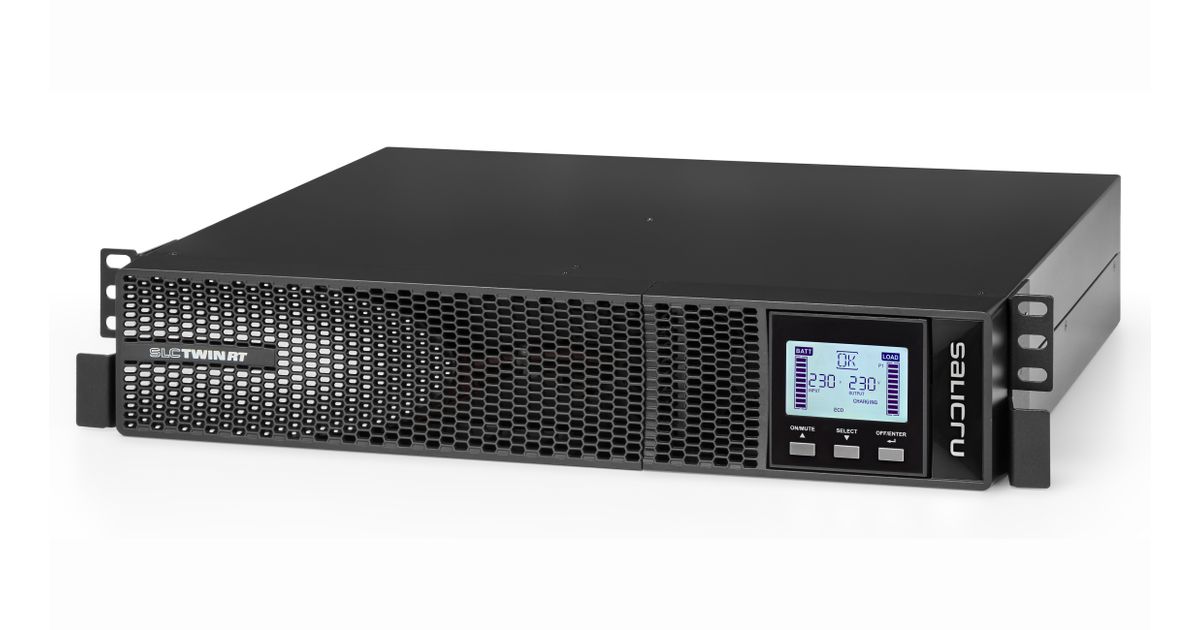

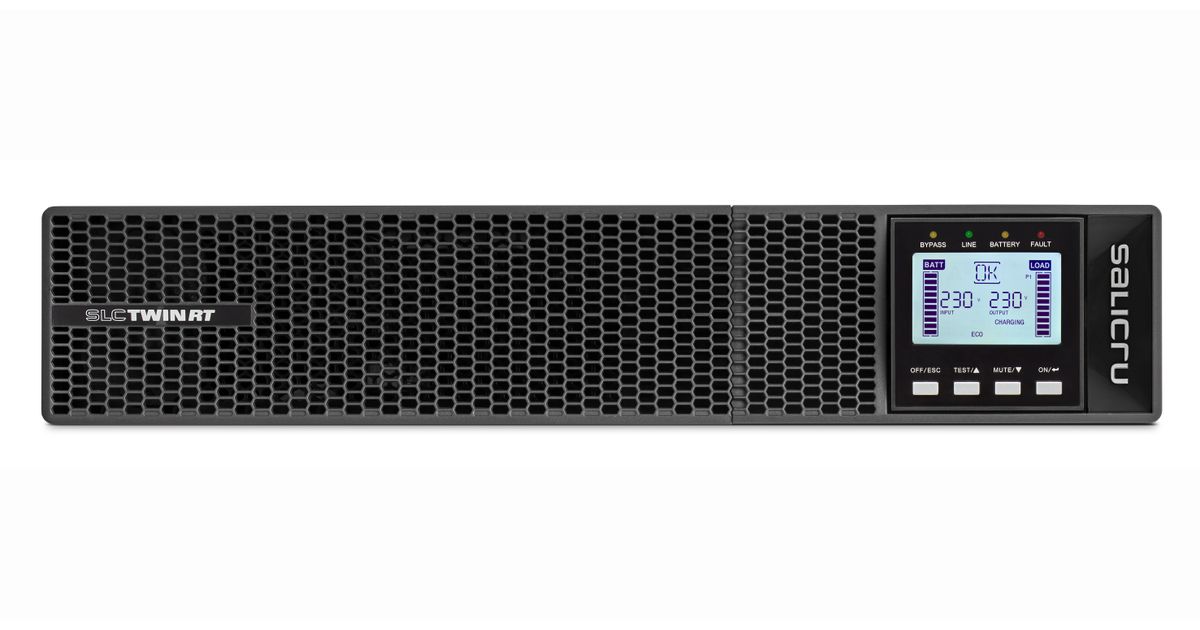

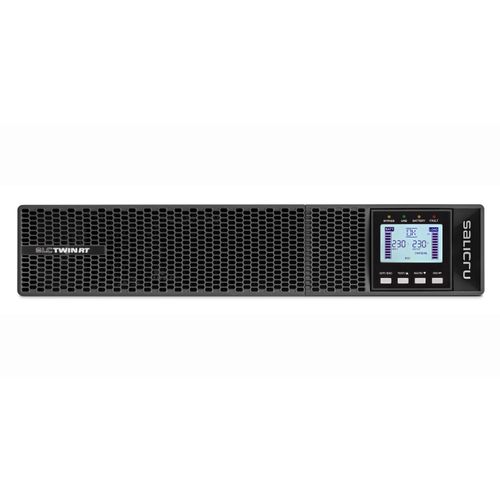

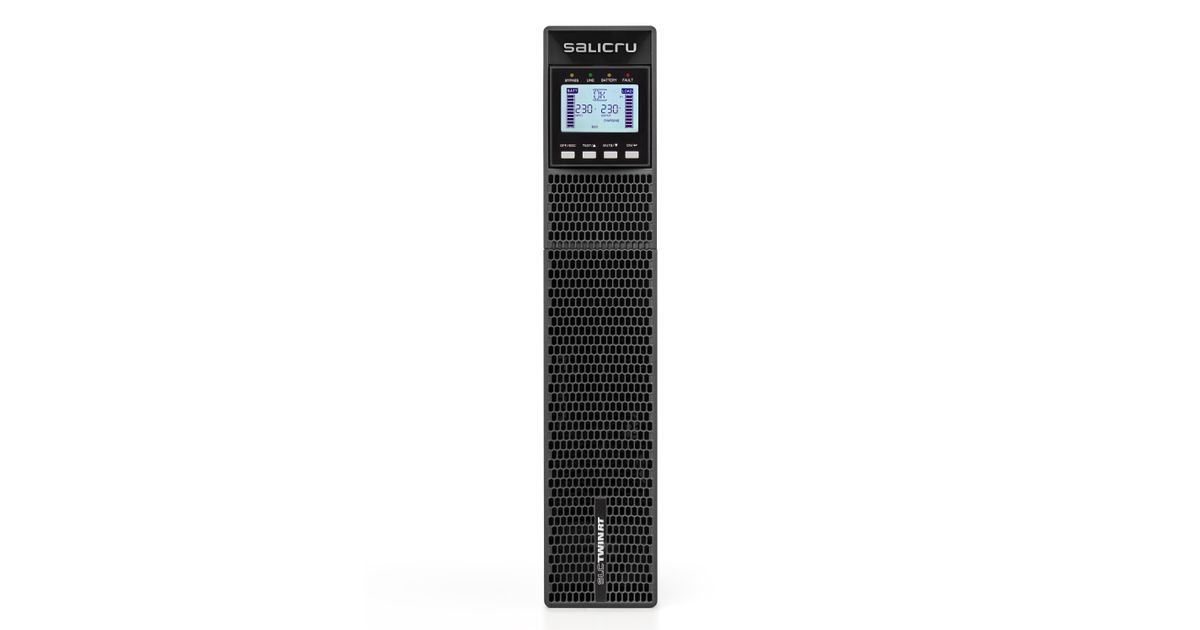

Salicru SLC-8000-TWIN RT2 B1
Salicru SLC-8000-TWIN RT2 B1, Double-conversion (Online), 8 kVA, 8000 W, 208 V, 240 V, 50/60 Hz
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Salicru |
| Product code | 2210239756 |
| EAN | 08436035923076 |
| Manufacturer part number | 698CC000004 |
| Category | UPS hardware |
| Features | |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 8 kVA |
| Output power | 8000 W |
| Input operation voltage (min) | 208 V |
| Input operation voltage (max) | 240 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 208 V |
| Output operation voltage (max) | 240 V |
| Output frequency regulation | 4 Hz |
| Output voltage regulation | 1% |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 1% |
| Input current Total Harmonic Distortion (THD) | 4% |
| Surge protection | Yes |
| Power protection features | Under voltage |
| Certification | ISO 9001 ISO 14001 |
| Harmonized System (HS) code | 85078000 |
| Power | |
|---|---|
| Efficiency | 94% |
| Power factor | 1 |
| Battery type | AGM |
| Other features | |
|---|---|
| Noise level | 60 dB |
| USB 2.0 ports quantity | 1 |
| Ports & interfaces | |
|---|---|
| AC outlet types | Terminal |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| RS-232 ports | 1 |
| SmartSlot | Yes |
| Battery | |
|---|---|
| Battery technology | Lead-Calcium (Pb-Ca) |
| Battery recharge time | 9 h |
| Cold start | Yes |
| Design | |
|---|---|
| Form factor | Rackmount/Tower |
| Product colour | Black |
| Rack capacity | 4U |
| Cooling type | Active |
| Display type | LCD |
| LED indicators | Yes |
| Performance | |
|---|---|
| Safety | EN 62040-1:2008, EN 62040-2:2006(C3), EN 62040-3:2011 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | 0 - 95 °C |
| Operating altitude | 0 - 5000 m |
| Weight & dimensions | |
|---|---|
| Width | 438 mm |
| Depth | 630 mm |
| Height | 88 mm |
| Weight | 20 kg |
Product Description

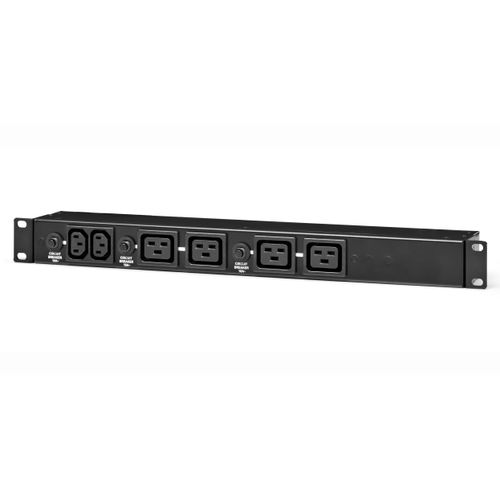

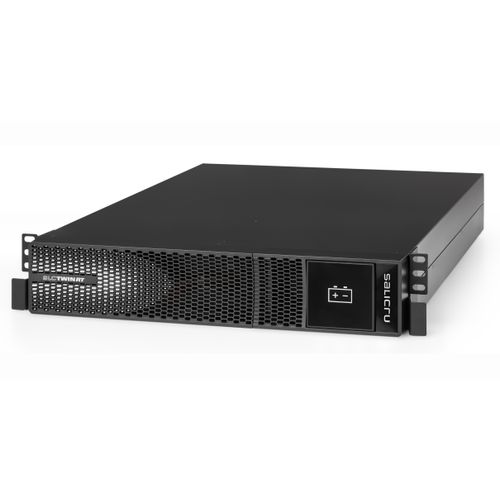

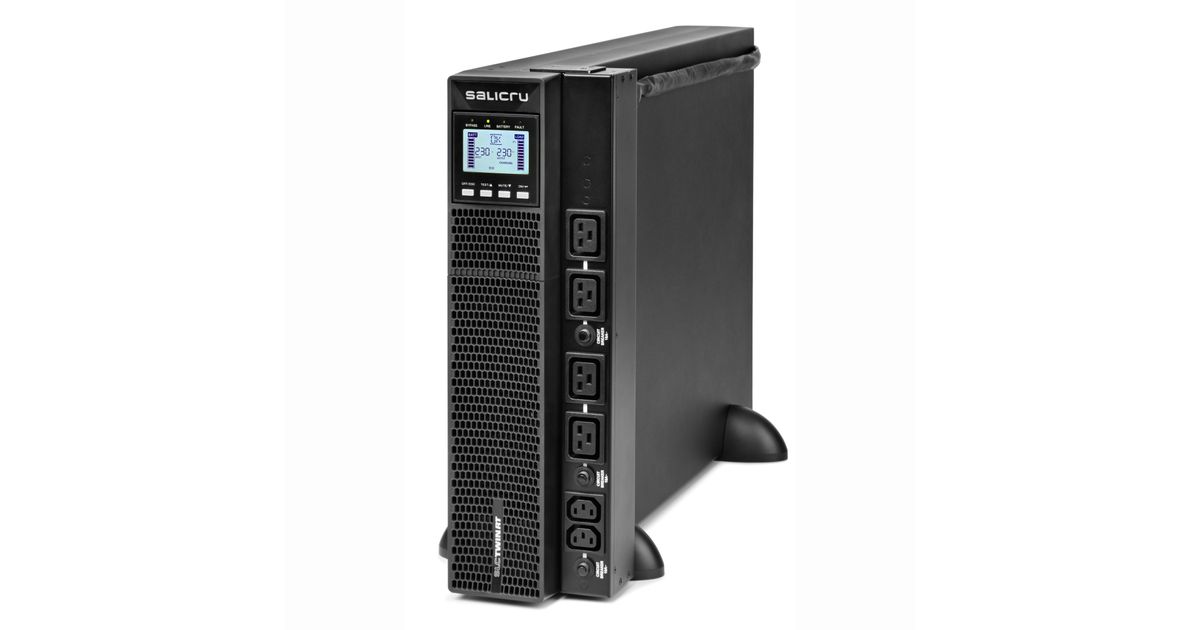

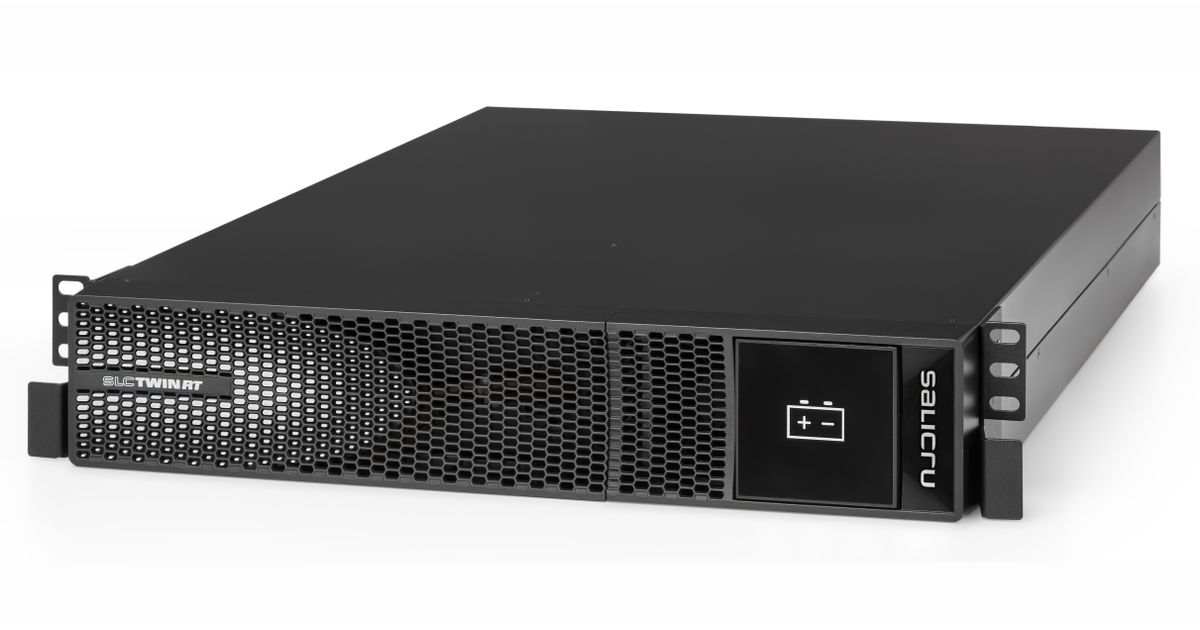

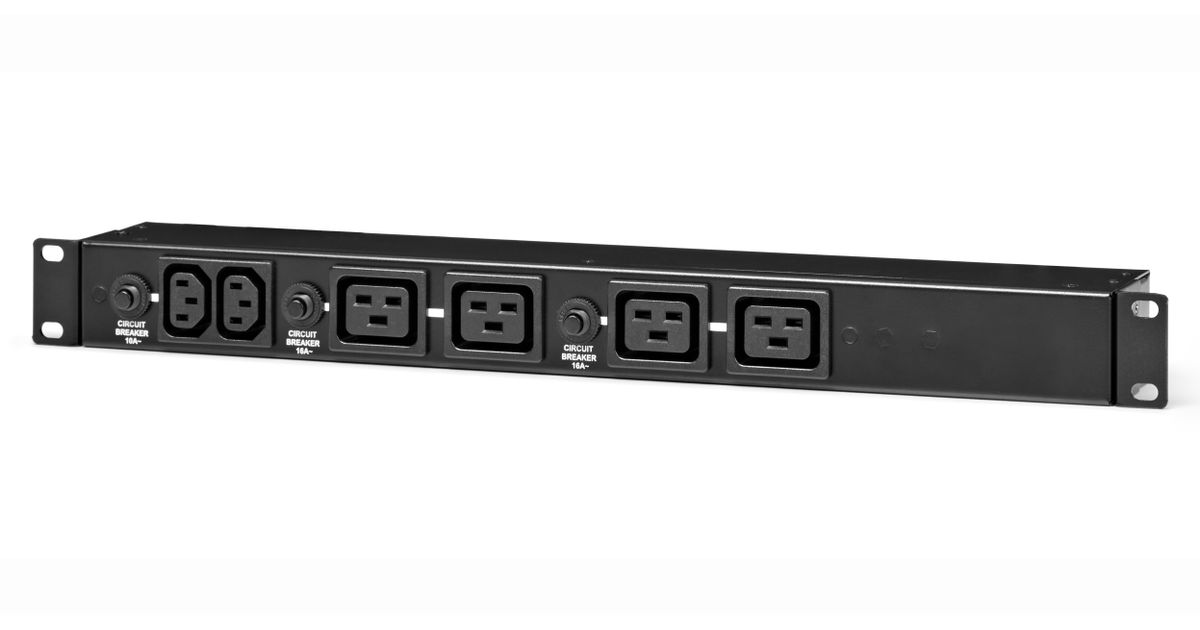

Salicru’s SLC TWIN RT2 series models are uninterruptible power supplies with unrivalled electrical protection features for critical server environments. Their dual tower/rack format offers physical adaptability to any site and, together with the built-in PDU strip, provides maximum ease of connection of the loads to be protected. In addition, their unity output power factor (VA=W) increases the power density delivered and reduces the space required for the installation of the UPS. The LCD screen is swivel-mounted according to the mounting format chosen for ease of handling. In terms of serial communications, they feature USB, RS-232 and relay interfaces, as well as a smart slot to optionally accommodate an SNMP card, MODBUS or potential-free contacts; also available are software packages for local or virtual monitoring and management of the protected devices. For applications that require extended backup, additional battery modules and/or solutions with extra charger can be installed. And for applications that require redundant protection or increase the need for power, there is the option of connecting up to 3 devices in parallel.
