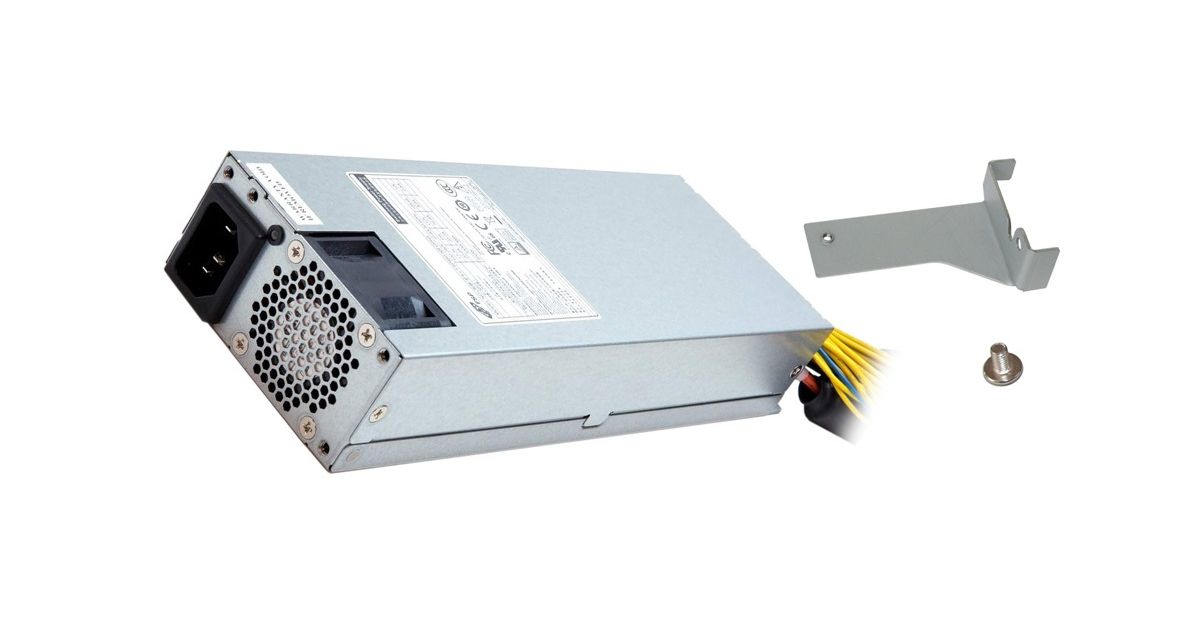

Shuttle PC850 power supply unit 850 W 20+4 pin ATX Flex ATX Grey
Shuttle PC850, 850 W, 100 - 240 V, 50/60 Hz, Active, 3 W, 20 A
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Shuttle |
| Product code | 577246040 |
| EAN | 04046047103829 |
| Manufacturer part number | POC-PC8501 |
| Category | PSU & accessories |
| Power | |
|---|---|
| Total power | 850 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power Factor Correction (PFC) type | Active |
| Combined power (+5Vsb) | 3 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 70.8 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.5 A |
| Hold time | 17 ms |
| Efficiency | 92% |
| Features | |
|---|---|
| Power protection features | Over current, Over voltage, Overheating, Short circuit |
| Certification | TUV, FCC, UL/cUL, CCC, CB 62368-1 & CB 60950-1 |
| Harmonized System (HS) code | 85044030 |
| Ports & interfaces | |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 4 |
| PCI Express power connectors (6+2 pin) | 2 |
| Mouse | |
|---|---|
| Purpose | PC |
| Performance | |
|---|---|
| Power supply unit (PSU) form factor | Flex ATX |
| 80 PLUS certification | 80 PLUS Platinum |
| Bearing technology | Ball bearing |
| Mean time between failures (MTBF) | 100000 h |
| Compatible products | SH310R4V2, SH370R6V2, SH370R6V2 Plus, SH370R8, SH510R4, SH570R6 Plus, SH570R6 Plus, SH570R8, SW580R8 |
| Fan diameter | 4 cm |
| Design | |
|---|---|
| Product colour | Grey |
| Cooling type | Active |
| Number of fans | 1 fan(s) |
| LED indicators | Status |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Weight & dimensions | |
|---|---|
| Width | 220 mm |
| Depth | 81.5 mm |
| Height | 40.5 mm |
| Sustainability | |
|---|---|
| Sustainability certificates | CE, ENERGY STAR, ErP |
| Other features | |
|---|---|
| Rise time | 20 ms |
Product Description
The Shuttle XPC Accessory PC850 is an internal AC to DC switching power supply unit (PSU) meant as upgrade kit for certain Shuttle products. This power supply is guaranteed to deliver an excess of power for power-hungry processors and graphics cards. It provides a maximum output wattage of 850 Watt. Its 80 PLUS® Platinum and Energy Star V5.0 compliance helps save on energy costs as compared to previous power supply models.
