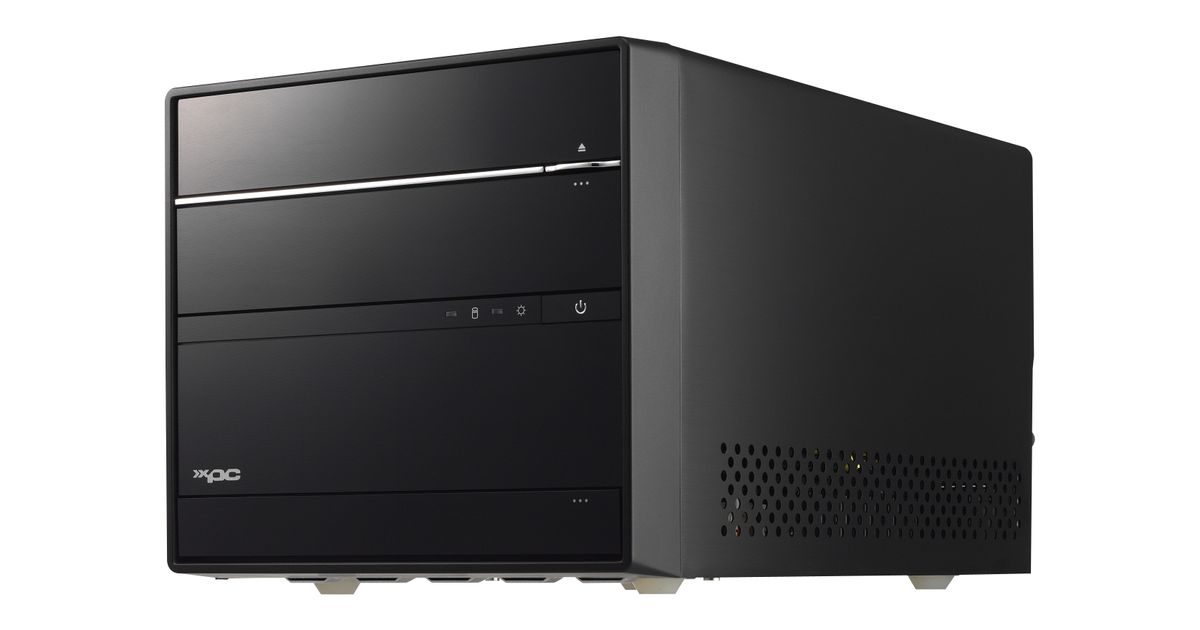

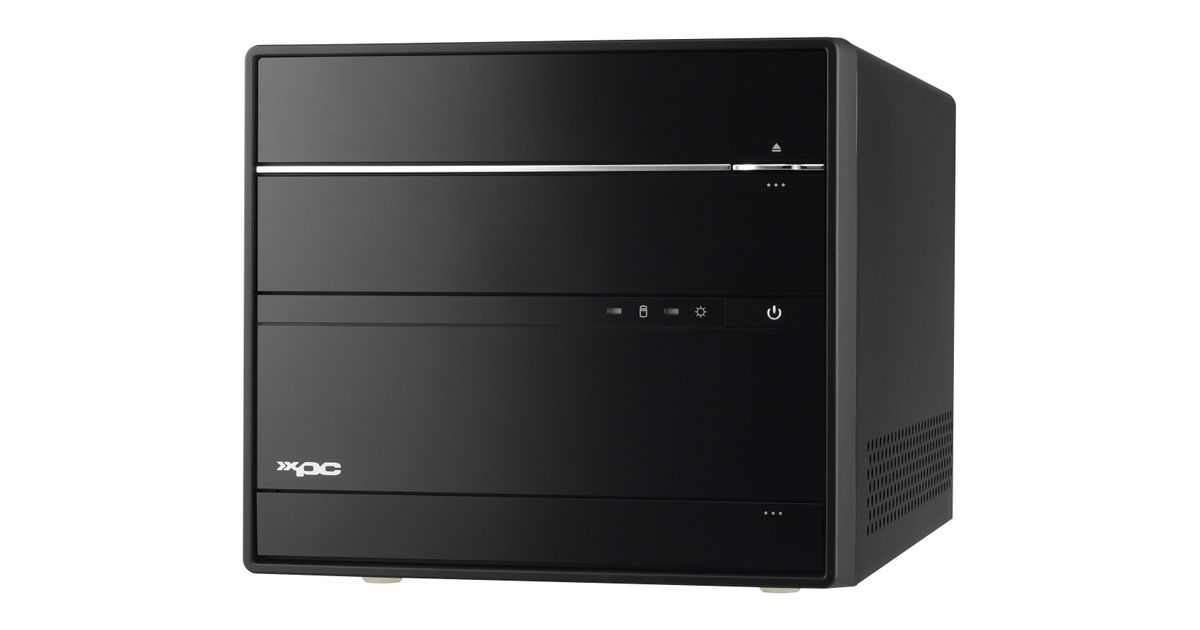

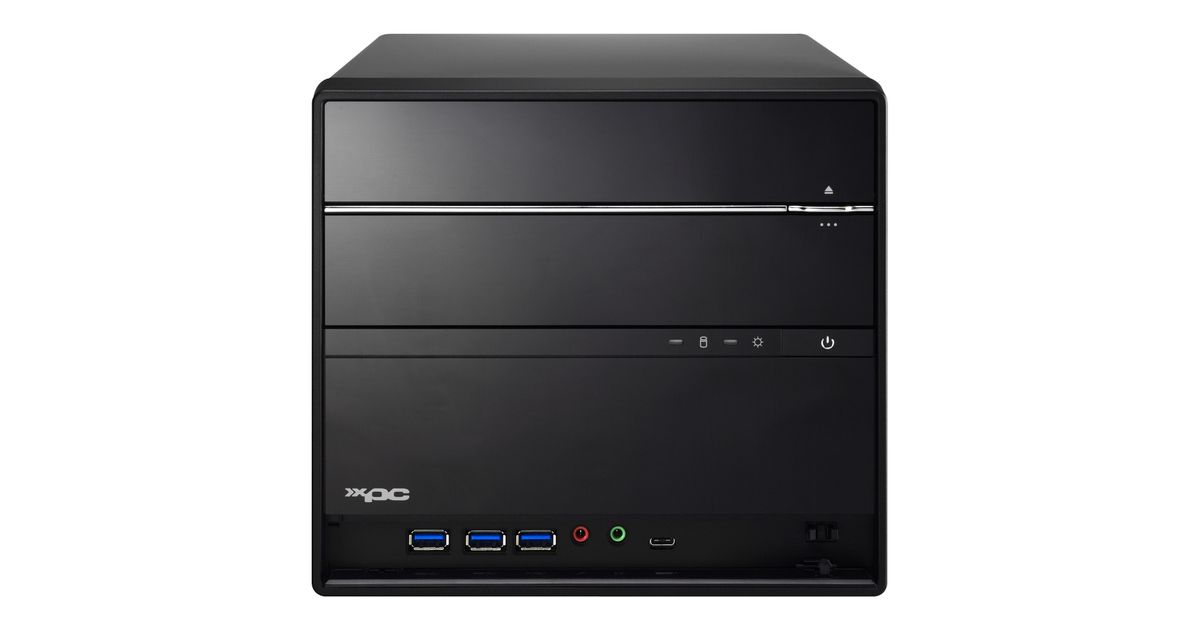

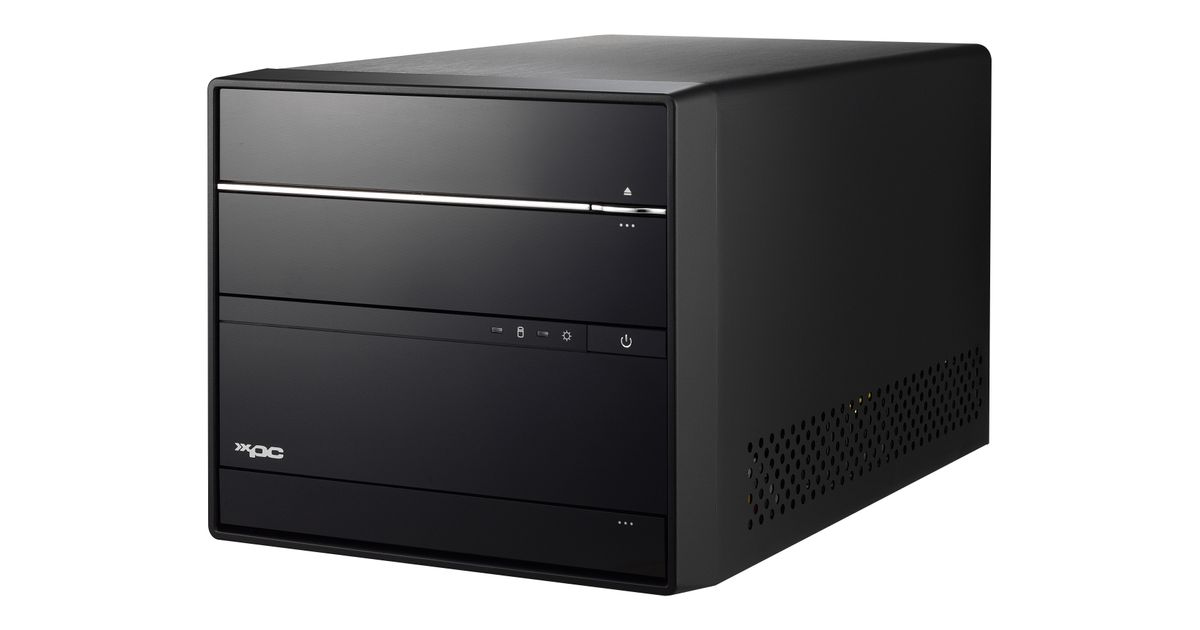

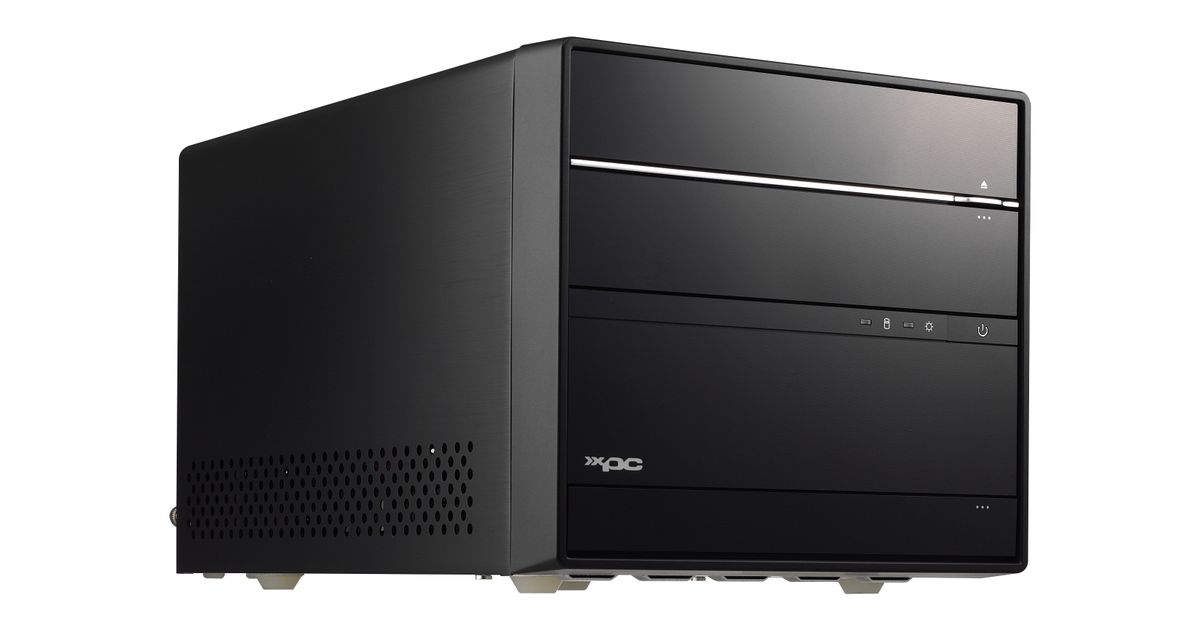

Shuttle XPC cube SH570R6 Black Intel H570 LGA 1200 (Socket H5)
Shuttle XPC cube SH570R6, Cube, PC barebone, Intel H570, LGA 1200 (Socket H5), DDR4-SDRAM, 300 W
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Shuttle |
| Product code | 346208256 |
| EAN | 00887993005416 |
| Manufacturer part number | SH570R6 |
| Category | Mini PC-s |
| Features | |
|---|---|
| Built-in processor | N |
| Memory voltage | 1.2 V |
| Storage drive sizes supported | 2.5,3.5,M.2 |
| DisplayPort version | 1.4 |
| Motherboard chipset | Intel H570 |
| Trusted Platform Module (TPM) | Y |
| Trusted Platform Module (TPM) version | 2.0 |
| Audio output channels | 5.1 channels |
| Audio chip | Realtek ALC897 |
| Linux operating systems supported | Y |
| Power supply type | Internal power supply unit |
| Processor | |
|---|---|
| Thermal Design Power (TDP) | 125 W |
| PCI Express slots version | 4.0 |
| Processor socket | LGA 1200 (Socket H5) |
| Memory | |
|---|---|
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Maximum internal memory | 128 GB |
| Supported memory clock speeds | 2666,2933,3200 MHz |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Graphics | |
|---|---|
| On-board graphics adapter | Y |
| Network | |
|---|---|
| Ethernet LAN | Y |
| Wi-Fi | N |
| LAN controller | Intel® I210-AT, Intel® I219-LM |
| Other features | |
|---|---|
| USB 2.0 ports quantity | 4 |
| Number of processors supported | 1 |
| Quick start guide | Y |
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI version | 2.0b |
| DisplayPorts quantity | 2 |
| Microphone in | Y |
| Headphone outputs | 1 |

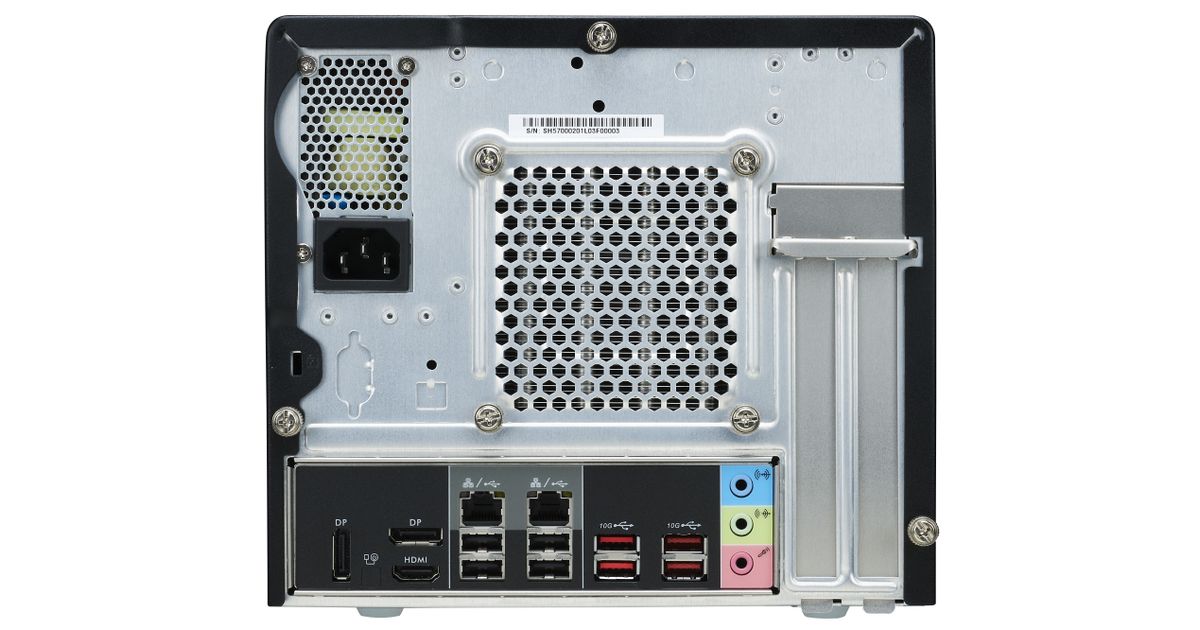

| Rear panel I/O ports | |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| Expansion slots | |
|---|---|
| PCI Express x4 slots | 1 |
| PCI Express x16 slots | 1 |
| Design | |
|---|---|
| Chassis type | Cube |
| Product colour | Black |
| Cooling type | Active |
| Product type | PC barebone |
| LED indicators | Y |
| Housing material | Aluminium |
| Cable lock slot type | Kensington |
| Performance | |
|---|---|
| Cable lock slot | Y |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel® Pentium® Gold |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| Software | |
|---|---|
| Windows operating systems supported | Windows 10,Windows 11 |
| Drivers included | Y |
| Power | |
|---|---|
| Power supply | 300 W |
| Number of power supply units | 1 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Weight & dimensions | |
|---|---|
| Width | 215 mm |
| Depth | 332 mm |
| Height | 190 mm |
| Weight | 3.5 kg |
| Package weight | 4.5 kg |
| Packaging content | |
|---|---|
| Power cord included | Y |
Product Description
Supports 10th/11th generation Intel Core processors and up to three UHD displays
The Shuttle XPC Barebone SH570R6 shows how discreet a modern PC can look and at the same time how powerful it can be. Its black-brushed aluminium case has barely a volume of 14 litres, but packs everything you need for a high-performance workstation for example. This includes the power of 10th/11th gen. Intel Core processors ("Comet Lake-S" and "Rocket Lake-S"), a dual-slot graphics card, fast M.2 NVMe SSD drives, two 3.5'' hard drives in RAID and up to 128 GB of DDR4 memory, plus a Blu-ray drive. Even without a dedicated graphics card, up to three UHD displays are supported optionally.
The Shuttle XPC Barebone SH570R6 shows how discreet a modern PC can look and at the same time how powerful it can be. Its black-brushed aluminium case has barely a volume of 14 litres, but packs everything you need for a high-performance workstation for example. This includes the power of 10th/11th gen. Intel Core processors ("Comet Lake-S" and "Rocket Lake-S"), a dual-slot graphics card, fast M.2 NVMe SSD drives, two 3.5'' hard drives in RAID and up to 128 GB of DDR4 memory, plus a Blu-ray drive. Even without a dedicated graphics card, up to three UHD displays are supported optionally.
