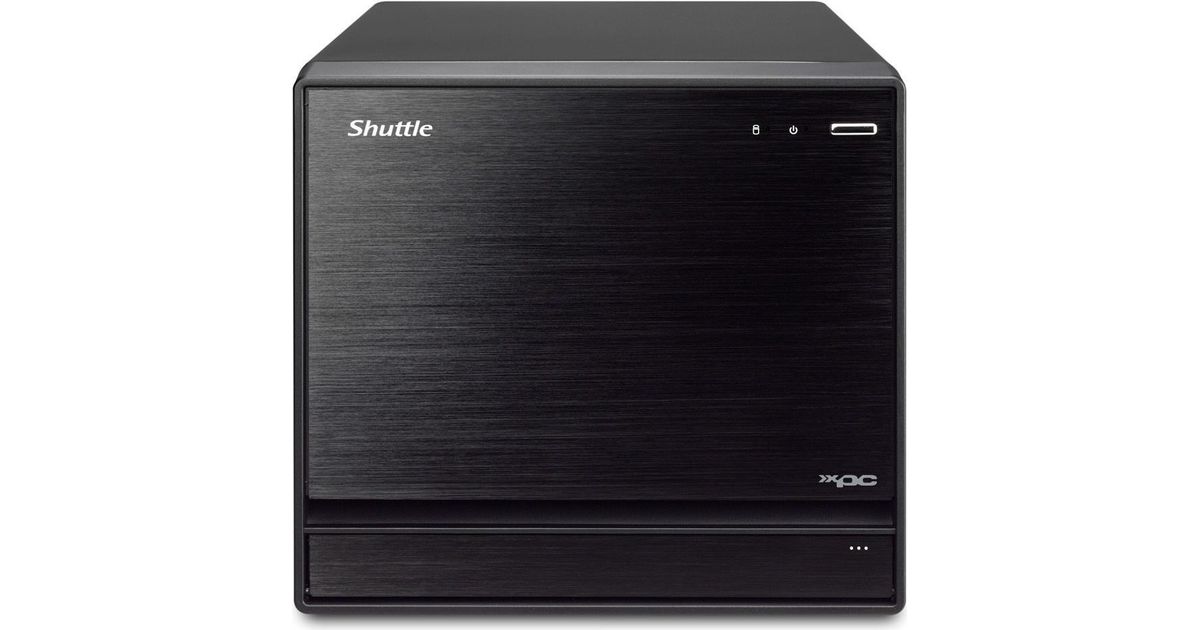

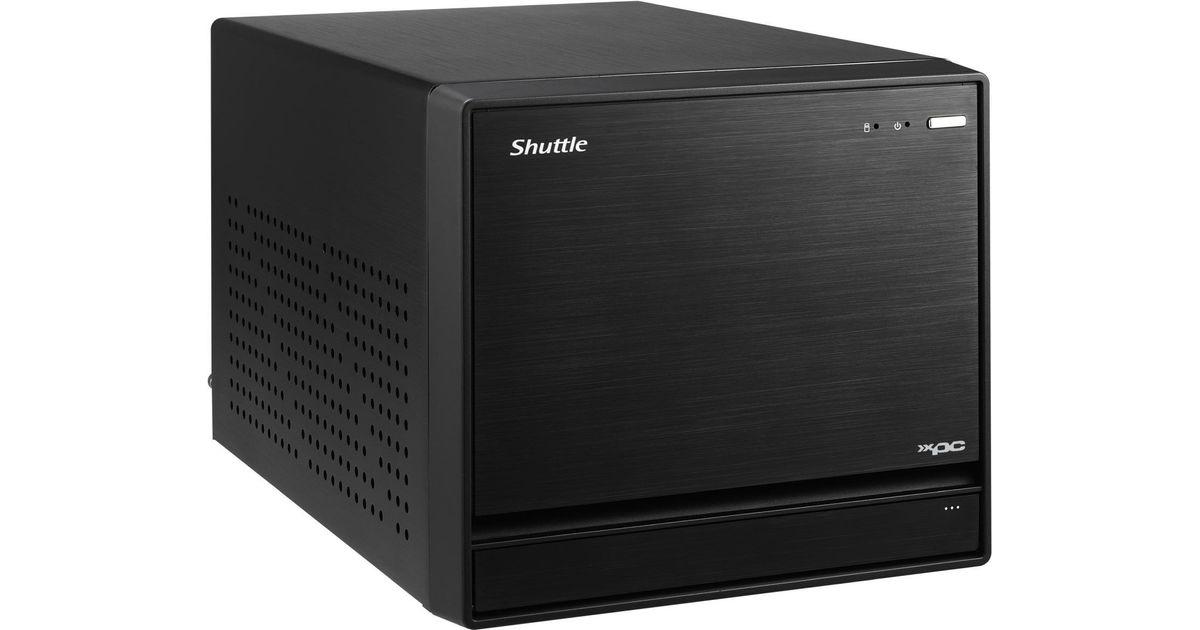

Shuttle XPC cube SH570R8 13L sized PC Black LGA 1200 (Socket H5)
Shuttle XPC cube SH570R8, 13L sized PC, PC barebone, LGA 1200 (Socket H5), DDR4-SDRAM, PCI Express, Serial ATA III, 500 W
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Shuttle |
| Product code | 576220284 |
| EAN | 00887993003504 |
| Manufacturer part number | SYS-SH570R8 |
| Category | Mini PC-s |
| Features | |
|---|---|
| Built-in processor | N |
| Memory voltage | 1.2 V |
| Storage drive sizes supported | 2.5,3.5,M.2 |
| SSD form factor | M.2 |
| DisplayPort version | 1.4 |
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC897 |
| Linux operating systems supported | Y |
| Power supply type | Internal power supply unit |
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1200 (Socket H5) |
| Memory | |
|---|---|
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Maximum internal memory | 128 GB |
| Supported memory clock speeds | 2666,2933,3200 MHz |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Hard drive | |
|---|---|
| Storage drive interface | PCI Express, Serial ATA III |
| Graphics | |
|---|---|
| On-board graphics adapter | Y |
| Graphics adapter family | Intel |
| On-board graphics adapter model | Intel® UHD Graphics |
| Audio | |
|---|---|
| Built-in speaker(s) | N |
| Network | |
|---|---|
| Ethernet LAN | Y |
| Wi-Fi | Y |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Bluetooth | Y |
| Bluetooth version | 4.2 |
| Other features | |
|---|---|
| USB 2.0 ports quantity | 4 |
| Quick start guide | Y |
| Ports & interfaces | |
|---|---|
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| HDMI version | 2.0b |
| DisplayPorts quantity | 1 |
| Microphone in | Y |

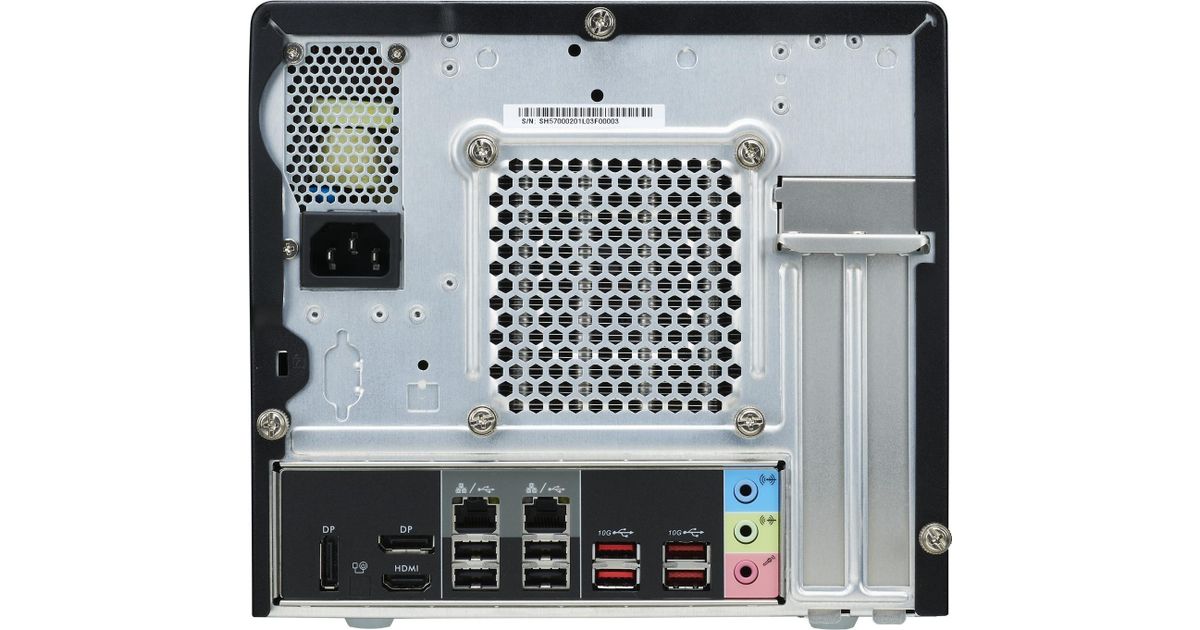

| Rear panel I/O ports | |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| Design | |
|---|---|
| Chassis type | 13L sized PC |
| Product colour | Black |
| Cooling type | Active |
| Product type | PC barebone |
| On/off switch | Y |
| Housing material | Aluminium |
| Cable lock slot type | Kensington |
| Performance | |
|---|---|
| Cable lock slot | Y |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium G |
| BIOS | |
|---|---|
| BIOS type | AMI |
| BIOS memory size | 16 Mbit |
| Software | |
|---|---|
| Windows operating systems supported | Windows 10 |
| Operating system installed | N |
| Power | |
|---|---|
| Power supply | 500 W |
| Number of power supply units | 1 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 215 mm |
| Depth | 332 mm |
| Height | 190 mm |
| Weight | 3.5 kg |
| Package weight | 4.5 kg |
| Packaging content | |
|---|---|
| Power cord included | Y |
Product Description
The Shuttle XPC cube Barebone SH570R8 is able to accommodate up to four 3.5 inch hard drives for enormous storage capacity - ideal for both home and commercial applications. However, this barebones platform is way more than just about storage - the SH570R8 has enough grunt under its aluminium bonnet to be a high-end gaming PC or a workstation for intensive graphics or even video applications. Its black-brushed aluminium case shows how discreet and stylish a powerful PC can look.
